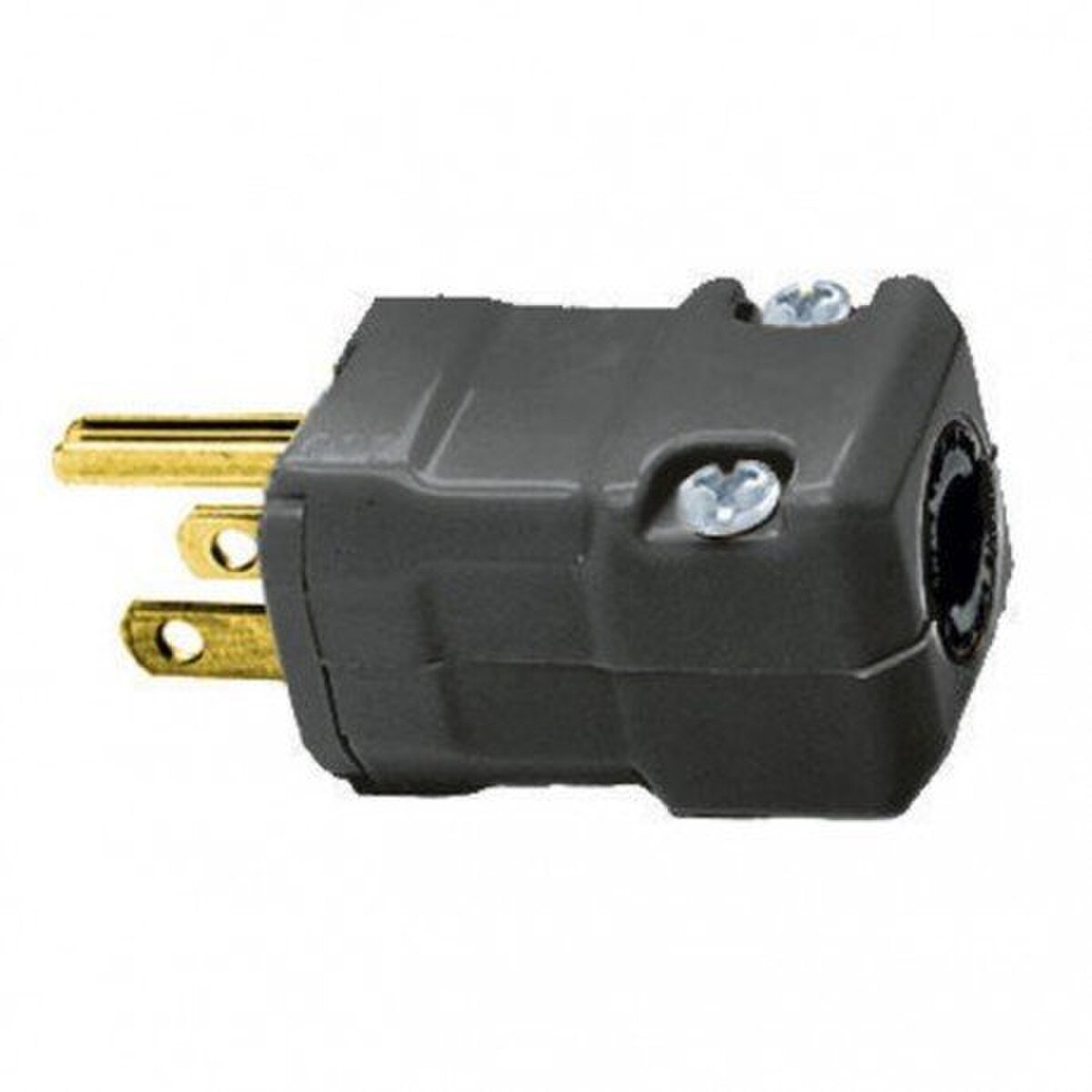

Hubbell Straight Blade Male Plug, Valise Series, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P - Black

(0)No Reviews yet
$8.54
SKU: Hubbell HBL5966VBLK

Details

Straight Blade Devices, Male Plug, Valise Series, Industrial/Commercial Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5-15P, Black, Single Pack.

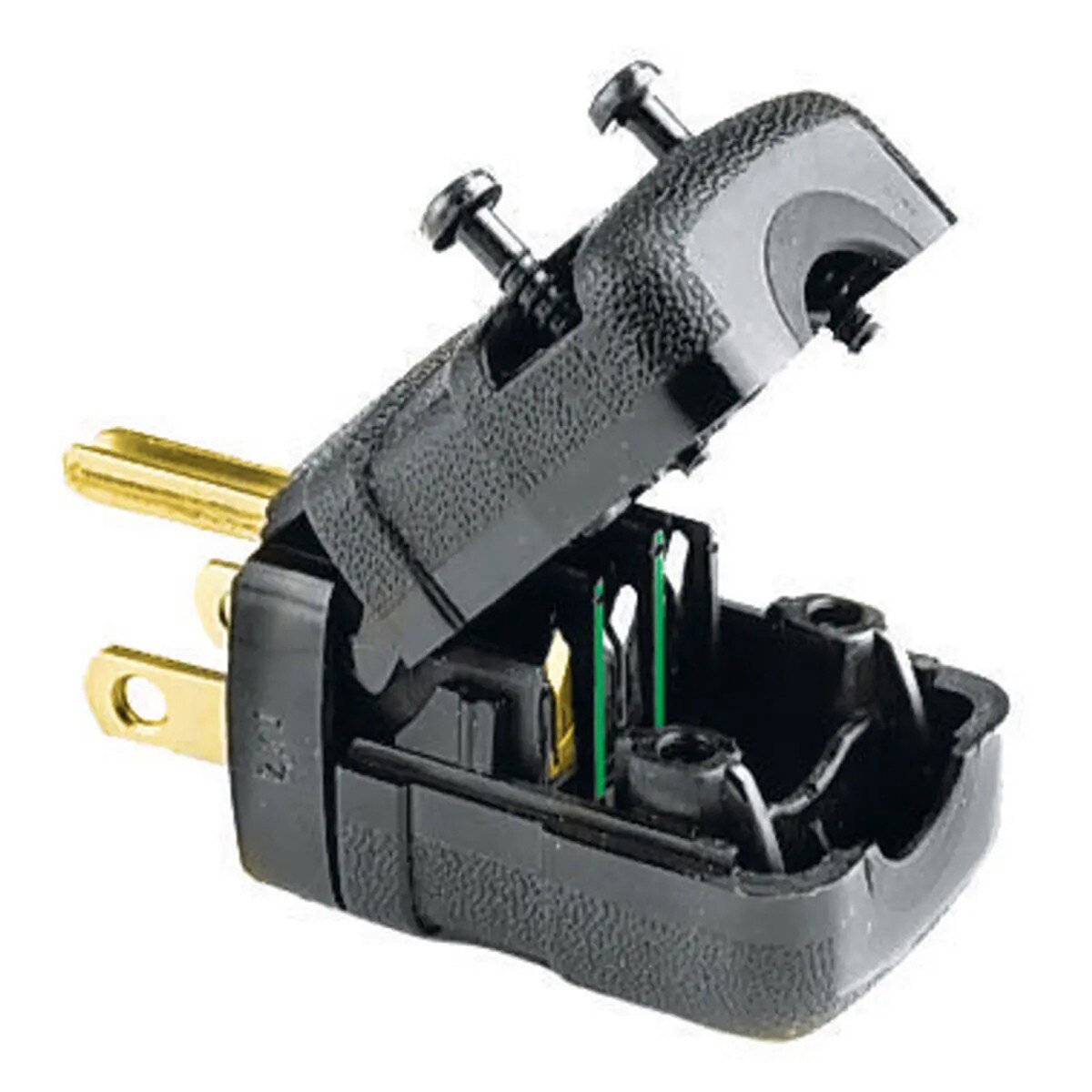

  • Hinged one piece body design for easy assembly
  • Powerful, offsetting cord grips clamp on individual conductors
  • Assembly screws are captive and will not fall out while wiring
  • Insulation displacement terminals reduce assembly time

General:

  • Application: Industrial/Commercial Grade
  • Horsepower - Maximum: 2
  • Item Type: Valise
  • Material: Polycarbonate
  • Material - Mounting Hardware: Cord Mounted
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Valise®
  • Style: Standard
  • Type: Plug
  • UPC: 783585013428

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 HB or better
  • Environmental - IP Suitability - IP20
  • Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #18-16 AWG. Standed copper wire only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

  • Weight: 0.1 lb

Electrical Ratings:

  • Amperage Rating: 15 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V

Conductor Related:

  • Number Of Wires: 3-Wire
  • Wire Size: #18 AWG to #16 AWG

Certifications and Compliance:

  • CSA Certified to C22.2 No. 42 File 280
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File E1706
  • Nema Rating: 5-15P
  • Standards - RoHS Compliance Status: CM

Logistics:

  • Carton Quantity: 10
  • Pallet Quantity: 6000

Hubbell HBL5966VBLK Instruction Manual.pdf
Hubbell HBL5966VBLK Specifications.pdf
Hubbell HBL5966VBLK Dimensional Drawing.pdf
Hubbell HBL5966VBLK Warranty.pdf
