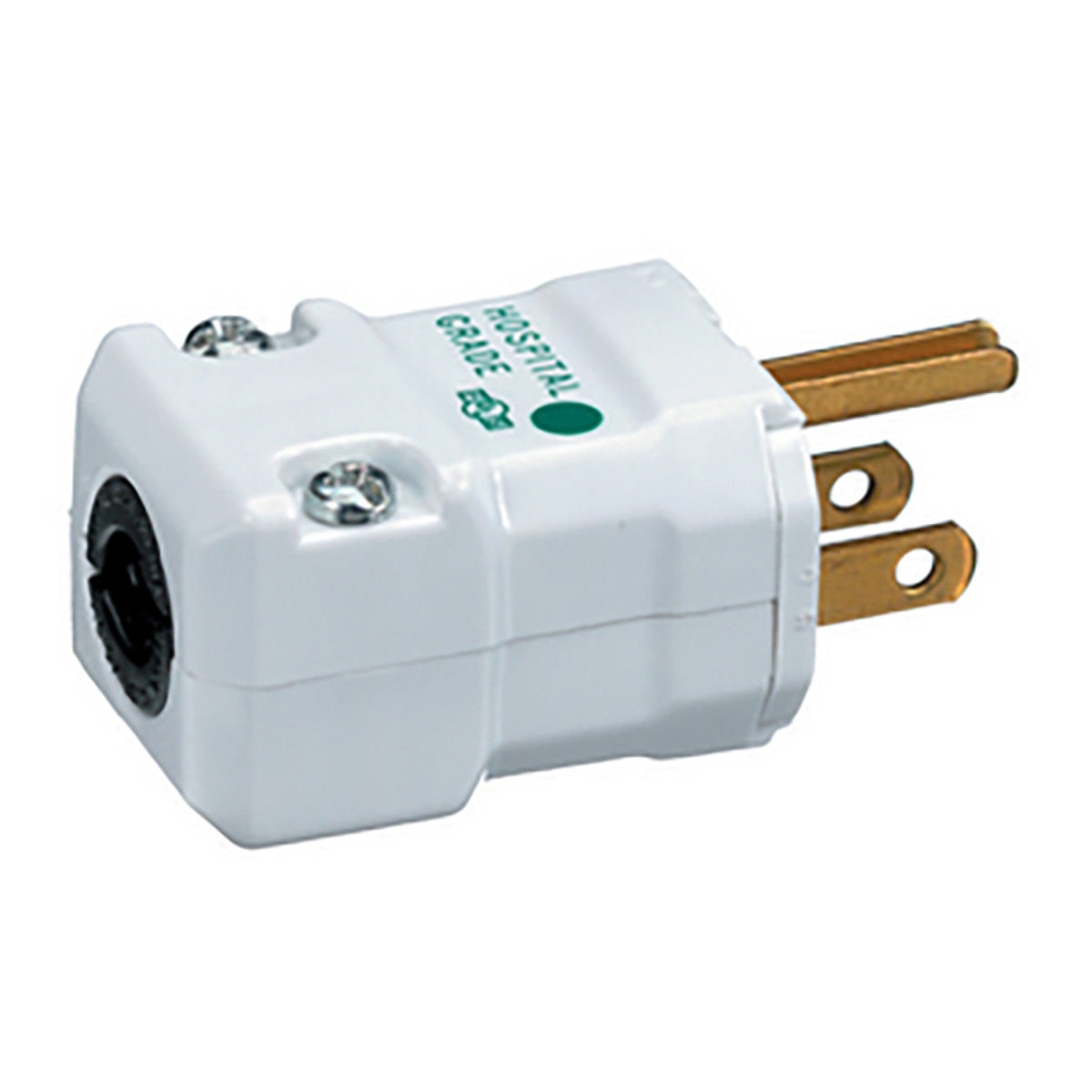

Hubbell Straight Blade Male Plug, Valise Series, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15P - White

Straight Blade Devices, Male Plug, Valise Series, Hospital Grade, Straight, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15P, White, Single Pack.

General:

• Application: Hospital Grade
• Color: White
• Cord Range: 0.300"-0.660" (7.6-16.8)
• EU RoHS Indicator: Contact Manufacturer
• Horsepower - Maximum: 0.5
• Item Type: Valise Plug
• Material: Nylon
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Hospital Grade
• Style: Valise
• Type: Plugs
• UPC: 783585015637

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2000V AC minimum
• Environmental - Flammability - UL 94 HB
• Environmental - IP Suitability - IP20
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #16 to #12 AWG
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 1.88 in x 1.25 in x 1.13 in
• Height: 1.13 in
• Length: 1.88 in
• Weight: 0.15 lb
• Width: 1.25 in

Electrical Ratings:

• Amperage Rating: 15 A
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #12 AWG

Certifications And Compliance:

• Nema Rating: 5-15P
• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• Certified to CSA, C22.2, No. 42 File 285
• Fed. Spec. W-C-596
• NEMA® WD-6 Compliant
• UL Listed to UL498 File No. E2186

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 6000
