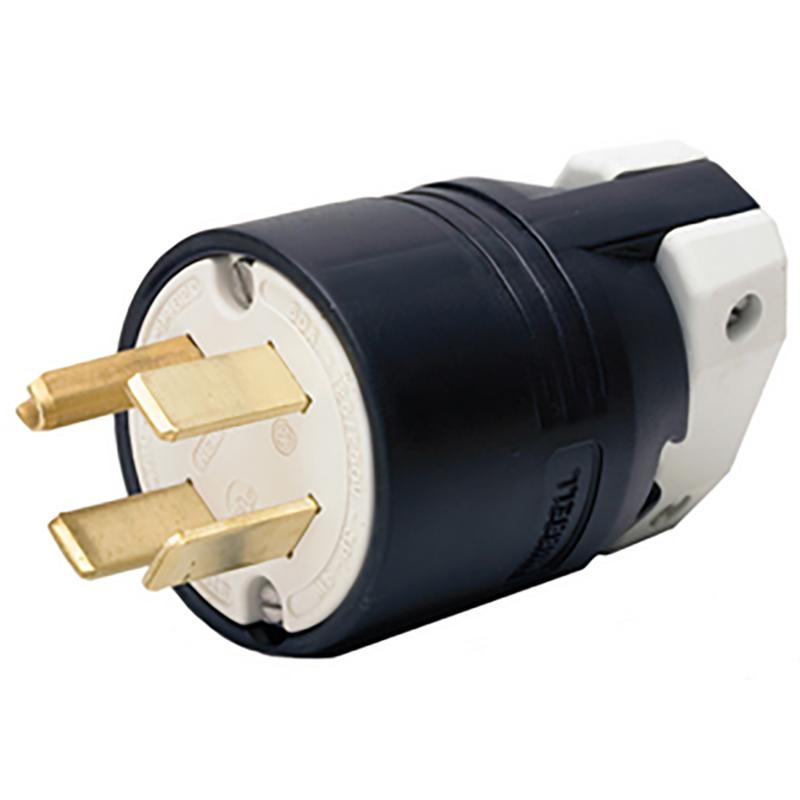

Hubbell Straight Blade Nylon Male Plug, 3-Pole 4-Wire Grounding, 60A 125/250V, 14-60P - Black

Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 4-Wire Grounding, 60A 125/250V, 14-60P, Black, Single Pack.

General:

• Color: Black
• Cord Range: 0.625"-1.310"
• EU RoHS Indicator: Contact Manufacturer
• Horsepower - Maximum: 3
• Material: Nylon
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: Extra Heavy Duty
• Style: Grounding
• Type: Plug
• UPC: 783585015354

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 HB
• Environmental - IP Suitability - IP20
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 4.13 in x 2.88 in x 2.88 in
• Height: 2.88 in
• Length: 4.13 in
• Weight: 0.8 lb
• Width: 2.88 in

Electrical Ratings:

• Amperage Rating: 60 A
• Current / Amperage Rating: 60 A
• Current Rating: 60 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125/250 V, 125 V V V
• Voltage Rating Description: 125/250 V

Conductor Related:

• Number Of Wires: 4-Wire
• Wire Size: #12 AWG to #4 AWG

Certifications And Compliance:

• Nema Rating: 14-60P

Industry Standard(s):

• CSA Certified
• UL Listed File E1706

Logistics:

• Carton Quantity: 5
• Pallet Quantity: 680
