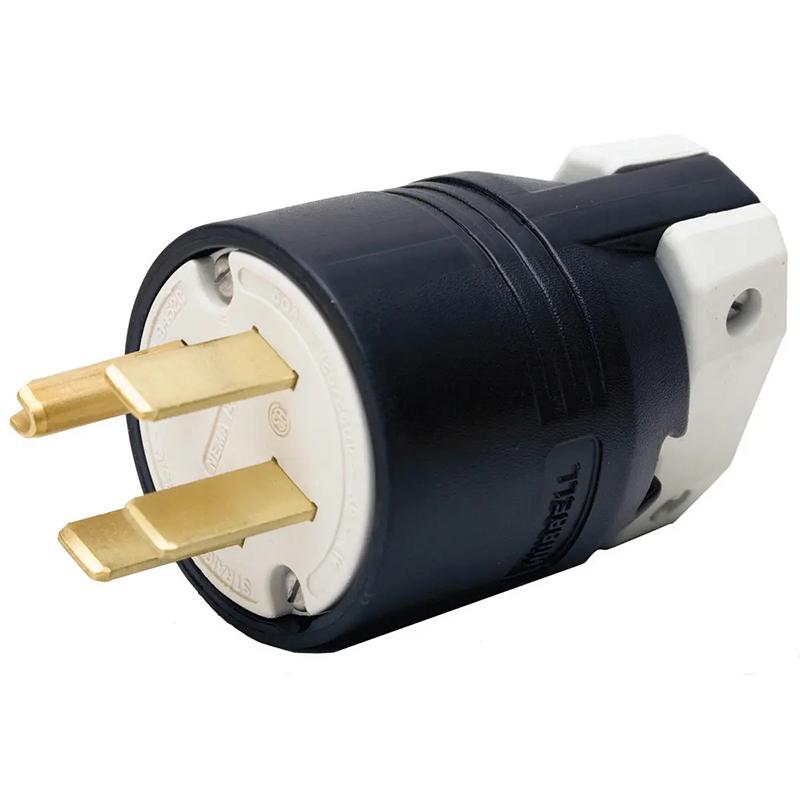

Hubbell Straight Blade Heavy Duty Nylon Male Plug Industrial/Commercial Grade, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P

Straight Blade Devices, Male Plug, Nylon, Heavy Duty, Industrial/Commercial Grade, Straight, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50P, Black, Single Pack.

• Gripping ribs provide secure gripping area
• Super tough nylon housing
• Catalog number, ratings and certifications molded in face

General:

• Catalog Number: HBL9451C
• Color: Black
• Cord Range: 0.625"-1.310"
• EU RoHS Indicator: Contact Manufacturer
• Material: Nylon
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Style: Grounding
• Type: Plug
• UPC: 783585015323

Specifications:

• Blade Holder - Reinforced Thermoplastic Polyester
• Blades - Brass
• Box Terminals - Copper Alloy
• Housing - Supertough Nylon
• Mounting Screw - Stainless steel

Dimensions:

• Dimensions: 4.13 in x 2.88 in x 2.88 in
• Height: 2.88 in
• Length: 4.13 in
• Weight: 0.85 lb
• Width: 2.88 in

Electrical Ratings:

• Amperage Rating: 50 A
• Dielectric Strength: Withstands 2,000V minimum
• Voltage Rating: 125/250 V, 125 V V V

Conductor Related:

• Number Of Wires: 4-Wire
• Wire Size: #12 AWG to #4 AWG
• EU RoHS Indicator: Contact Manufacturer
• Nema Rating: 14-50P

Certifications And Compliance:

• Buy America(n) Qualified: Buy American Act Compliant (All status valid till December 2025), BABA Compliant (All status valid till December 2025)

Industry Standard(s):

• CSA Certified
• UL Listed File E1706

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 3-Pole

Logistics:

• Carton Quantity: 5
• Pallet Quantity: 765
