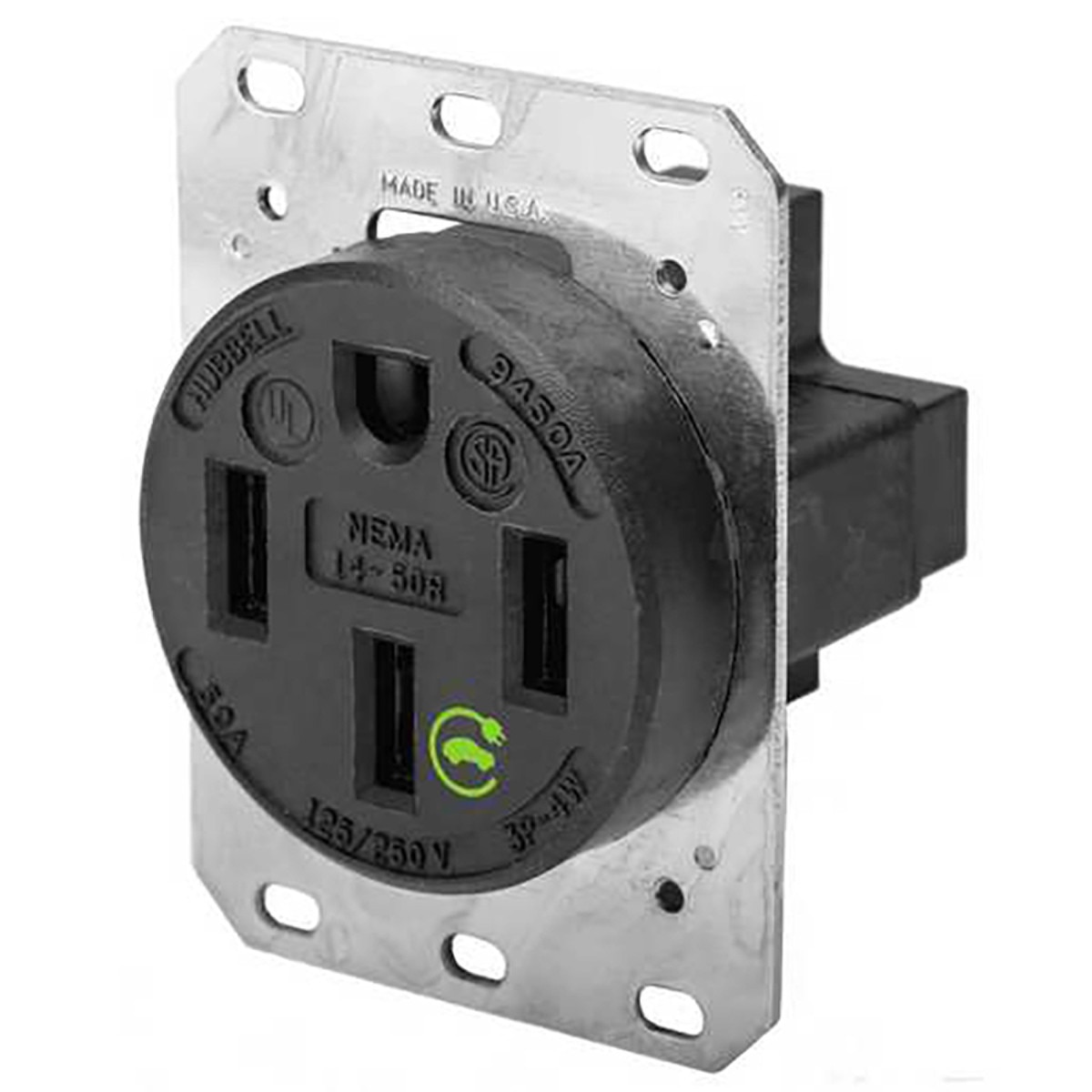

Hubbell Straight Blade RTP Receptacle, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50R - Black

Straight Blade Devices, Receptacles, RTP, Industrial Grade, 3-Pole 4-Wire Grounding, 50A 125/250V, 14-50R, Black, Single Pack.

General:

• Color: Black
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Horsepower - Maximum: 3
• Item Type: Single
• Material: Thermoplastic/Composite
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Receptacle
• UPC: 783585015316

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-0
• Environmental - IP Suitability - IP20
• Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #12 AWG through #4 AWG copper wire only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 3.28 in x 2.75 in x 2.44 in
• Display Size: Standard Sized Product
• Height: 2.44 in
• Length: 3.28 in
• Weight: 0.7 lb
• Width: 2.75 in

Electrical Ratings:

• Amperage Rating: 50 A
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125/250 V, 125 V V V
• Voltage Rating Description: 125/250 V
• Wattage: 12500 W

Conductor Related:

• Number Of Wires: 4-Wire Grounding
• Wire Size: #12 AWG to #4 AWG

Industry Standard(s):

• CSA Certified
• NEMA® WD-6 Compliant
• UL Listed File E2186

Certifications And Compliance:

• Nema Rating: 14-50R

Logistics:

• Carton Quantity: 5
• Pallet Quantity: 1800
