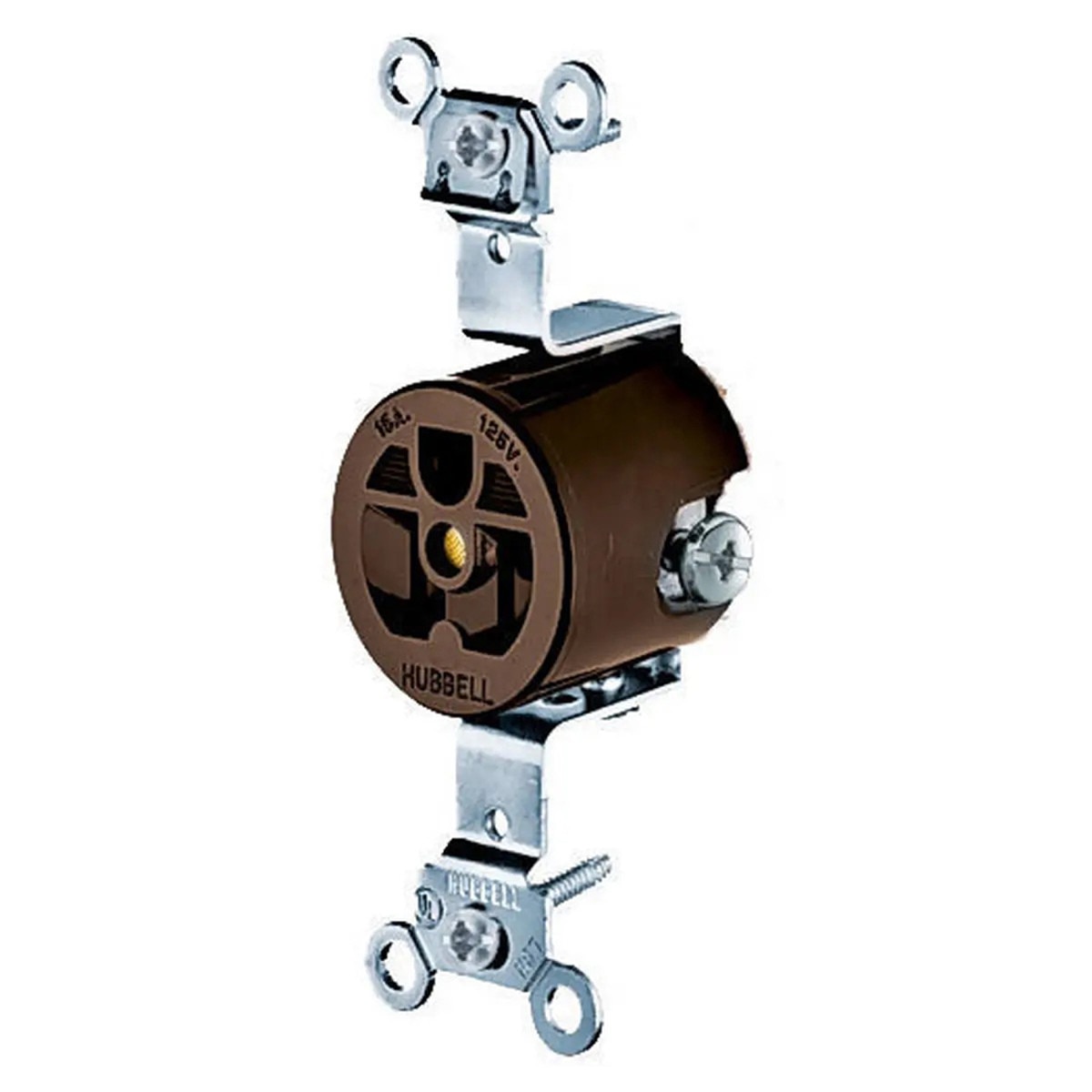

Hubbell Straight Blade Receptacle 2-Pole 3-Wire Grounding, 15A 125V, 5-15R - Brown

(0)No Reviews yet
$7.34
SKU: Hubbell HBL5251

Details

Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5-15R, Brown, Single Pack.


  • Slender/compact design
  • Triple wipe contacts
  • Self Grounding

General:

  • Application: Heavy Duty
  • Color: Brown
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 0.5
  • Item Type: Single
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Heavy Duty
  • Style: Finder Groove Face
  • Type: Single Receptacle
  • UPC: 783585013817

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - UL 94 V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #14-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

  • Dimensions: 3.28 in x 1.39 in x 1.13 in
  • Display Size: Standard Sized Product
  • Height: 1.13 in
  • Length: 3.28 in
  • Weight: 0.15 lb
  • Width: 1.39 in

Electrical Ratings:

  • Amperage Rating: 15 A
  • Connectivity: Side Wired Only
  • Current / Amperage Rating: 15 A
  • Current Rating: 15 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V
  • Wattage: 1875 W

Conductor Related:

  • Number Of Wires: 3-Wire
  • Wire Size: #14 AWG to #10 AWG

Certifications and Compliance:

  • Certified to CSA 22.2, No. 42
  • Fed. Spec. WC596
  • NEMA® WD-6 Compliant
  • UL Listed, File E2186
  • Nema Rating: 5-15R
  • Standards - RoHS Compliance Status: CM

Logistics:

  • Carton Quantity: 10

Hubbell HBL5251 Instruction Manual.pdf
Hubbell HBL5251 Specifications.pdf
Hubbell HBL5251 Dimensional Drawing.pdf
Hubbell HBL5251 Warranty.pdf
