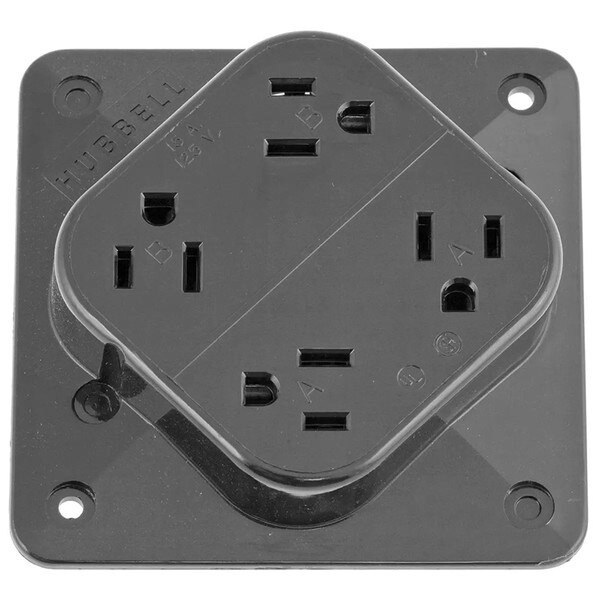

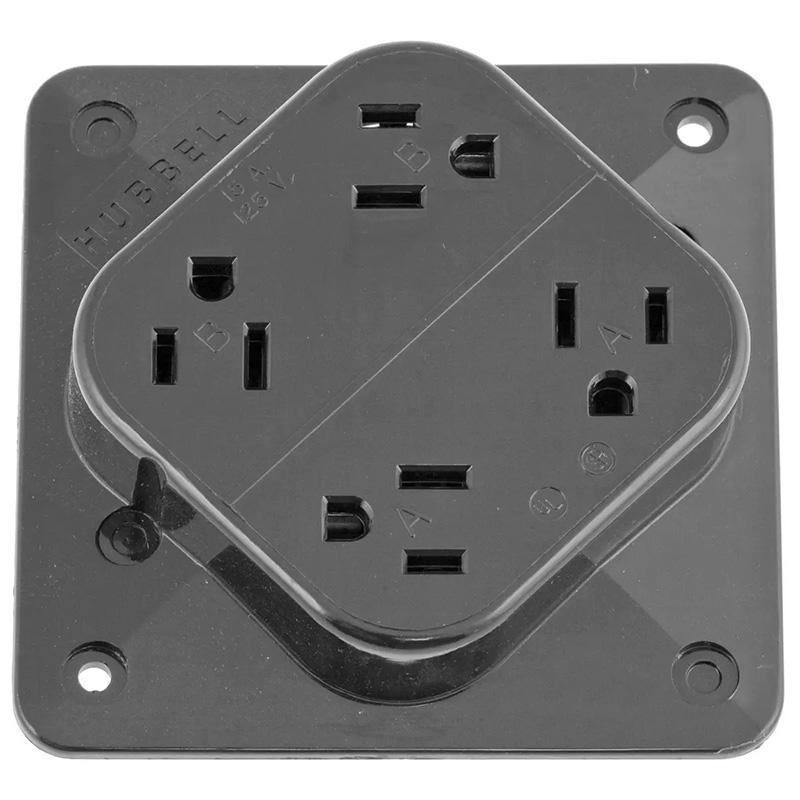

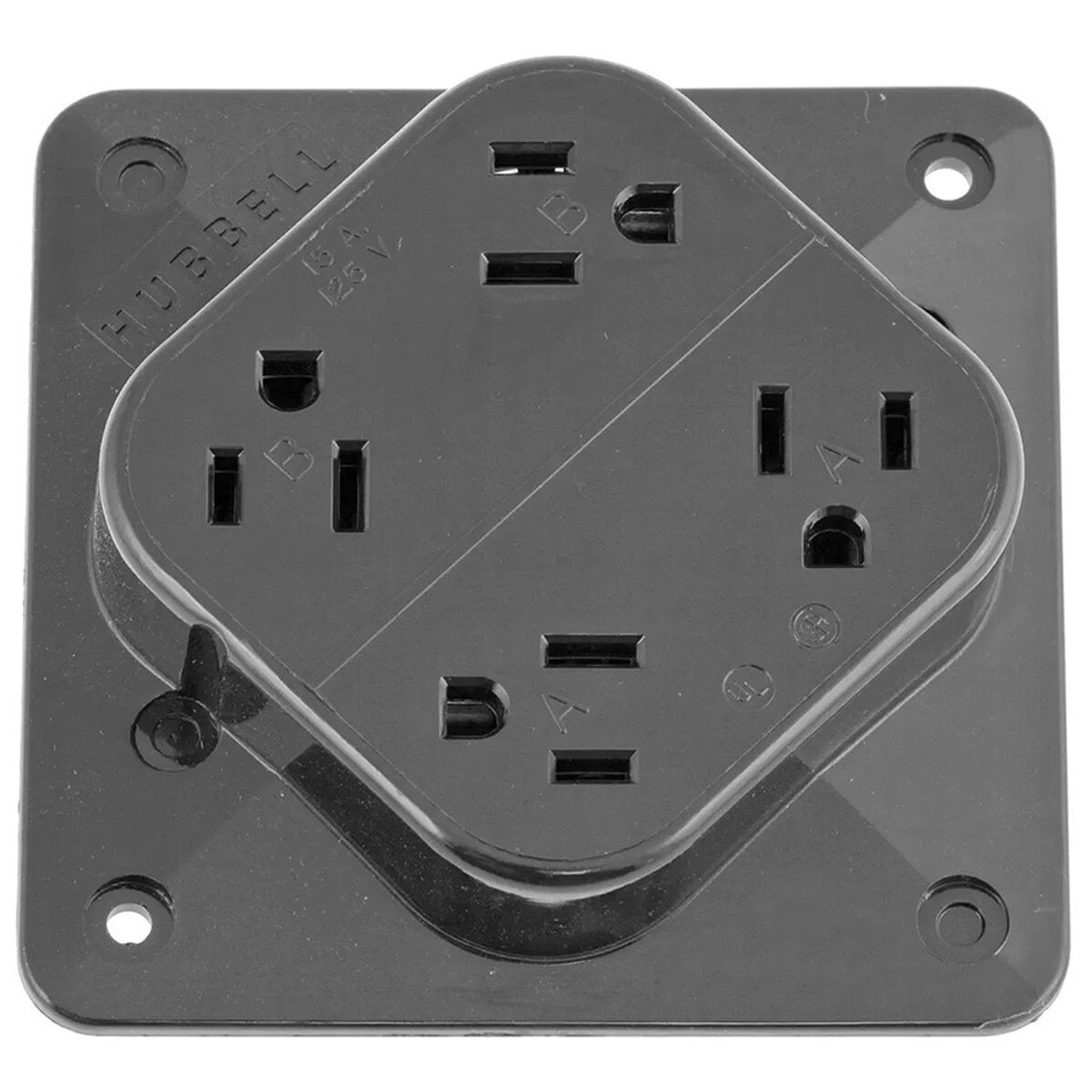

Hubbell Straight Blade Receptacles, 4-Plex, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R - Gray

Straight Blade Devices, Receptacles, 4-Plex, Commercial/Industrial Grade, 2-Pole 3-Wire Grounding, 15A 125V, 5- 15R, Gray, Single Pack.

• Anchor hole and loop feature secures solid wire for fast, easy terminations
• Triple wipe contacts
• Easily accessible break-off tabs for split wiring
• Three conductors energize all four outlets
• 4 Receptacles in one

General:

• Application: Industrial
• Color: Gray
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 0.50
• Item Type: 4-PLEX
• Material: Polycarbonate
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Series: 4-Outlet Receptacle
• UPC: 783585014500

Performance:

• Electrical - Current Interrupting - Capable of withstanding a fault level of 1000A, per UL498
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V-2
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact)
• Mechanical - Product Identification - Ratings are a permanent part of the device
• Mechanical - Terminal Accommodation - #14-12 AWG stranded or solid copper conductor only
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

• Dimensions: 4.30 in x 0.92 in x 4.30 in
• Display Size: Standard Sized Product
• Height: 4.30 in
• Length: 4.30 in
• Weight: 0.4 lb
• Width: 0.92 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V
• Wattage: 1875 W

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #14 AWG to #12 AWG

Certifications and Compliance:

• Certified to CSA 22.2, No. 42 File 285
• Listed to UL Standard 498 File E2186
• NEMA® WD-6 Compliant
• Nema Rating: 5-15R

Logistics:

• Carton Quantity: 5
