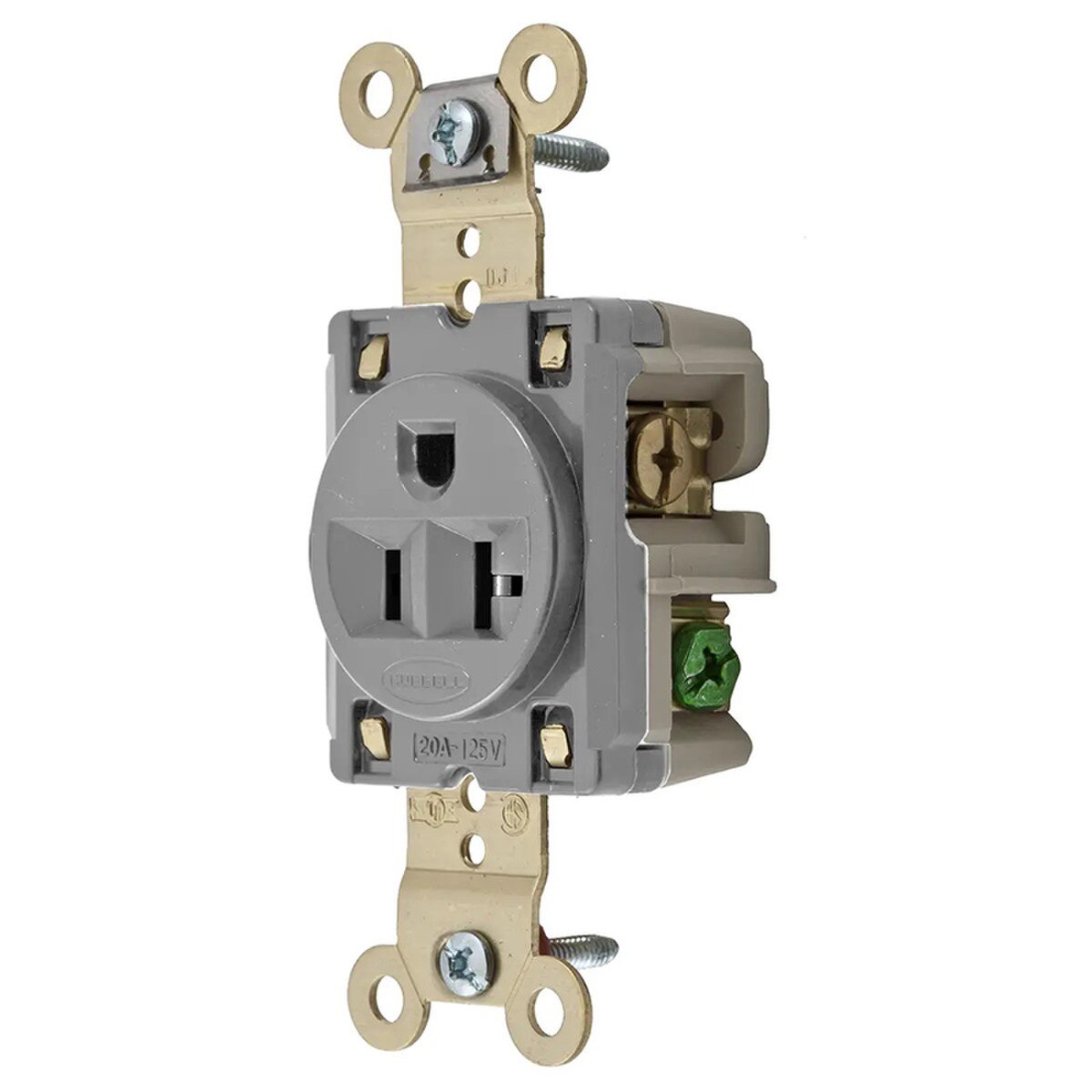

Hubbell Straight Blade Single Receptacle 2-Pole 3-Wire Grounding, 20A 125V, 5-20R - Gray

(0)No Reviews yet
$11.28
SKU: Hubbell HBL5361GY

Details

Straight Blade Devices, Receptacles, Single, Industrial Grade, 2-Pole 3-Wire Grounding, 20A 125V, 5-20R, Gray, Single Pack.


HBL® Extra Heavy Duty Max Industrial Series - Hubbell’s commitment to quality continually reinforces a philosophy of unrivaled performance. No Hubbell device exemplifies this philosophy more than the HBL5262. While all Hubbell receptacles are designed and manufactured to withstand even the harshest environments, none match the total performance of the HBL5262. Whether in a factory, office building or school, the Hubbell HBL5262 is the receptacle of choice when people are depending on the safety and reliability of a receptacle. The safest, most reliable design for a low resistance flow of fault currents. Oversized “bell" shaped ground contacts, along with nickel plated steel retaining shields, help minimize damage to the grounding system during abrupt pullout.


  • One-piece brass integral ground strap
  • Unique bypass contact design
  • Self Grounding

General:

  • Application: Extra Heavy Duty Specification Grade
  • Color: Gray
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • Horsepower - Maximum: 1
  • Item Type: Single
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Series: Extra Heavy Duty
  • Style: Finder Groove Face
  • Type: Single Receptacle
  • UPC: 783585014302

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - Top: UL 94V-2, Base: UL 94V-0
  • Environmental - Operating Temperatures - Maximum continuous 75°C, minimum -40°C (w/o impact)
  • Mechanical - Product Identification - Ratings are a permanent part of the device
  • Mechanical - Terminal Accommodation - #12-#10 AWG copper stranded or solid conductor only
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA

Dimensions:

  • Dimensions: 3.28 in x 1.63 in x 1.19 in
  • Display Size: Standard Sized Product
  • Height: 1.19 in
  • Length: 3.28 in
  • Weight: 0.15 lb
  • Width: 1.63 in

Electrical Ratings:

  • Amperage Rating: 20 A
  • Connectivity: Back and Side Wired Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 125 VAC
  • Voltage Rating Description: 125 V
  • Wattage: 2500 W

Conductor Related:

  • Number Of Wires: 3-Wire
  • Wire Size: #12 AWG to #10 AWG

Certifications and Compliance:

  • Certified to CSA 22.2, No. 42 File 285
  • Fed. Spec. W-C-596
  • NEMA® WD-6 Compliant
  • UL Listed to UL498 File No. E2186
  • Nema Rating: 5-20R
  • Standards - RoHS Compliance Status: CM

Logistics:

  • Carton Quantity: 10


Hubbell HBL5361GY Instruction Manual.pdf
Hubbell HBL5361GY Specification.pdf
Hubbell HBL5361GY Dimensional Drawing.pdf
Hubbell HBL5361GY Warranty.pdf
