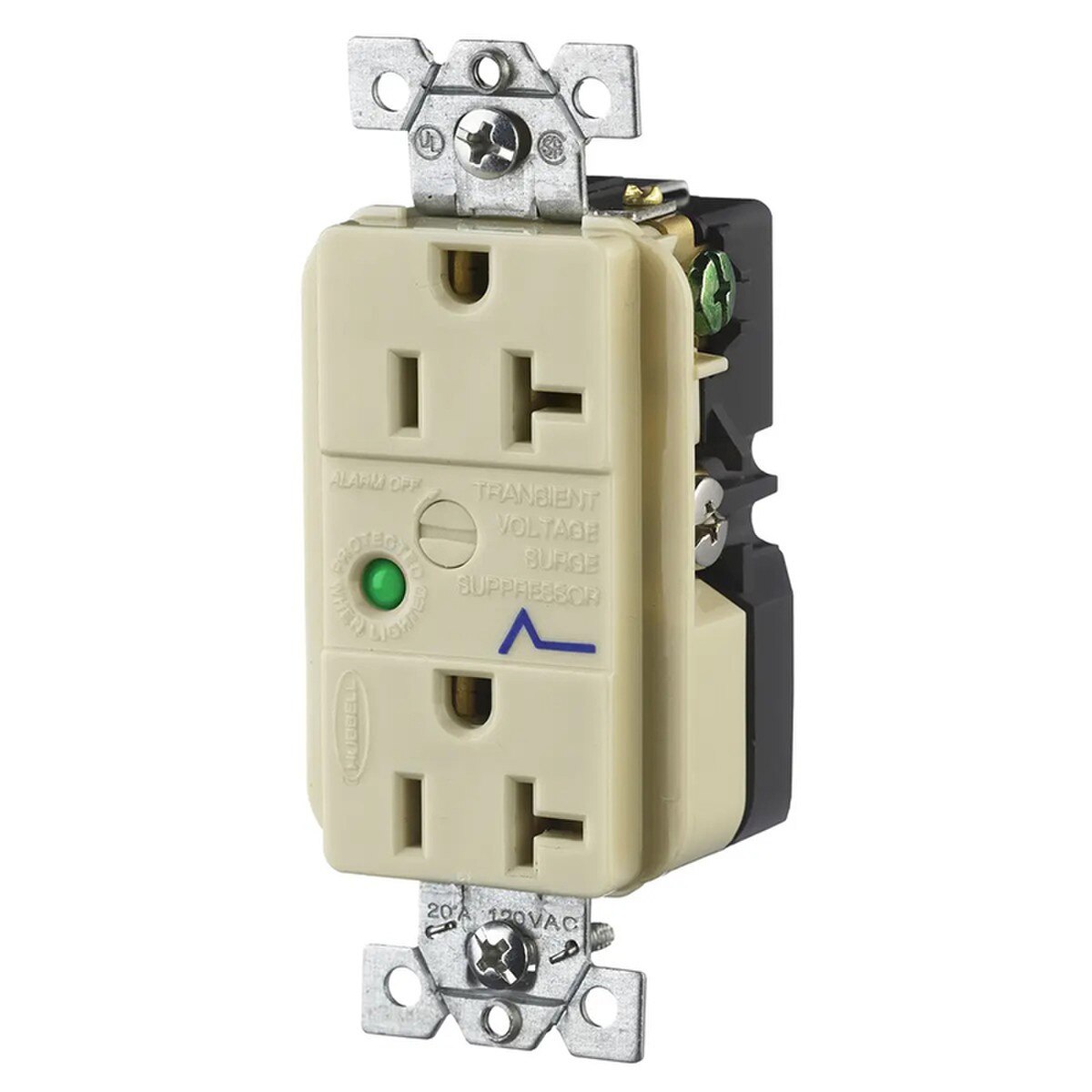

Hubbell Surge Protective SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R - Ivory

Surge Protective Devices, SPIKESHIELD TVSS Duplex Receptacle with Light and Alarm, 20A 125V, 5-20R, Ivory

Hubbell offers a broad range SPD receptacles with technology that is unsurpassed. Inside Hubbell SPD receptacles are two 22mm square MOVs providing 240 joules of surge protection for each mode. The nylon component shield protects the printed circuit board from contaminants. An all-glass, conformally coated PC board provides superior moisture immunity for longer life in humid environments.

• Automatic self-grounding staple
• Distinctive surge symbol provides quick identification
• Power-on indicator light verifies that power is available
• Alert alarm sounds when surge protection is no longer functioning
• Standard Product

General:

• Application: Decorator Duplex with Light and Alarm
• Color: Ivory
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Indicator(s) Type: LED and Audible Alarm
• Item Type: Surge Protection Receptacles
• Material: Composite
• Material - Mounting Hardware: Mounting Screws
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: 32 Deg F to 140 Deg F (0 Deg C to 60 Deg C)
• Outlet: Straight Blade
• Series: Specification Grade
• Type: Duplex
• UPC: 783585060279

Performance:

• Electrical - Protection Modes - Normal and Common Modes
• Electrical - Response Time - Approximately 5 ns
• Electrical - Transient Suppression - Peak Energy (10 X 100 µs), Peak Current (8 X 20 µs)
• Electrical - Voltage - 120V AC + 10% - 15%
• Environmental - Flammability - UL 94V-2
• Environmental - Operating Temperature - 32°F to 140°F (0°C to 60°C)
• Response Time: 5

Dimensions:

• Display Size: Standard

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Frequency Rating: 60 Hz
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Certifications and Compliance:

• CSA Certified to Specification C22.2 No. 42
• Listed to UL Standards 498
• UL Listed File E2186
• Nema Rating: 5-20R

Logistics:

• Carton Quantity: 10
