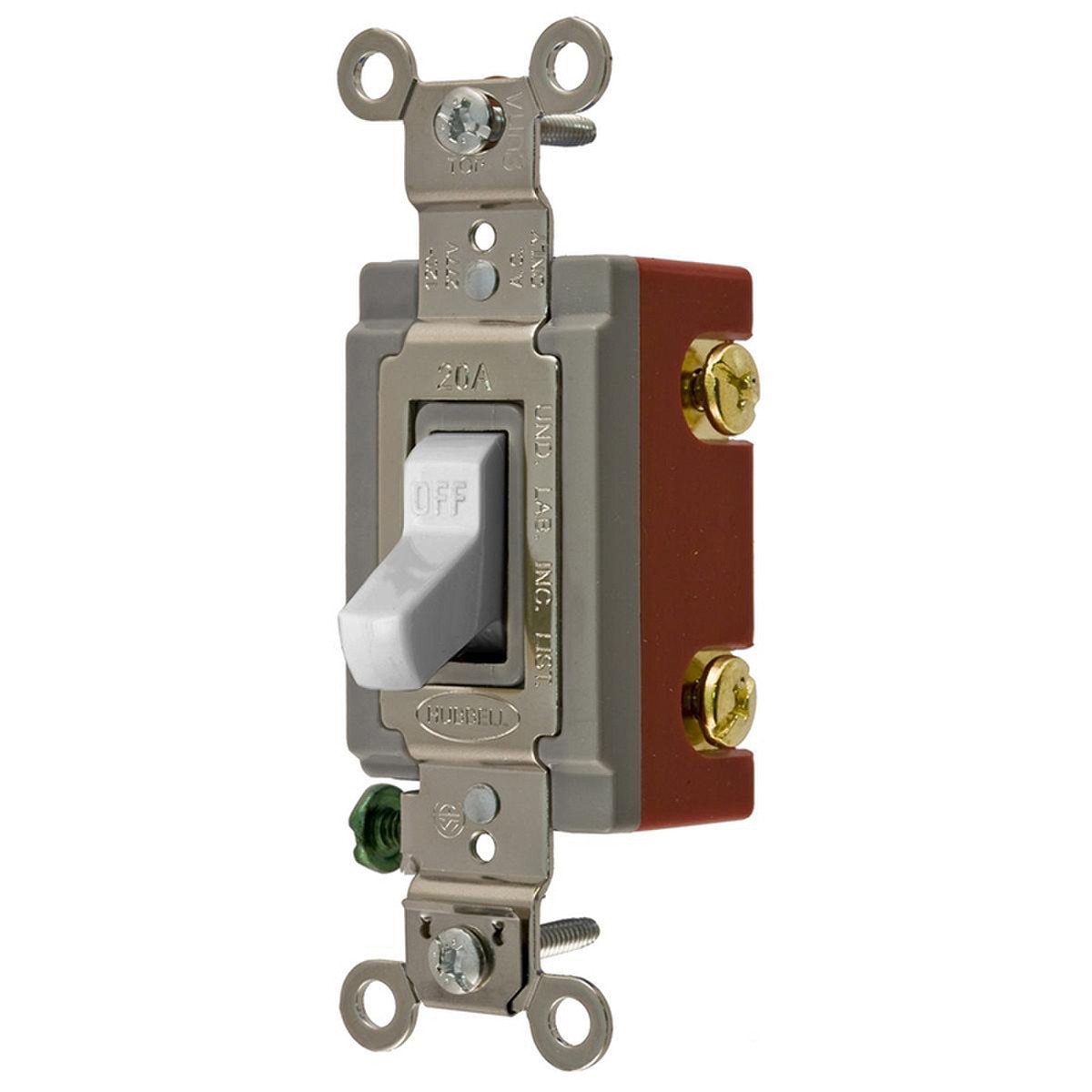

Hubbell Toggle Switch, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired - Office White

Switches and Lighting Controls, Extra Heavy Duty Industrial Grade, Toggle Switches, General Purpose AC, Single Pole, 20A 120/277V AC, Back and Side Wired, Office White Toggle

Item Features:

• Large brass binding head screws with deep slots
• Abuse resistant nylon toggle
• Strip gauge for accurate wiring

Specifications:

• Brand: Hubbell
• Actuator: Toggle
• Amperage Rating: 20, 20 A
• Color: Off-White, Office White
• Contact Configuration: 2-Position
• Dimensions: 4.06 in L x 1.31 in W x 1.87 in H, 4.06 x 1.31 x 1.87 in
• Environmental Conditions: -40 to 75 deg C, -40 to 75 deg C Operating Temperature
• Material: Thermoset
• Mounting: Threaded
• Number of Poles: 1
• Operating Cycles: 50000, 50000 cycles
• Power Rating: 5540, 5540 W
• Terminal Type: Back/Side Wire, Back/Side Wired
• Type: Extra Heavy Duty Standard
• Voltage Rating: 120 to 277 VAC, 120/277
• UNSPSC: 39122211
• Description: Hubbell HBL1221OW AC Toggle Switch

Hubbell HBL1221OW Specifications.pdf
Hubbell HBL1221OW Installation Manual.pdf
Hubbell HBL1221OW Full Engineering Drawing.pdf
Hubbell HBL1221OW Dimensional Drawing.pdf
