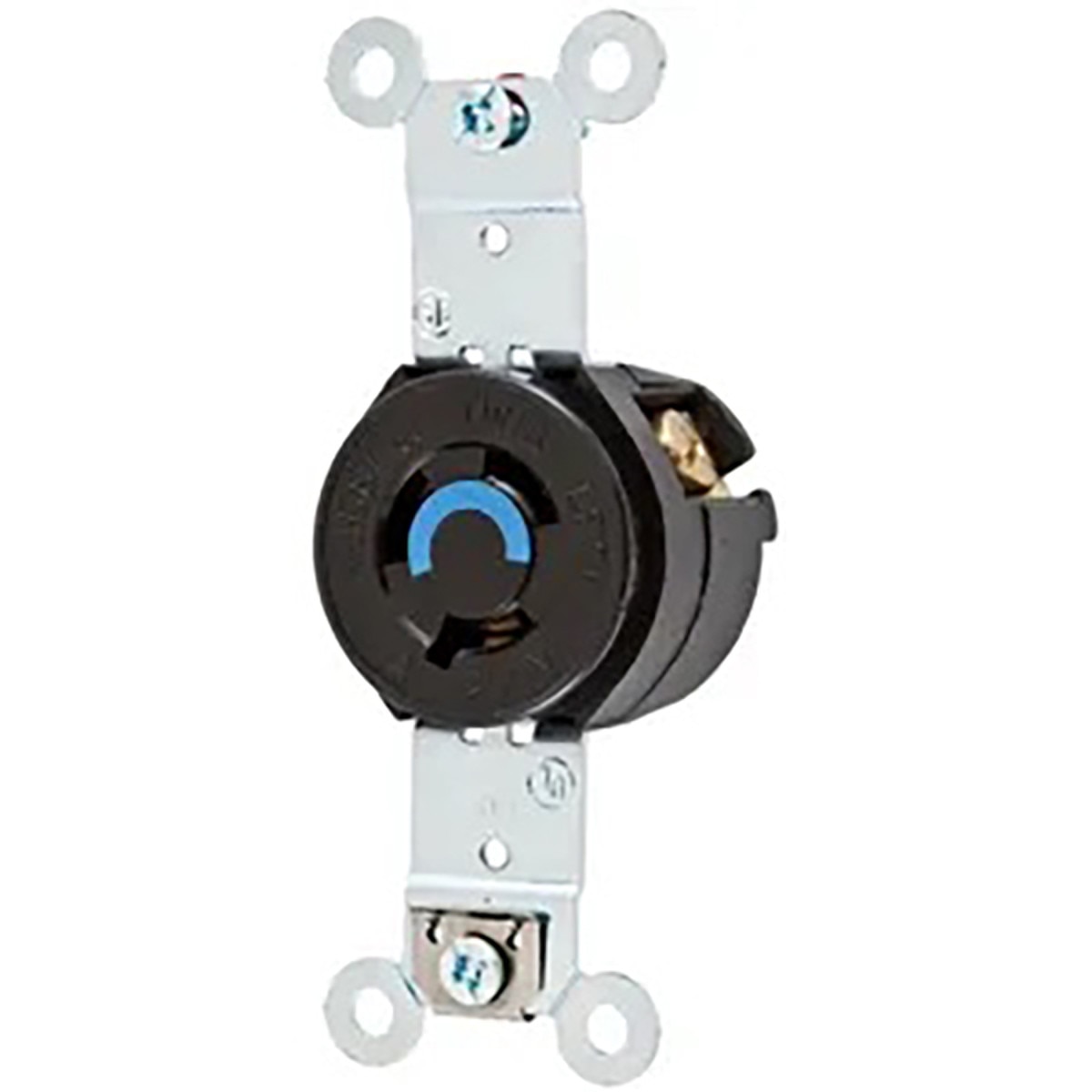

Hubbell Twist-Lock Black Single Receptacle 15A 250V, 2-Pole 3-Wire Grounding, L6-15R Screw Terminal

Locking Devices, Twist-Lock®, Industrial, Single Receptacle, 15A 250V, 2-Pole 3-Wire Grounding, L6-15R, Screw Terminal, Black

Specifications:

• Amperage Rating: 15 A
• Application: Heavy Duty Industrial
• Approval: UL 94/498, CSA C22.2
• Base Unit of Measure: EA
• Box Size: 3.238x9.178x4.298 (in)
• Carton - Gross Weight per Pack: 1.85 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 784000000000
• Carton - Total Units: 10 EA
• Case - Total Units: 100 EA
• Case Weight: 15.000 lb.
• Class Code: A08
• Color: Black
• Configuration: L6-15R
• Connectivity: Back and Side Wired
• Construction Feature: Abuse Resistant, Corrosion Resistant
• Country of Origin: US
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Description - Invoice: LKG SGL RCPT, 15A 250V, L6-15R, BK
• Dielectric Strength: Withstands 2,000V minimum
• Dimensions: 3.28 in x 1.53 in x 1.27 in
• Display Size: Standard Sized Product
• EU RoHS Indicator: Yes
• Each - Pack Description: Each
• Each - Width: 1.790 in
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Face Outer Diameter: 1.38 Inch
• Freight Class Code: 6168002
• Ground Type: Grounding
• Harmonization Code: 8536694020
• Horsepower - Maximum: 1.5
• Image Actual Or Representative: A
• Industry Standard(s): Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
• Lowest Level UOM: Each
• MSDS Flag: No
• Material - Mounting Hardware: Screw Mounting
• Material: Thermoplastic
• Mounting: Flush Mount
• Number of Poles: 2-Pole
• Number of Wires: 3-Wire
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Performance: Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Phase: Single Phase
• Replaced Catalog Number: 4560;4560CN;HBL4560CN
• Series: Twist-Lock, Series HBL
• Size: 3.28 in x 1.53 in x 1.27 in
• Special Features: Standard
• Standards - RoHS Compliance Status: CM
• Standard: Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498
• Sub Class Code: A08A110
• Type: Receptacle
• UPC - 11 Digit: 78358523660
• UPC - 12 Digit: 783585236605
• Voltage Rating Description: 250 V
• Voltage Rating: 250 V
• Wire Size: #18 AWG to #10 AWG
• Wiring: Back, Side

Features:

• Reinforced thermoplastic construction
• All terminals are back and side wired
• Single piece, all brass contacts
• Brass mounting strap with stainless steel grounding clip
• Standard
