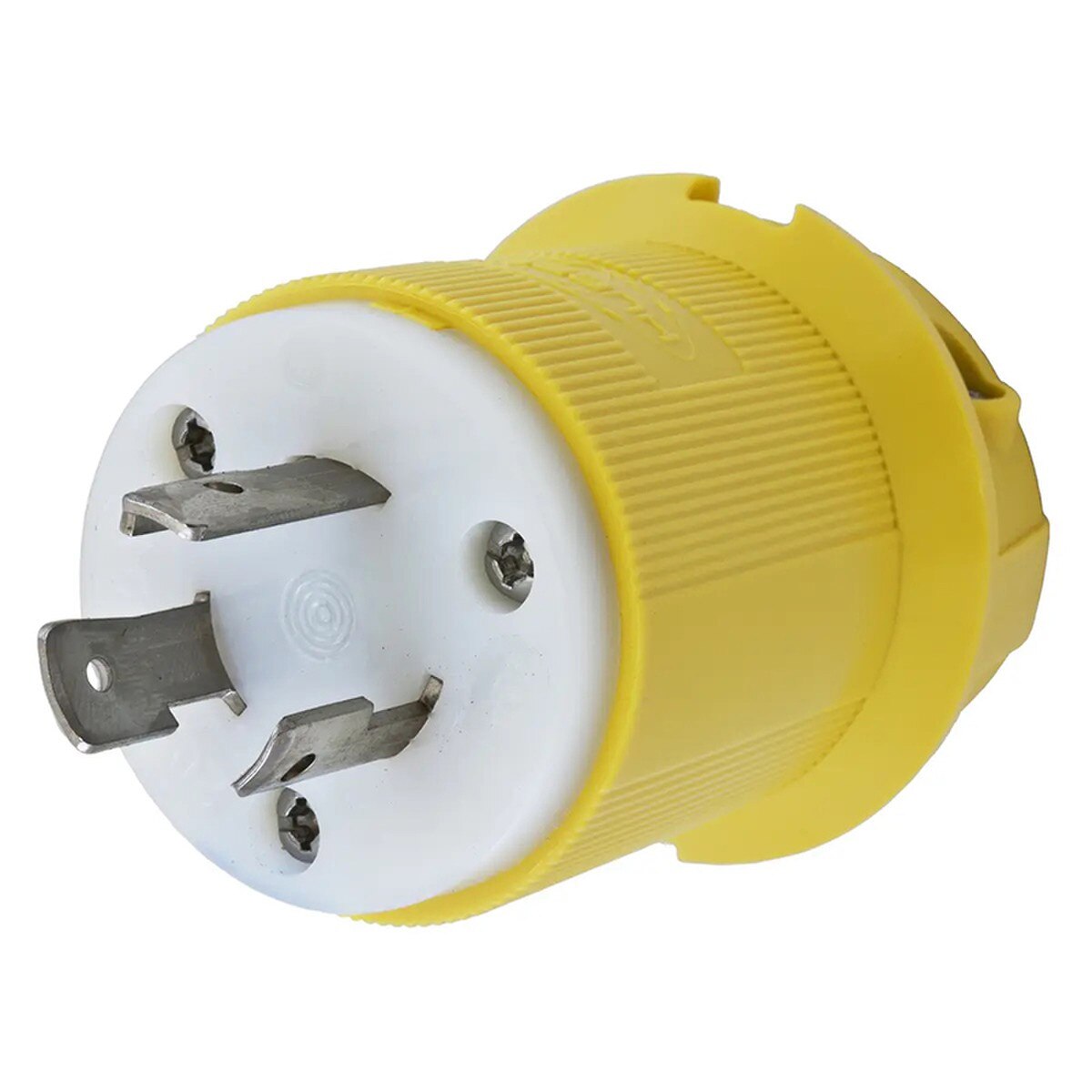

Hubbell Twist-Lock Corrosion Resistant Insulgrip® Plug, 20A, 250V AC, 2 Pole, 3 Wire Grounding - Yellow

Locking Devices, Twist-Lock®, Corrosion Resistant Insulgrip® Plug, 20A, 250V AC, 2 Pole, 3 Wire Grounding, Yellow

• Ribbed nylon housing provides a secure grip and impact and chemical resistance
• Superior cord grip design protects terminations from excess strain
• Integral dust shield protects wiring chamber from dust or contaminants
• Corrosion Resistant

General:

• Application: Extra Heavy Duty Industrial
• Catalog Number: HBL23CM21
• Color: Yellow
• Cord Range: 0.360"-0.930" (9-24)
• EU RoHS Indicator: Contact Manufacturer
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• UPC: 783585038117

Specifications:

• Assembly Screws - Stainless Steel
• Blades - Nickel Plated Brass
• Housing / Cord Clamp - Nylon
• Terminal Clamp - Cold rolled steel – nickel plated
• Terminal Retainer - Clear polycarbonate
• Terminal Screws - #10-32 Bronze (Phillips / Slotted / Robertson)

Dimensions:

• Dimensions: 2.75 in x 1.97 in x 1.97 in
• Height: 1.97 in
• Length: 2.75 in
• Weight: 0.25 lb
• Width: 1.97 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 250 VAC

Conductor Related:

• Number Of Wires: 3-Wire Grounding
• Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

• EU RoHS Indicator: Contact Manufacturer
• Nema Rating: L6-20P
• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Cord Type: All Listed Portables
• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 30
