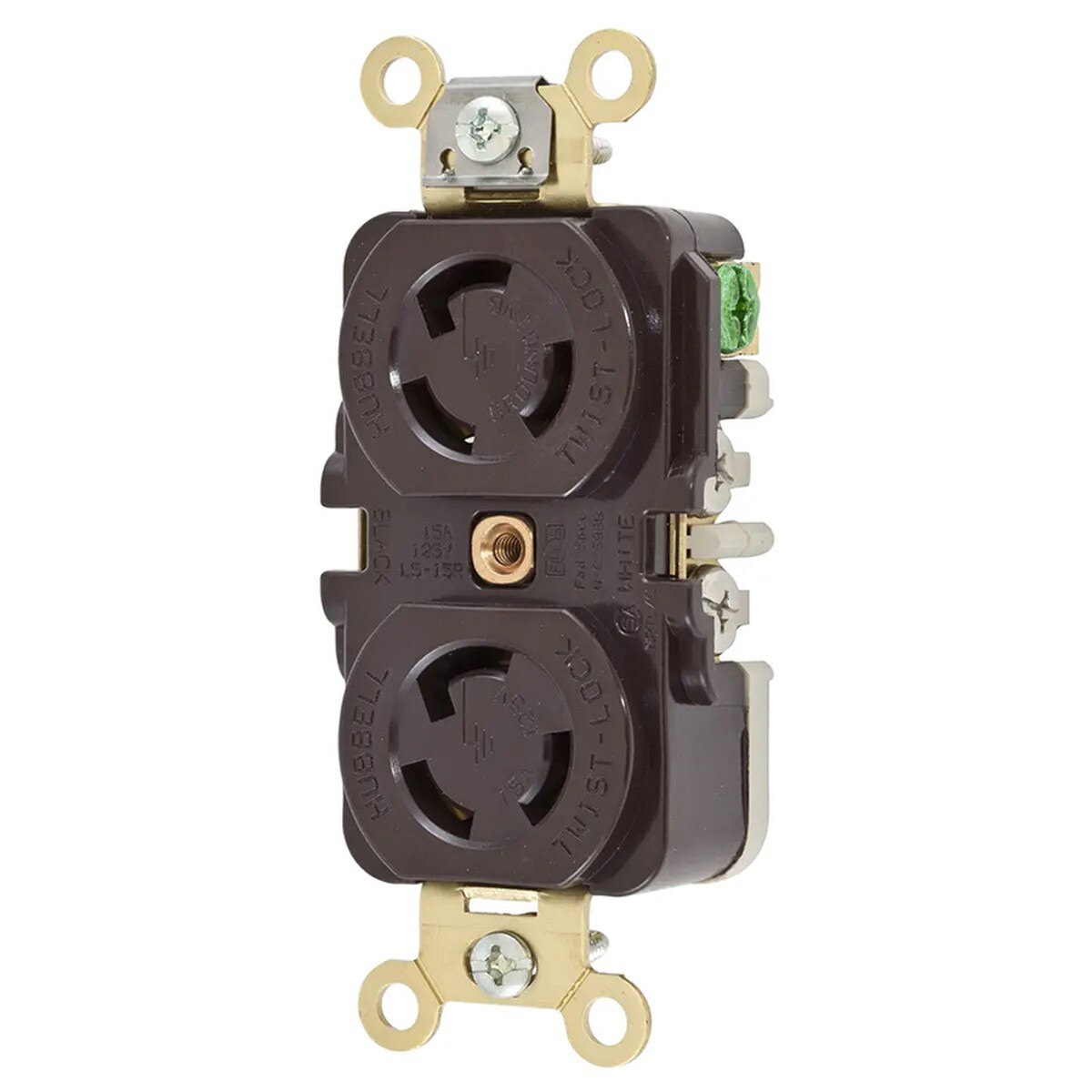

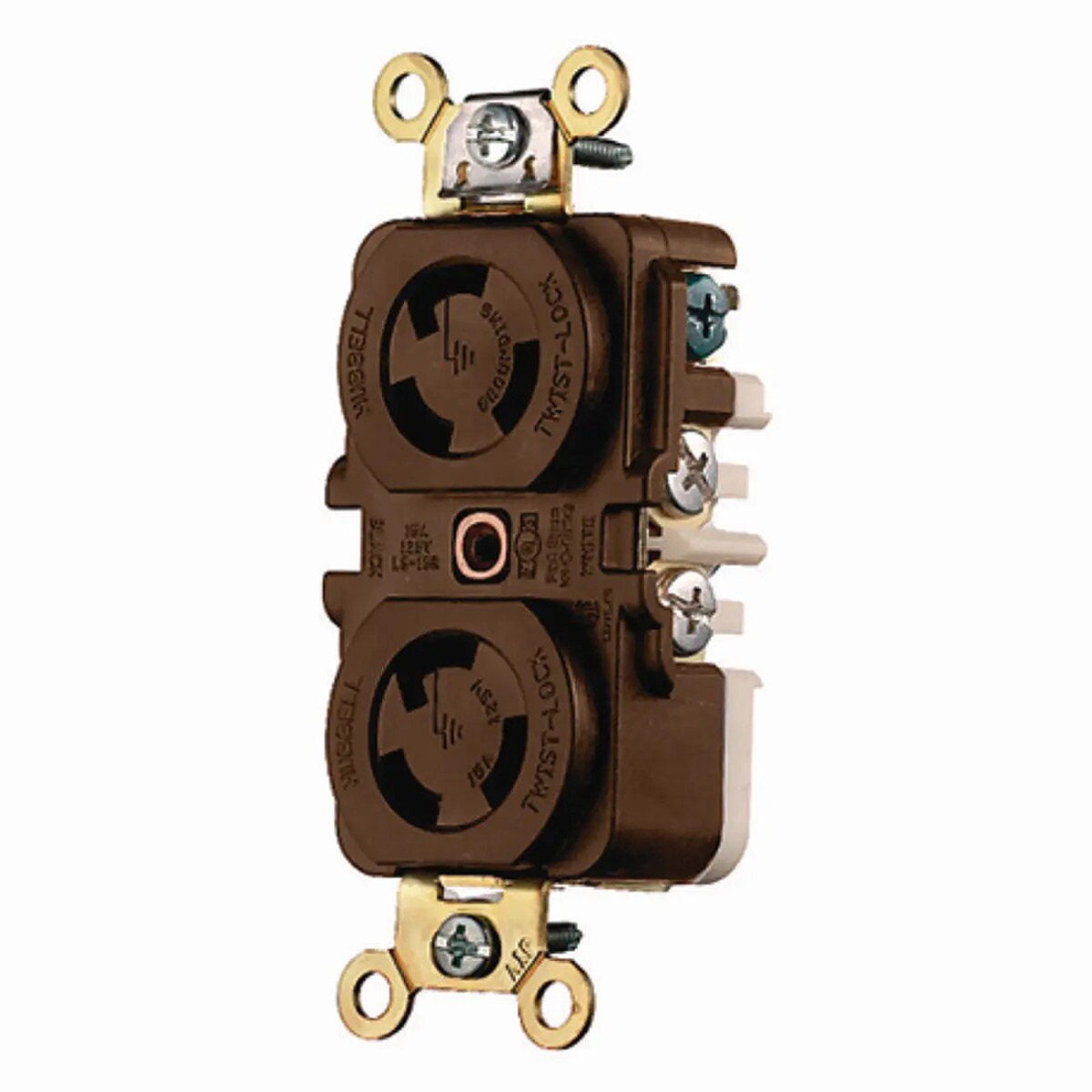

Hubbell Twist-Lock® Duplex Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, L5-15R, Screw Terminal - Brown

Locking Devices, Twist-Lock®, Industrial, Duplex Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Brown.

• Reinforced thermoplastic construction
• Single piece, all brass contacts
• Single point break-off tabs
• Mounting strap tabs lock the body and base together
• Self Grounding

General:

• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 0.5
• Item Type: 15A Duplex Flush Receptacle
• Material: Thermoplastic
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Receptacle
• UPC: 783585002309

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

• Dimensions: 3.29 in x 1.70 in x 1.17 in
• Display Size: Standard Sized Product
• Height: 1.17 in
• Length: 3.29 in
• Weight: 0.25 lb
• Width: 1.70 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Back and Side Wired
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG

Certifications and Compliance:

• Certified to CSA C22.2 No.42
• Fed. Spec. W-C-596
• Listed to UL 498
• Nema Rating: L5-15R
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
