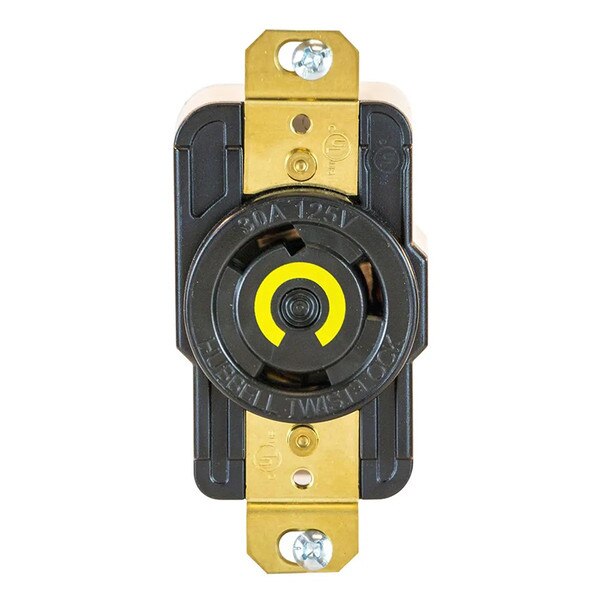

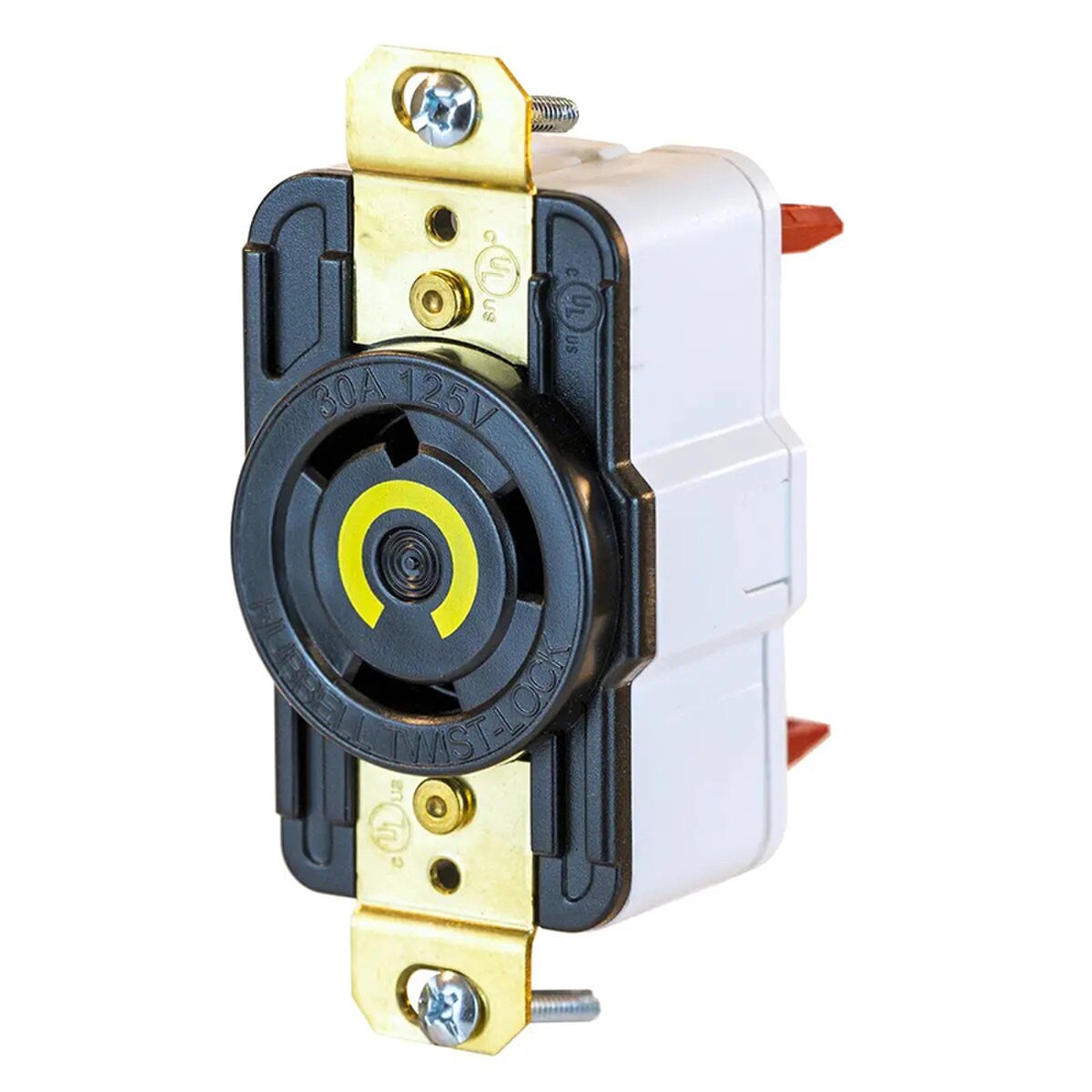

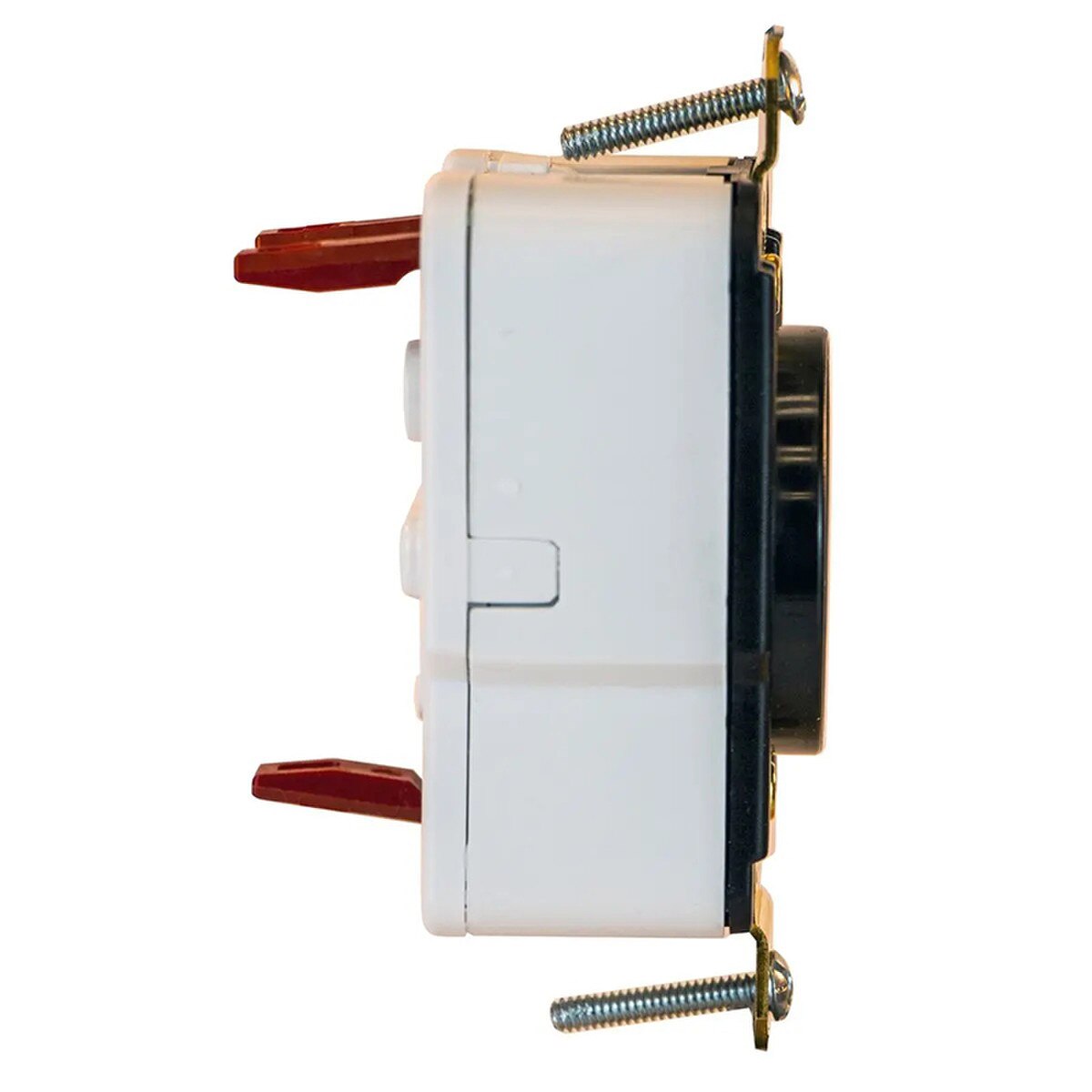

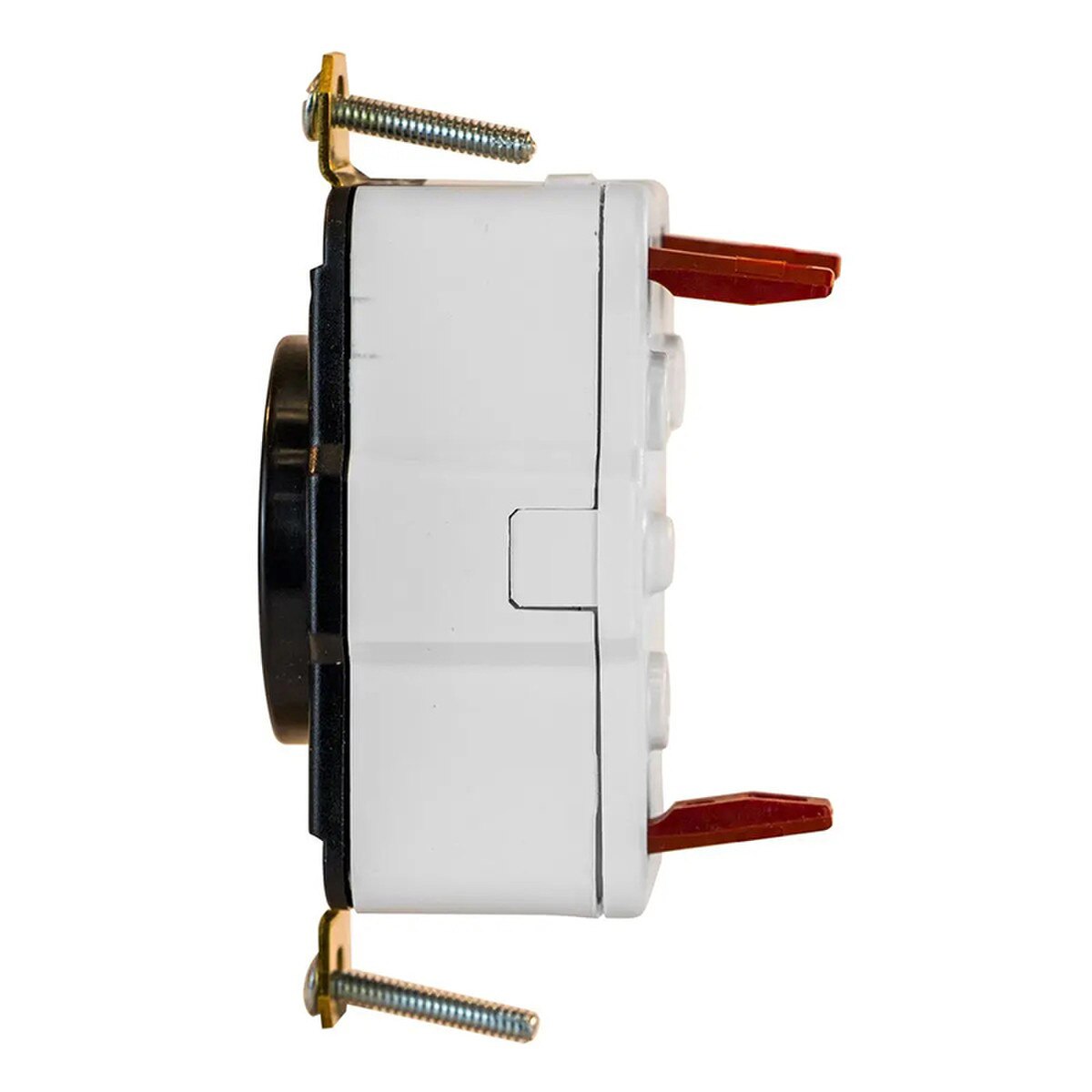

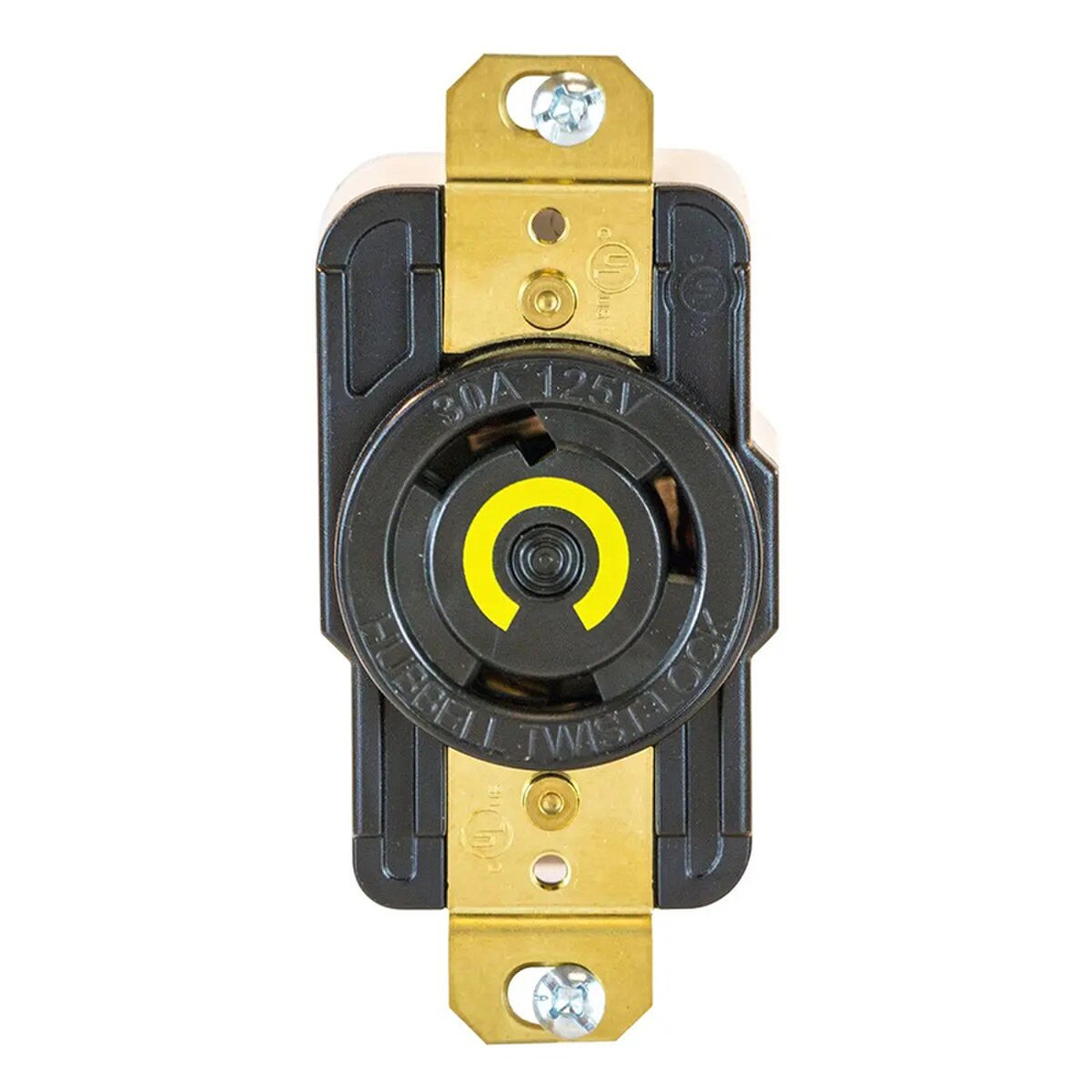

Hubbell Twist-Lock® EdgeConnect™ Receptacle with Spring Termination, 30A, 125V, L5-30R - Black

30A, 125V Twist-Lock Receptacle with Spring Termination

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• High-impact, abuse-resistant nylon face
• Face color coding by voltage facilitates locating and mating of proper devices

General:

• Application: Heavy Duty Industrial
• Color: Black
• Environmental Conditions: Indoor Dry unless protected by additional means
• Item Type: Single Receptacle
• Material: Nylon
• Mounting Type: Screw Mount
• Number Of Poles: 2
• Size: Standard Sized Product
• Temperature Rating: Maximum Continuous 75°C; Minimum -40°C (w/o impact)
• UPC: 783585569567

Dimensions:

• Dimensions: 3.28 in x 1.70 in x 1.47 in
• Height: 1.47 in
• Length: 3.28 in
• Width: 1.70 in

Electrical Ratings:

• Current / Amperage Rating: 30 A
• Dielectric Strength: Withstands 2,000V Minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Conductor Related:

• Number Of Wires: 3
• Wire Size: 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)

Certifications and Compliance:

• UL Listed To UL 498
• CSA Certified to Specification C22.2 No. 42
• Nema Rating: L5-30R

Logistics:

• Carton Quantity: 30
