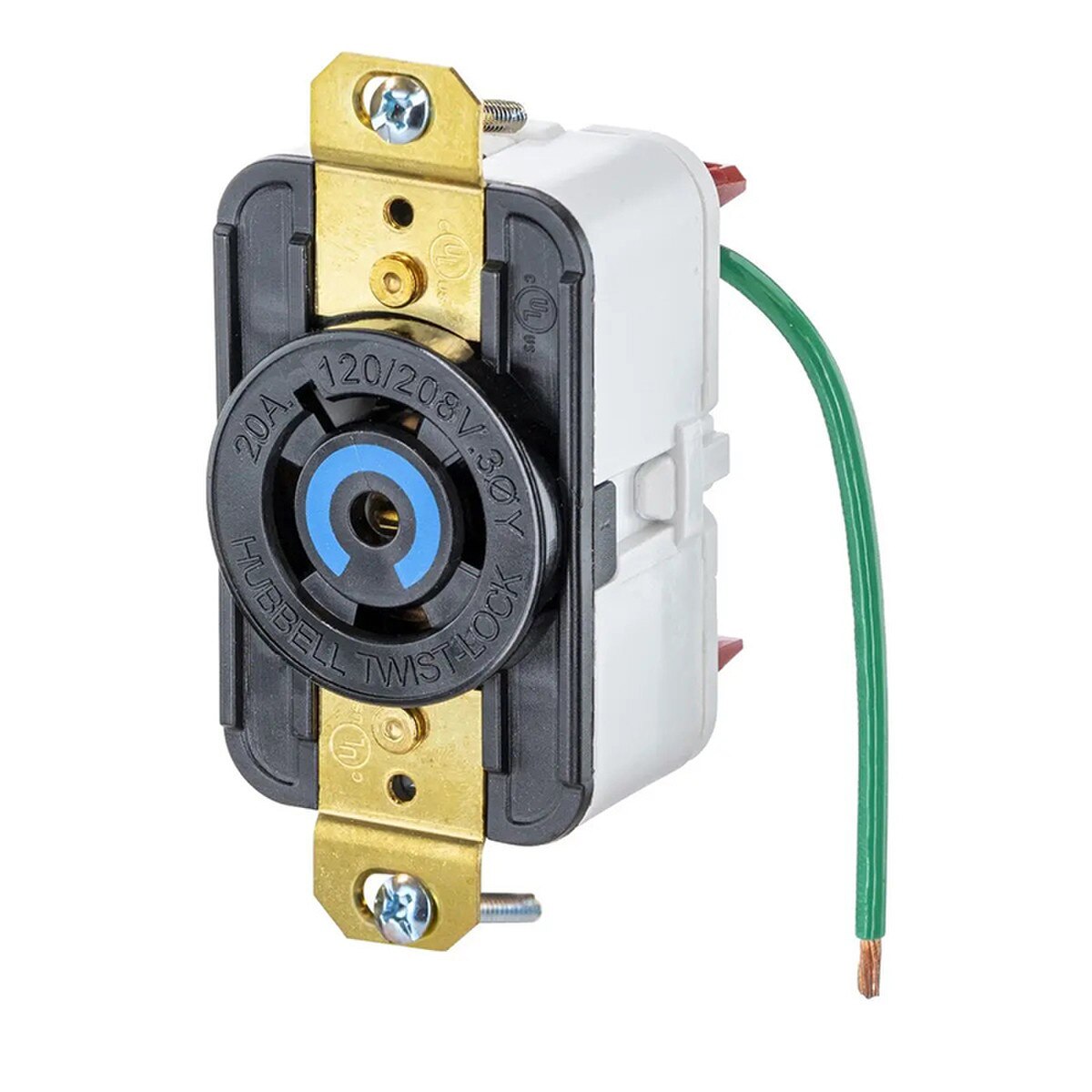

Hubbell Twist-Lock® EdgeConnect™ Single Receptacle with Spring Termination, 20A, 3PH 120/208V, L21-20R - Black

LKG RCPT, 20A 3PH 120/208V, L21-20R, BK, SPRING TERM

• Faster termination time
• No need for screwdriver and torque wrench
• Spring Termination eliminates strand relaxation
• High-impact, abuse-resistant nylon face
• Face color coding by voltage facilitates locating and mating of proper devices

General:

• Item Type: 20A, 3 phase wye, 120/208V AC Twist-Lock Receptacle with Spring Termination
• Number Of Poles: 4
• UPC: 783585788500

Dimensions:

• Dimensions: 3.28 in x 1.7 in x 1.468 in
• Height: 1.468 in
• Length: 3.28 in
• Width: 1.7 in

Electrical Ratings:

• Amperage Rating: 20 A
• Voltage Rating: 120/208 VAC

Conductor Related:

• Number Of Wires: 5
• Wire Size: 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded)

Logistics:

• Carton Quantity: 50
