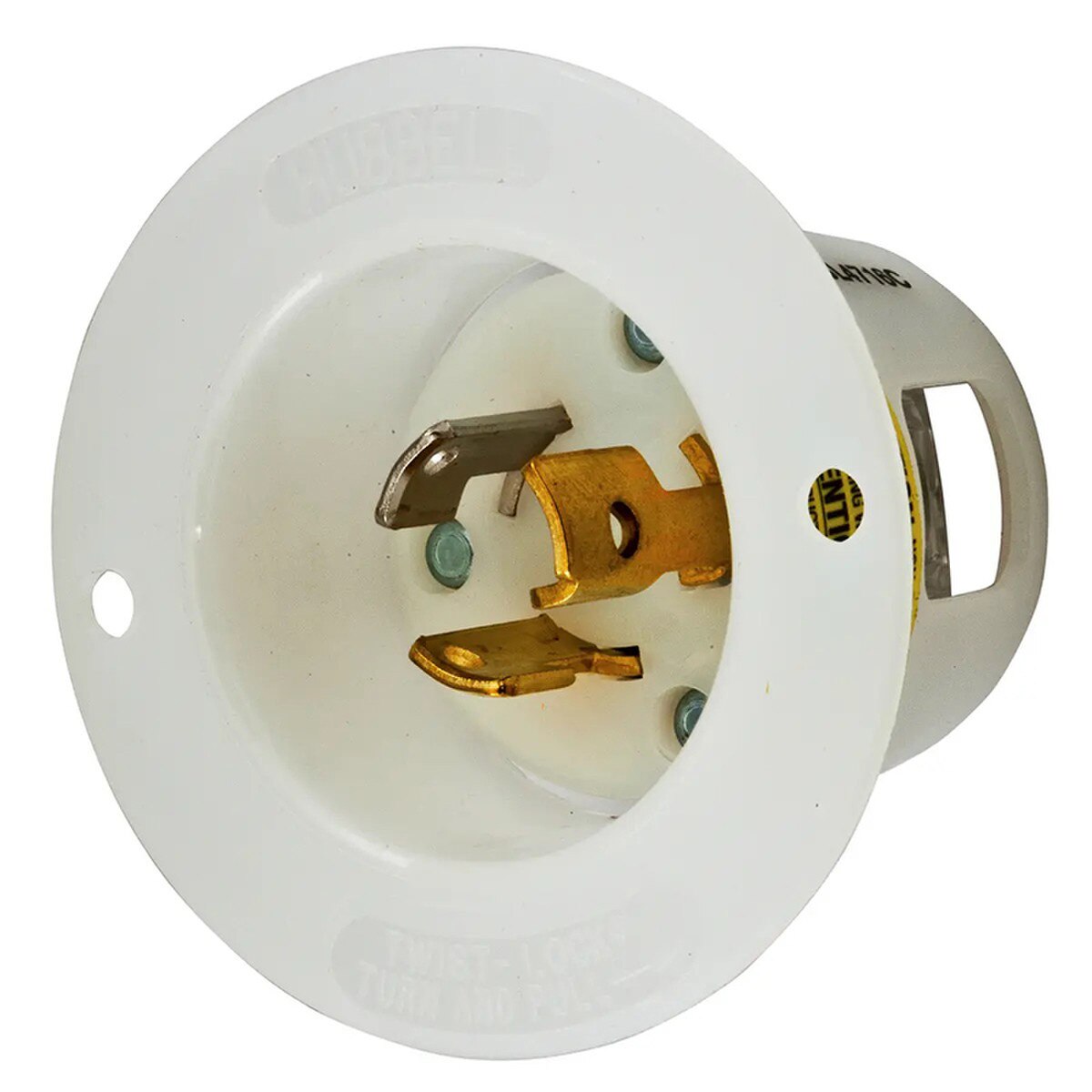

Hubbell Twist-Lock® Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, L5-15P, Screw Terminal - White

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15P, Screw Terminal, Nylon casing, Back wired, White.

• Impact resistant thermoplastic construction
• Backwired terminations for ease of installation
• #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
• Mounting screws included
• Standard Product

General:

• Application: Heavy Duty Industrial
• Color: White
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: 15A Grounding Insulgrip® Flanged Inlet
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Flanged Inlet
• UPC: 783585171050

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
• Temperature Rating: Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.

Dimensions:

• Dimensions: 2.56 in x 2.56 in x 1.72 in
• Display Size: Standard Sized Product
• Height: 1.72 in
• Length: 2.56 in
• Weight: 0.15 lb
• Width: 2.56 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Back Wired Screw Terminals
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 V
• Voltage Rating Description: 125 V

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #18 AWG to #10 AWG

Certifications and Compliance:

• Certified to CSA C22.2 No.42
• Fed.Spec.W-C-596
• Listed to UL 498
• Nema Rating: L5-15P
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 4500
