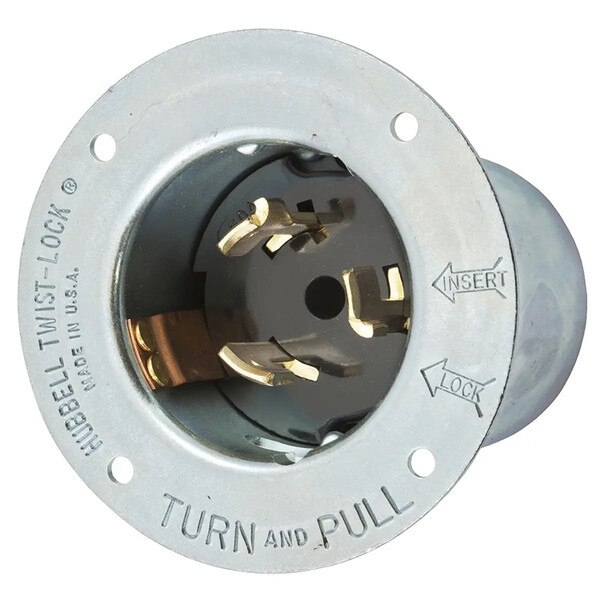

Hubbell Twist-Lock® Flanged Inlet, 3-Pole 4-Wire Grounding 50A 3-Phase Delta 480V AC, Non- NEMA, Screw Terminal - Black

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black

• Metallic flanged casing provides maximum strength and protection
• Thermoset interior provides superior heat resistance
• Standard Product

Hubbell’s 50 Amp Twist-Lock® Devices feature a heavy-duty design and super-tough nylon housing built for heavy-duty applications and impact resistance, even in the harshest environments. Their rigid construction restricts contact distortion, minimizing the possibility of mating dissimilar devices. The cord grip’s offset gripping jaws securely hold the conductors and the cord jacket for excellent strain relief.

General:

• Application: Extra Heavy Duty Industrial
• Color: Metallic
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Item Type: Single Flanged Inlet
• Material: Steel, Zinc Plated
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 3-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - UL 94 V0
• Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact)
• Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
• Type: Flanged Inlet
• UPC: 783585828602

Dimensions:

• Dimensions: 2.17 in x 3.50 in x 2.62 in
• Display Size: Standard Sized Product
• Height: 2.62 in
• Length: 2.17 in
• Weight: 0.85 lb
• Width: 3.50 in

Electrical Ratings:

• Amperage Rating: 50 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 50 A
• Current Rating: 50 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Three Phase
• Voltage Rating: 3-Phase Delta 480 VAC
• Voltage Rating Description: 3-Phase Delta 480 VAC

Conductor Related:

• Number Of Wires: 4-Wire
• Wire Size: #10 AWG to #6 AWG

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Listed to UL 498

Logistics:

• Carton Quantity: 10
