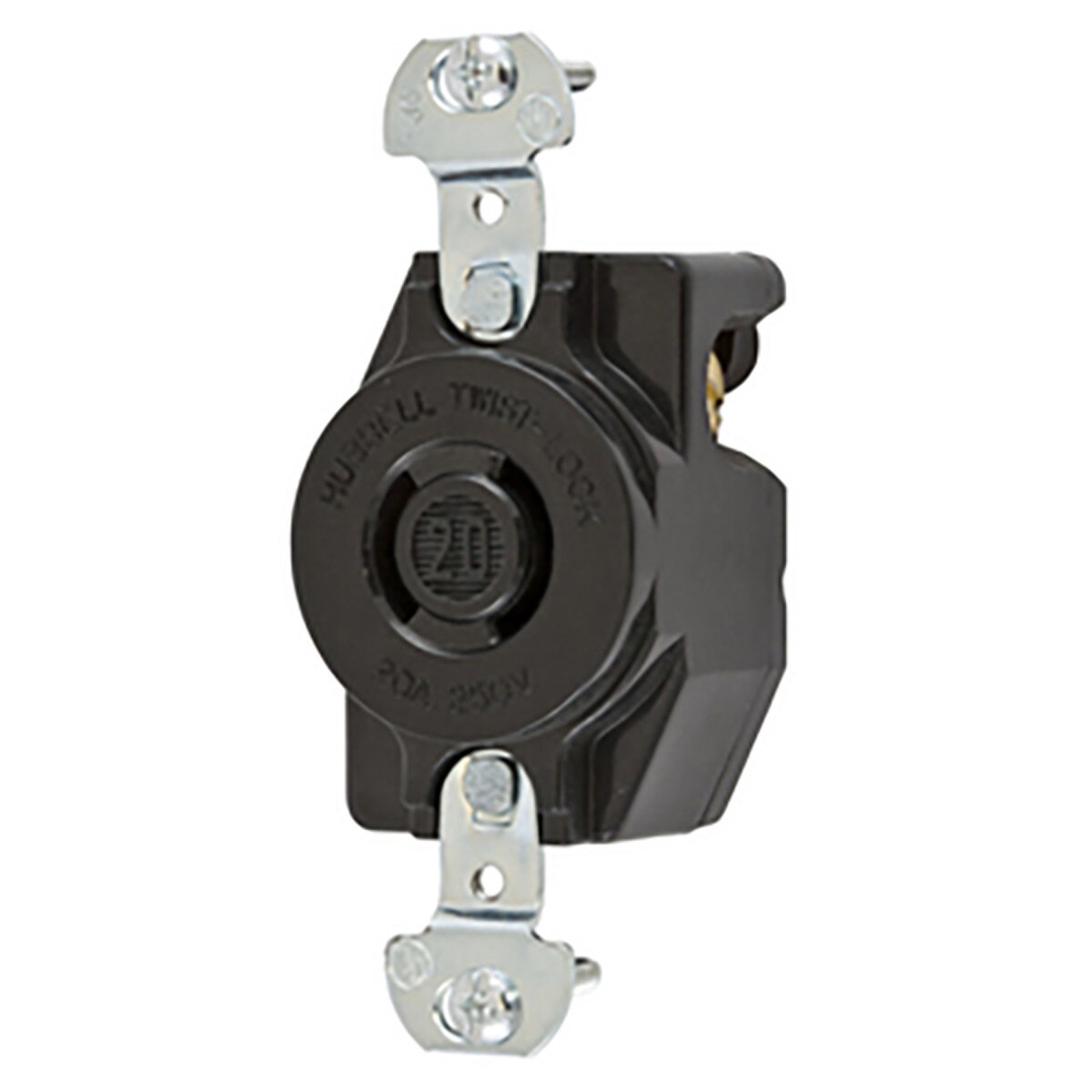

Hubbell Twist-Lock® Flush Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, L2-20R, Screw Terminal - Black

(0)No Reviews yet
$21.67
SKU: Hubbell HBL7210B

Details

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 250V, 2-Pole 2-Wire Non Grounding, NEMA L2-20R, Screw Terminal, Black phenolic.


  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Standard

General:

  • Application: Heavy Duty Industrial
  • Environmental Conditions: Indoor Dry Unless Protected By Additional Means
  • EU RoHS Indicator: No
  • Horsepower - Maximum: 2
  • Item Type: 20A Single Flush Receptacle
  • Material: Thermoplastic
  • Material - Mounting Hardware: Screw Mounting
  • Number Of Poles: 2-Pole
  • OEM Brand Name: Hubbell Wiring Device-Kellems
  • Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
  • Type: Receptacle
  • UPC: 783585237107

Performance:

  • Electrical - Current Interrupting - Certified for current interrupting at full rated current
  • Electrical - Dielectric Voltage - Withstands 2,000V minimum
  • Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17
  • Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
  • Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.
  • Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

  • Dimensions: 3.28 in x 1.40 in x 1.30 in
  • Display Size: Standard Sized Product
  • Height: 1.3 in
  • Length: 3.28 in
  • Weight: 0.2 lb
  • Width: 1.4 in

Electrical Ratings:

  • Amperage Rating: 20 A
  • Connectivity: Screw Terminals
  • Current / Amperage Rating: 20 A
  • Current Rating: 20 A
  • Dielectric Strength: Withstands 2,000V minimum
  • Phase: Single Phase
  • Voltage Rating: 250 VAC
  • Voltage Rating Description: 250 VAC

Conductor Related:

  • Number Of Wires: 2-Wire
  • Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

  • Industry Standard(s): Fed.Spec.W-C-596
  • Nema Rating: L2-20R
  • Standards - RoHS Compliance Status: CM

Logistics:

  • Carton Quantity: 10




Hubbell HBL7210B Instruction Manual.pdf
Hubbell HBL7210B Specifications.pdf
Hubbell HBL7210B Dimensional Drawing.pdf
Hubbell HBL7210B Warranty.pdf
