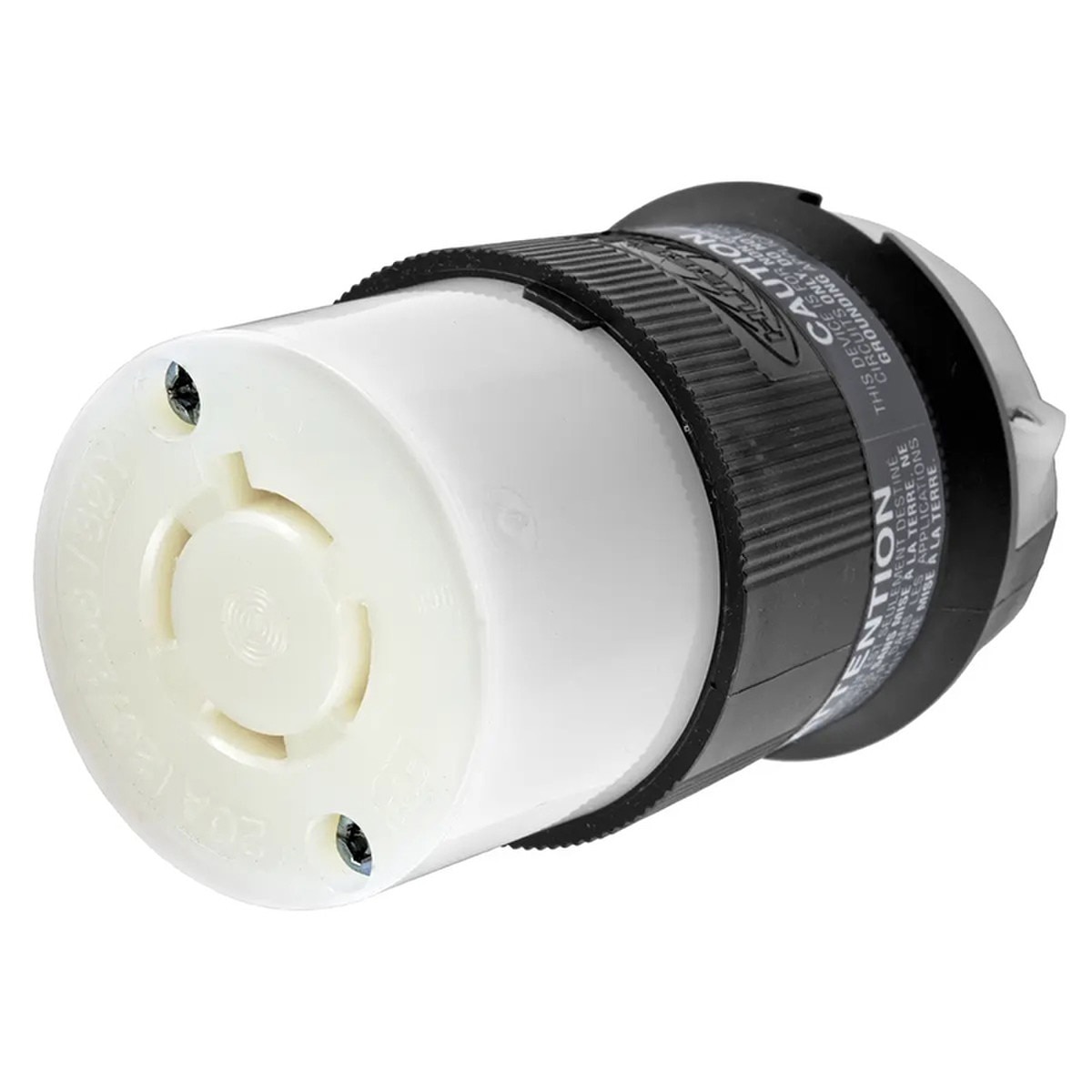

Hubbell Twist-Lock Industrial Female Connector Body, 20A 3-Phase WYE 120/208V AC, 4-Pole 4-Wire Non- Grounding, L18-20R

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase WYE 120/208V AC, 4-Pole 4-Wire Non- Grounding, NEMA L18-20R, Screw Terminal, Black and White Nylon

• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
• Standard Product

General:

• Application: Heavy Duty Industrial
• Catalog Number: HBL2443
• Color: Black, White
• Cord Range: 0.350"-1.150" (9-29)
• EU RoHS Indicator: Yes
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Connector Body
• UPC: 783585038360

Specifications:

• Assembly Screws - Steel - nickel plated
• Contacts - Brass
• Housing / Cord Clamp - Nylon
• Terminal Clamp - Cold rolled steel – nickel plated
• Terminal Retainer - Clear polycarbonate
• Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)

Dimensions:

• Dimensions: 2.33 in x 2.33 in x 3.86 in
• Height: 3.86 in
• Length: 2.33 in
• Weight: 0.4 lb
• Width: 2.33 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 120/208 VAC

Conductor Related:

• Cable Range: 0.350 - 1.150 in
• Number Of Wires: 4-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

• Buy America(n) Qualified: TAA Compliant (All status valid till December 2024)
• EU RoHS Indicator: Yes
• Nema Rating: L18-20R
• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 4-Pole

Logistics:

• Carton Quantity: 30
• Pallet Quantity: 3060
