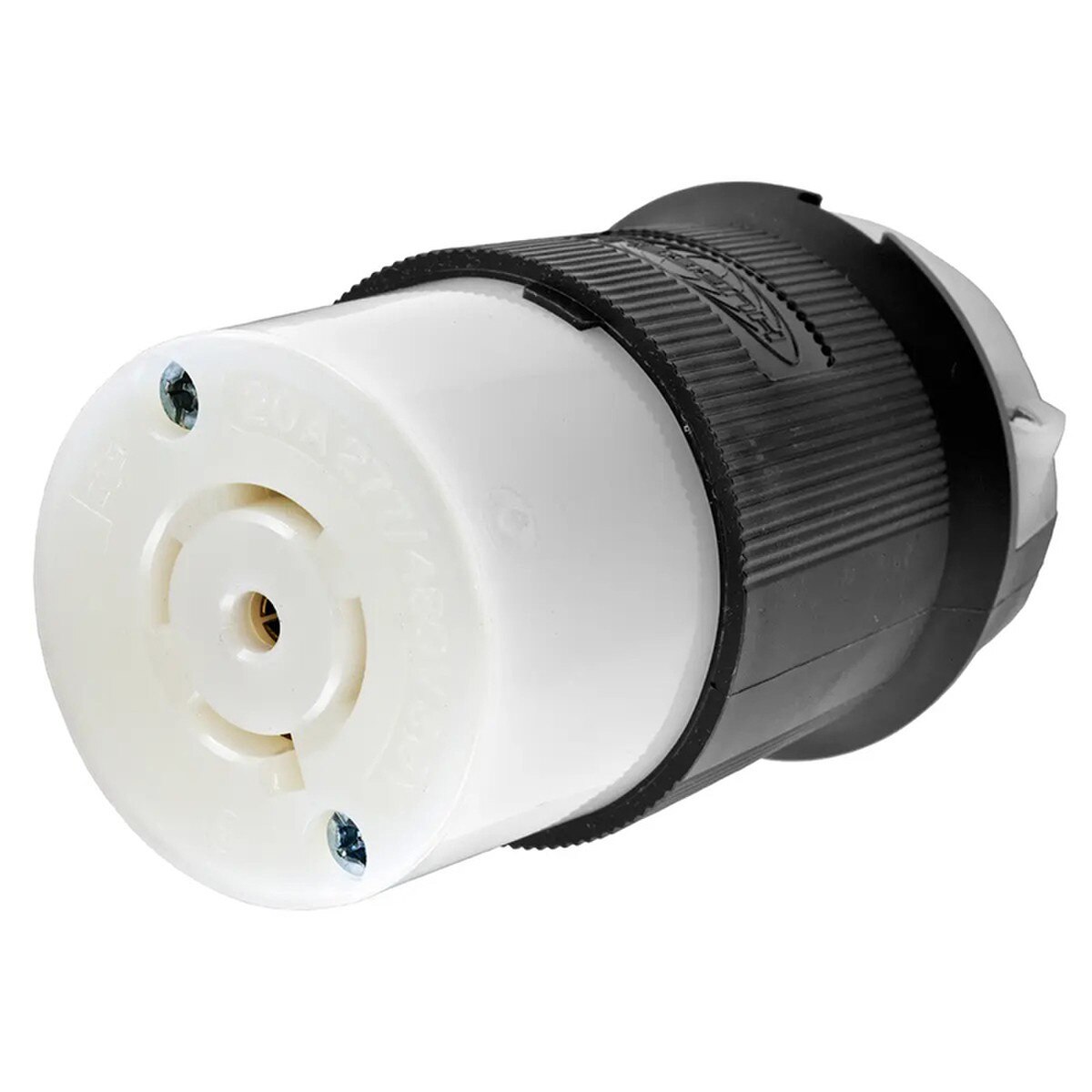

Hubbell Twist-Lock®, Industrial, Female Connector Body, 20A 3-Phase Wye 277/480V AC, L22-20R - Black and White Nylon

Locking Devices, Twist-Lock®, Industrial, Female Insulgrip® Connector Body, 20A 3-Phase Wye 277/480V AC, 4-Pole 4-Wire Non-Grounding, NEMA L22-20R, Screw Terminal , Black and White Nylon.

• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.

General:

• Application: Heavy Duty Industrial
• Color: Black, White
• Cord Range: 0.350"-1.150" (9-29)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Insulation: Insulated Body
• Item Type: 20A Insulgrip® Connector
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Connector Body
• UPC: 783585038605

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

• Dimensions: 2.33 in x 2.33 in x 3.86 in
• Display Size: Standard
• Height: 3.86 in
• Length: 2.33 in
• Weight: 0.40 lb
• Width: 2.33 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 277/480 VAC
• Voltage Rating Description: 3 Phase WYE 277/480 VAC

Conductor Related:

• Cable Range: 0.350 - 1.150 in
• Number Of Wires: 4-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating: L22-20R

Logistics:

• Carton Quantity: 30
• Pallet Quantity: 2880
