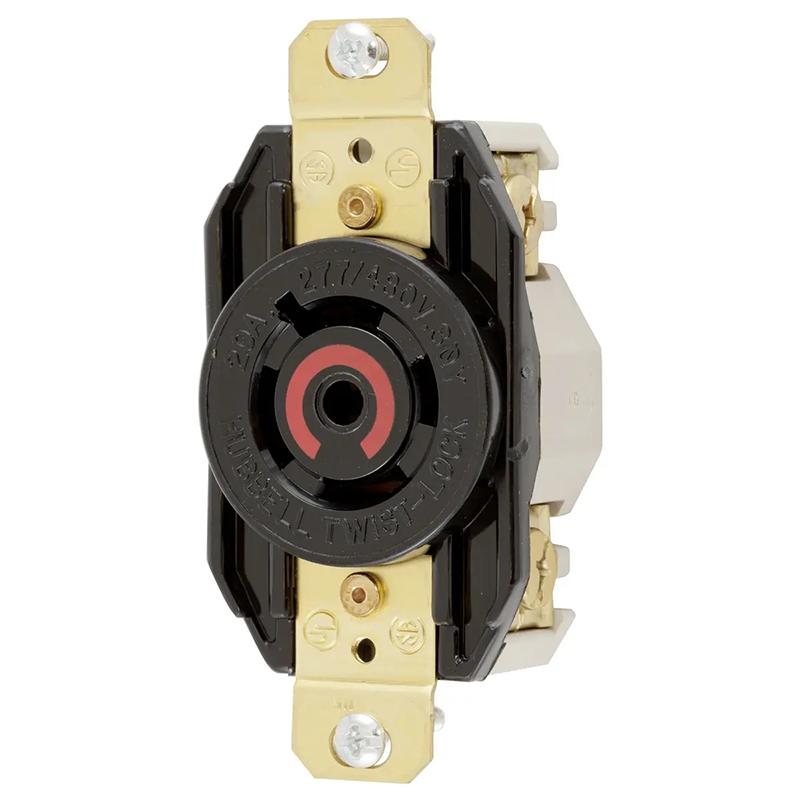

Hubbell Twist-Lock Industrial Flush Receptacle, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, L22-20R, Screw Terminal - Black

Locking Devices, Twist-Lock®, Industrial, Single Flush Receptacle, 20A 3-Phase Wye 277/480V AC, 4-Pole 5-Wire Grounding, NEMA L22-20R, Screw Terminal, Nylon face, Back and side wire, Black.

• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
• Standard

General:

• Application: Heavy Duty Industrial
• Catalog Number: HBL2520
• EU RoHS Indicator: Yes
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 4-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Single Flush Receptacle
• UPC: 783585235875

Specifications:

• Base - Glass-Reinforced thermoplastic polyester (RTP)
• Contacts - Brass
• Face - Nylon
• Mounting Strap - Brass
• Terminal Screws - #10 - 32 Brass

Dimensions:

• Dimensions: 3.28 in x 1.70 in x 1.23 in
• Height: 1.23 in
• Length: 3.28 in
• Weight: 0.3 lb
• Width: 1.7 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Back and Side Wired Screw Terminals
• Dielectric Strength: Withstands 2,000V minimum
• Phase: 3 Phase WYE
• Voltage Rating: 3 Phase WYE 277/480 VAC

Conductor Related:

• Number Of Wires: 5-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

• Buy America(n) Qualified: Buy American Act Compliant (All status valid till December 2024)
• EU RoHS Indicator: Yes
• Nema Rating: L22-20R
• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• WR Rating

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 4-Pole

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 2730
