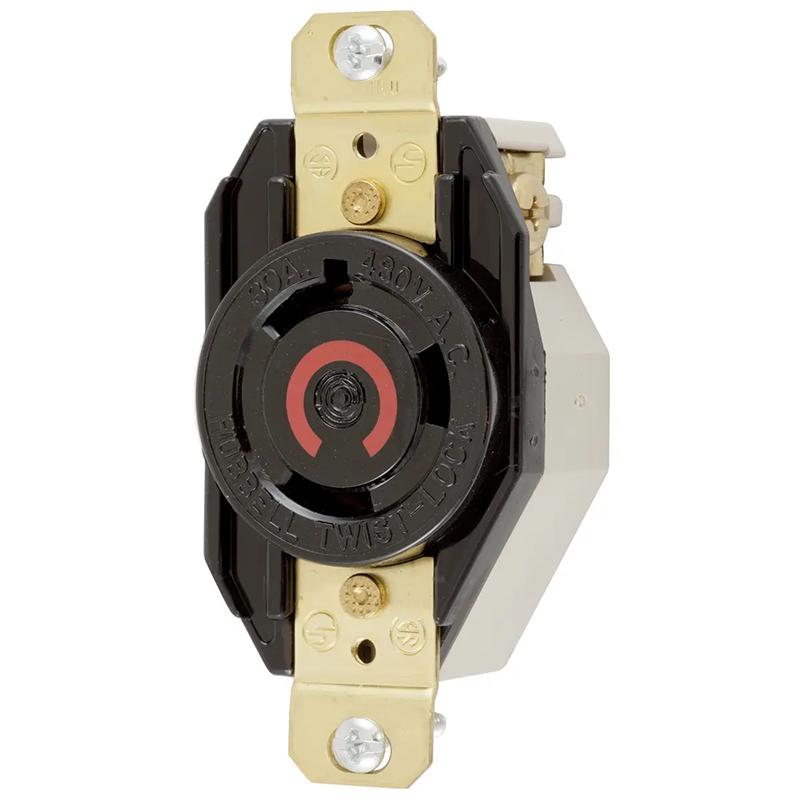

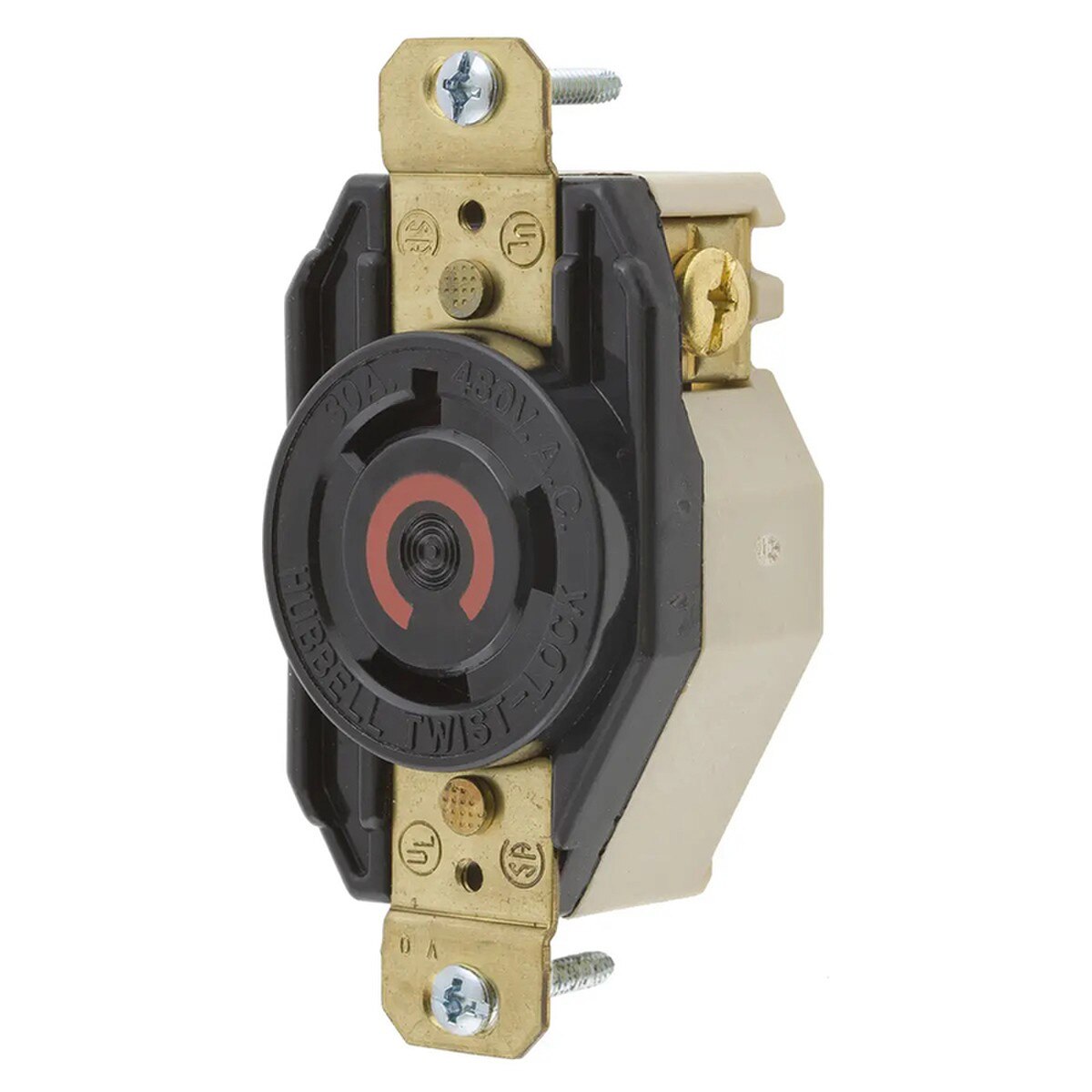

Hubbell Twist-Lock Industrial Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal - Black

Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30R, Screw Terminal, Black.

• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• Face color coding by voltage facilitates locating and mating of proper devices
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems

General:

• Application: Heavy Duty Industrial
• Catalog Number: HBL2640
• EU RoHS Indicator: Yes
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Single Flush Receptacle
• UPC: 783585236063

Specifications:

• Base: Glass-Reinforced thermoplastic polyester (RTP)
• Contacts: Brass
• Face: Nylon
• Mounting Strap: Brass
• Terminal Screws: #10 - 32 Brass

Dimensions:

• Dimensions: 3.28 in x 1.7 in x 1.31 in
• Height: 1.31 in
• Length: 3.28 in
• Weight: 0.25 lb
• Width: 1.7 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Back and Side Wired
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 480 VAC

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

• Buy America(n) Qualified: Buy American Act Compliant (All status valid till December 2024)
• EU RoHS Indicator: Yes

• Nema Rating:

  L8-30R

• Standards - RoHS Compliance Status:

  CM

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• WR Rating

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 2520
