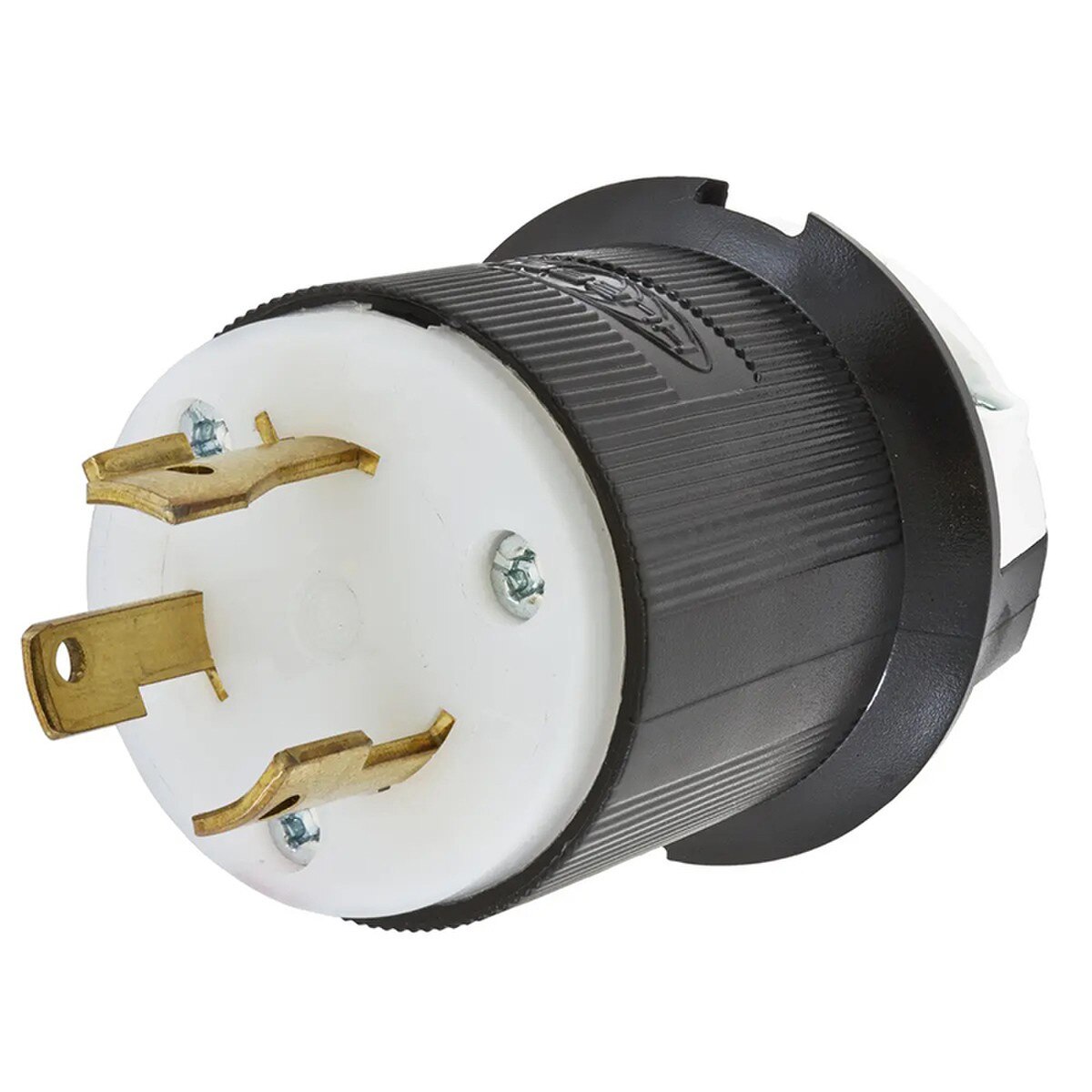

Hubbell Twist-Lock Industrial Male Plug, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30P, Screw Terminal - Black and White

Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 480V AC, 2-Pole 3-Wire Grounding, L8-30P, Screw Terminal, Black and White.

• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.
• Standard Product

General:

• Catalog Number: HBL2641
• Color: Black, White
• Cord Range: 0.325"-0.930"
• EU RoHS Indicator: Contact Manufacturer
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Plugs
• UPC: 783585039008

Specifications:

• Assembly Screws - Steel - nickel plated
• Blades - Brass
• Housing / Cord Clamp - Nylon
• Terminal Clamp - Cold rolled steel – nickel plated
• Terminal Retainer - Clear polycarbonate
• Terminal Screws - #10-32 Brass (Phillips / Slotted / Robertson)

Dimensions:

• Dimensions: 2.26 in x 2.26 in x 2.75 in
• Height: 2.75 in
• Length: 2.26 in
• Weight: 0.3 lb
• Width: 2.26 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Pressure Terminal Screws
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 480 VAC

Conductor Related:

• Cable Range: 0.325 - 0.930 in
• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

• EU RoHS Indicator: Contact Manufacturer
• Nema Rating: L8-30P
• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498

Operational:

• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact

Configuration:

• Cord Type: All Listed Portables
• Number Of Poles: 2-Pole

Logistics:

• Carton Quantity: 30
• Pallet Quantity: 3060
