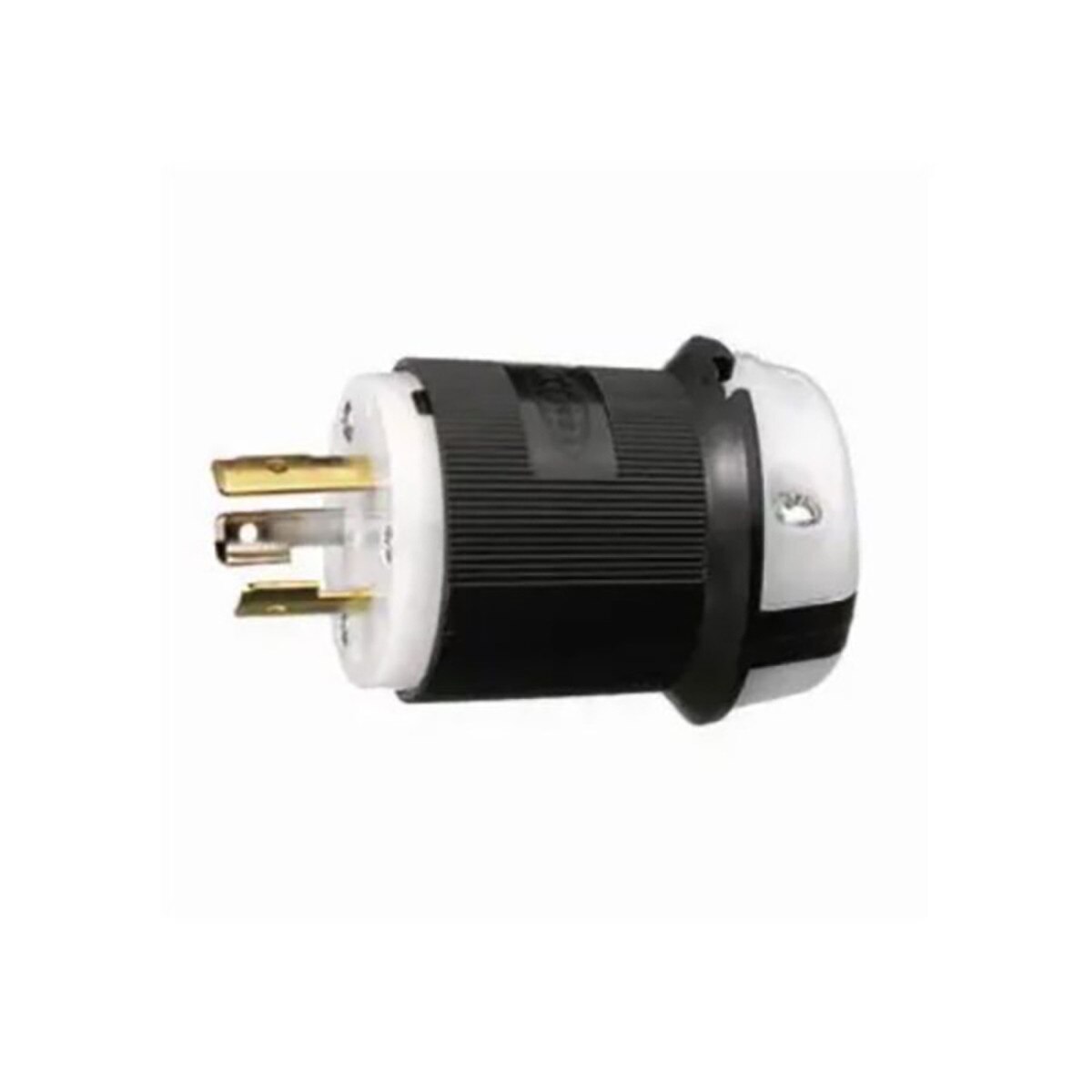

Hubbell Twist-Lock® Insulgrip® L5-20 1-Phase Grounding Male Locking Plug, 125 VAC, 20 A - White

Hubbell L5-20 Male Plug - White

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-20P, Screw Terminal, White.

• Ribbed nylon housing provides a secure grip and impact and chemical resistance.
• Superior cord grip design protects terminations from excess strain.
• Clear, funnel shaped wire entry for ease of termination.
• Integral dust shield protects wiring chamber from dust or contaminants.

General:

• Application: Extra Heavy Duty Industrial
• Color: White
• Cord Range: 0.360"-0.930" (9-24)
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 1
• Item Type: 20A Male Insulgrip® Plug
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Plugs

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

• Dimensions: 2.26 in x 2.26 in x 2.75 in
• Display Size: Standard Sized
• Height: 2.75 in
• Length: 2.26 in
• Weight: 0.25 lb
• Width: 2.26 in

Electrical Ratings:

• Amperage Rating: 20 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 20 A
• Current Rating: 20 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125 VAC

Conductor Related:

• Cable Range: 0.360 - 0.930 in
• Cord Type: All Listed Portables
• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating: L5-20P
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 30
