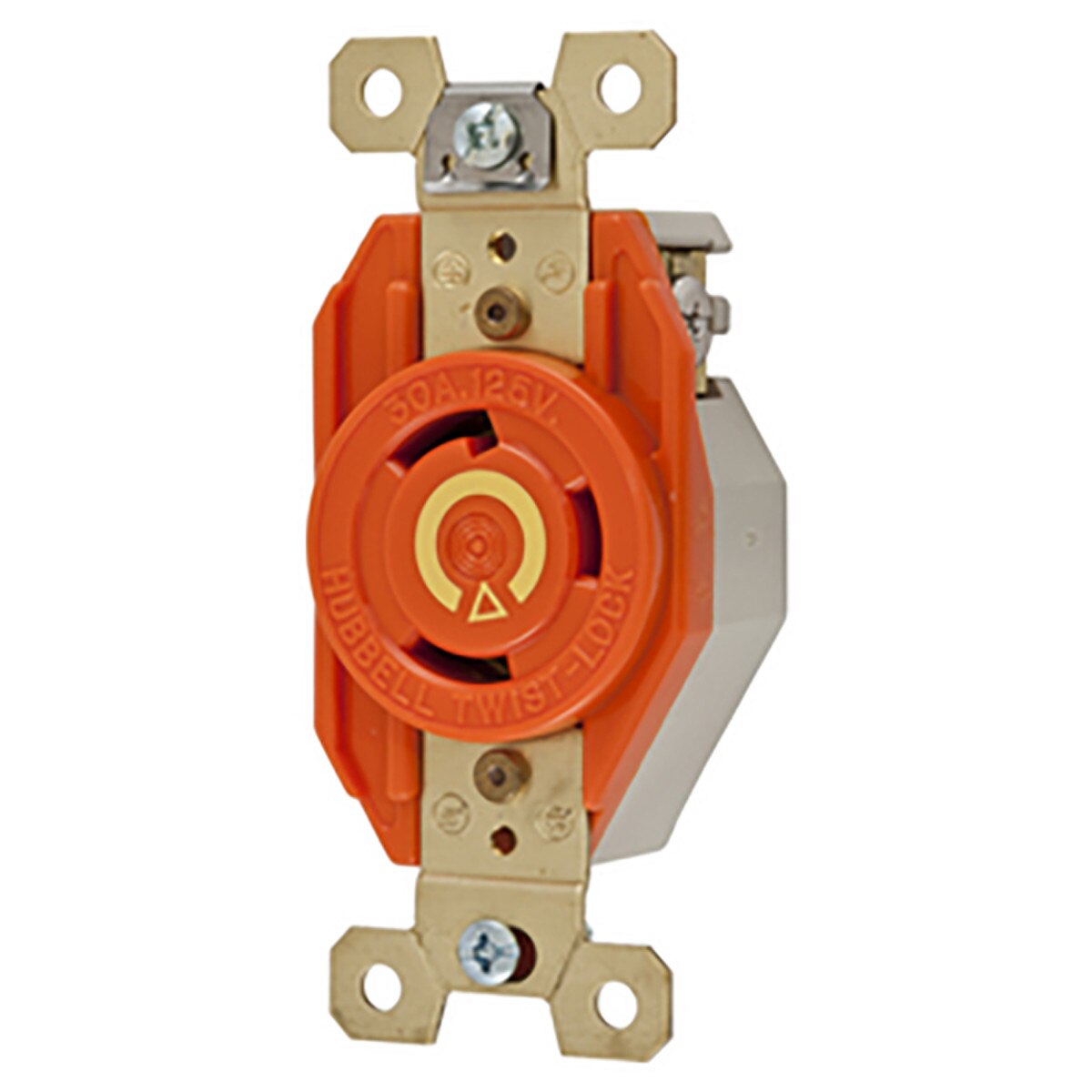

Hubbell Twist-Lock®, Isolated Ground Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal - Orange

Locking Devices, Twist-Lock®, Isolated Ground Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Orange.

In February 1968, Hubbell patented the first isolated ground receptacle. Today - when a clean, noise-free ground is more important than ever—Hubbell is still setting the standard. Hubbell uses insulation barrier construction on many models to isolate the ground contacts from the mounting strap. The green grounding screw is connected directly to the grounding contacts. In this way, ground contacts are separated from the mounting strap and also from the conventional grounding system. The isolated ground circuit is completed by running a dedicated insulated ground wire from the system ground buss to the green grounding screw.

• Insulation barrier construction isolates ground contact from mounting strap
• Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
• High-impact, abuse-resistant nylon face
• All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
• Isolated Ground

General:

• Application: Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• EU RoHS Indicator: Yes
• Horsepower - Maximum: 2
• Item Type: Single Flush Receptacles
• Material: Nylon
• Material - Mounting Hardware: Screw Mounting
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• UPC: 783585872308

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact)
• Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

• Dimensions: 3.28 in x 1.70 in x 1.31 in
• Display Size: Standard Sized Product
• Height: 1.31 in
• Length: 3.28 in
• Weight: 0.3 lb
• Width: 1.7 in

Electrical Ratings:

• Amperage Rating: 30 A
• Connectivity: Back and Side Wired Screw Terminals
• Current / Amperage Rating: 30 A
• Current Rating: 30 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 125 VAC
• Voltage Rating Description: 125V

Conductor Related:

• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications And Compliance:

• Nema Rating: L5-30R
• Standards - RoHS Compliance Status: CM

Industry Standard(s):

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 2520
