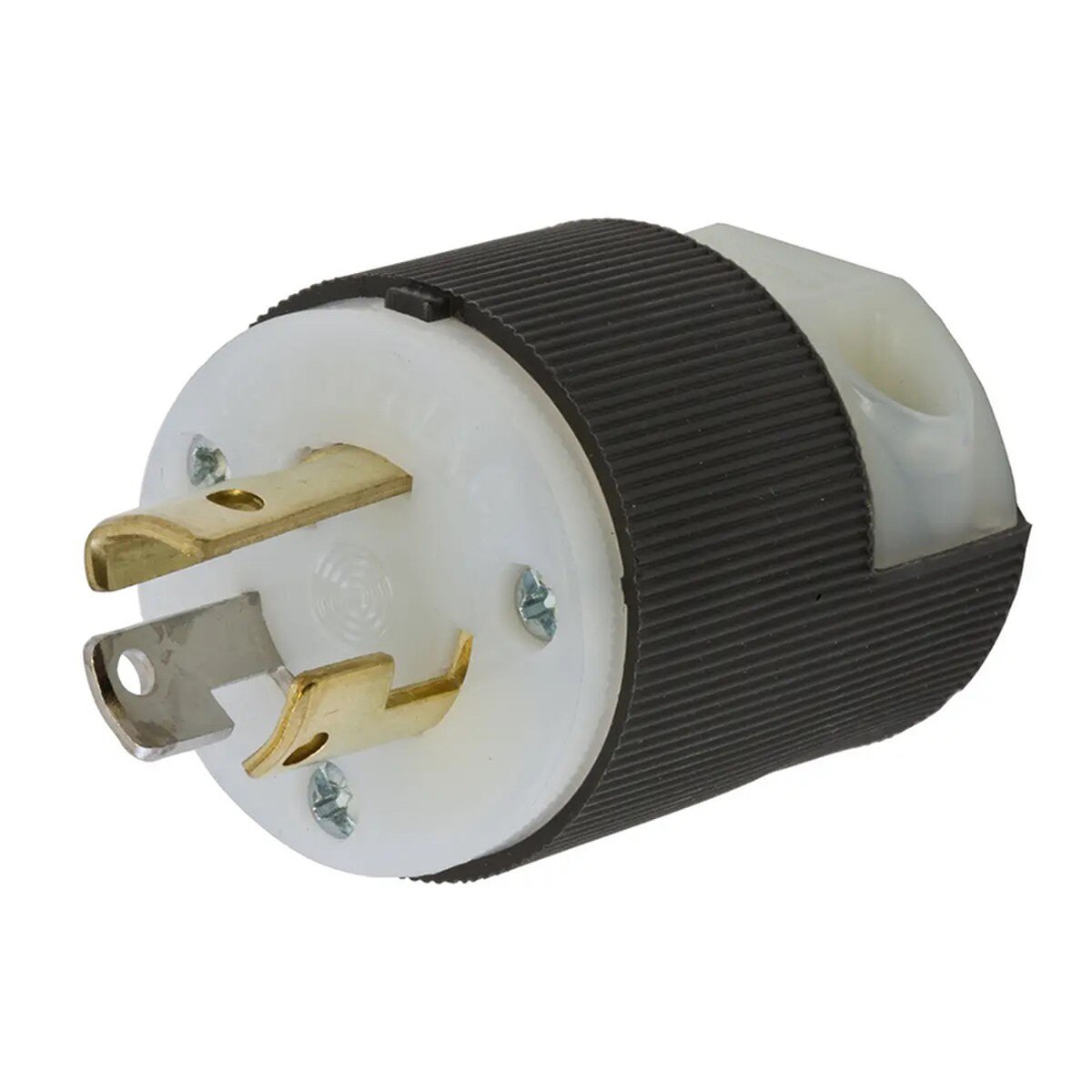

Hubbell Twist-Lock® Male Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, L7-15P, Screw Terminal - Black and White

Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Black and White Nylon.

• Individually molded face for each blade configuration
• Roomy wiring chamber provides ample space for wiring
• Ribbed nylon housing provides a secure grip that’s impact and chemical resistant
• Standard Product

General:

• Application: Extra Heavy Duty Industrial
• Environmental Conditions: Indoor Dry Unless Protected By Additional Means
• Horsepower - Maximum: 2
• Item Type: 15A Grounding Insulgrip® Plug
• Material: Nylon
• Material - Mounting Hardware: Cord Mounted
• Number Of Poles: 2-Pole
• OEM Brand Name: Hubbell Wiring Device-Kellems
• Operating Temperature: Maximum continuous 75°C and minimum -40°C without Impact
• Type: Plugs
• UPC: 783585171708

Performance:

• Electrical - Current Interrupting - Certified for current interrupting at full rated current
• Electrical - Dielectric Voltage - Withstands 2,000V minimum
• Environmental - Flammability - HB or better per UL94 or CSA 22.2 No. 0.6
• Environmental - Moisture Resistance - IP20 Suitability
• Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact)
• Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.
• Mechanical - Terminal Identification - Terminals identified in accordance with UL 498

Dimensions:

• Dimensions: 1.53 in x 1.53 in x 1.97 in
• Display Size: Standard Sized
• Height: 1.97 in
• Length: 1.53 in
• Weight: 0.15 lb
• Width: 1.53 in

Electrical Ratings:

• Amperage Rating: 15 A
• Connectivity: Pressure Terminal Screws
• Current / Amperage Rating: 15 A
• Current Rating: 15 A
• Dielectric Strength: Withstands 2,000V minimum
• Phase: Single Phase
• Voltage Rating: 277 VAC
• Voltage Rating Description: 277 VAC

Conductor Related:

• Cable Range: 0.230 - 0.720 in
• Cord Type: All Listed Portables
• Number Of Wires: 3-Wire
• Wire Size: #16 AWG to #8 AWG

Certifications and Compliance:

• Certified to CSA C22.2 No.42
• Fed.Spec. W-C-596
• Listed to UL 498
• Nema Rating: L7-15P
• Standards - RoHS Compliance Status: CM

Logistics:

• Carton Quantity: 10
• Pallet Quantity: 6600
