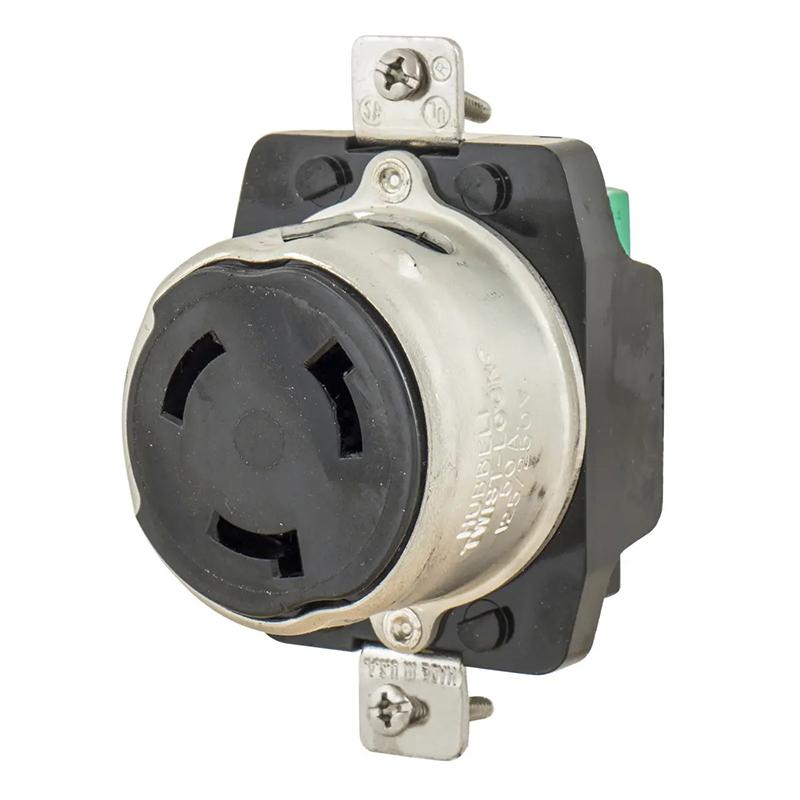

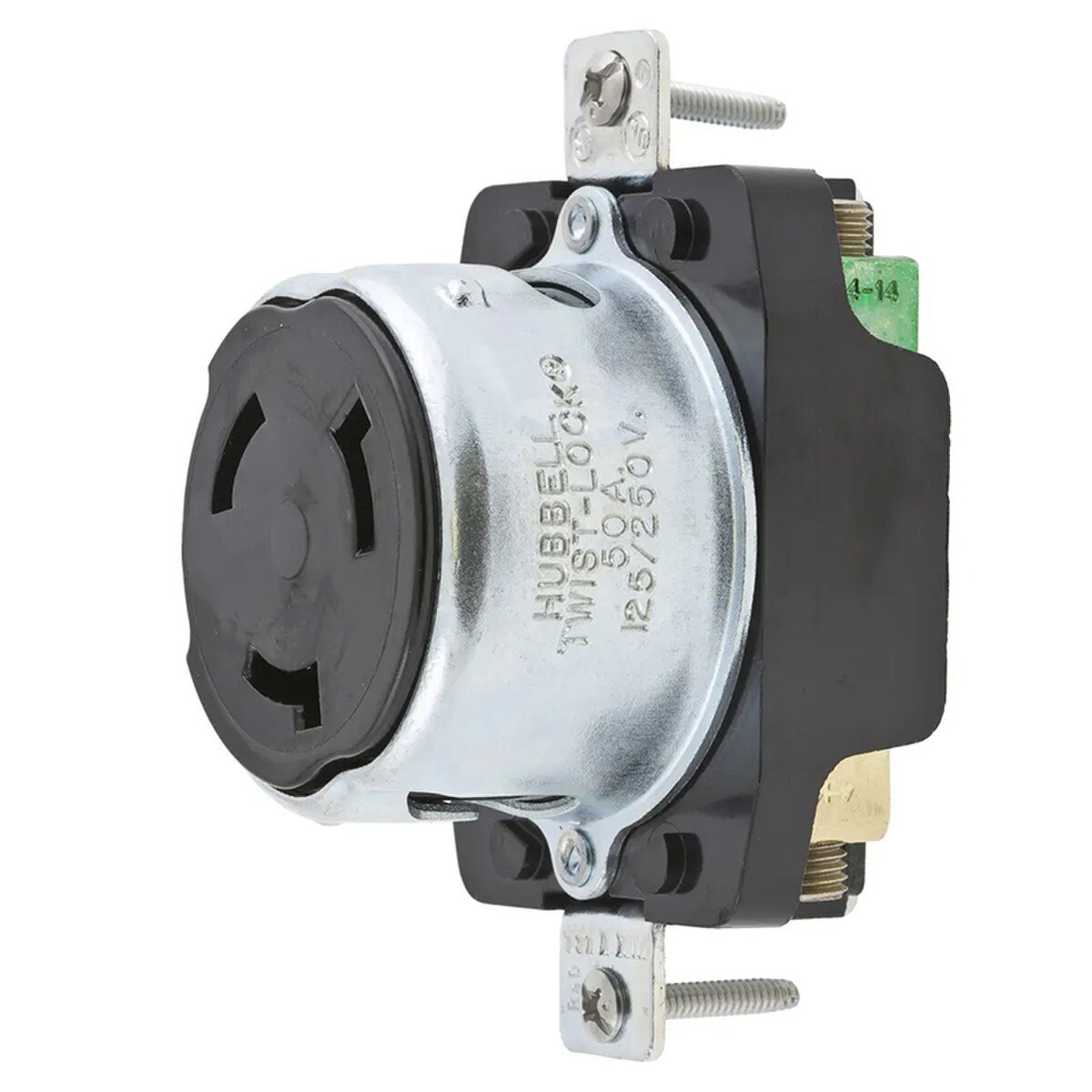

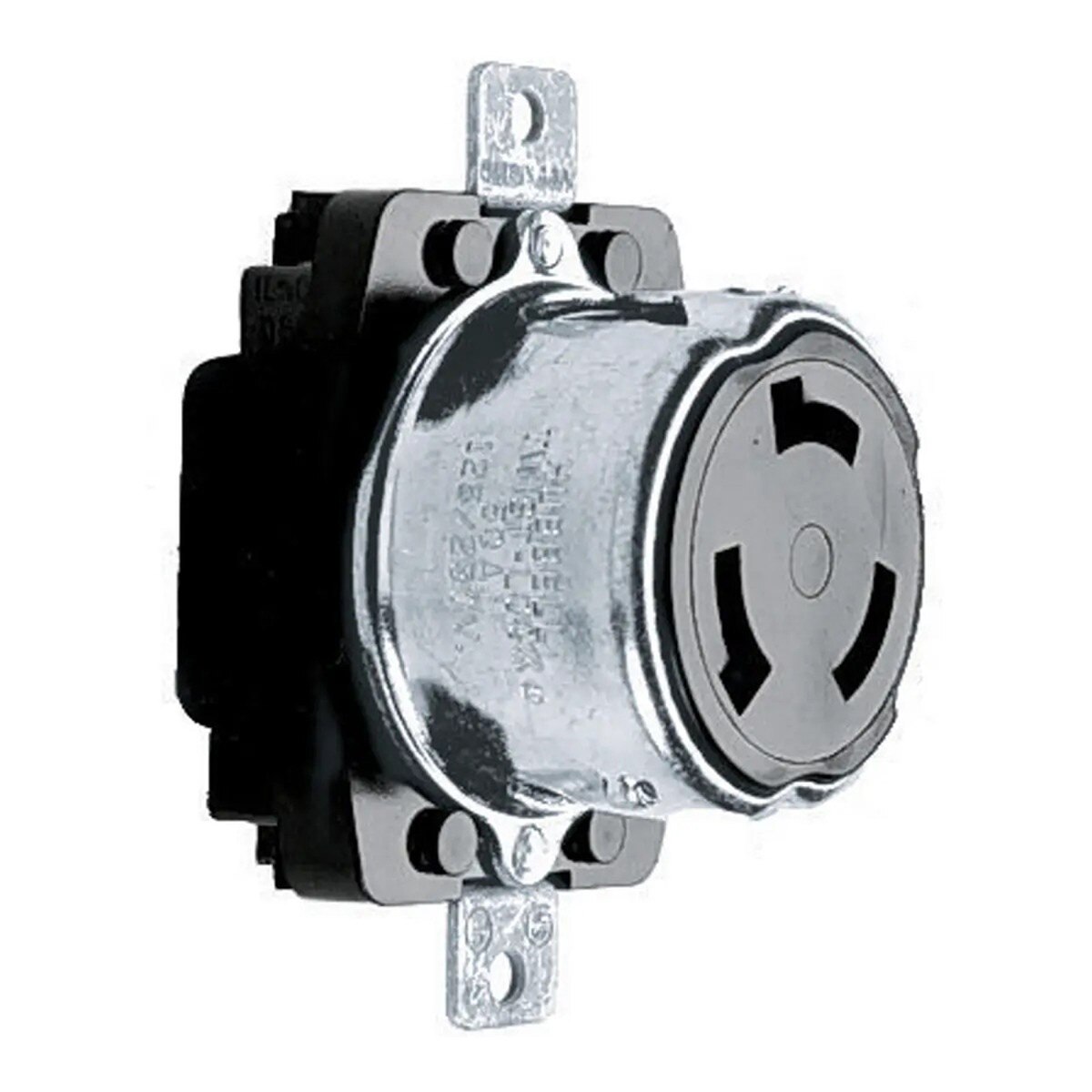

Hubbell Twist-Lock Marine Grade Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Galvanized
Details
Locking Devices, Twist-Lock®, Marine Grade, Receptacle, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Galvanized
- Marine Grade
- Receptacle
- 50A 125/250V
- Corrosion Resistant
General:
- Application: Marine Wiring Devices
- Catalog Number: HBL63CM69
- Color: Yellow
- EU RoHS Indicator: No
- Material: Thermoplastic
- Material - Mounting Hardware: Screw Mounting
- Number Of Poles: 3-Pole
- OEM Brand Name: Hubbell Wiring Device-Kellems
- UPC: 783585808741
Specifications:
- Blade Type - Locking
- Blade Type - Locking
- Product Type - Twist-Lock® Receptacles
Electrical Ratings:
- Amperage Rating: 50 A
- Connectivity: Screw Terminals
- Phase: Single Phase
- Voltage Rating: 125/250 VAC
- Wattage: 12500
Conductor Related:
- Number Of Wires: 4-Wire Grounding
- Wire Size: #6 AWG
Certifications And Compliance:
- EU RoHS Indicator: No
- Nema Rating: Non-NEMA
Industry Standard(s):
- UL Listed
- WR Rating
Configuration:
- Number Of Poles: 3-Pole
Logistics:
- Carton Quantity: 5
- Pallet Quantity: 455
Hubbell HBL63CM69 Specifications.pdf
Hubbell HBL63CM69 Sales Drawing.pdf
Hubbell HBL63CM69 Warranty.pdf
