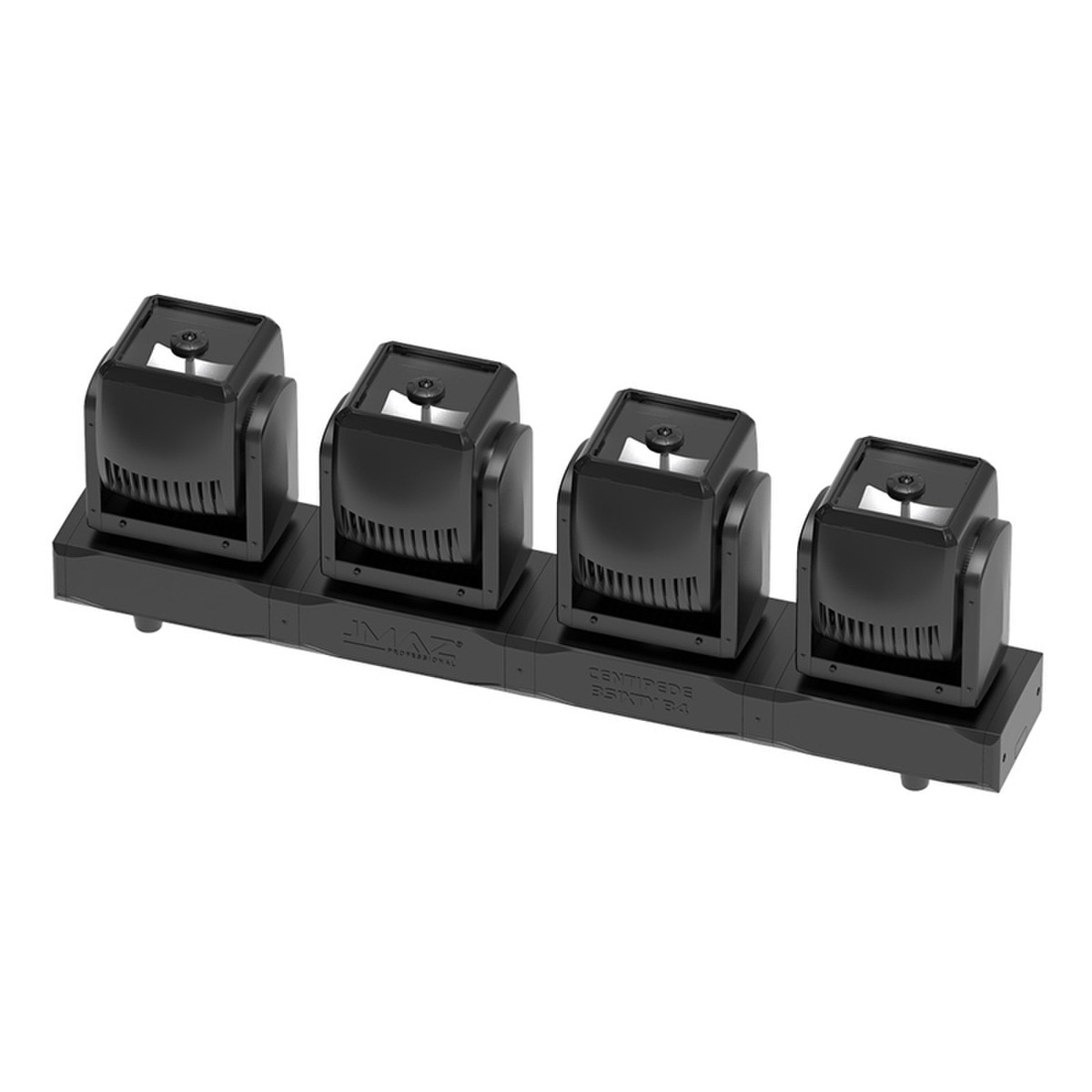

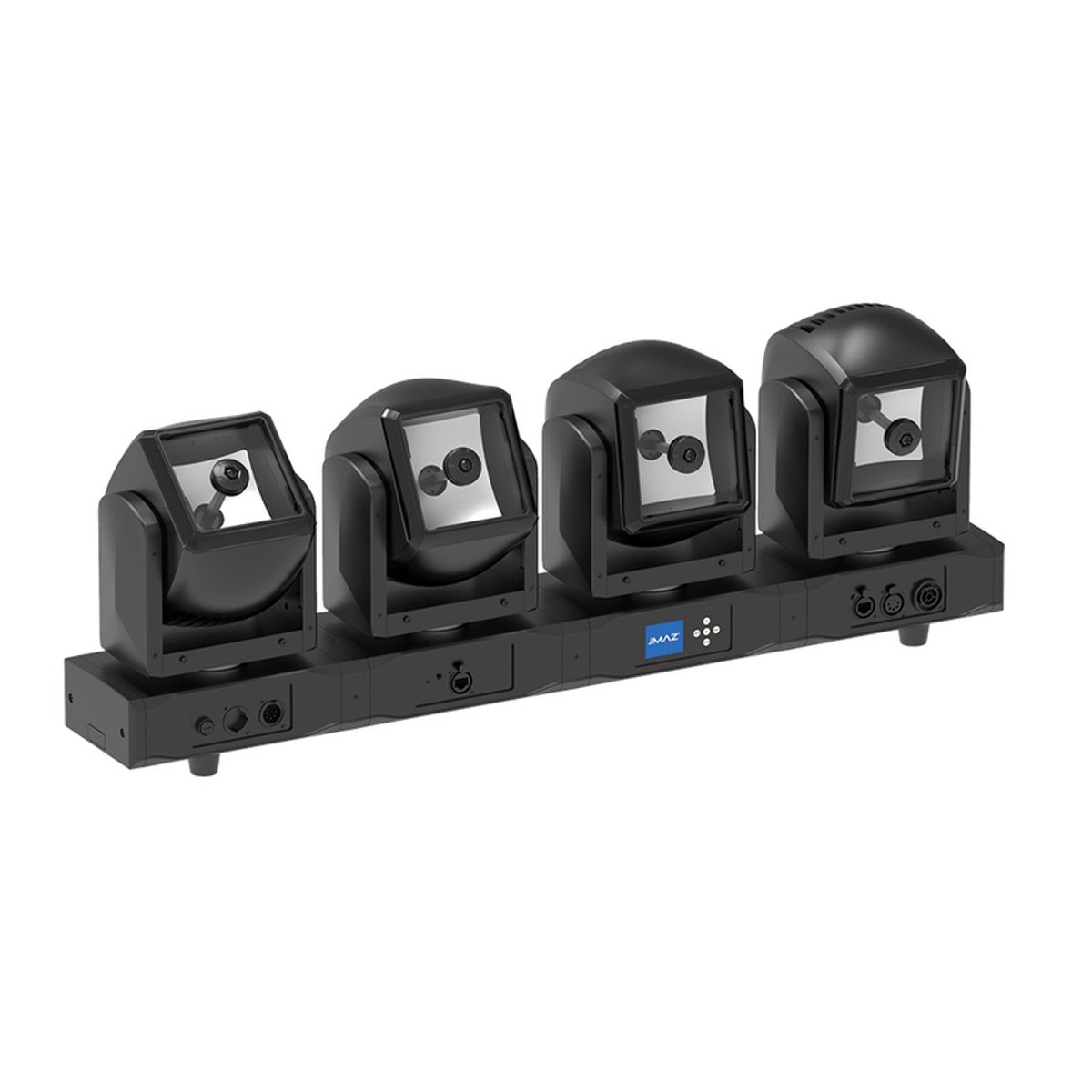

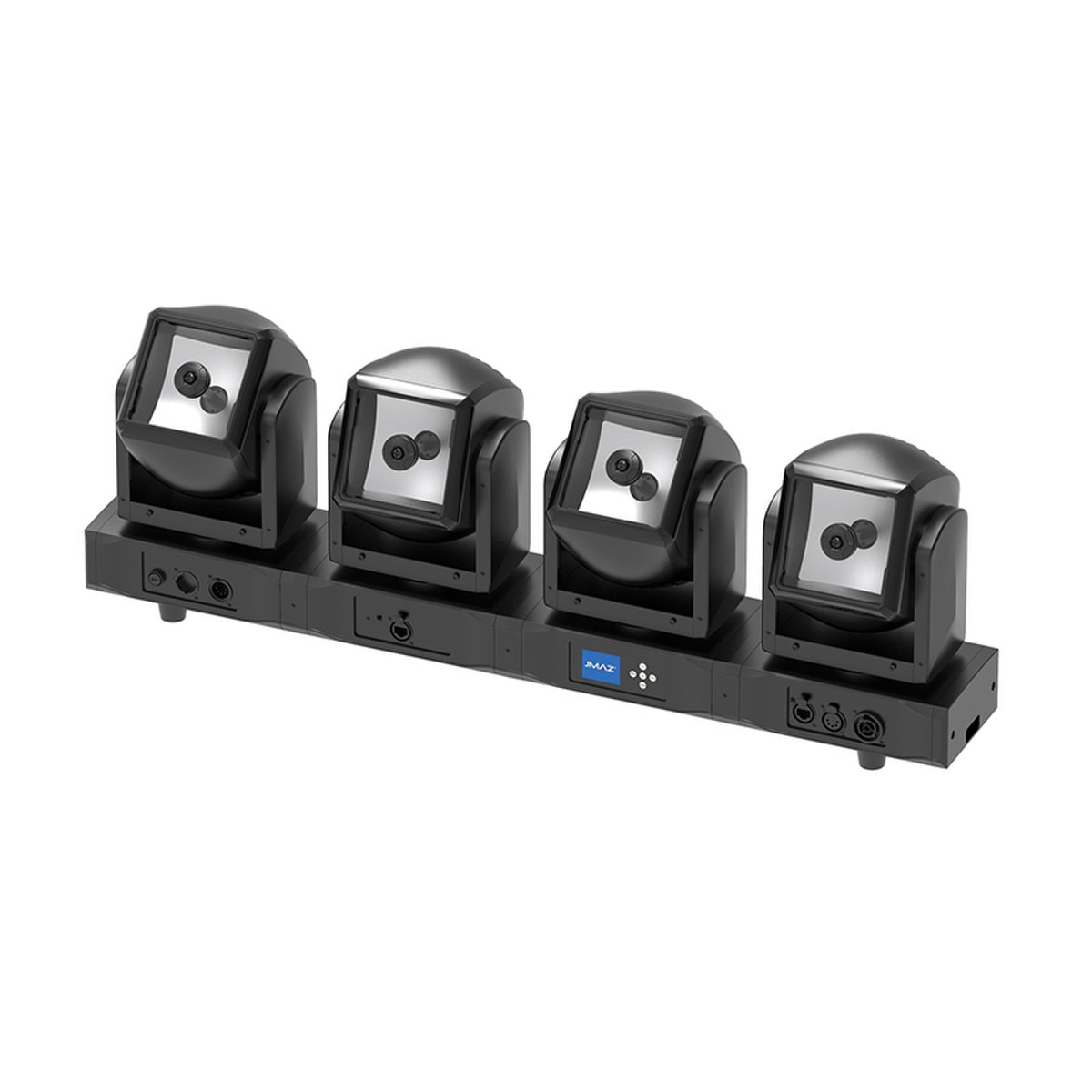

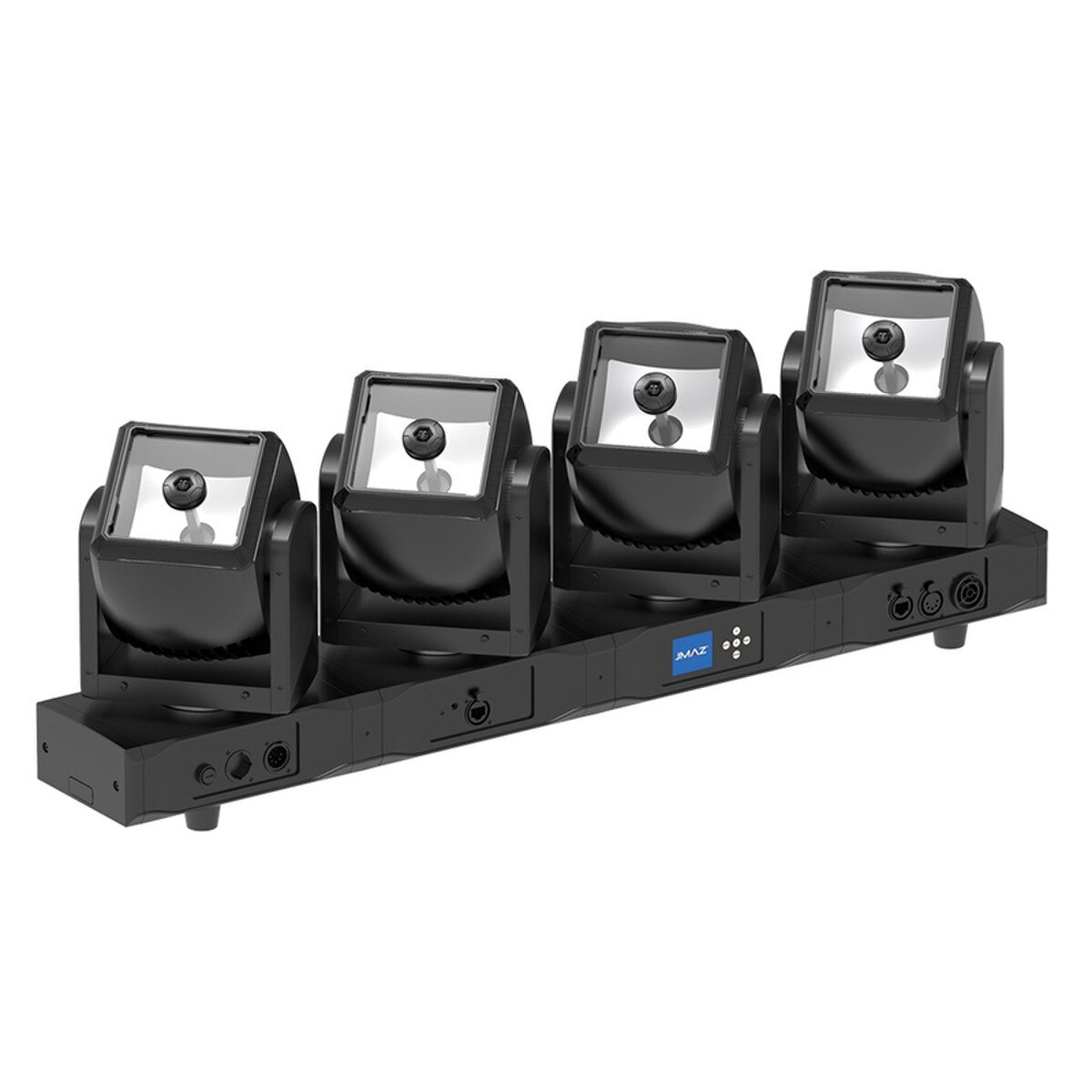

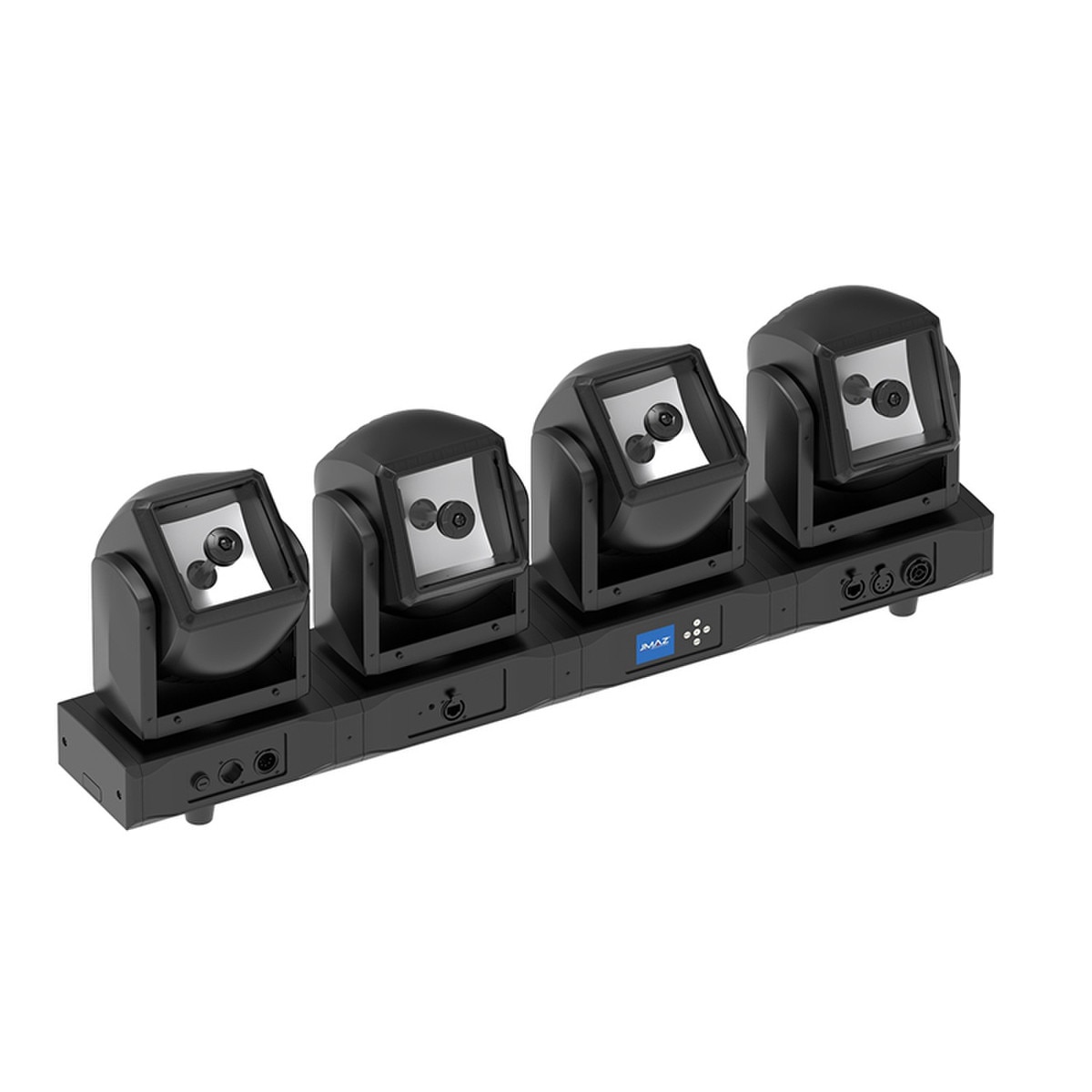

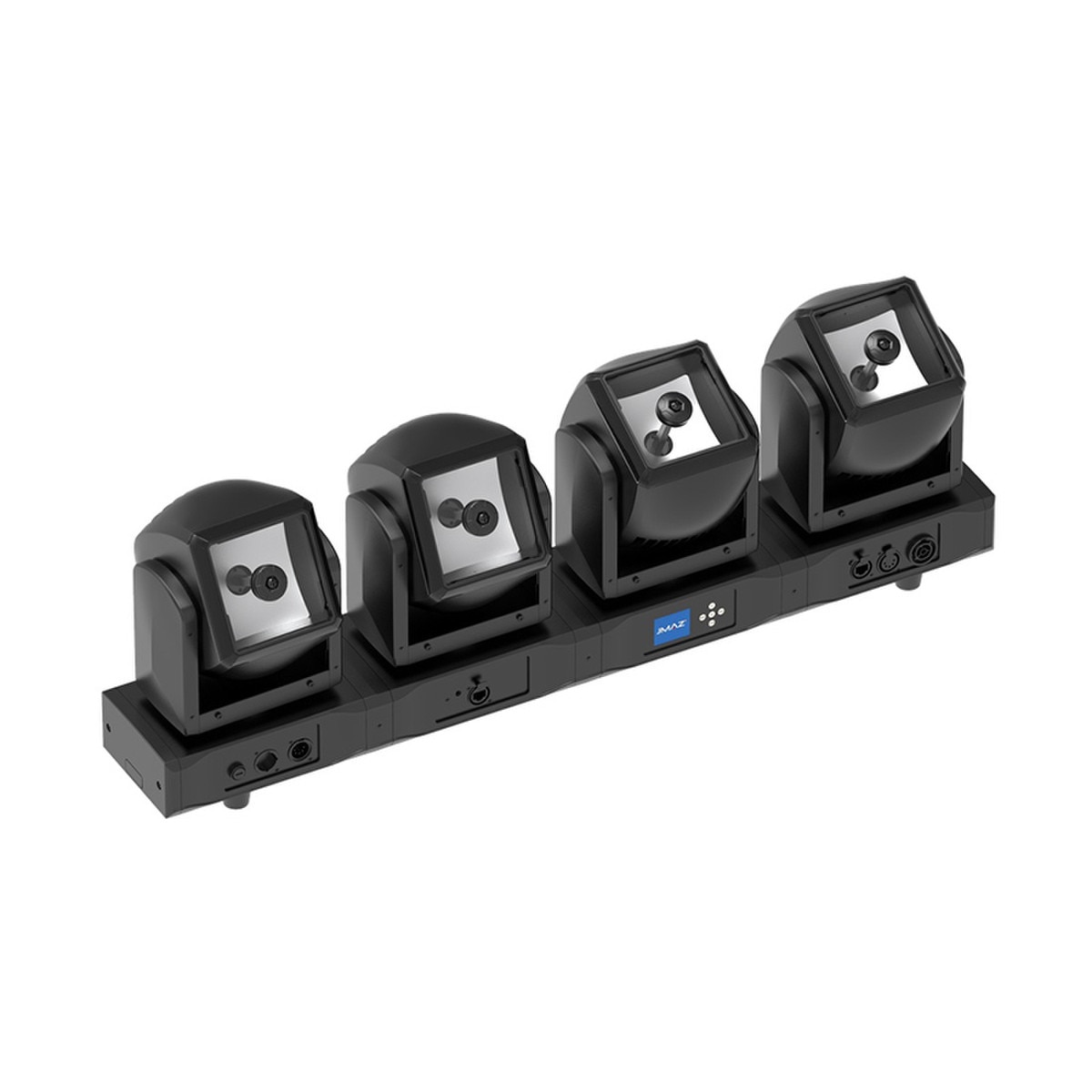

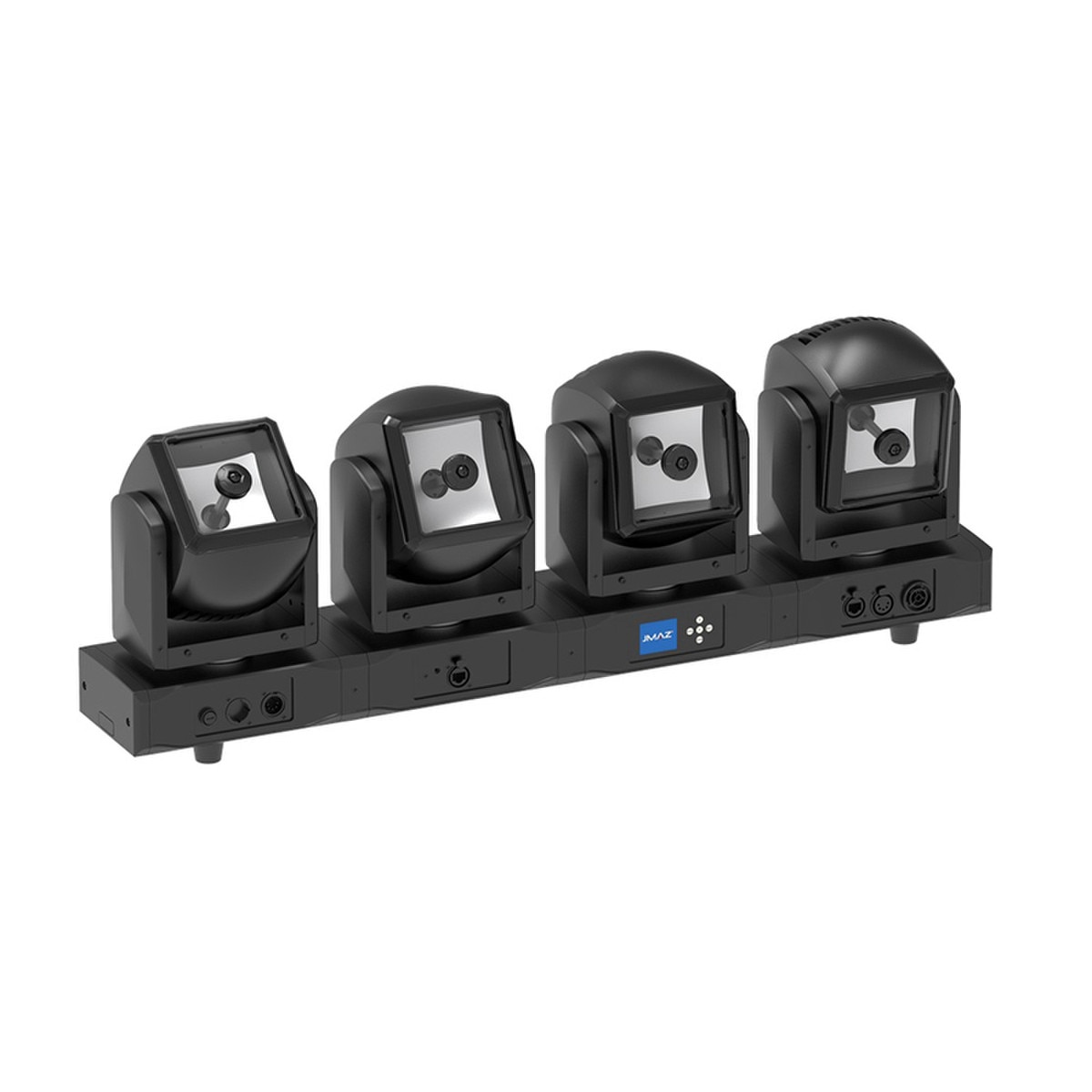

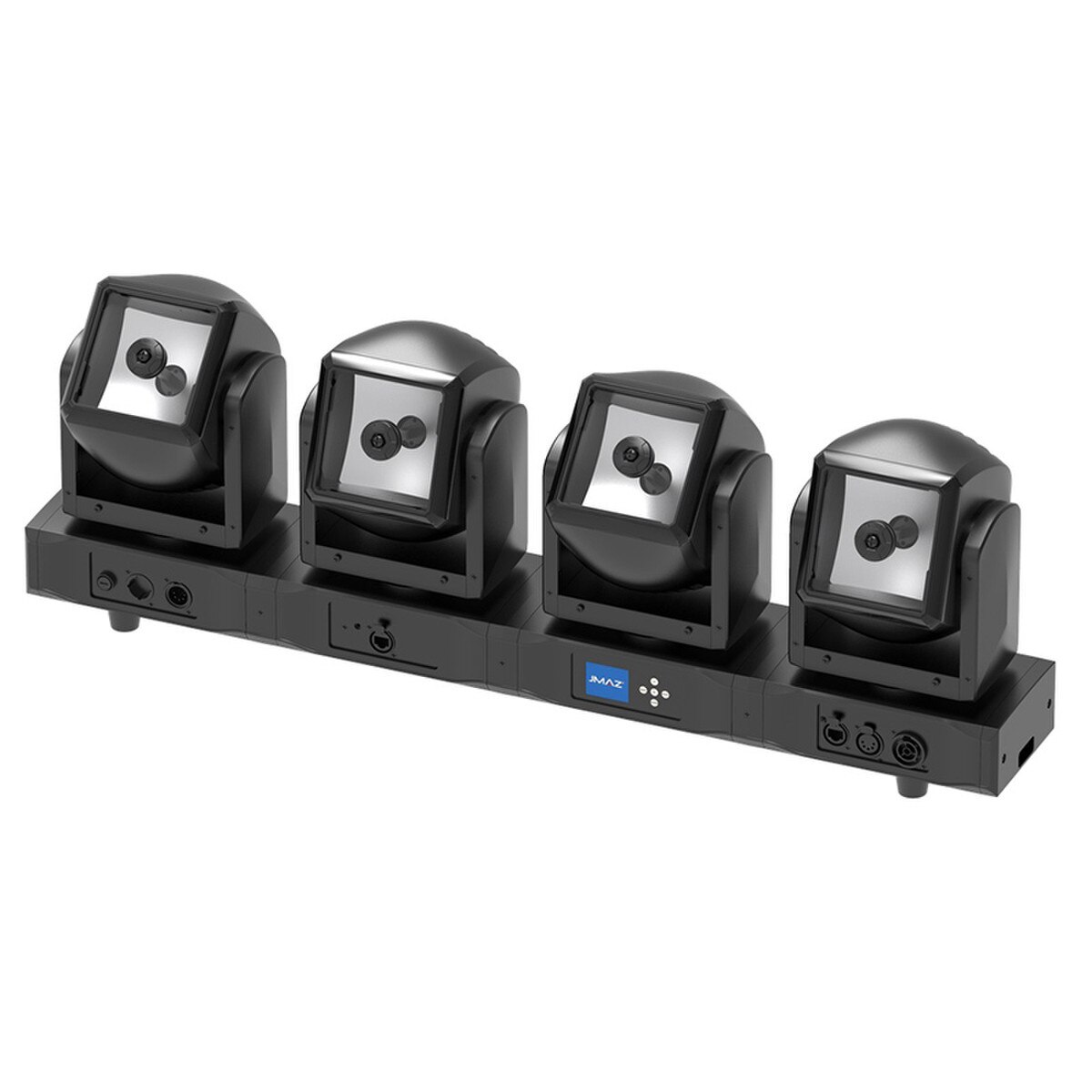

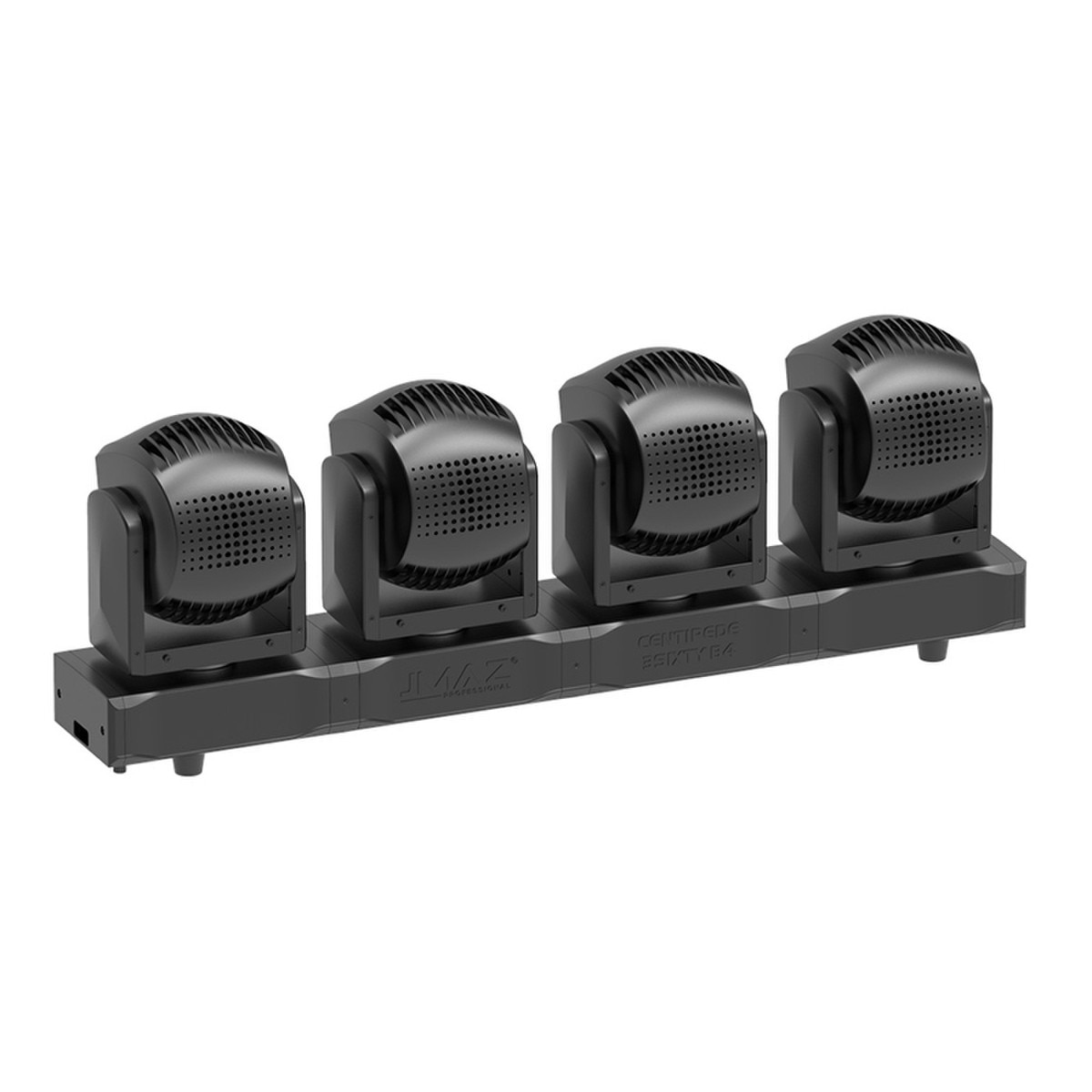

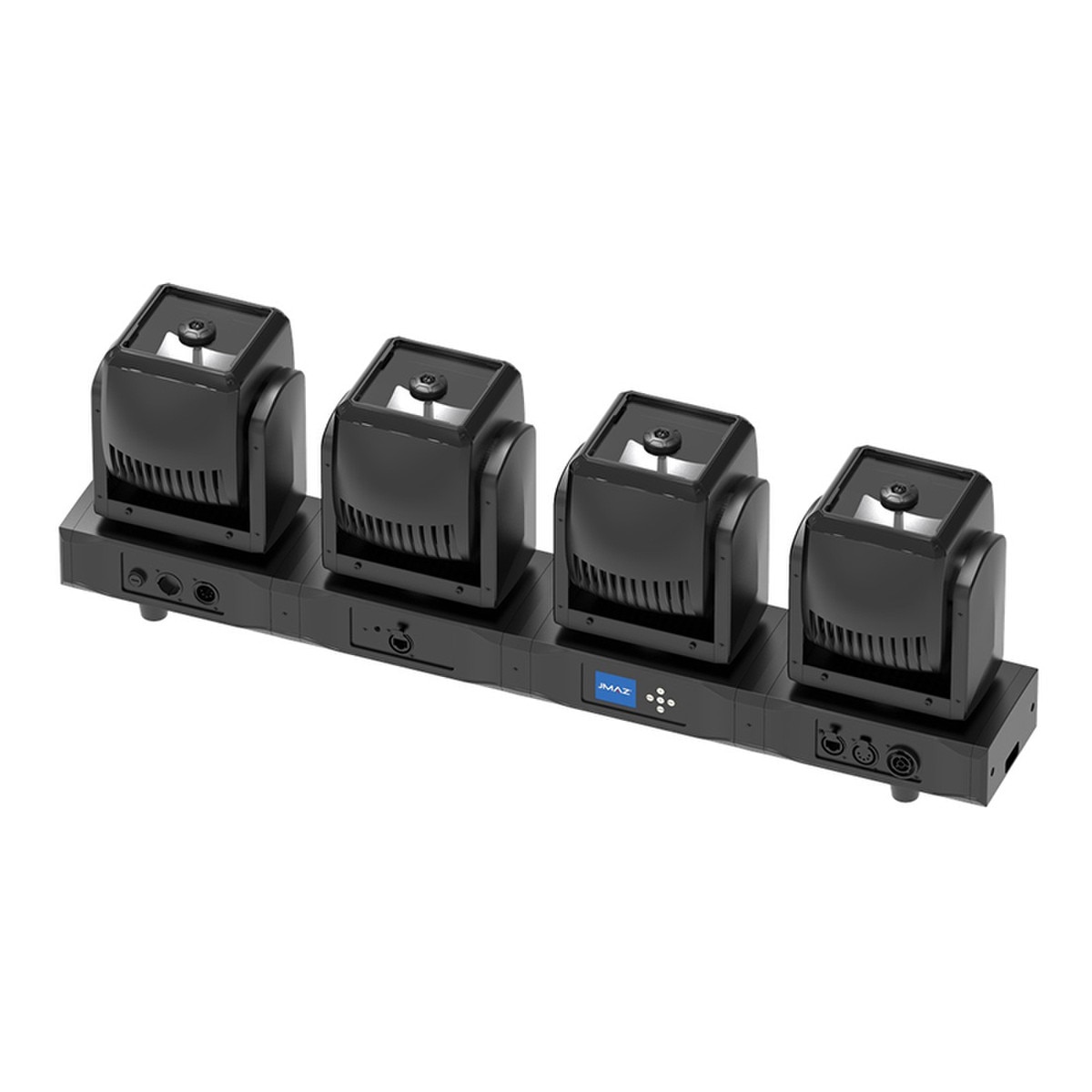

JMAZ Centipede 3SIXTY B4 RGBW LED Intelligent 4 Moving Head Bar

The JMAZ Centipede 3SIXTY B4 is a compact, high-impact RGBW moving head bar designed to deliver powerful lighting effects in a streamlined format. Featuring four 60W RGBW LEDs and 120 RGB SMD LED ring lights, each head offers 360° infinite pan/tilt and independent pixel control for endless creative possibilities. Built-in color and movement macros—with foreground and background control—make programming fast and efficient. With a tight 3.5° beam angle, 16-bit color mixing, and a tunable CTO range of 2500K to 8000K, the B4 excels in both beam intensity and color precision. Ideal for DJs, clubs, concerts, and installations, it runs in four DMX personality modes (25/47/69/90 channels) and supports 5-pin DMX512, Art-Net, RDM, sACN, and Kling-Net protocols. TRUE1 IN/OUT connections ensure secure, professional-grade power delivery. The fixture includes a TRUE1 power cable, 5-pin DMX cable, two omega brackets, two safety cables, and a manual. CE, cETL, FCC, and RoHS certified for global compliance.

Features:

• Four high-output 60W RGBW LEDs generate intense 3.5° beams with exceptional punch, color saturation, and long-throw aerial effects.
• Compact four-head moving beam bar design delivers dynamic multi-beam effects while maintaining a streamlined footprint for stages, clubs, and mobile productions.
• Independent 360° continuous pan and tilt rotation on every head enables fluid motion effects, sweeping beam movements, and captivating visual displays.
• Individual head pixel control allows for custom beam chases, animated patterns, and creative pixel-mapped effects across the entire fixture.
• Integrated RGB LED rings feature built-in color and effect macros with variable speed control, adding vibrant eye-candy effects and visual depth.
• Advanced 16-bit RGBW color mixing with linear CTO adjustment from 2500K–8000K delivers smooth fades, rich colors, and precise white light control, while support for DMX512, Art-Net, RDM, sACN, and Kling-Net ensures seamless integration into professional lighting systems.

Technical Specifications

Light Source:

• 240W (4 x 60W) RGBW LED
• Ring Effect: 24W ( 120 x 0.2W) RGB SMD LEDs
• LED Life: 50,000 Hours

Color System:

• 16 bit RGBW Color Mixing
• CTO: 2500K – 8000K
• Linear 16bit Color Temperature
• Individual Head Pixel Control
• Individual Dynamic Ring Color And Effect Macro

Optics:

• Beam Angle:3.5°

Dynamic Effect:

• Two Movement Modes:
• 360° Pan / Tilt Continuous Movement & 540° Pan / 270° Tilt Movement (8-bit and 16-bit)
• Selectable fast and precise movement speed by DMX function channel
• Scan position memory with automatic tilt position correction
• Linear Dimmer: 0 – 100% Electronic Dimming
• Shutter / Strobe
• High Speed Electronic Shutter and Strobe
• 0-25Hz Shutter/Strobe effect with Variable Speed
• Preset Pulse Strobe Effect with Variable Speed
• Random Strobe Effect with Variable Speed
• Sharp Beam Effect
• Dynamic Ring Effect with built-in Macros with variable speed

Control:

• Personalities: 5 Modes 25/47/69/77/90
• Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net

Body:

• Die-cast Aluminum and Steel structure with high impact flame retardant PA6
• GF 30 (Polyamide 6) with 30% glass fiber
• Exterior finish: Black

Physical:

• Cooling: Fan
• Connection: True1 (UL listed)
• Power In/Out: True1
• Protocol Connectors: 5-Pin DMX512 In/Out, Art-Net RJ45
• Cable Length: Power 5 feet (1.5 meter); DMX 5 feet (1.5 meter)
• IP Rating: 20

Electrical:

• Input Voltage: 100 – 240V AC, 50/60Hz (Auto ranging with active PFC)
• Power Consumption: 312W
• Power Linking for connecting fixture in daisy-chain: Up to 6 units @110V with a 20A circuit, Up to 12 units @208V with a 20A circuit, Up to 12 units @230V with a 20A circuit
• Fuse: F12A, 250V
• Certification / Qualifications: CE, cETL, FCC, RoHS
• Operating Temperature: 40 ° C ( 104 °F)
• Minimum Temperature: – 10 ° C ( 14 ° F)
• Maximum Temperature: 60 ° C ( 140 ° F)

Box Content:

• 1 x 3SIXTY B4
• 1 x TRUE1 Power Cable
• 1 x 5-Pin DMX Cable
• 1 x User Manual
• 2 x Omega Brackets
• 2 x Safety Cable

Item Dimensions & Weight:

• Dimensions: 31.5″ x 10.5″ x 6.6″
• Weight: 34.02lbs

UPC:

• 618528599069

Warranty:

• 3 Years
