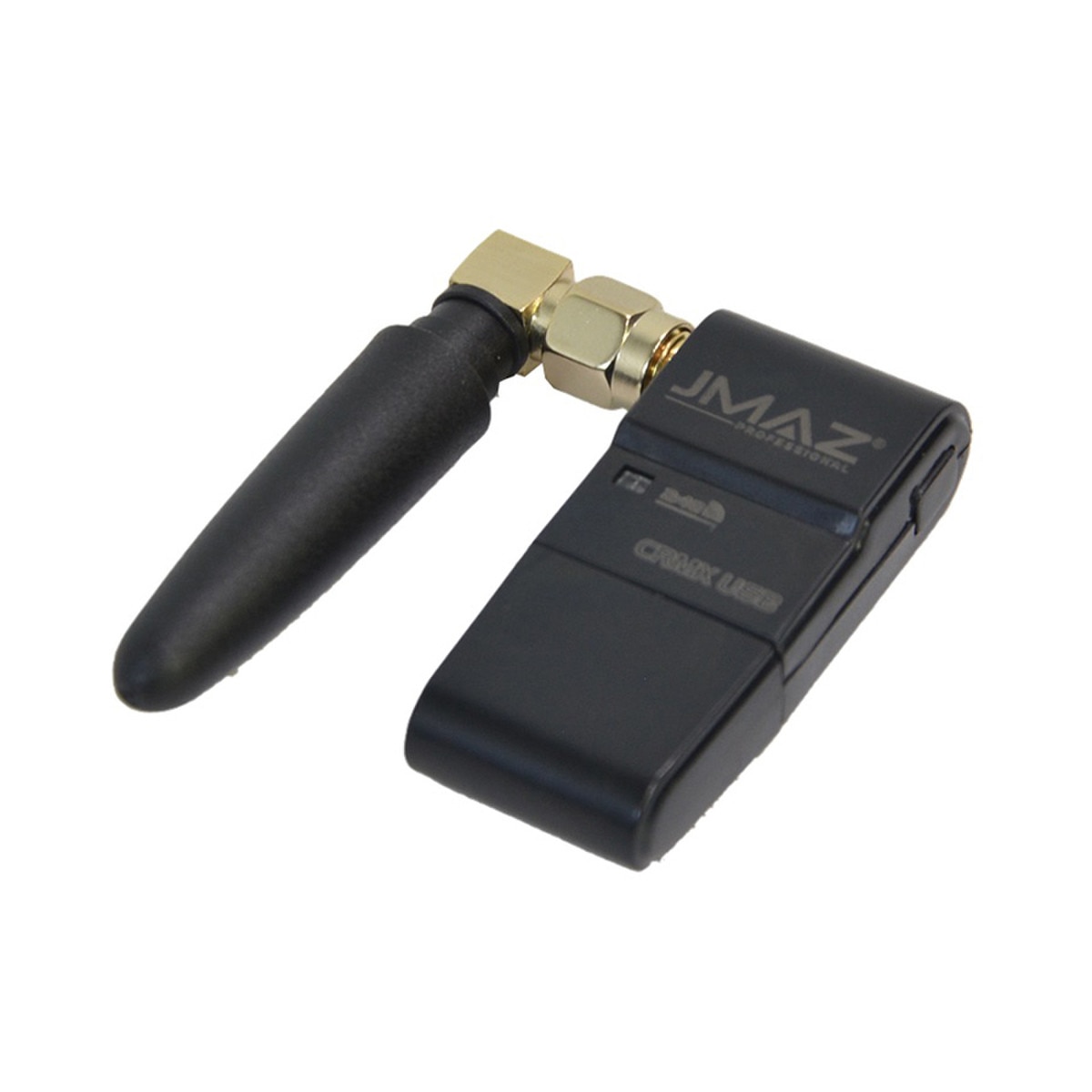

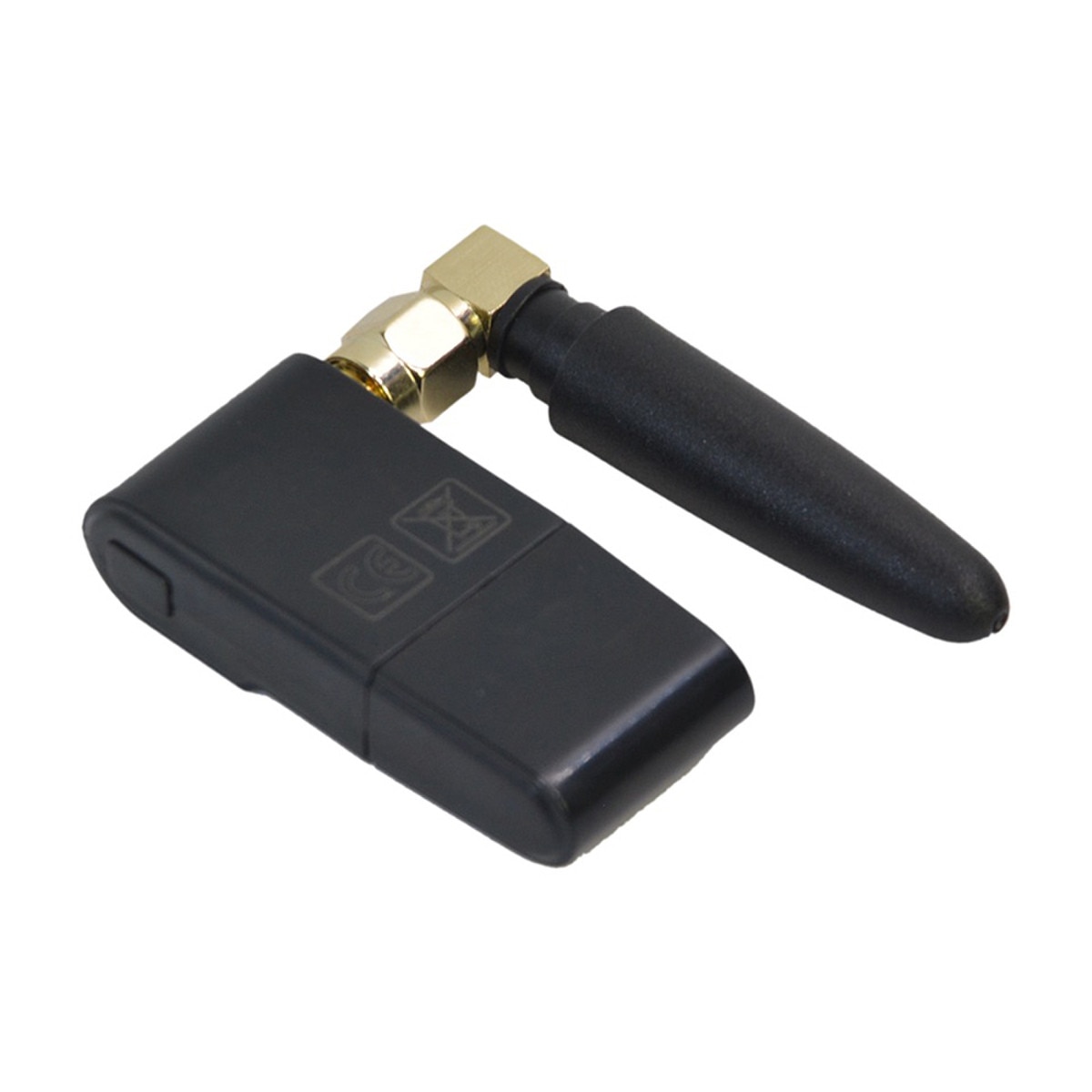

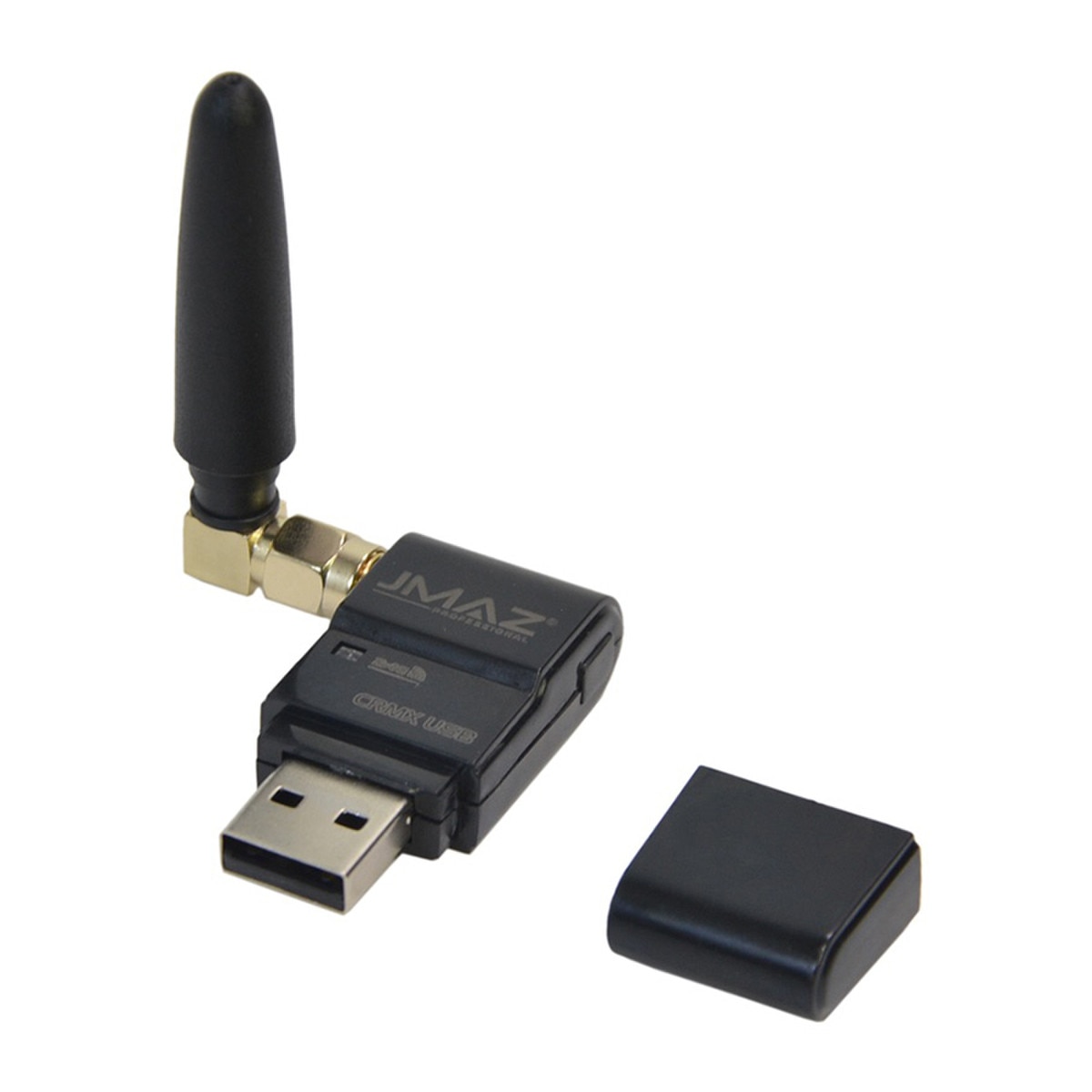

JMAZ Professional CRMX USB Wireless DMX Receiver

The CRMX USB is a compact, high-performance wireless DMX interface powered by LumenRadio’s industry-leading QFN48 SMT chipset, delivering reliable CRMX and W-DMX (G3/G4) connectivity on the 2.4GHz band. Designed for seamless single-universe operation, it features adaptive frequency hopping for interference-free performance and supports DMX refresh rates from 1–830Hz. Built with a flame-retardant plastic body reinforced with a copper structure, the CRMX USB offers a fanless, silent design ideal for studio, live production, and installation environments. With direct USB DMX output, IP20 protection, and full RoHS, CE, and FCC compliance, it provides a robust, professional-grade solution for wireless lighting control in any modern workflow.

Features:

• Powered by LumenRadio’s industry-leading QFN48 chipset, delivering reliable CRMX and W-DMX G3/G4 wireless DMX performance for professional lighting applications.
• Supports a full DMX universe with up to 512 channels and refresh rates from 1–830Hz, ensuring responsive, high-fidelity control for demanding productions and installations.
• Adaptive Frequency Hopping Spread Spectrum (AFHSS) technology automatically avoids interference, providing stable wireless communication in crowded RF environments.
• Long-range wireless operation of up to 1,900 feet (580 meters) enables dependable control across theaters, concert venues, broadcast studios, and large-scale event spaces.
• Compact USB-powered design with direct DMX output allows for fast integration into compatible fixtures, controllers, and wireless DMX workflows without additional power supplies.
• Fan-less construction, external antenna, and professional-grade signal monitoring provide silent operation, enhanced reception, and dependable performance for live production and permanent installations.

Technical Specifications

Control:

• Control Protocol: CRMX by LumenRadio, W-DMX
• Chipset: QFN48 SMT Chip by LumenRadio
• Operating Frequency: 2.4GHz
• Universes Per Device: 1
• Number of DMX Channels: 512
• Error Connection: Yes
• DMX Fidelity: Yes
• Max DMX Refresh Rate: 1-830Hz
• Adaptive Frequency Hopping: Yes
• W-DMX G3, G4 Compatability: Yes
• Range: Up to 1900ft. (580 Meters)
• External Antenna: Yes
• Sensitivity: -90dBm
• Modulation Method: AFHSS

Body:

• Flame Retardant Plastic with Copper Structure
• Exterior Finish: Black

Physical:

• Cooling: Fanless
• IP Rating: IP20

Electrical:

• Input Voltage: DC 5V Through USB Port
• DMX Output: USB
• Power Input: USB
• Wireless Signal Indicator

Box Contents:

• 1 x CRMX USB Wireless Receiver

UPC:

• 618528598994

Warranty:

• 3 Years
