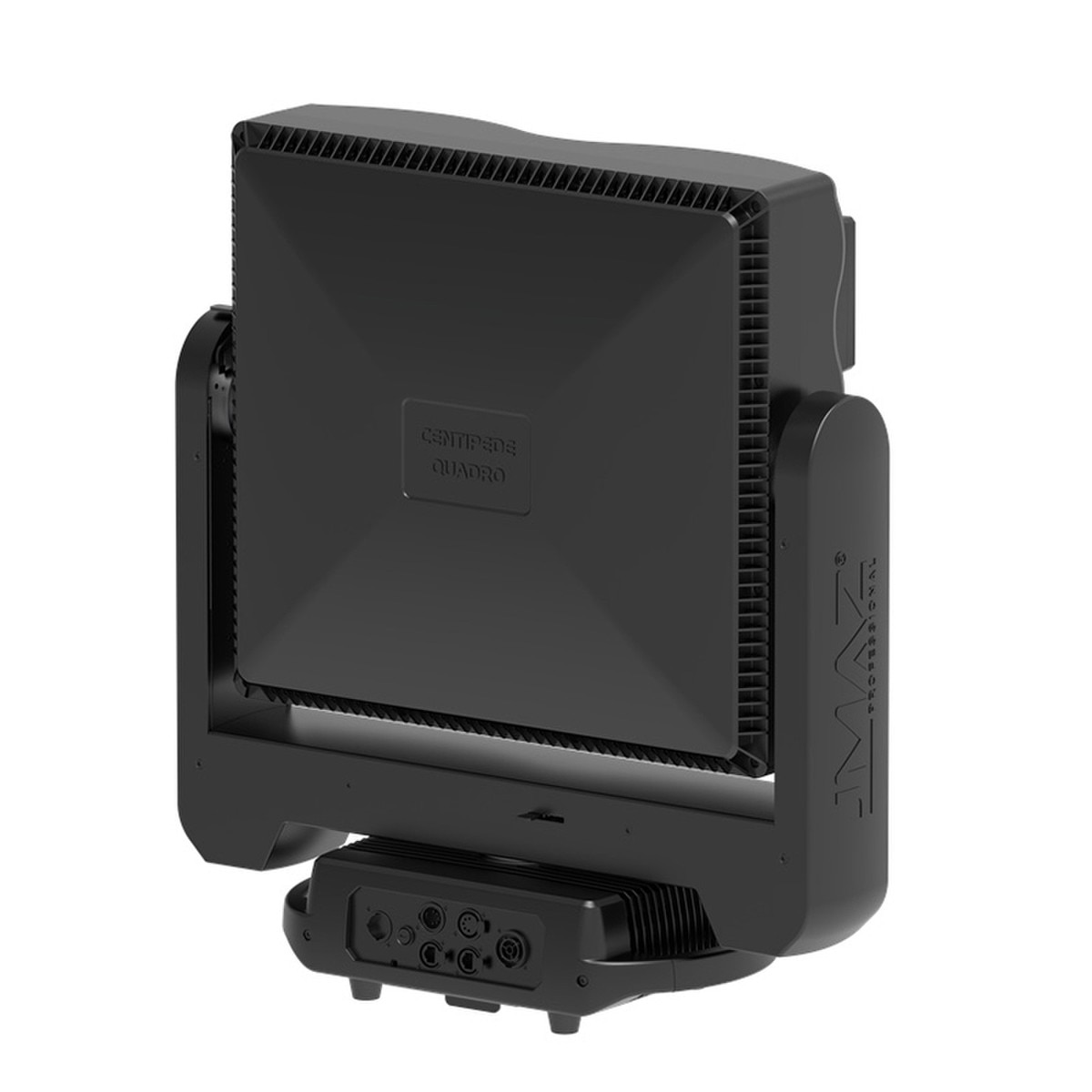

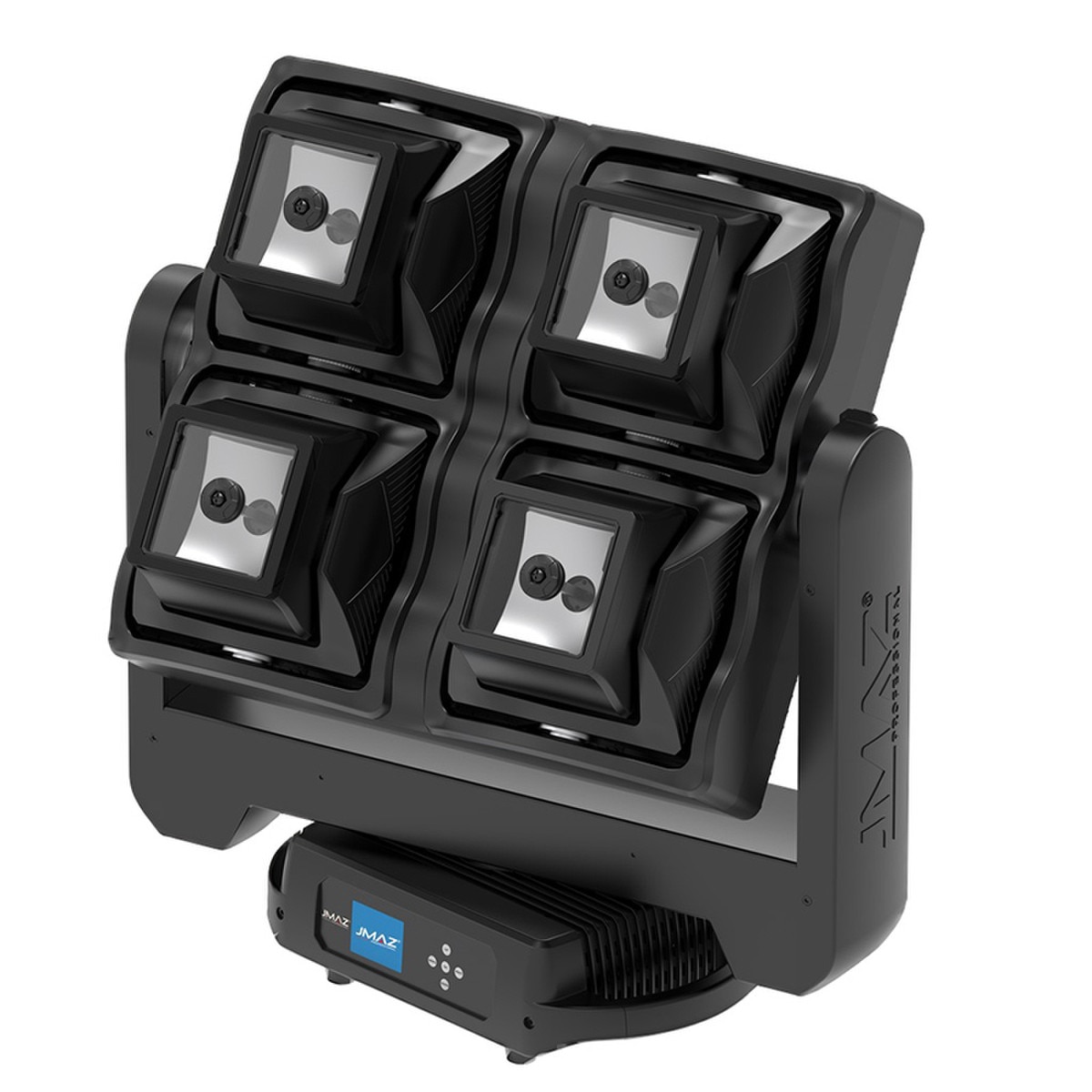

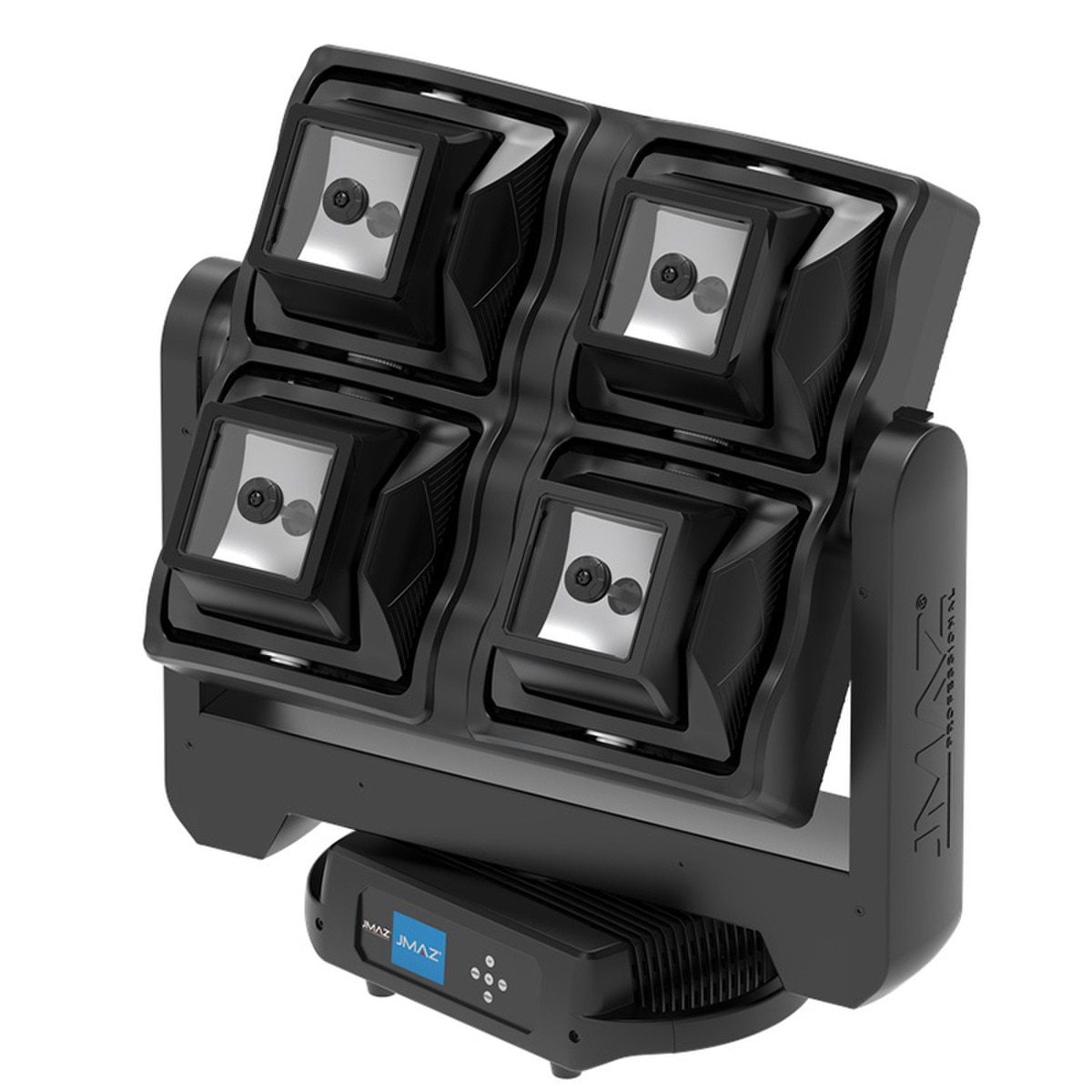

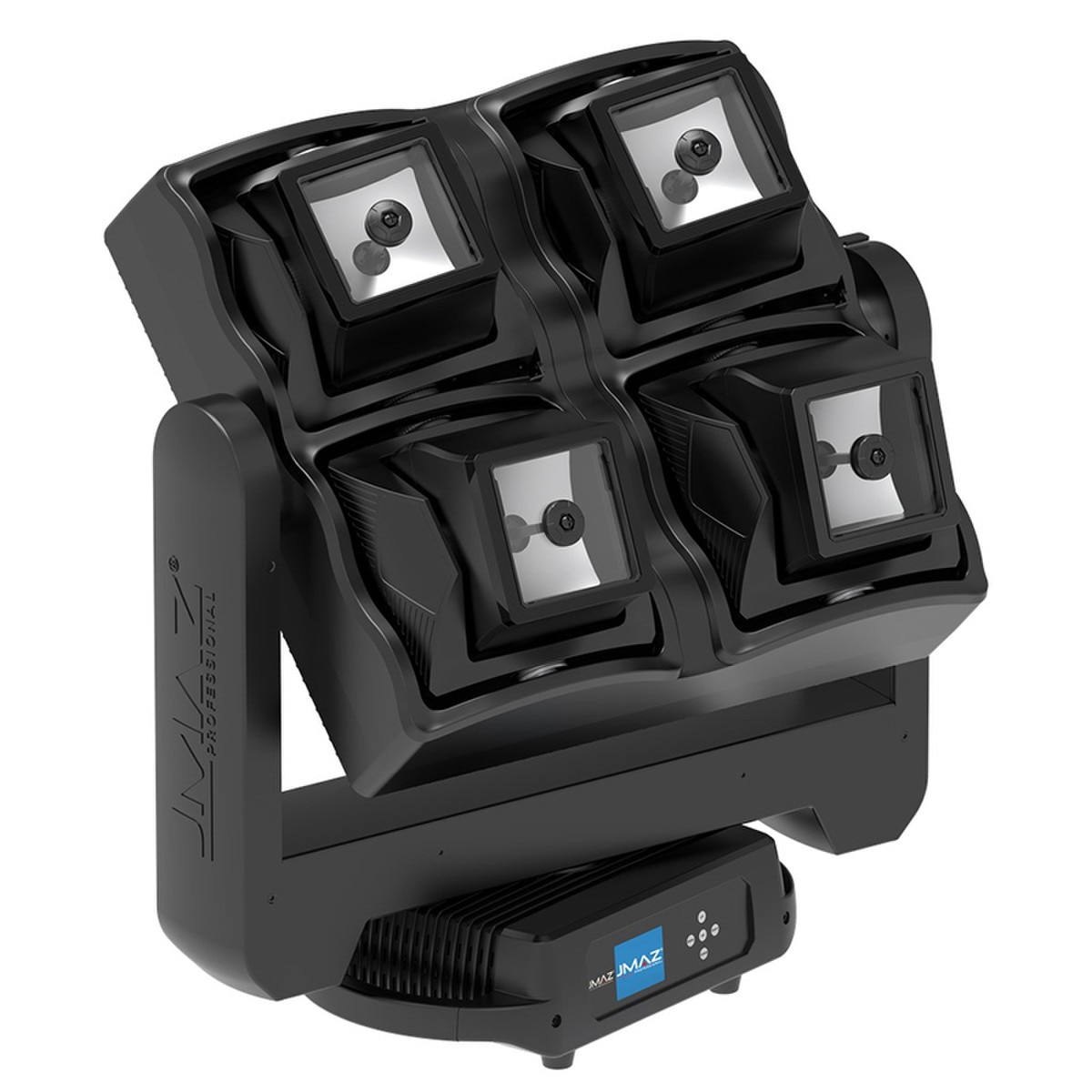

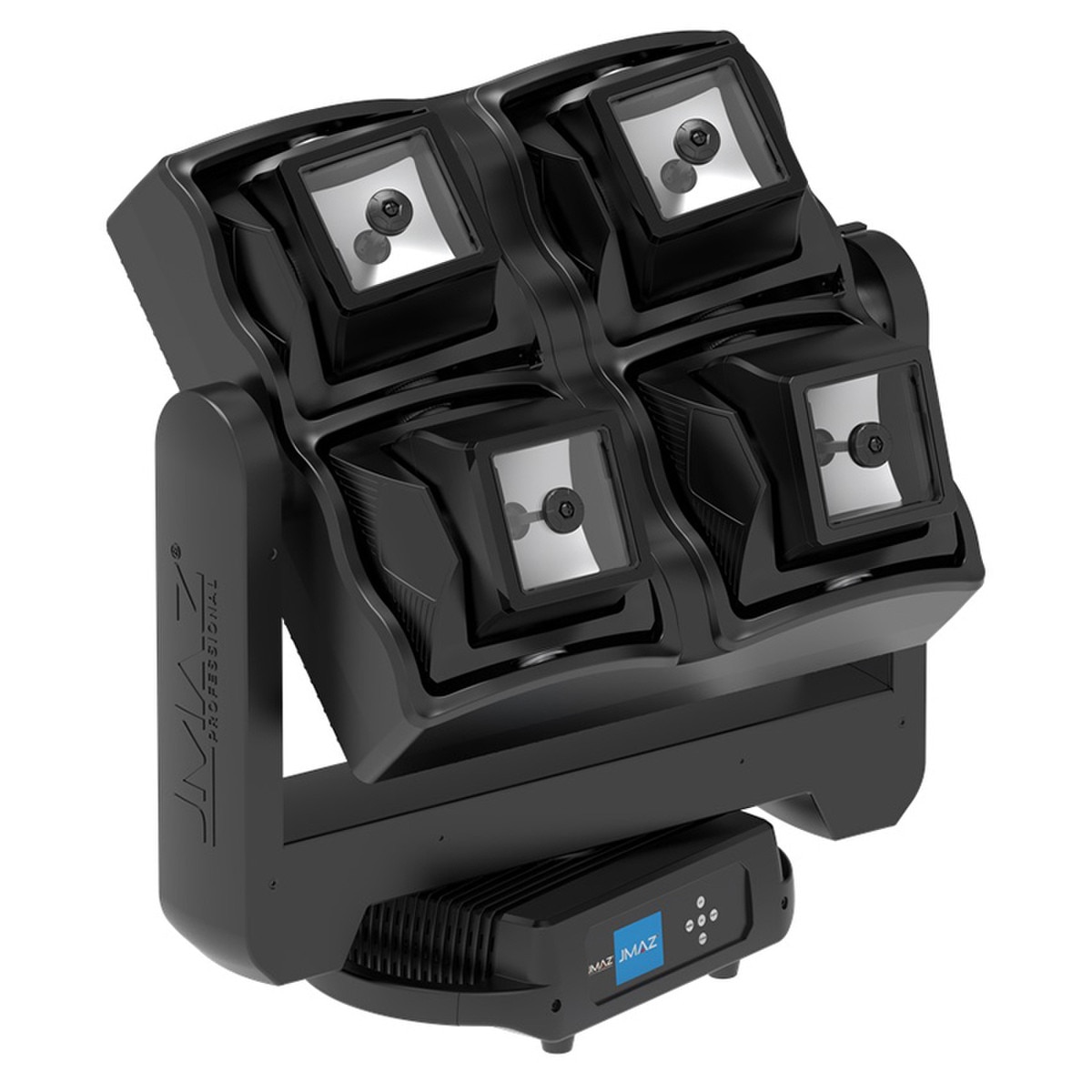

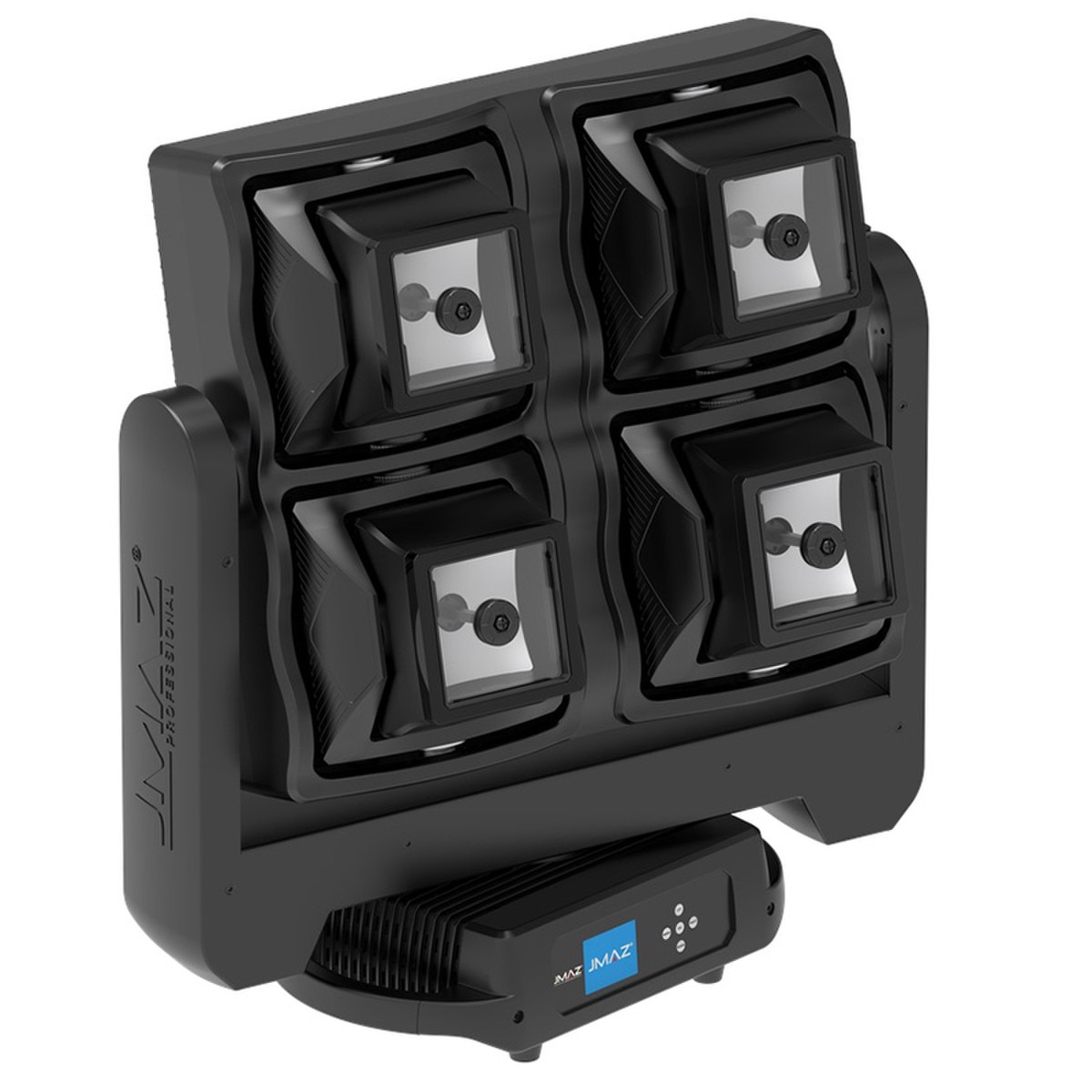

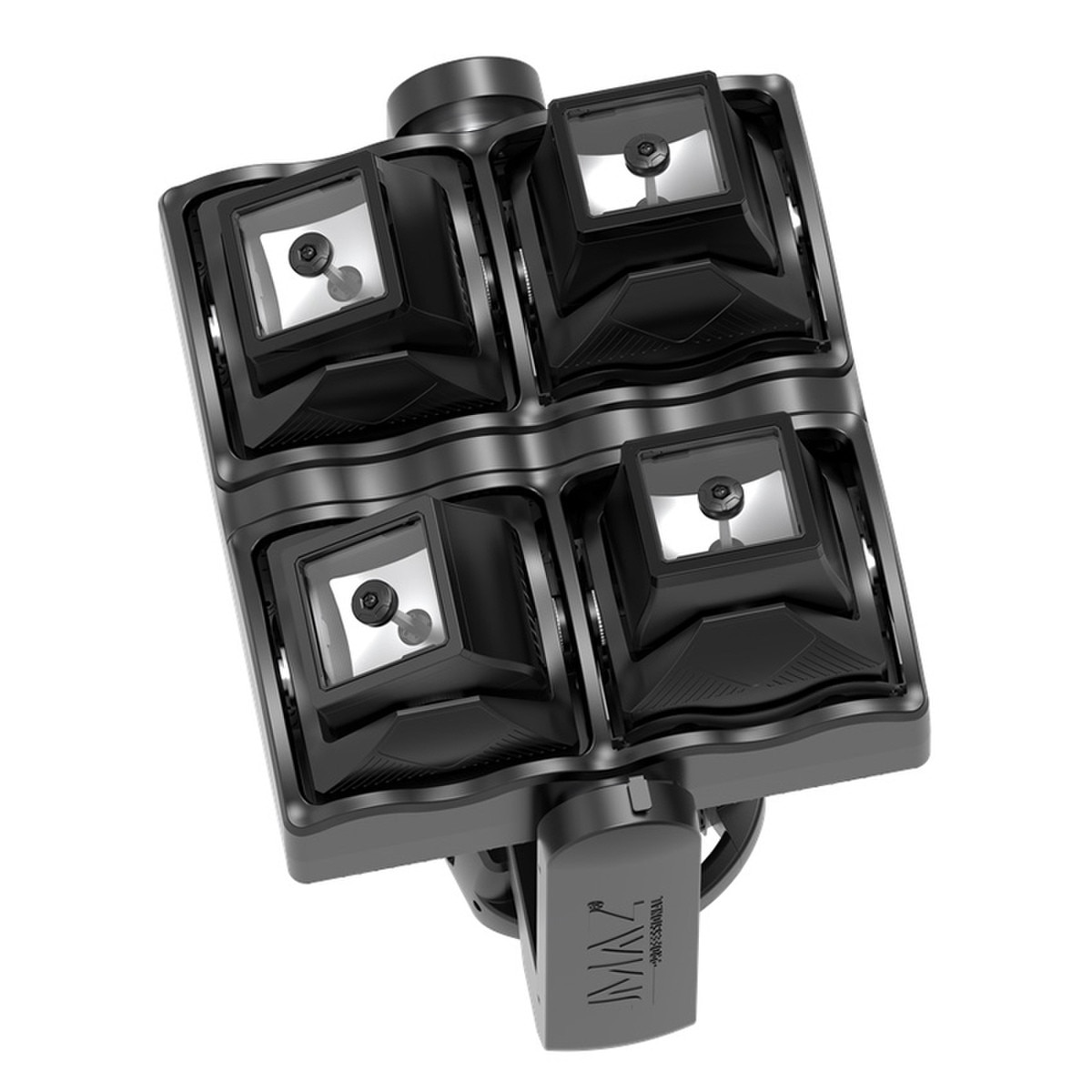

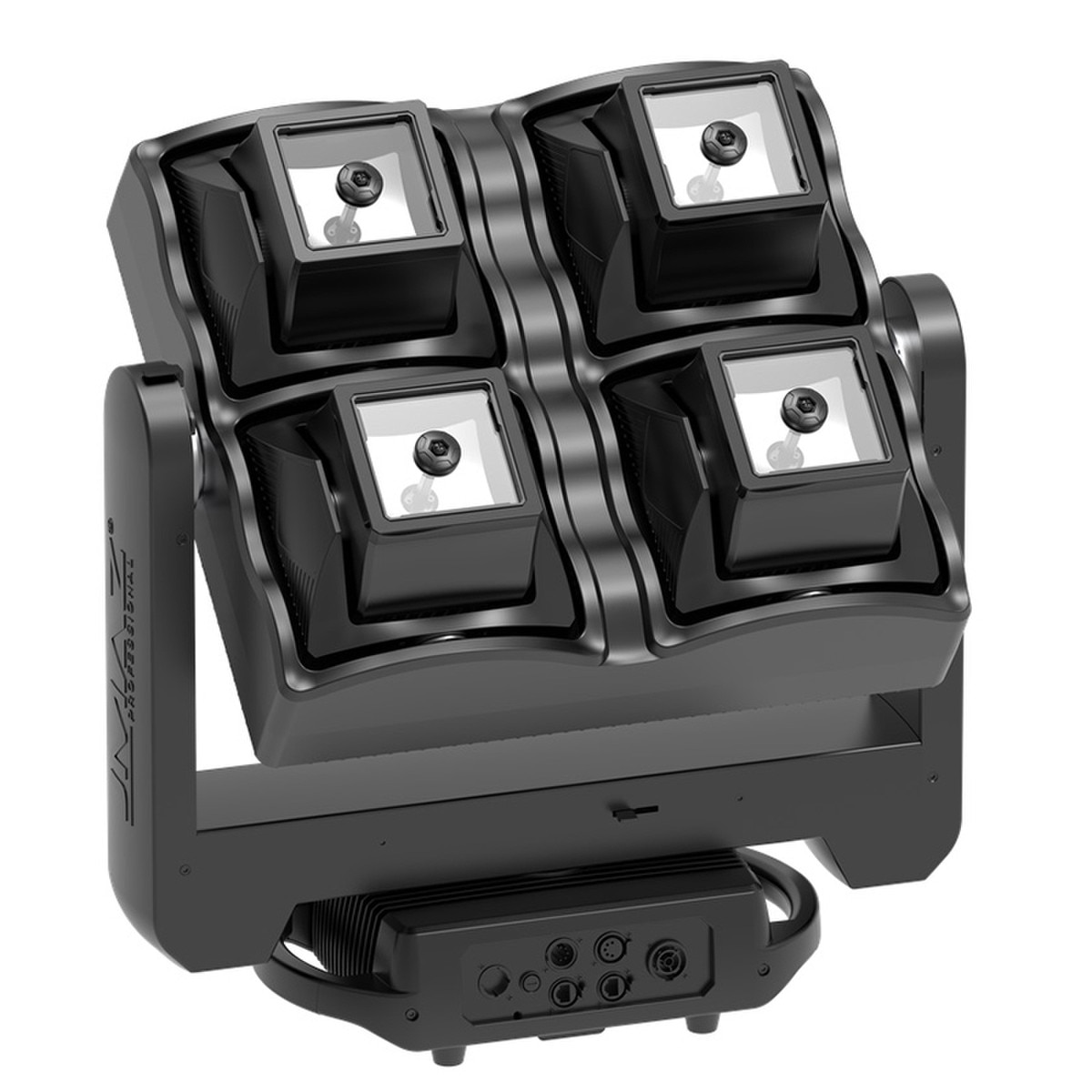

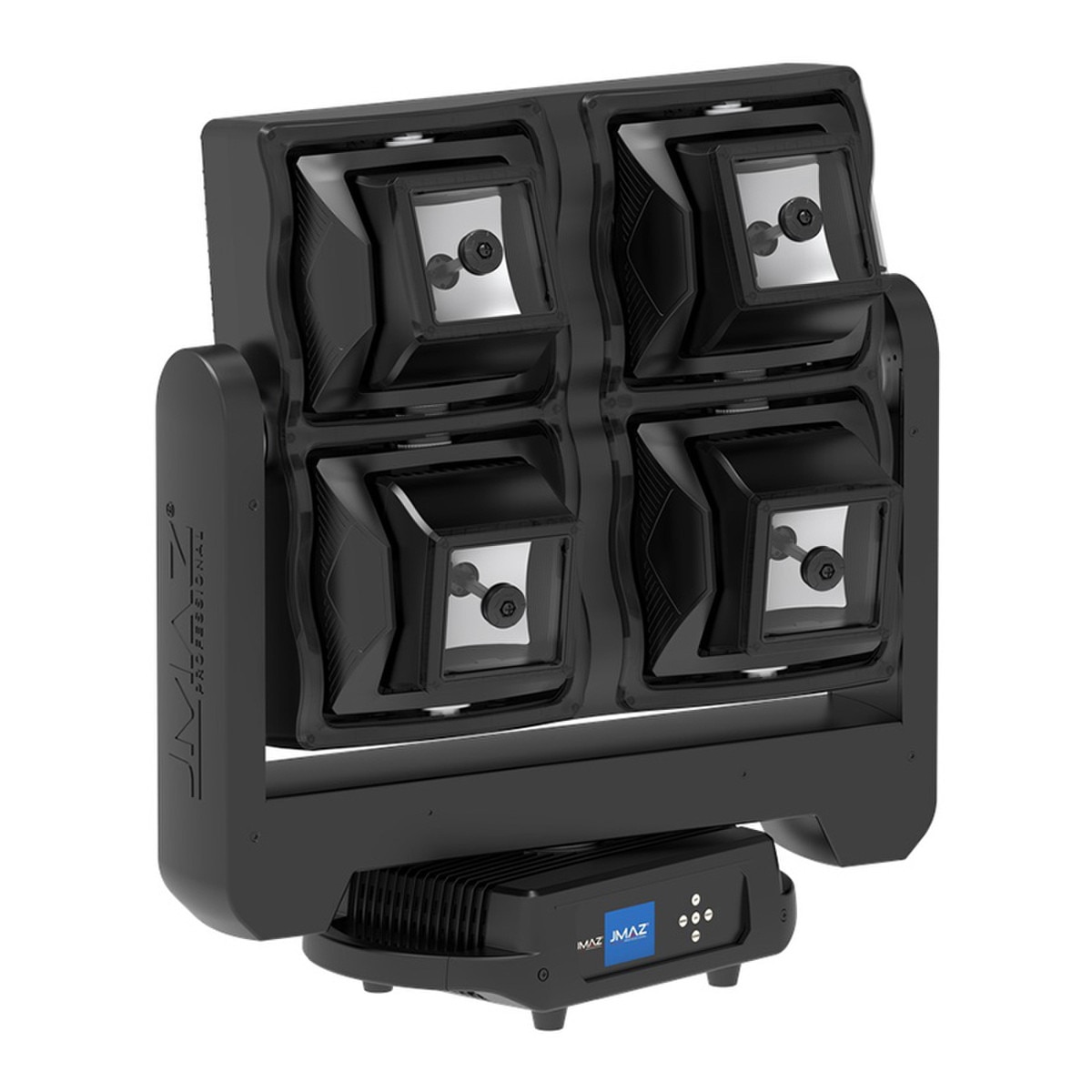

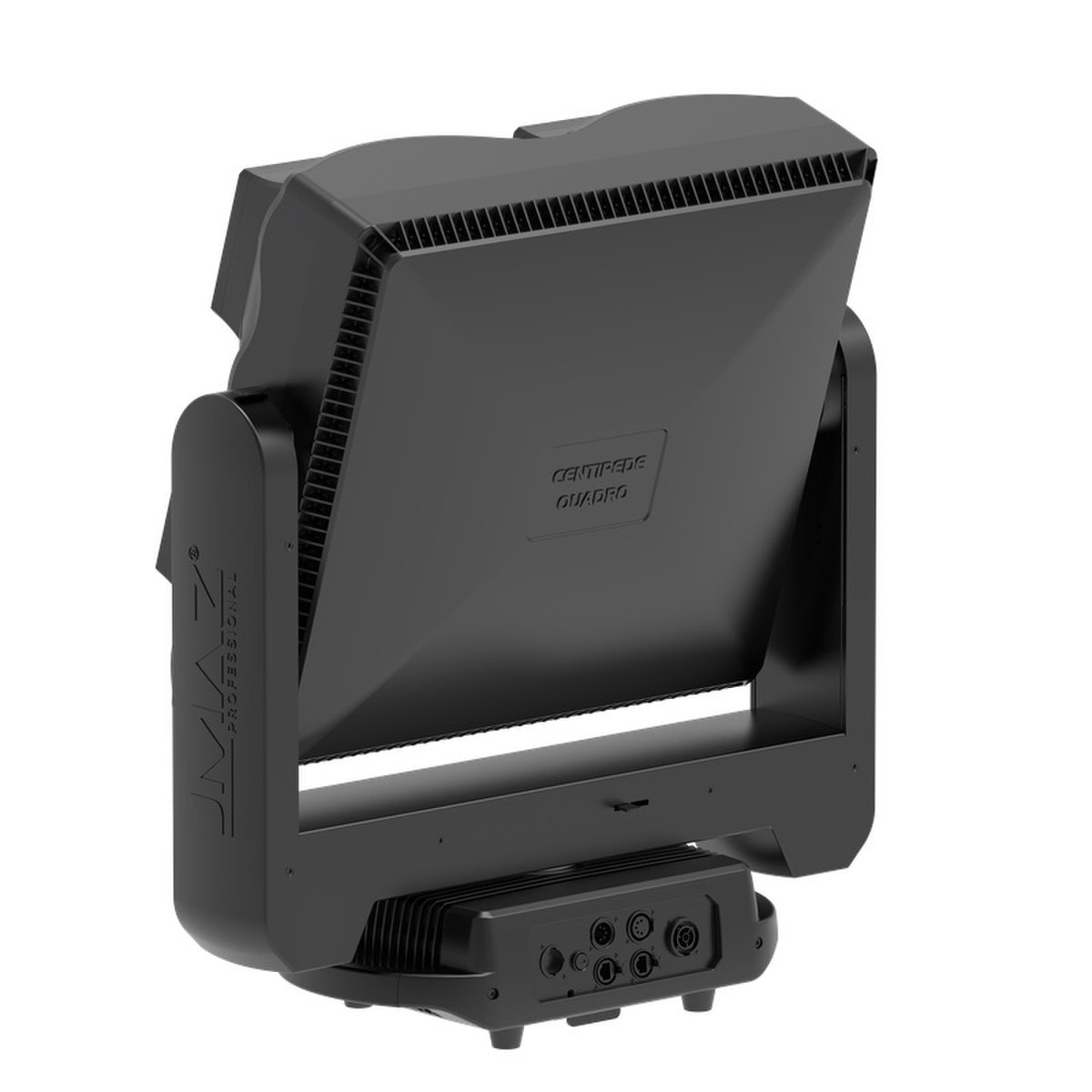

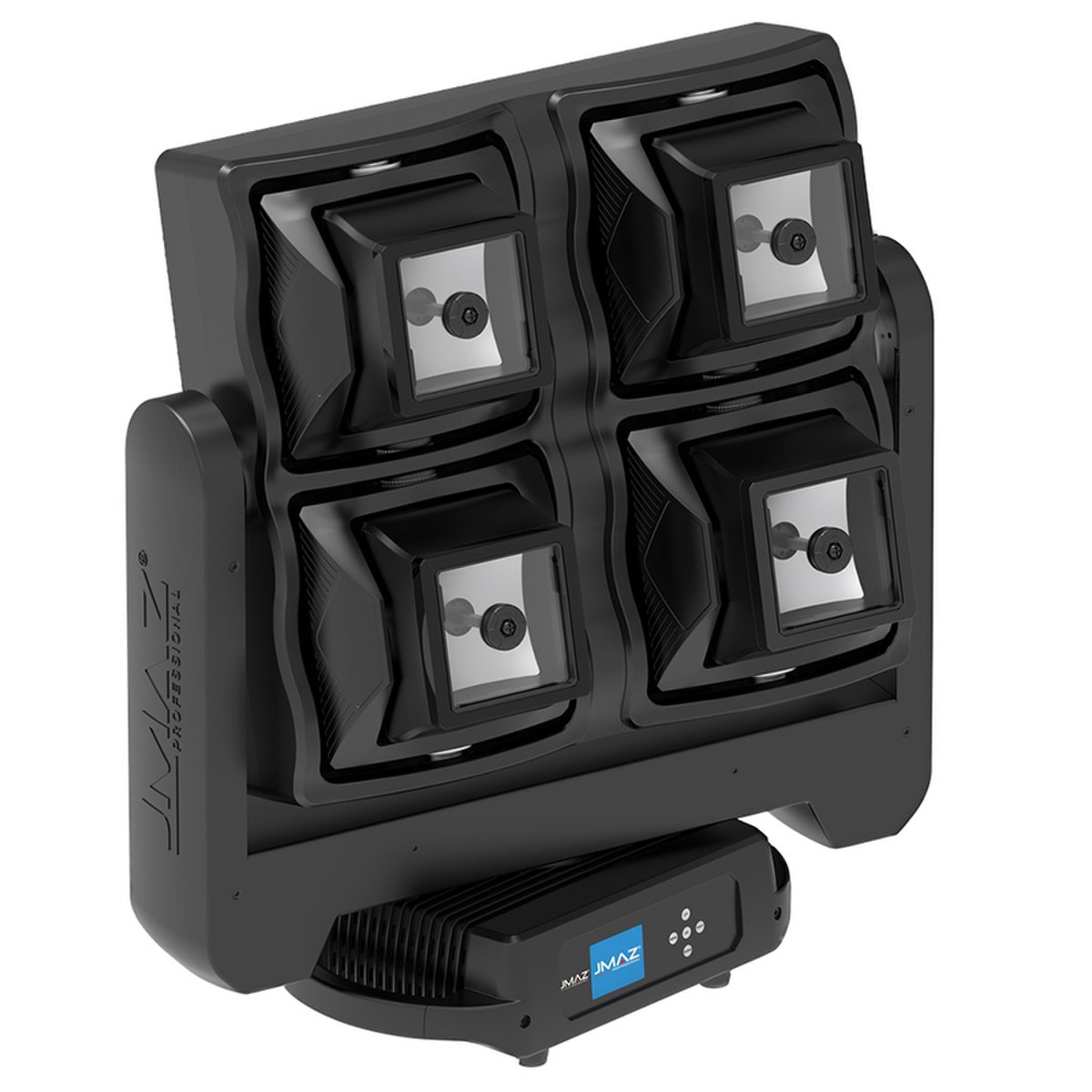

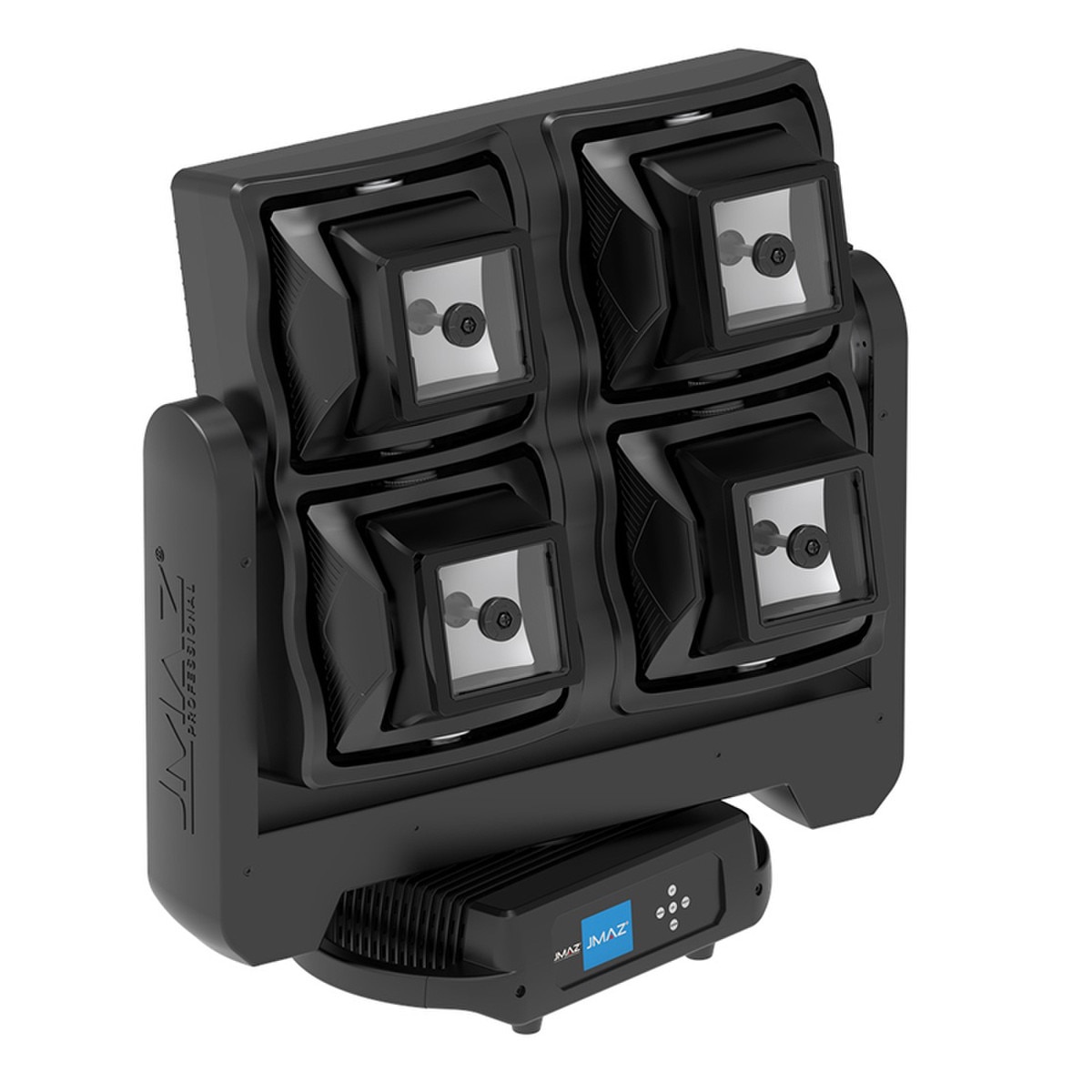

JMAZ Professional Centipede Quadro RGBW LED Intelligent Quad Moving Head

The JMAZ Professional Centipede Quadro is an advanced RGBW LED moving head fixture engineered for immersive lighting effects and full-stage dynamics. Equipped with four powerful 60W RGBW LEDs and a vibrant 120-piece RGB SMD LED ring, this fixture delivers sharp 3.5° beams with stunning color accuracy and definition. Each head offers independent 76° pan/tilt movement and pixel control, while the entire fixture features 360° infinite pan/tilt for fluid, sweeping effects. Enhanced with dynamic ring color macros, built-in virtual colors, and movement presets, the Centipede Quadro enables complex designs with minimal programming. With 16-bit RGBW color mixing and CTO ranging from 2500K to 8000K, it provides complete control over mood and tone. Operating in 3 DMX personality modes (38/46/88 channels) and supporting multiple protocols including DMX512, Art-Net, RDM, sACN, and Kling-Net, this fixture ensures seamless integration into modern lighting systems. TRUE1 IN/OUT power and 5-pin DMX provide reliable connectivity. Each unit includes a TRUE1 power cable, DMX cable, dual omega brackets, two safety cables, and a manual. CE, cETL, FCC, and RoHS certified.

Features:

• Create mesmerizing aerial effects with 360° infinite pan/tilt movement and independently controllable heads featuring 76° pan/tilt positioning for unmatched creative freedom.
• Four high-output 60W RGBW LEDs produce razor-sharp 3.5° beams with exceptional intensity, color saturation, and long-throw projection.
• Integrated RGB LED ring delivers dynamic eye-candy effects with built-in color macros, animated chases, and variable-speed effects that enhance any lighting design.
• Advanced 16-bit RGBW color mixing with linear CTO control from 2500K–8000K enables smooth fades, rich colors, and precise white light reproduction.
• Built-in movement presets, home-position macros, virtual colors, and dynamic effect generators simplify programming while delivering complex looks.
• Seamlessly integrates into modern lighting systems with DMX512, Art-Net, RDM, sACN, and Kling-Net support for flexible control and pixel-mapping applications.

Technical Specifications

Light Source:

• 240W (4 x 60W) RGBW LED
• Ring Effect: 24W (120 x 0.2W) RGB SMD LEDs
• LED Life: 50,000 Hours

Color System:

• 16 bit RGBW Color Mixing
• CTO: 2500K – 8000K
• Linear 16bit Color Temperature
• Individual Head Pixel Control
• Individual Dynamic Ring Color And Effect Macro

Optics:

• Beam Angle: 3.5°

Dynamic Effect:

• Two Movement Modes: 360° Infinite Pan / Tilt Control / 540° Pan and 270° Tilt Control (8-bit and 16-bit)
• 76° Individual Head Pan / Tilt (8-bit and 16-bit)
• Selectable Preset Home Position Macros by DMX Function channel for fast and easy programming
• Selectable Fast and Precise Movement Speed by DMX Function channel
• Scan Position Memory with Automatic Pan / Tilt Position Correction

Shutter / Strobe:

• High Speed Electronic Shutter and Strobe
• 0-25Hz Shutter/Strobe effect with Variable Speed
• Preset Pulse Strobe Effect with Variable Speed
• Random Strobe Effect with Variable Speed
• Sharp Beam Effect
• Dynamic Ring Effect with built-in Macros with variable speed

Control:

• Protocol: 5-Pin DMX512, Art-Net, RDM, sACN, Kling-Net
• Personalities: 3 Modes 38/46/88

Body:

• Die-cast Aluminum and Steel Structure with High Impact Flame Retardant PA6 GF 30 (Polyamide 6) with 30%

Glass Fiber:

• Exterior Finish: Black

Physical:

• Cooling: Fan
• Power Connection: TRUE1 (UL Listed)
• Power IN/OUT: TRUE1
• Protocol Connectors: 5-Pin DMX512 IN/OUT, Art-Net RJ45
• Cable Length: Power 5ft. (1.5meter); DMX 5ft (1.5meter)
• IP Rating: 20

Electrical:

• Input Voltage: 100 – 240V AC, 50/60Hz (Auto Ranging with Active PFC)
• Power Consumption: 320W
• Power Linking for Connecting Fixture in Daisy-Chain: Up to 5 Units @ 110V with a 20A Circuit, Up to 9 Units @ 208V with a 20A Circuit, Up to 10 Units @ 220V with a 20A Circuit
• Fuse: F12A, 250V
• Certification / Qualifications: CE, cETL, FCC, RoHS
• Operating Temperature: 40 ° C ( 104 °F)
• Minimum Temperature: – 10 ° C ( 14 ° F)
• Maximum Temperature: 60 ° C ( 140 ° F)

Box Content:

• 1 x Centipede QUADRO
• 1 x 5-Pin DMX Cable
• 1 x User Manual
• 2 x Omega Brackets
• 2 x Safety Cable

Item Dimensions & Weight:

• Dimensions: 22.9″ x 10.5″ x 25″
• Weight: 73.7lbs

UPC:

• 618528599014

Warranty:

• 3 Years
