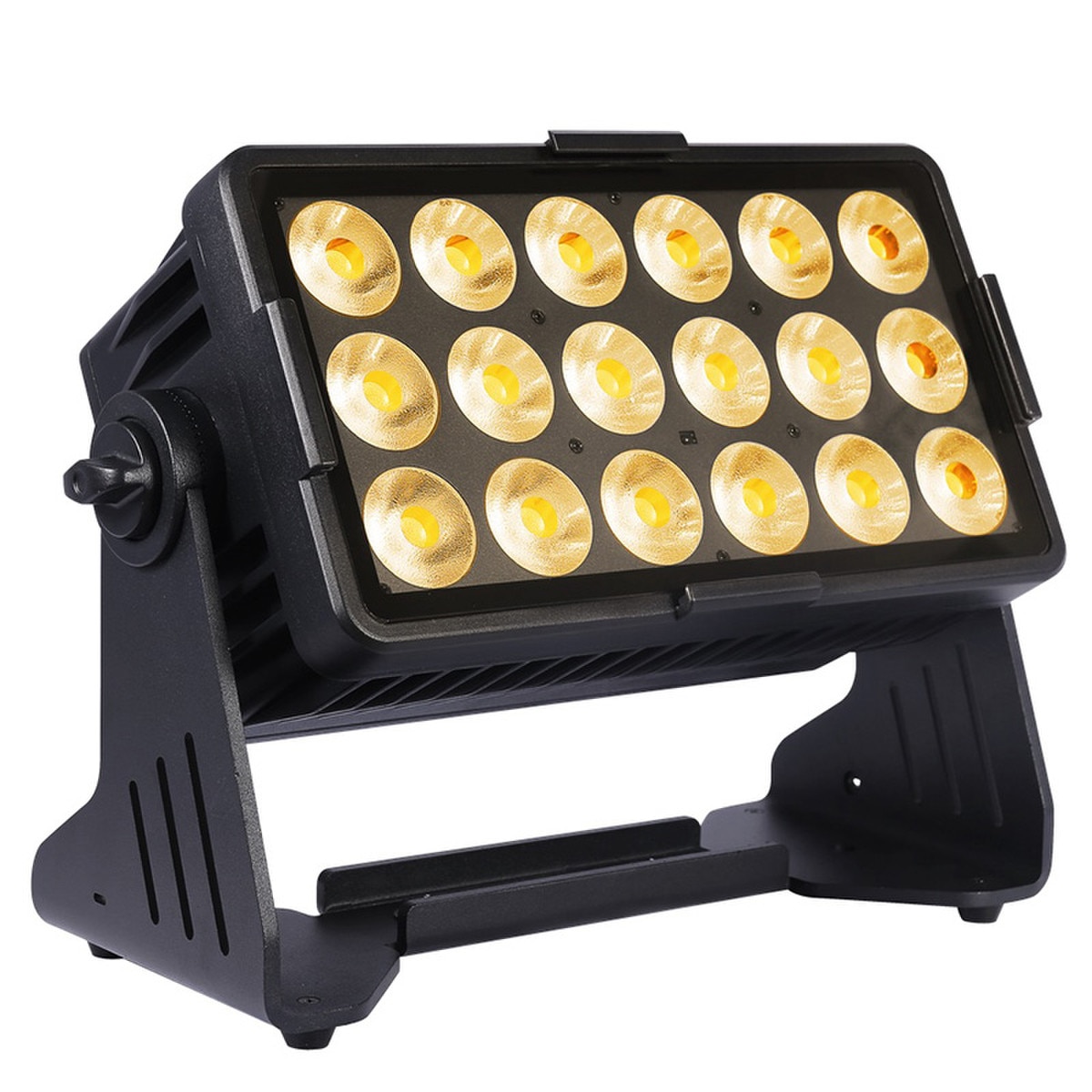

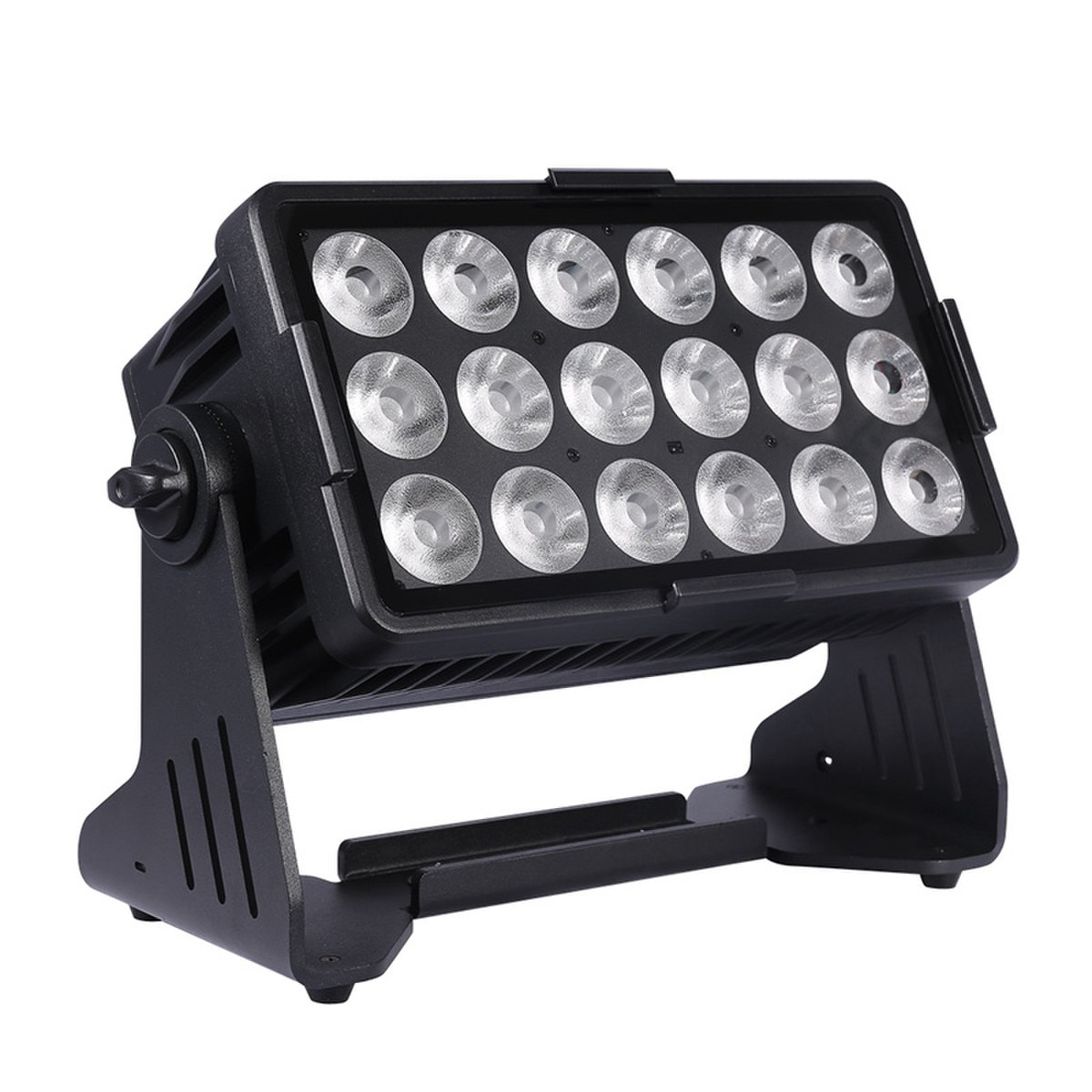

JMAZ Professional Electro Panel W18 RGB+LIME Battery-Powered Outdoor LED Panel Light

The JMAZ Professional Electro Panel W18 is a rugged and versatile battery-powered RGB+LIME LED panel designed for professional outdoor lighting. Equipped with 18 high-efficiency 12W RGB+LIME LEDs, it delivers bold, vibrant output with a CCT range of 2300K to 8500K. Rated IP65 for outdoor use, the W18 offers up to 11 hours of battery life—or up to 40 hours in battery saver mode—with a quick 4.5-hour recharge. With 73 preset color programs and 72 auto/fade built-in effects, it provides instant creative control for any environment. A native 20° beam angle ensures focused output, while the included diffuser widens coverage to 40° for softer washes. The fixture supports multiple control protocols, including DMX512, Wireless DMX (CRMX by LumenRadio), RDM, and IR remote, and features 7 personality modes (HSV, HSI, 3–16 channels). TRUE1 IN/OUT power allows for simultaneous operation and charging, and IP65-rated 5-pin DMX ports support secure wired data. Accessories include a diffuser, barn-doors, TRUE1 power cable, omega bracket, IR remote, quick start guide, and manual. CE, FCC, and RoHS certified with a UL listed battery for added safety and reliability.

Features:

• Equipped with eighteen 12W RGB+LIME LEDs delivering exceptional output, vibrant saturated colors, enhanced pastel tones, and a tunable white range from 2300K to 8500K for demanding professional lighting applications.

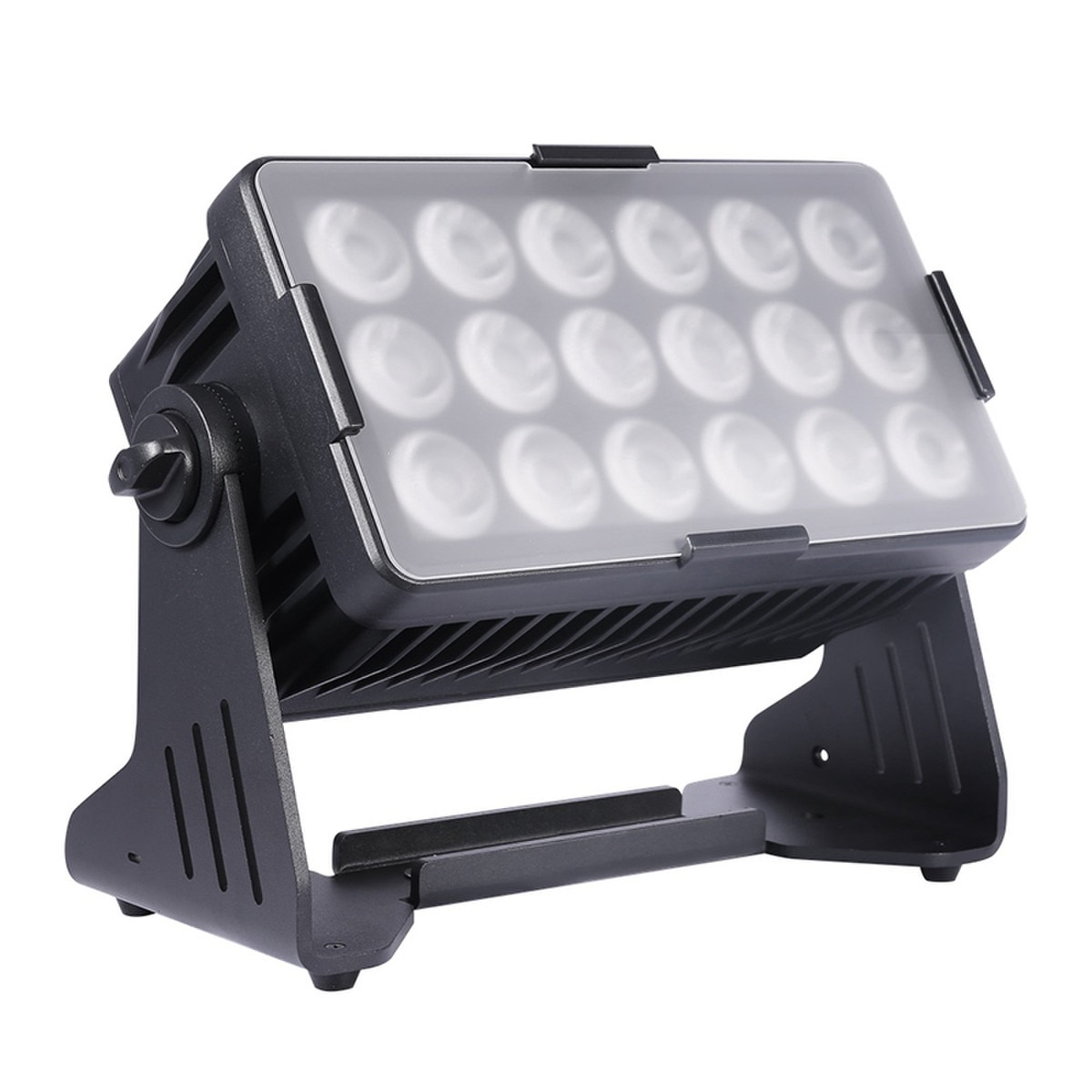

• Advanced optical system produces a powerful 20° beam for concentrated illumination, while the included 40° diffuser expands coverage for smooth stage washes, architectural lighting, and large-area event applications.

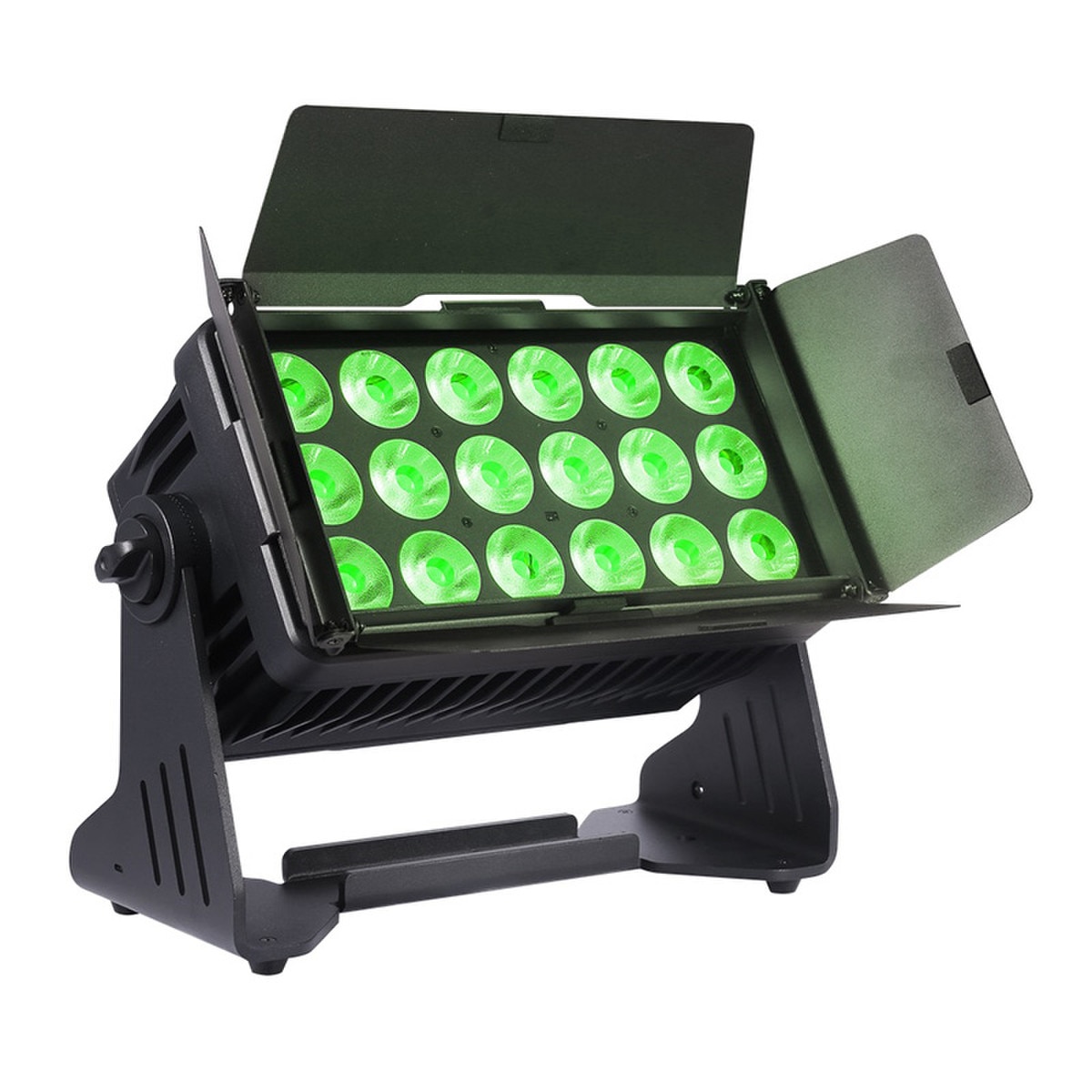

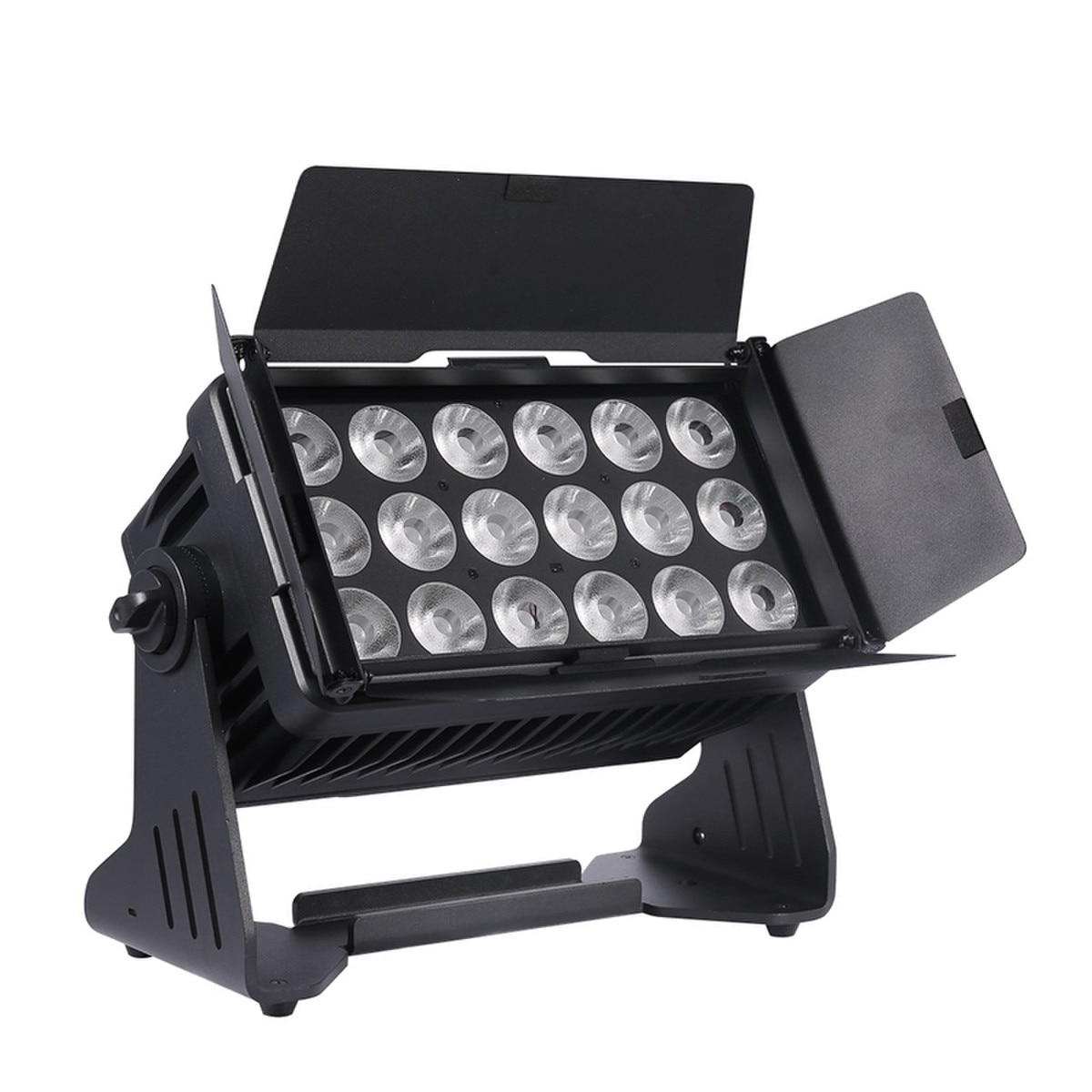

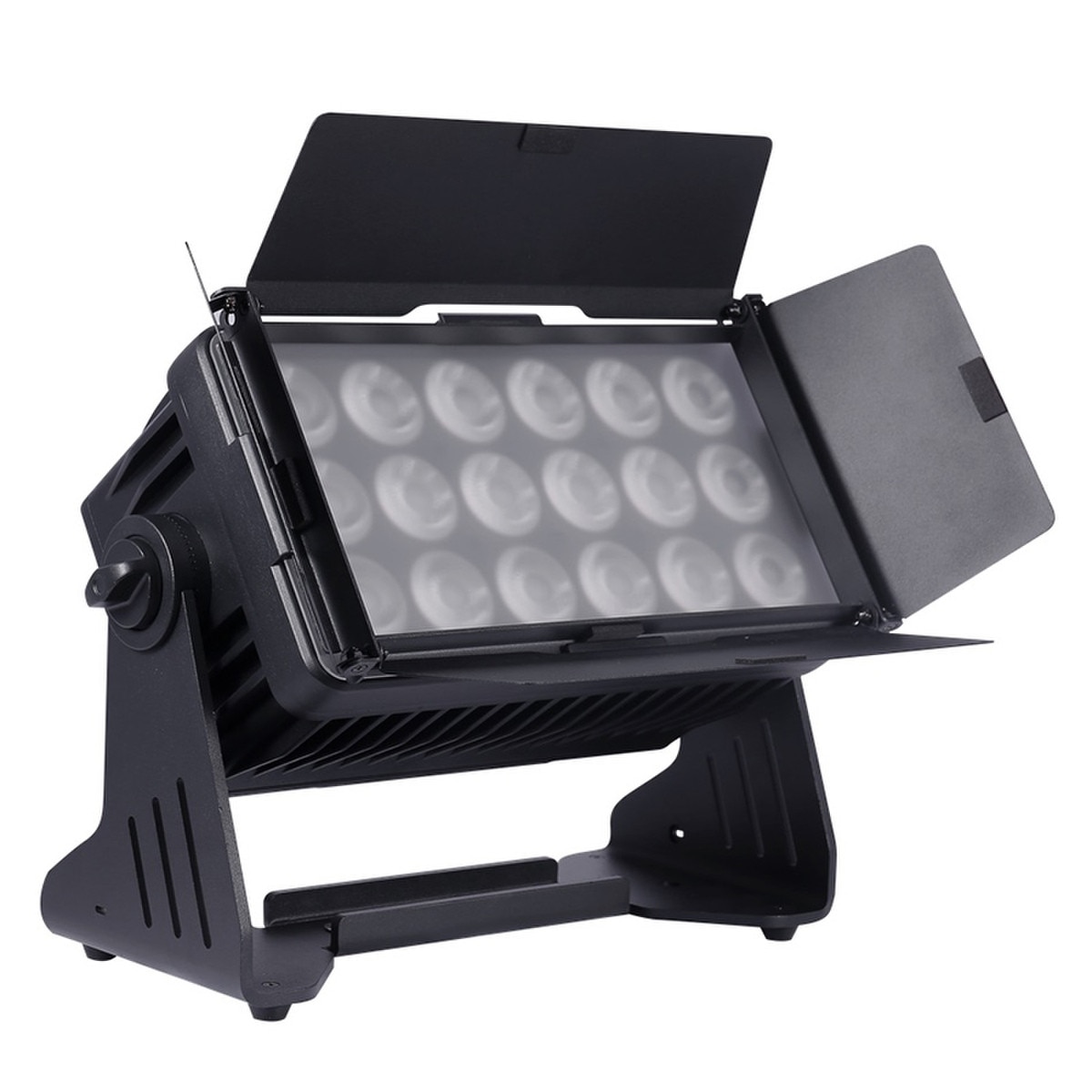

• Included barn doors provide precise beam shaping and spill-light control, allowing lighting designers to direct output exactly where needed while maintaining clean and controlled lighting environments.
• Integrated rechargeable lithium-ion battery delivers up to 11 hours of continuous operation or up to 40 hours in battery-saving mode, with a rapid 2.5-hour recharge for maximum event-day efficiency.
• Built-in CRMX by LumenRadio wireless DMX technology provides dependable cable-free control, while the IP65-rated housing and fan-less cooling design ensure reliable performance in both indoor and outdoor environments.
• Designed for production companies, rental houses, houses of worship, concert venues, architectural lighting professionals, and corporate event providers seeking a powerful wireless wash fixture with professional-grade control and performance.

Technical Specifications

Light Source:

• 216W (18 x 12W) RGBL LEDs
• LED Life Expectancy: 50,000 hrs

Color System:

• RGBL Color Mixing 8/16 bit
• CTO: 2300K – 8500K

Optics:

• Advanced Optics Beam Angle: 20 Degree
• Diffuser Angle (included): 40 Degree

Dynamic Effect:

• Max 11 Hour Battery Life / 40 Hour In Battery Saving Mode
• Charging Time: 2.5 Hours
• Selectable Battery Saving Mode: 20%, 30%, 40%, 50%, 60%, 70%, 80%, 90%, 100%
• 73 Preset Color Programs
• 72 Auto / Fade Built-In Programs
• Stand Alone Color Mixing
• Electronic Dimmer
• Fading/Jumping Macros Light Change And Jump
• Shutter/Strobe: Electronic
• Strobe Rate: 0-25 Hz
• Preset Color Temperature: 2300K – 8500K
• 4 Favorite Color Customization Triggered via DMX / IR Remote

Control:

• Control Protocol: Wireless DMX, IR Remote
• Wireless DMX: CRMX by LumenRadio
• Personalities: HSV/HSI/3/4/6/11/16 DMX Channel Modes

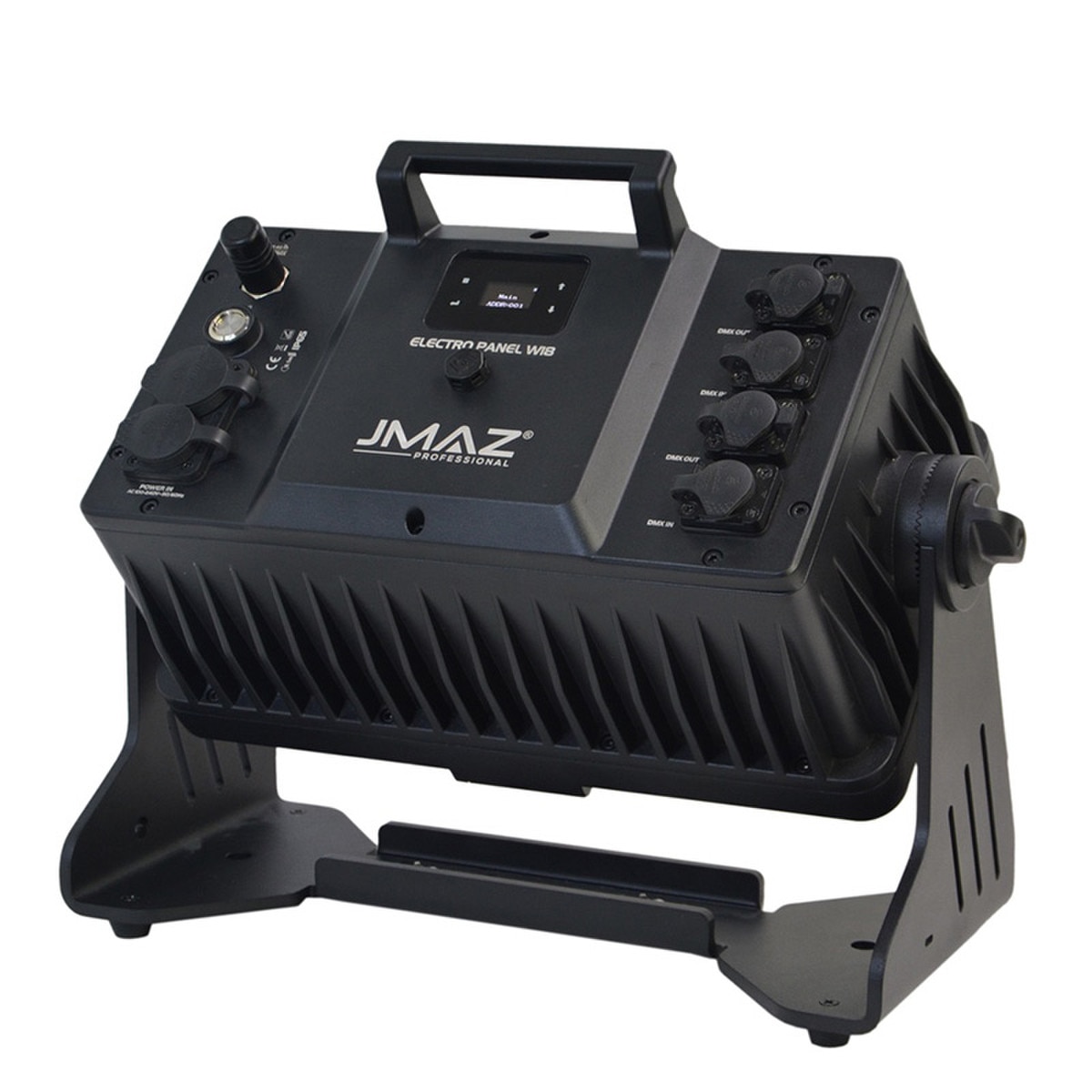

• OLED Graphical Display

Electronics:

• Strobe Shutter: 1-25Hz
• Dimming Modes: 4

Body:

• Die-Cast Aluminum and Steel Structure
• External Finish: Black

Physical:

• IP Rating: 65
• Cooling: Fanless
• Certifications / Qualifications: RoHS, CE, FCC, cETL (Pending)
• Operating Temperature: -10° C to (14°F) to 60° C (140° F)

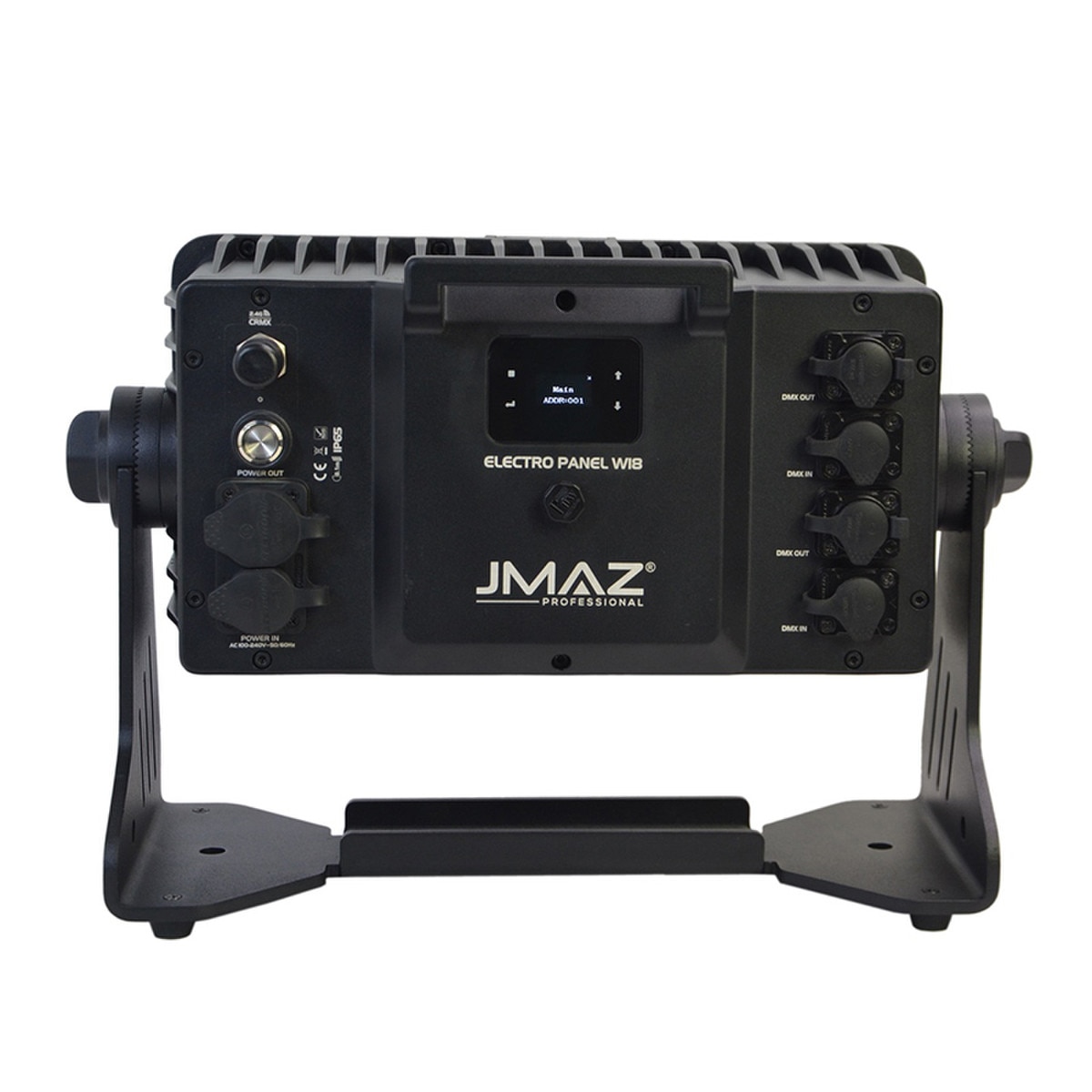

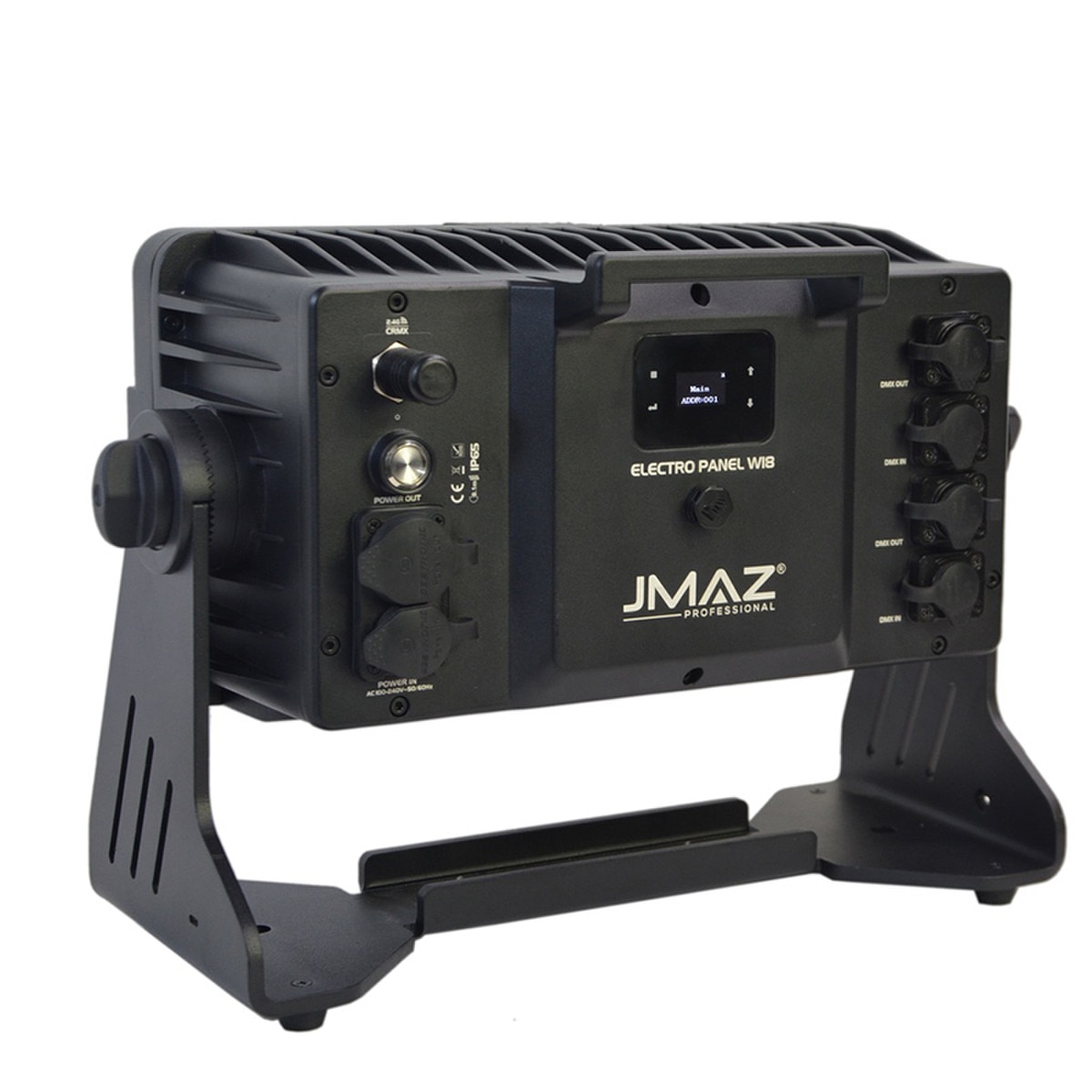

• Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
• Power Input: Seetronic Powercon IP65 True1
• Power Output: Seetronic Powercon IP65 True1
• Data Connectors: Seetronic 5pin XLR IN/OUT
• Cable Length: Power 4.1 feet (1.25 meter)

Electrical:

• Input Voltage: 100V – 240V AC, 50/60 Hz
• Power Consumption: 216W
• PWM: 1.5KHz
• Battery Voltage: 29.6V, 3A
• Battery Capacity: 13000mAh, 384.8Wh/hour
• Charger: 29.4V, 5.5A
• Rechargeable Battery Type: Lithium Ion ***UL Listed***
• Power Linking for connecting fixtures in daisy-chain: Up to 8 units @110V with a 20A circuit, Up to 14 units @208V with a 20A circuit, Up to 17 units @230V with a 20A circuit

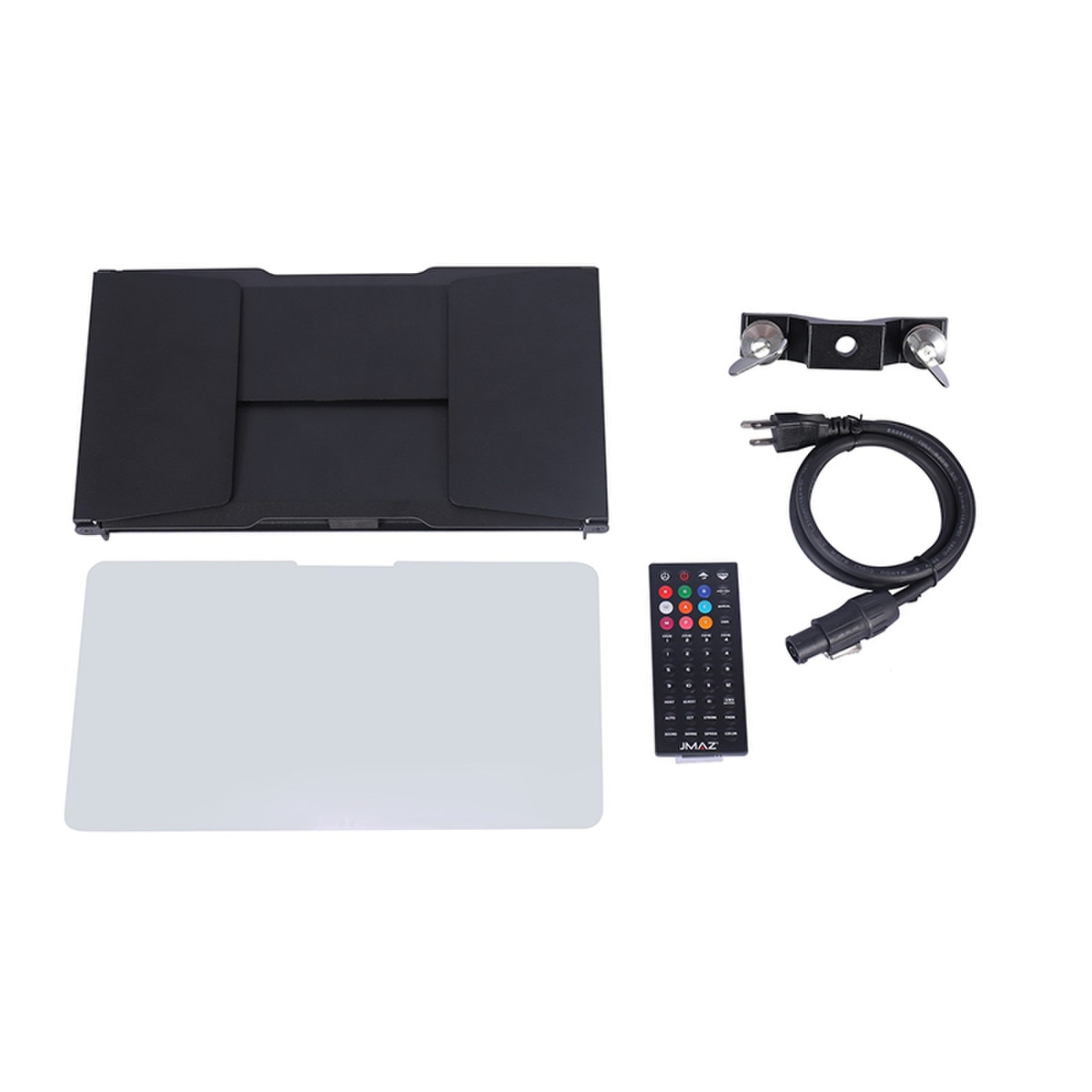

Box Content:

• 1 x Electro Panel W18
• 1 x Powercon IP65 TRUE1 Power Cable
• 1 x Quick Start Guide
• 1 x User Manual
• 1 x IR Remote
• 1 x Barn Door
• 1 x 40 Degree Diffuser

Item Dimensions & Weight:

• Dimensions: 16.2″ x 7.3″ x 10.6″
• Weight: 23.4lbs (10.6Kgs)

UPC:

• 618528598970

Warranty:

• 3 Years Battery: 6 Months
