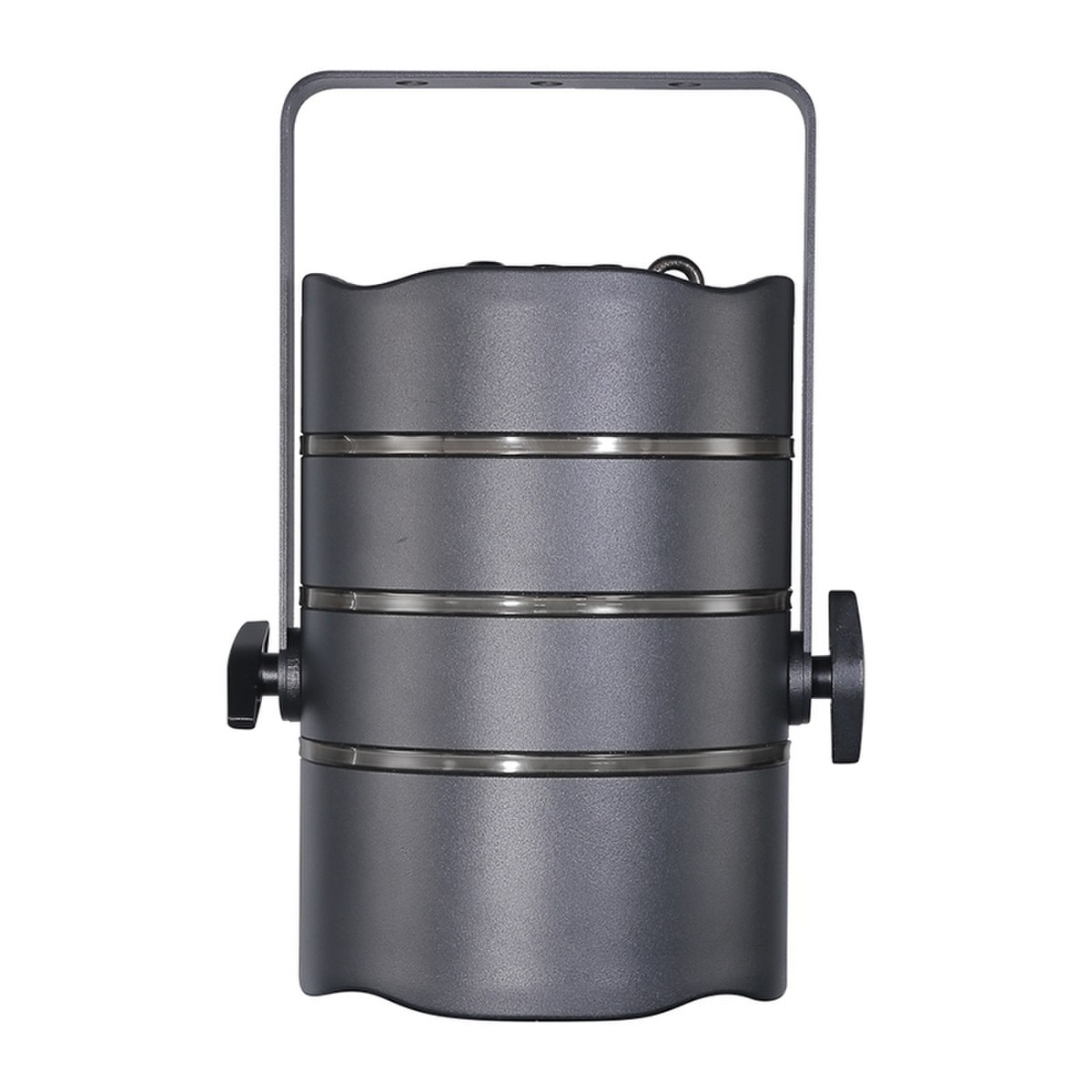

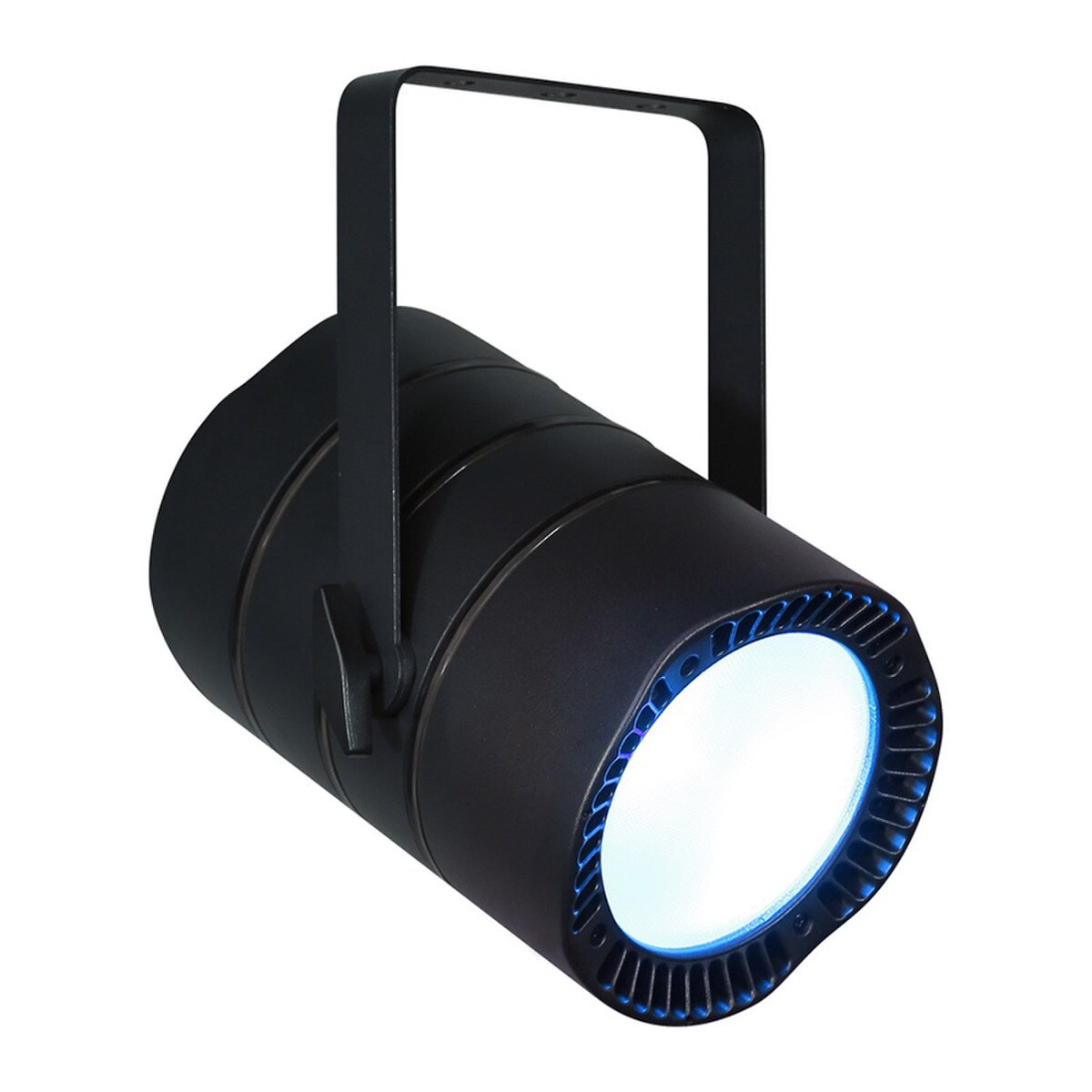

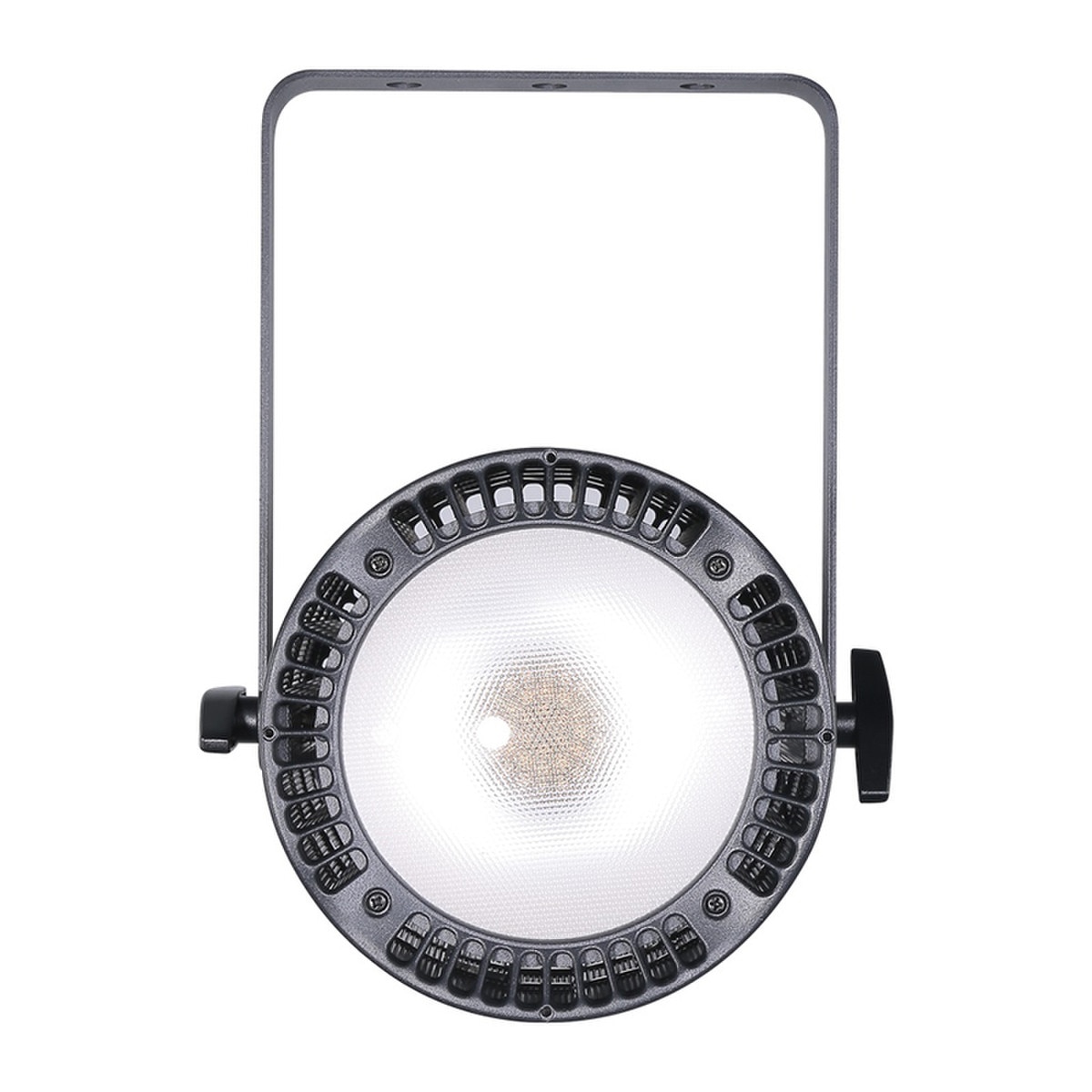

JMAZ Professional ZONA 5S Full-Spectrum RGBAL LED House Light

The JMAZ Professional ZONA 5S redefines modern house lighting by combining exceptional white light quality, full-spectrum color mixing, silent operation, and creative versatility in a compact, installation-friendly fixture. Designed for theaters, worship spaces, broadcast environments, and multipurpose venues, it delivers beautifully balanced whites with a CRI of 95+, vibrant saturated colors, and smooth dimming that enhances the audience experience without distraction. Its full-spectrum RGBA+L LED engine provides precise color temperature control from 2000K to 12000K while generating a virtually unlimited palette of colors to support architectural lighting, audience illumination, themed environments, and immersive venue experiences. Integrated RGB LED ring effects offer an additional layer of visual creativity when the application calls for it. Whether illuminating an audience, enhancing architectural spaces, or transforming a venue with dynamic color, the ZONA 5S delivers refined performance with professional reliability in a compact form factor.

Features:

• Powerful 210W full-spectrum RGBA+L COB LED delivers vibrant color output, exceptional white light quality, and a CRI of ≥95 for theaters, houses of worship, and architectural applications.
• Advanced 16-bit RGBA+L color mixing with adjustable CTO from 2000K–12000K provides precise color temperature control and smooth transitions from warm incandescent tones to crisp daylight whites.

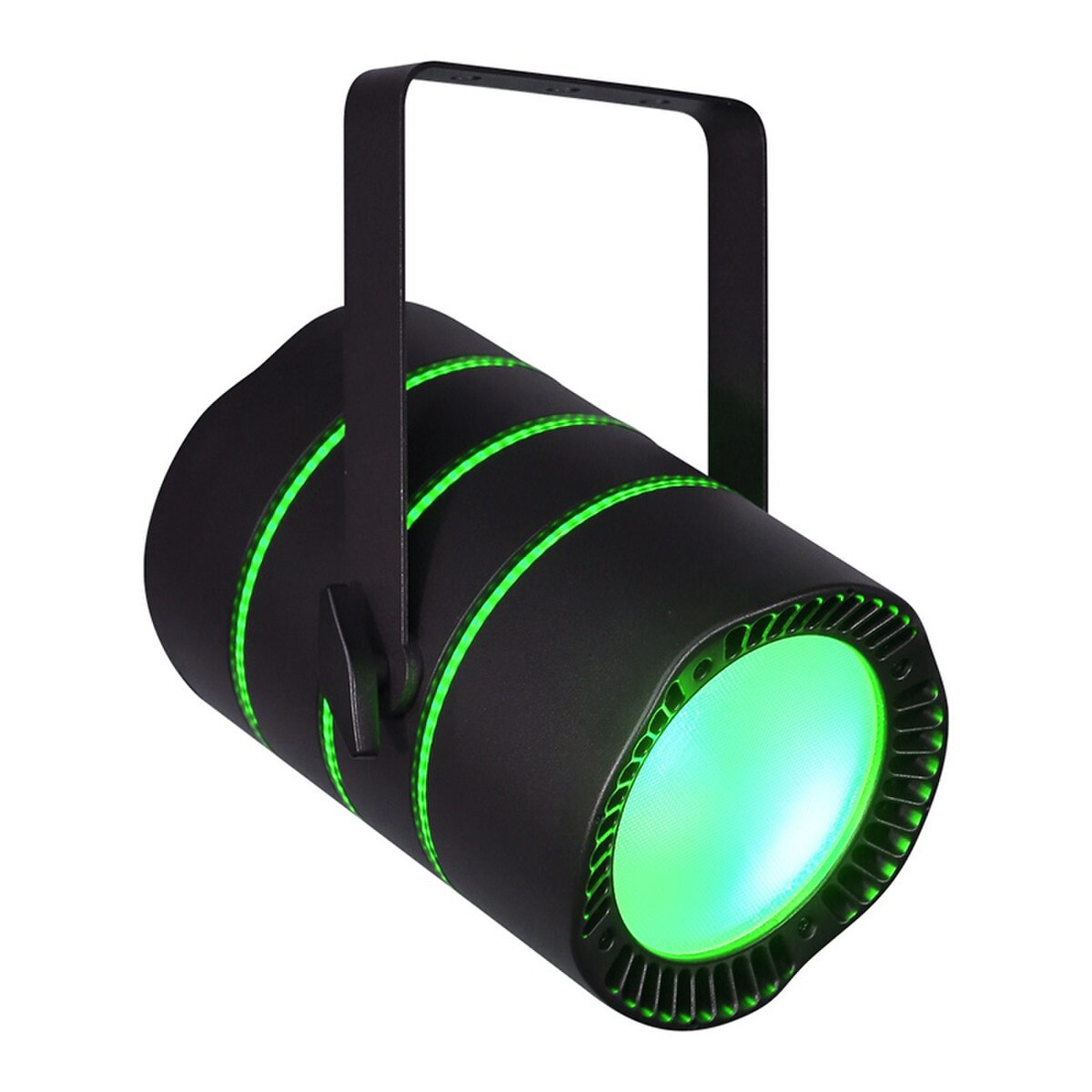

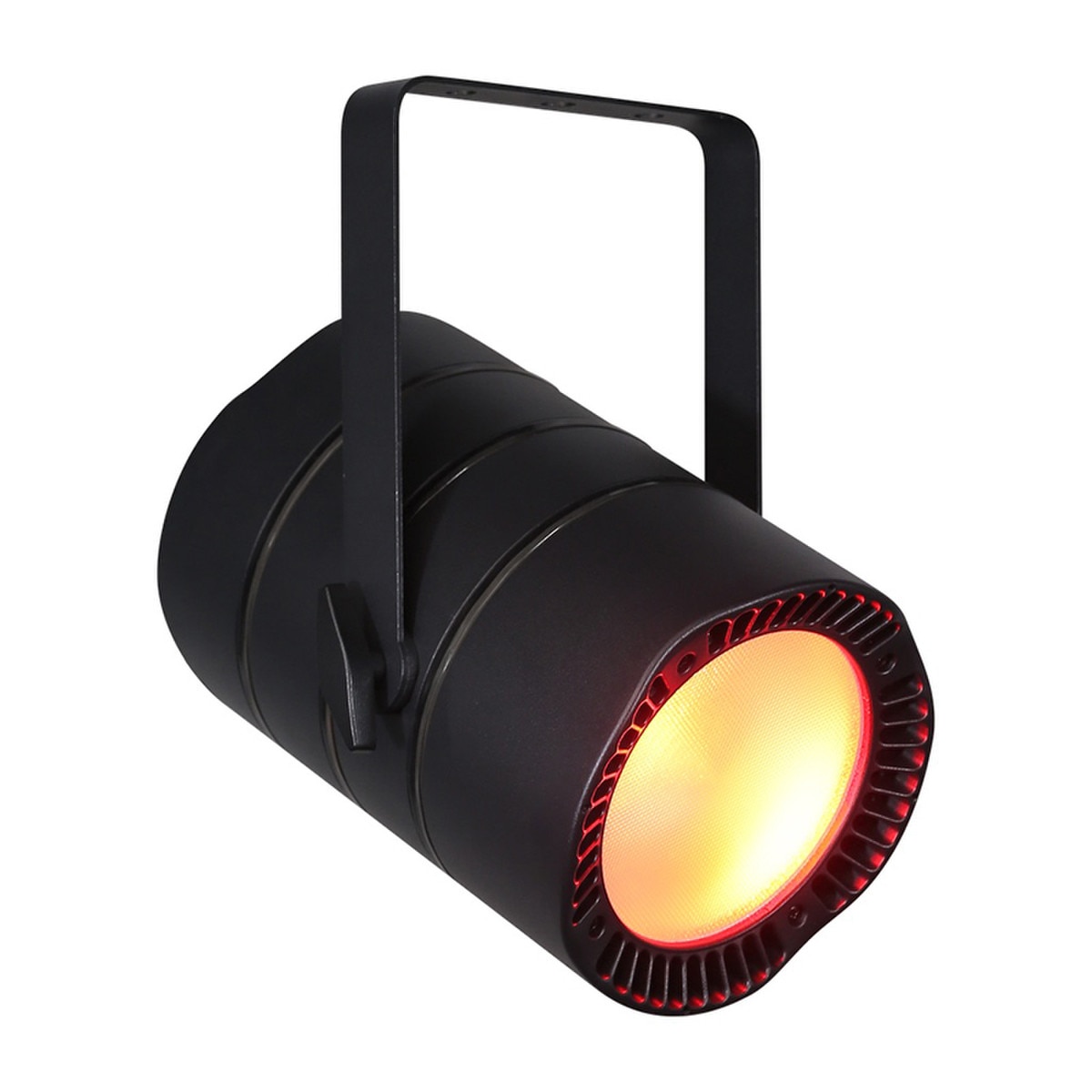

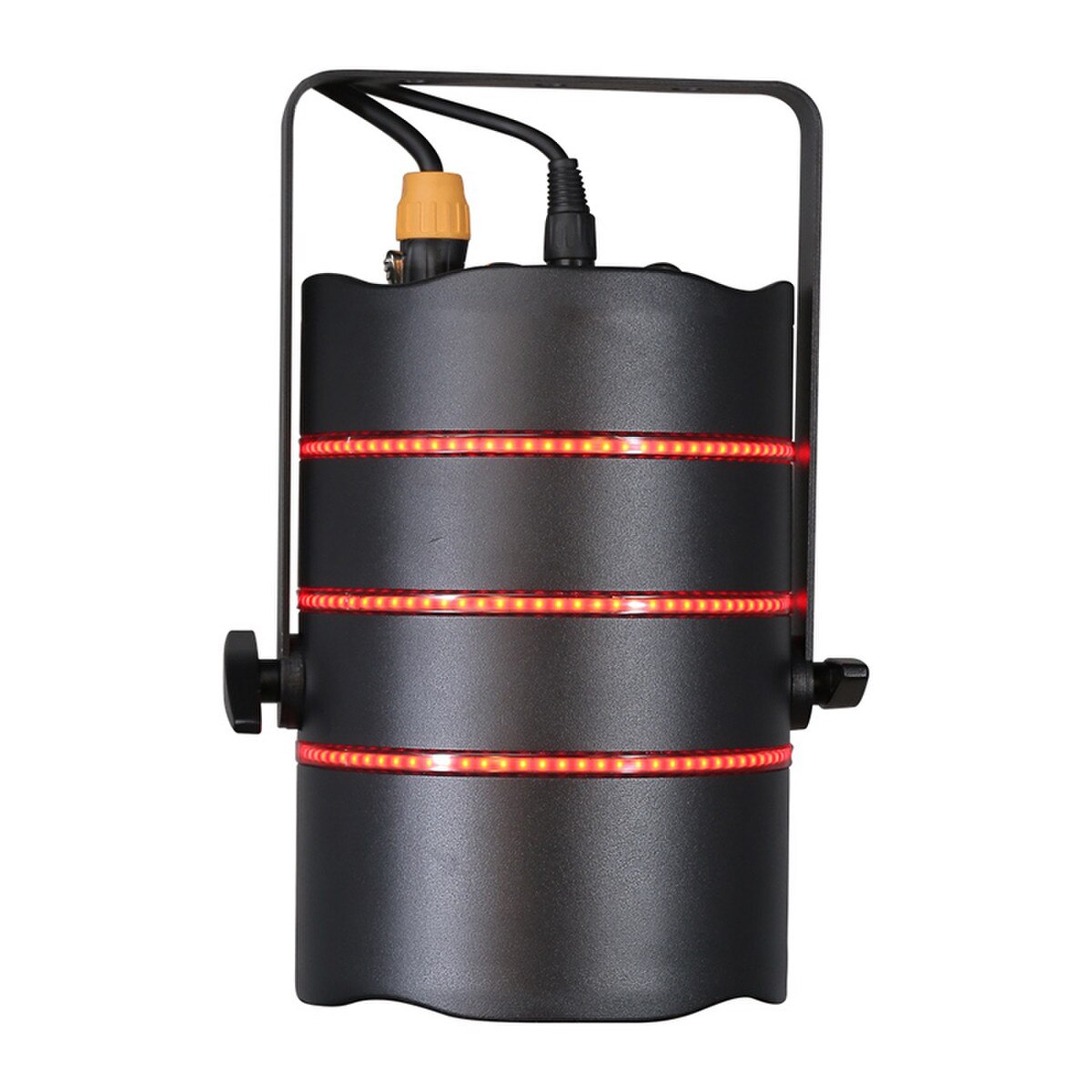

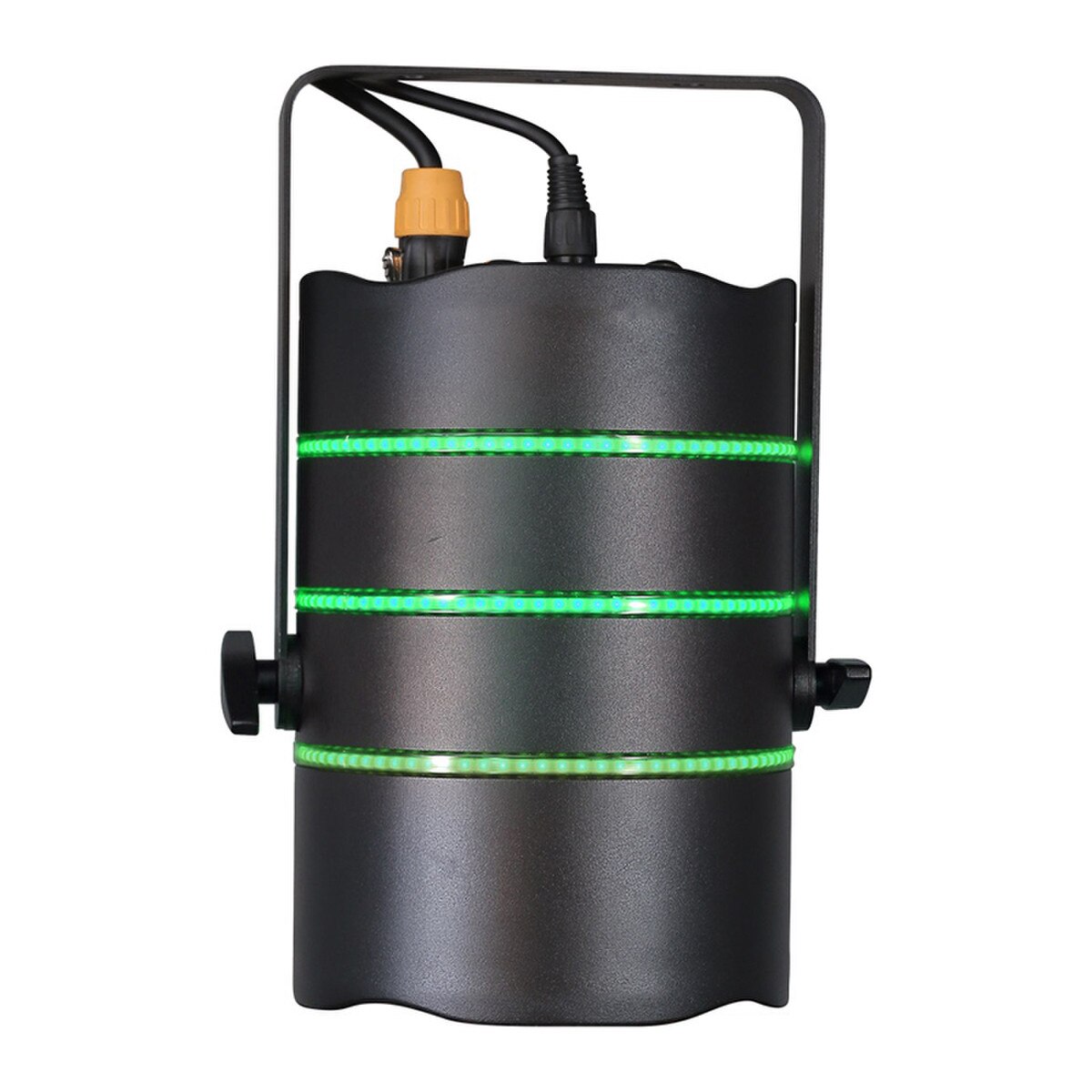

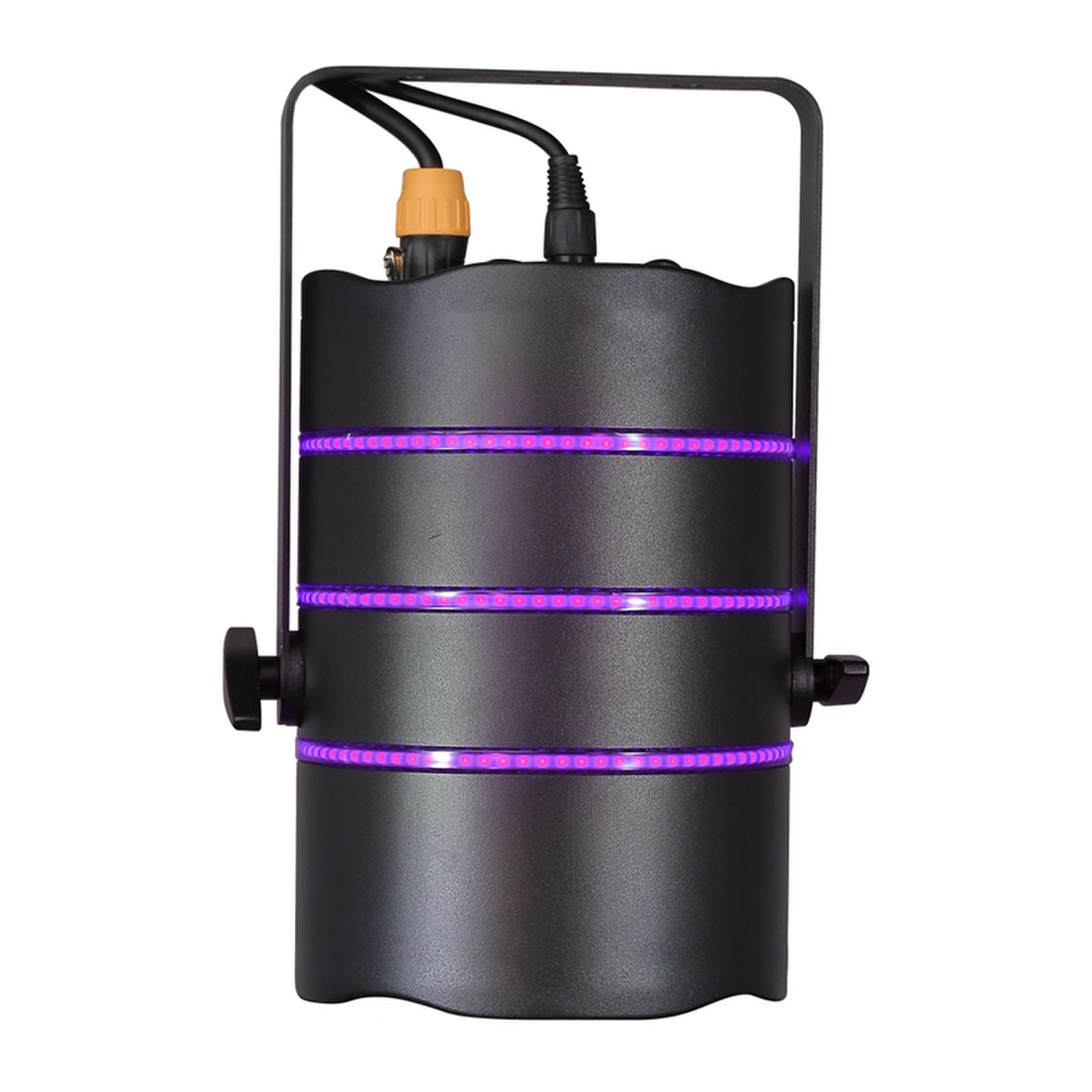

• Integrated three-ring RGB effect system featuring 150 SMD LEDs, 31 ring color macros, and dynamic ring effects adds visual impact beyond traditional house lighting fixtures.
• Wide 60° beam angle delivers smooth, even coverage for audience lighting, wall washing, and general area illumination, with an optional 30° lens available for more focused applications.
• Fanless cooling system ensures completely silent operation, making the fixture ideal for theaters, broadcast environments, houses of worship, and other noise-sensitive venues.
• Professional control features including DMX, RDM, six DMX personalities, virtual color wheels with 81 COB color macros, and optional CRMX wireless DMX support provide maximum programming

Technical Specifications

Light Source:

• Full Spectrum 210W COB RGBA+L (Red, Green, Blue, Amber, Lime) LED
• Light Source 3 Ring Effect: (150) 0.3W RGB SMD LEDs
• LED Life Expectancy: 50,000 hours

Color System:

• 8/16-bit RGBA+L Color Mixing
• CTO: 2000K – 12000K
• CRI: ≥ 95

Optics:

• Advanced Optics Beam Angle: 60°

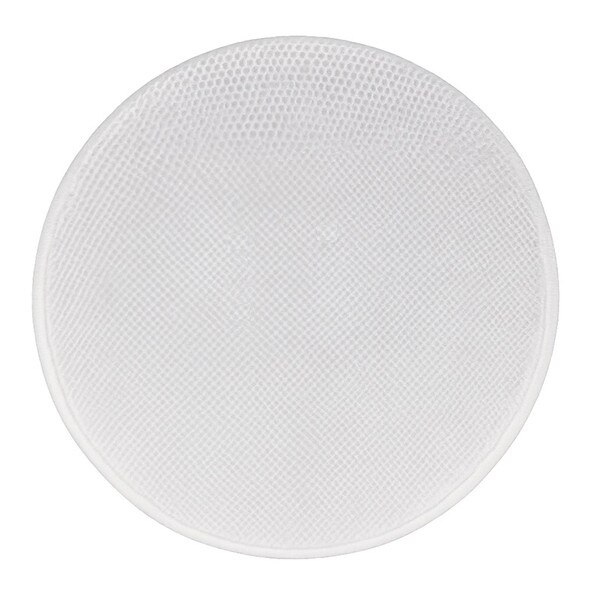

• Optional Lens Available: 30°

Dynamic Effects:

• Virtual Color Wheel: 81 Preset Color Macros on COB, 31 Preset Color Macros on LED Rings
• Color Temperature Presets: 2000K – 12000K
• Linear Dimmer: 0 – 100% Electronic Dimming

Control:

• Control Protocol: DMX, RDM (Remote Device Management)
• Optional Add-On Wireless DMX: CRMX USB – Powered by LumenRadio (SKU: JP5001)
• Personalities: 6 Modes: 4/8/13/20/26/35
• LED Graphical Display
• Standalone Mode

Body:

• Die-Cast Aluminum and Steel Structure
• External Finish: Mute Black
• Optional: Half Snoot Kit Available

Physical:

• IP Rating: 20
• Cooling: Fanless (Silent Performance)

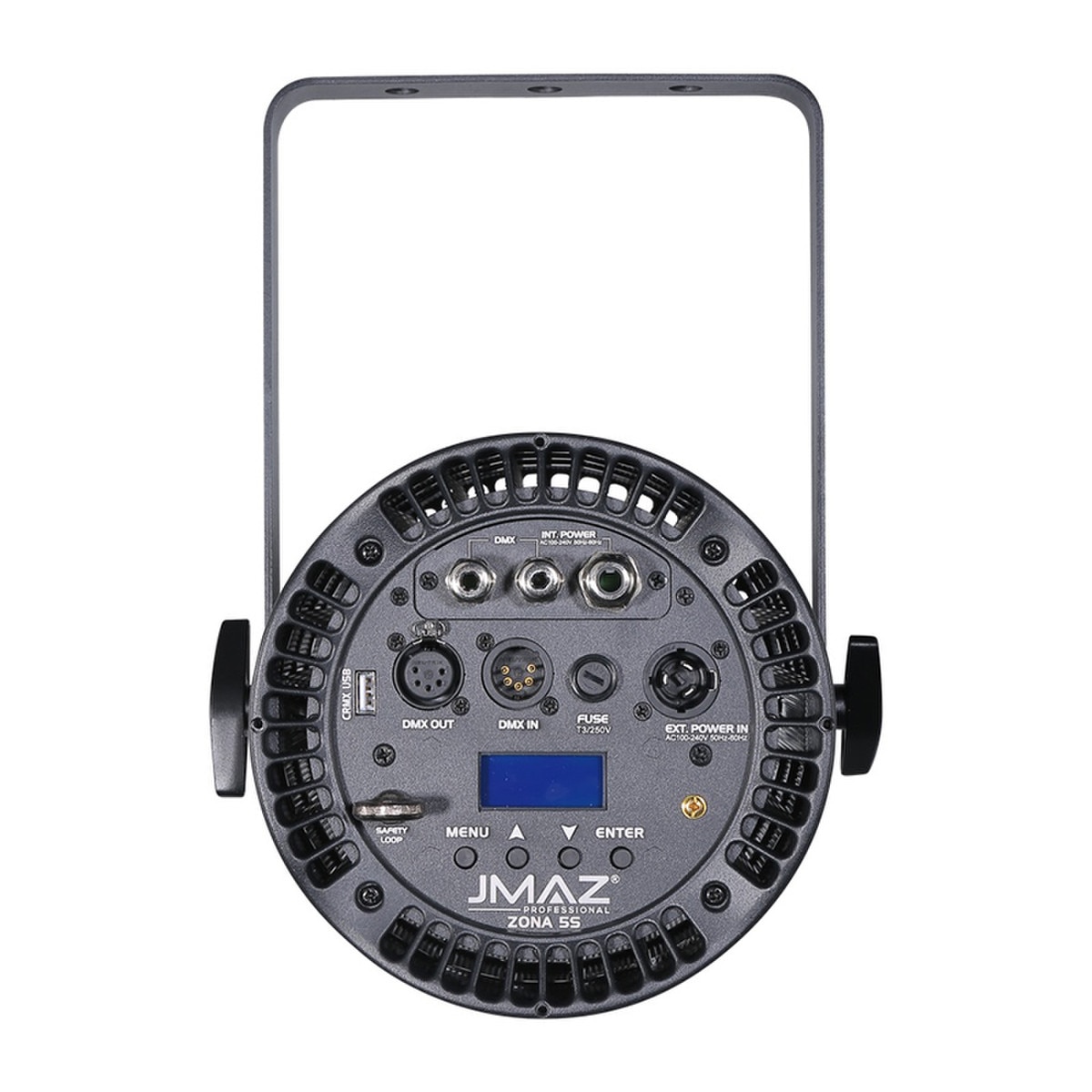

• Bare Wire Block Terminal Connection: Both Power & DMX for Permanent Fixed Install
• Power Connection: US Edison (UL listed) plug to Seetronic Powercon IP65 True1
• Power Input: Seetronic Powercon IP65 TRUE1
• Data Connectors: Seetronic 5pin XLR IN/OUT
• Cable Length: Power Cable 5 feet (1.5 meter)

Electrical:

• Input Voltage: 100V – 240V AC, 50/60 Hz
• Power Consumption: 90W
• Fuse: T3A, 250V
• Power Linking for connecting fixture in daisy-chain: Up to 24 Units @110V with a 20A Circuit, Up to 47 Units @208V with a 20A Circuit, Up to 52 Units @220V with a 20A Circuit

Box Contents:

• 1 x ZONA 5S
• 1 x Hanging Yolk
• 1 x Powercon IP65 TRUE1 Power Cable
• 1 x 5-Pin DMX Cable
• 1 x Safety Cable
• 1 x Manual

Item Dimensions & Weight:

• Dimensions: 10.3″” x 7.1″” x 7.1″”
• Weight: 11.12lbs

UPC:

• 618528598925

Warranty:

• 3 Years
