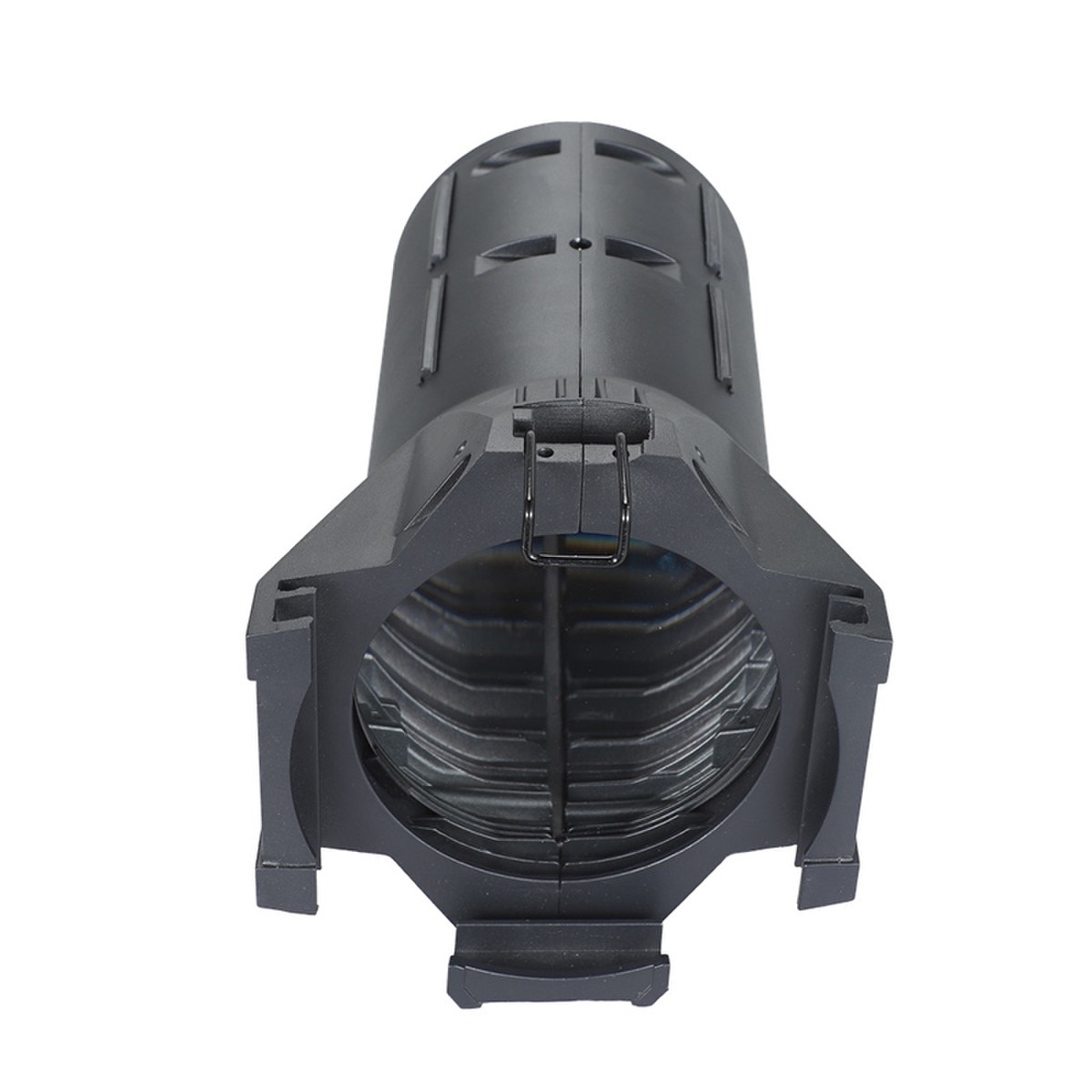

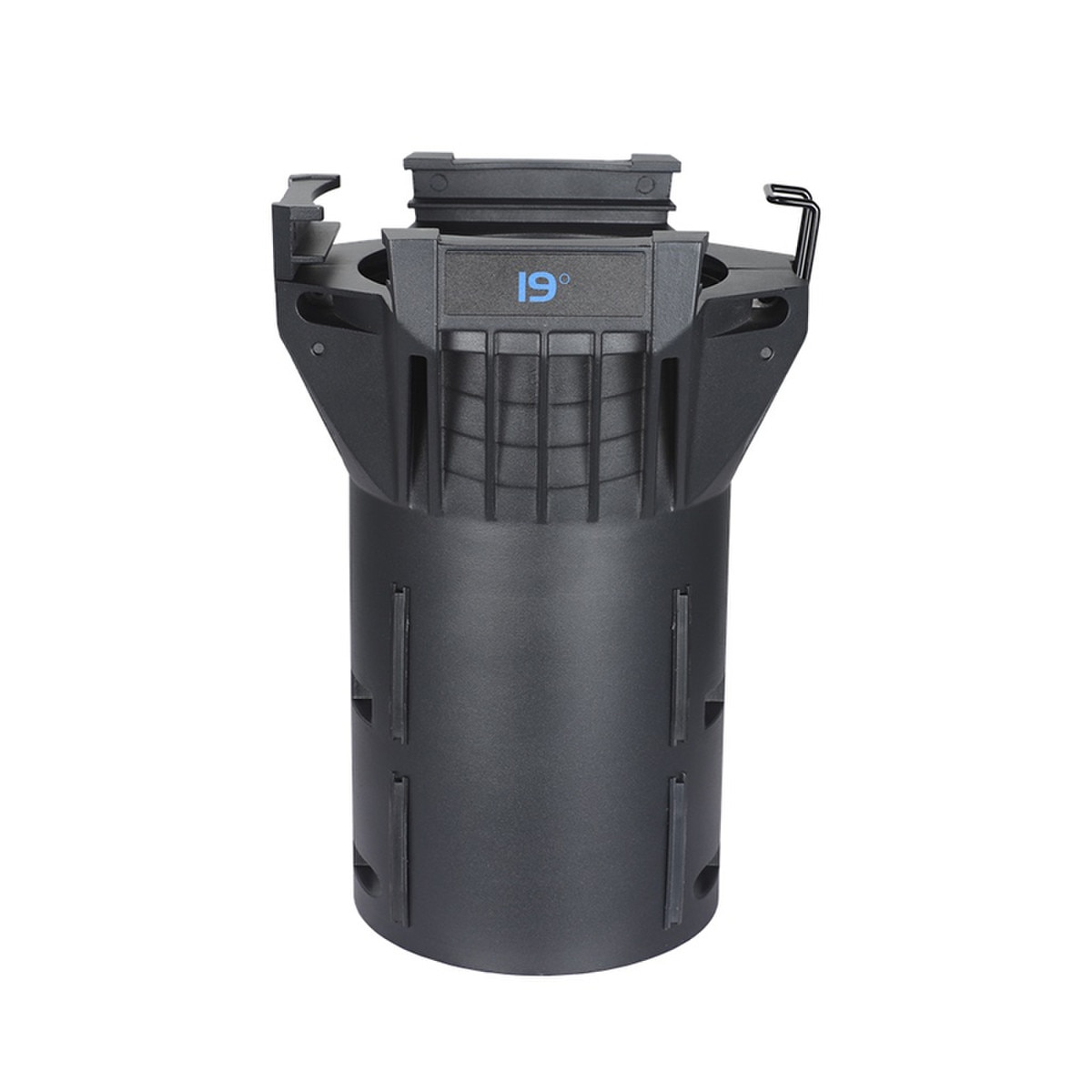

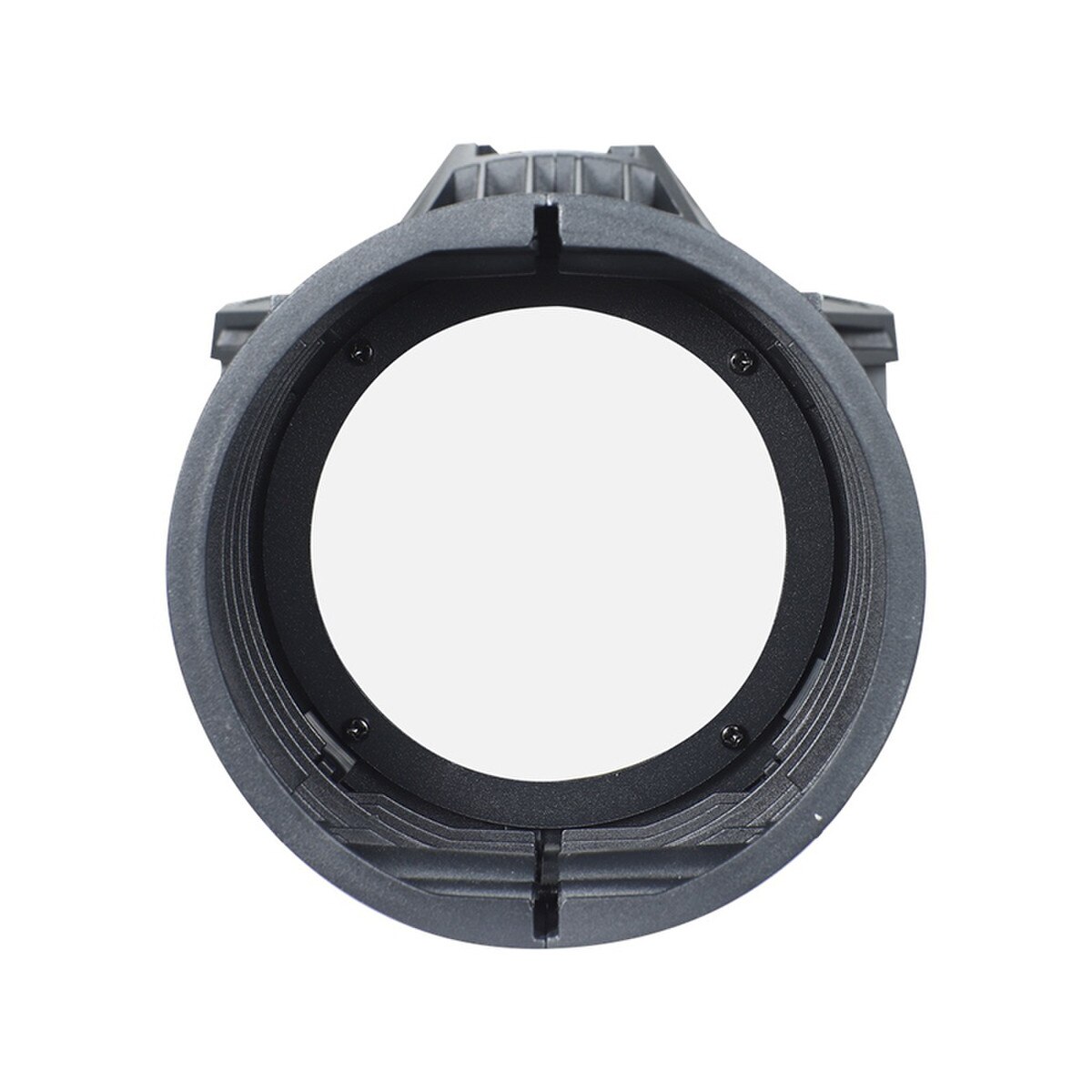

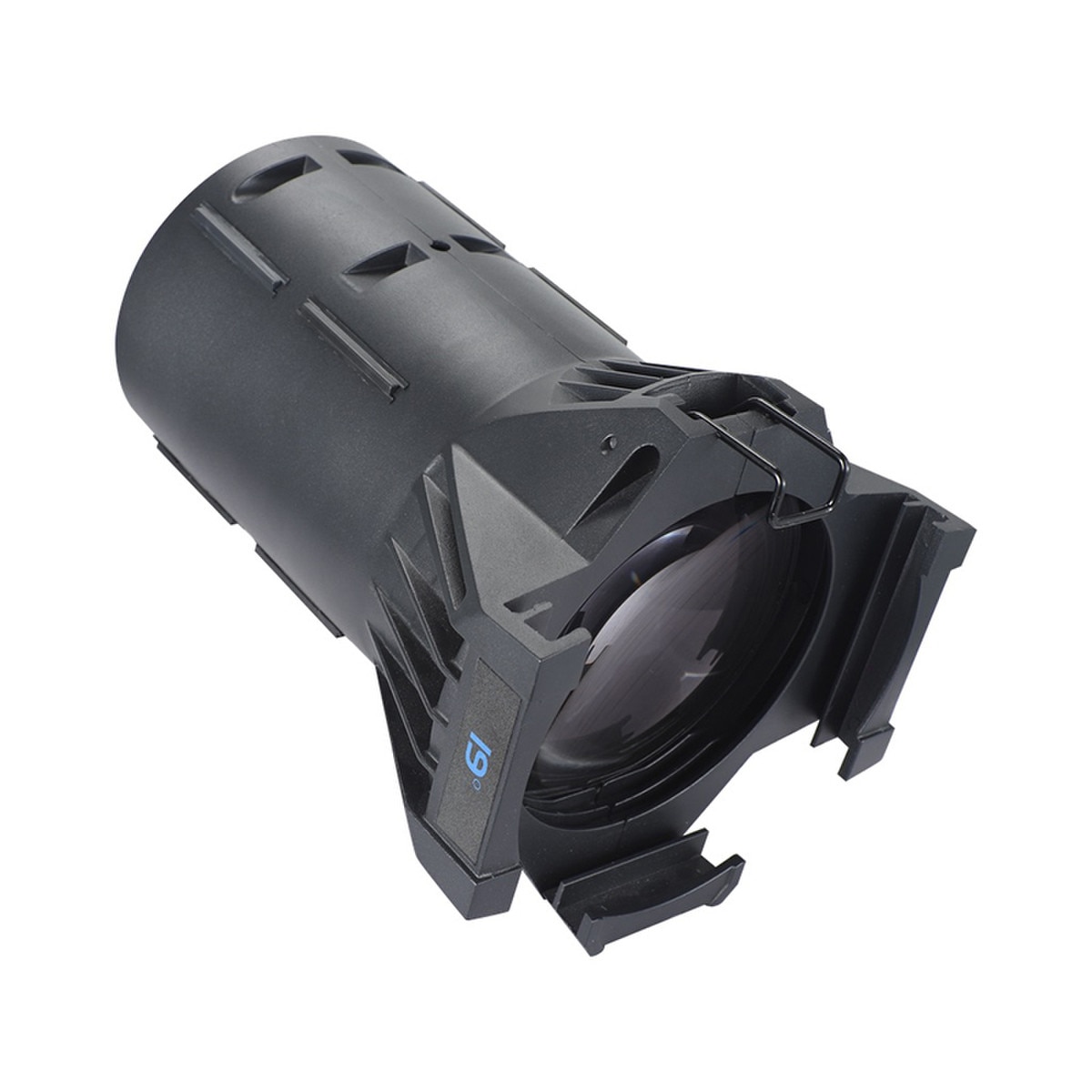

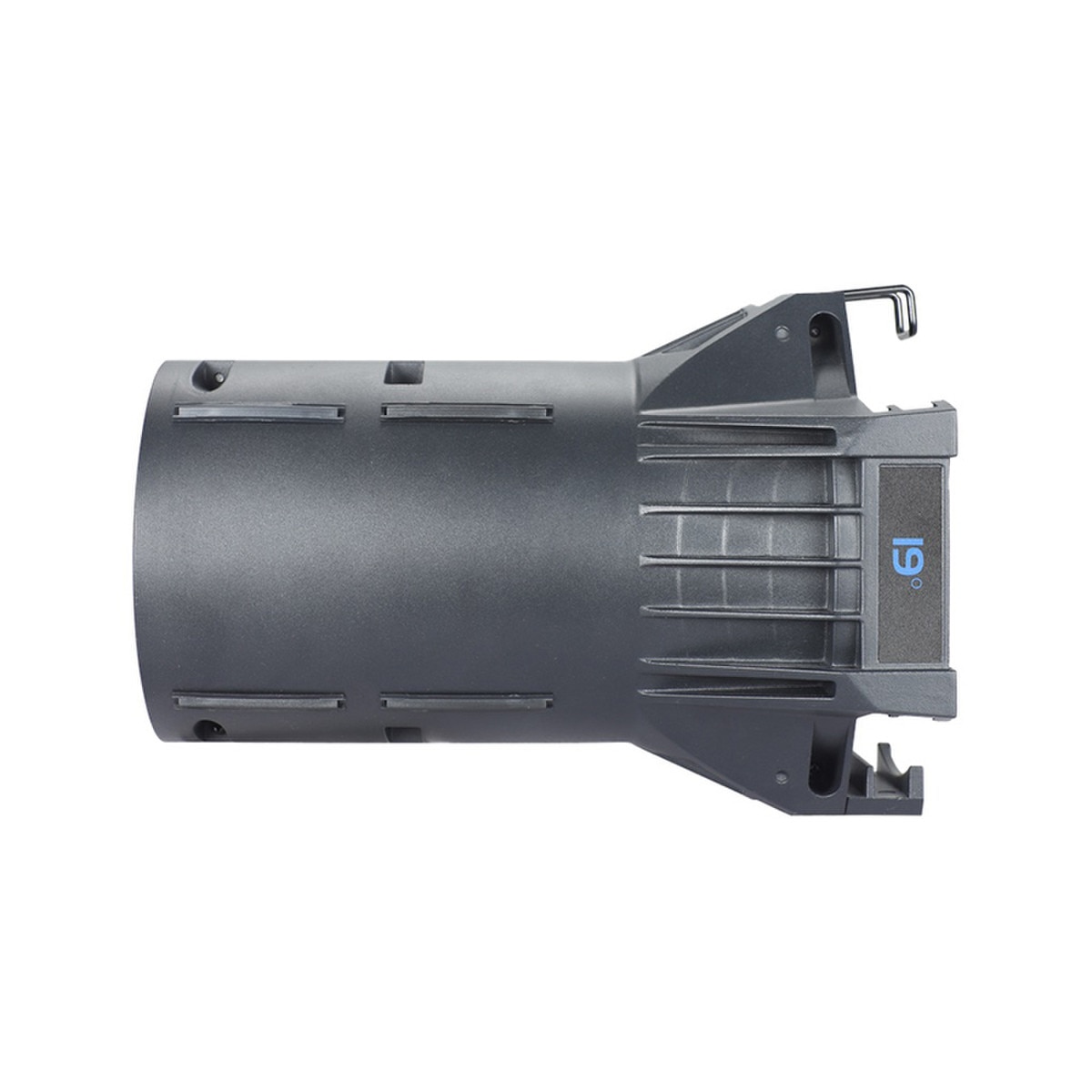

JMAZ Professional Zona Profile 19° Lens Tube

The ZONA PROFILE Ellipsoidal Precision Lens Tubes are engineered to maximize the performance of ZONA ellipsoidal fixtures while remaining fully compatible with most standard ERS-style fixtures on the market. Available in 19°, 26°, 36°, and 50° beam angles, these fixed-focus lens tubes deliver sharp projections, excellent field uniformity, and impressive optical clarity for theatrical, touring, broadcast, and installation environments.

Designed with premium HD optics and housed in a durable touring-grade chassis, each lens tube is built to withstand the demands of professional production while maintaining exceptional image quality. Every unit also includes a standard gel frame for quick integration of color filters and diffusion media.

Built around dedicated focal lengths, each lens tube is optimized for balanced brightness and consistent beam performance. The advanced optical design enhances projection sharpness while maintaining smooth field coverage from center to edge.

Whether used in theaters, houses of worship, broadcast studios, or live productions, the ZONA PROFILE Precision Lens Tubes are designed to deliver reliable performance and professional-grade optical quality in demanding environments.

Features:

• High-definition optical system produces bright output, sharp edge focus, and clean gobo projection.
• Compatible with ZONA PROFILE fixtures as well as most industry-standard ERS-style ellipsoidal luminaires.
• Available in four dedicated beam angles — 19°, 26°, 36°, and 50° — allowing precise fixture coverage for multiple applications.
• Rugged metal construction protects the optical assembly during transport, touring, and daily production use.
• Integrated gel frame slot with included gel frame enables fast installation of color or diffusion media.
• Dual precision optics improve beam consistency and image clarity across the entire projection field.
• Beam Angle: 19°

Beam Angles Available (Sold Separately):

• SKU: JP4009: 19°
• SKU: JP4010: 26°
• SKU: JP4011: 36°
• SKU: JP4012: 50°"

Technical Specifications

Control:

• Compatible with the ZONA PROFILE Series and other standard ERS-Style Fixtures

Body:

• Rugged Die-Cast Aluminum Housing
• Finish: Black

Physical:

• Integrated Gel Frame Holder

Item Dimensions & Weight:

• Dimensions: 6.85″ x 6.85″ x 9.9″ / 174 x 174 x 253mm
• Weight: 4.4lbs (2kgs)
