SKU: Elation KLF846

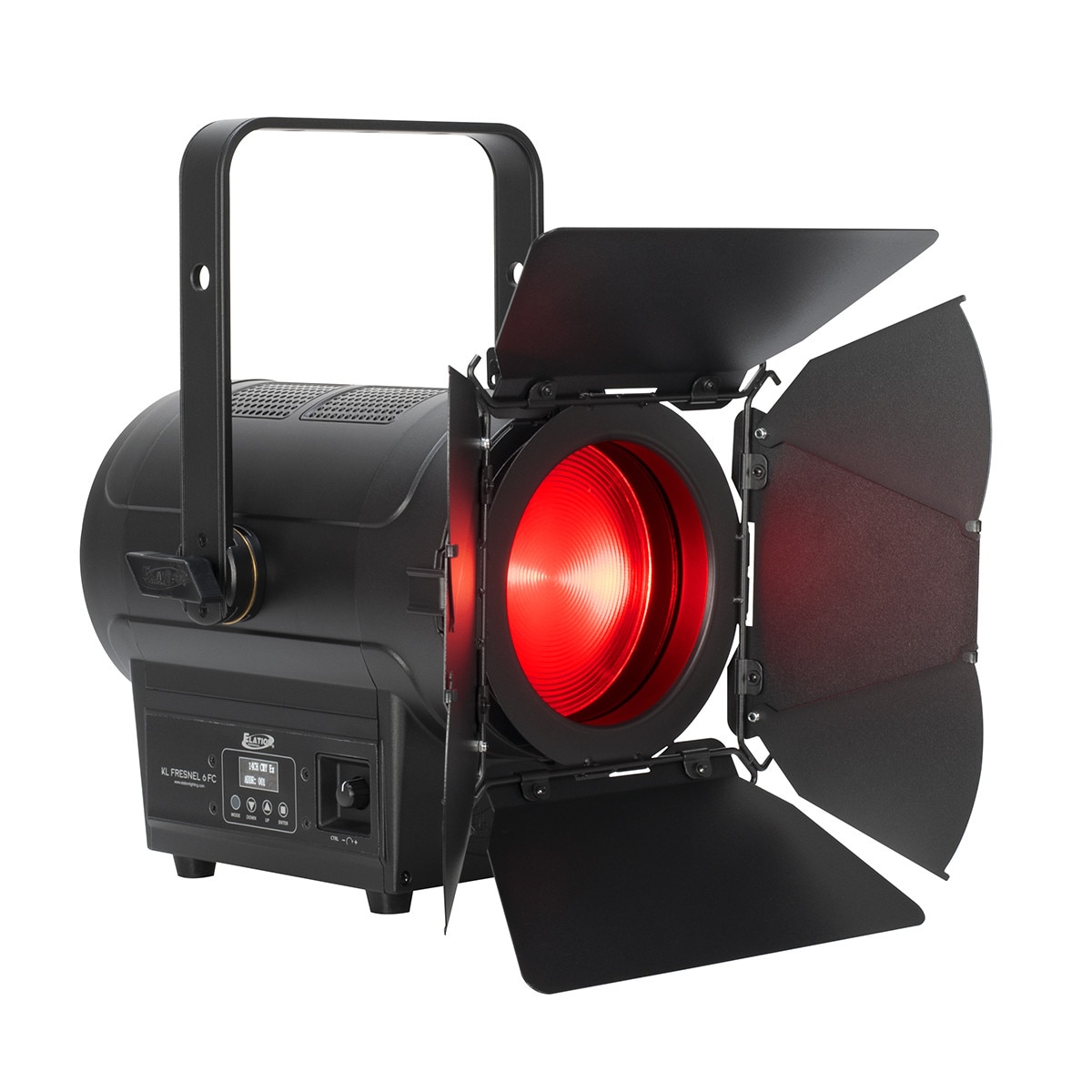

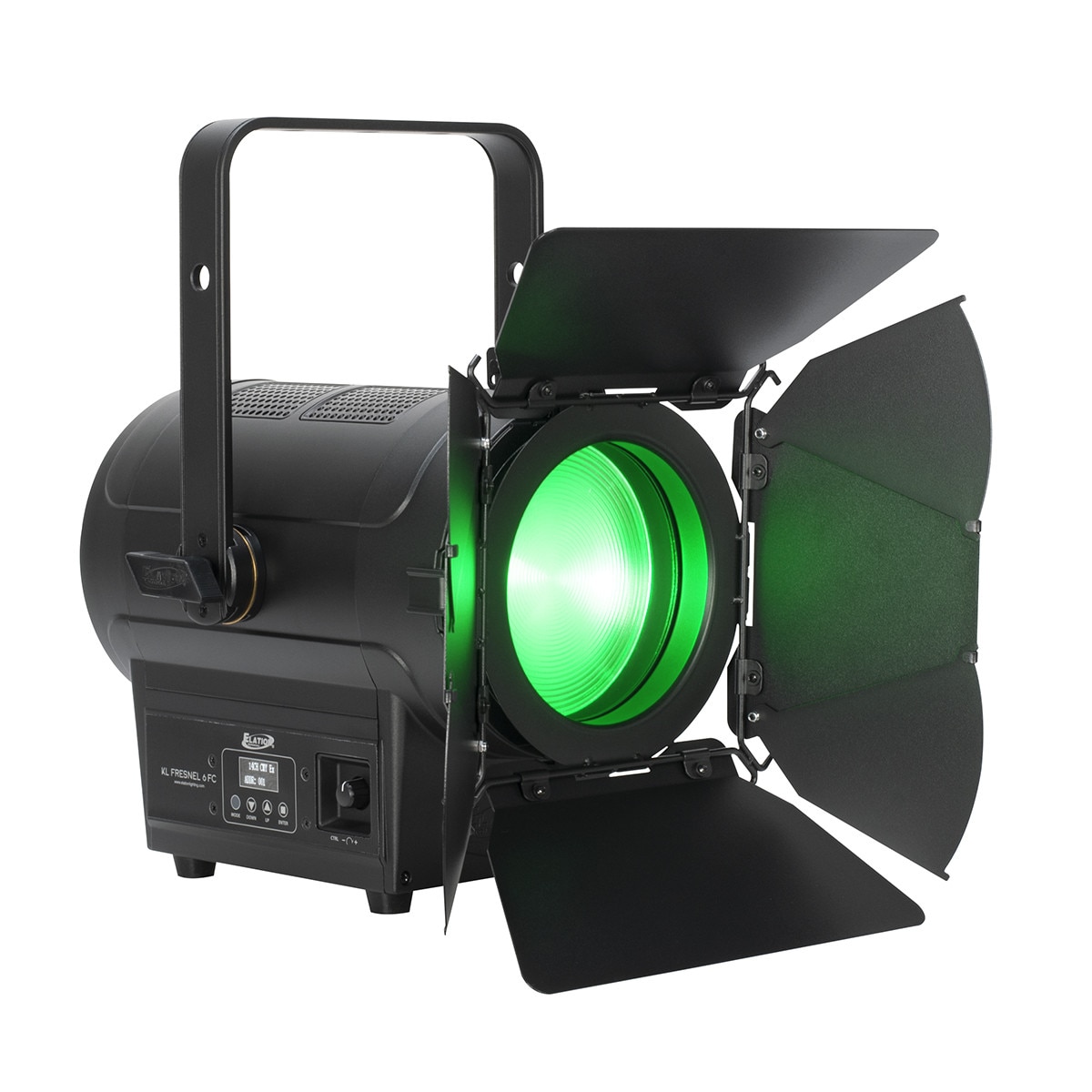

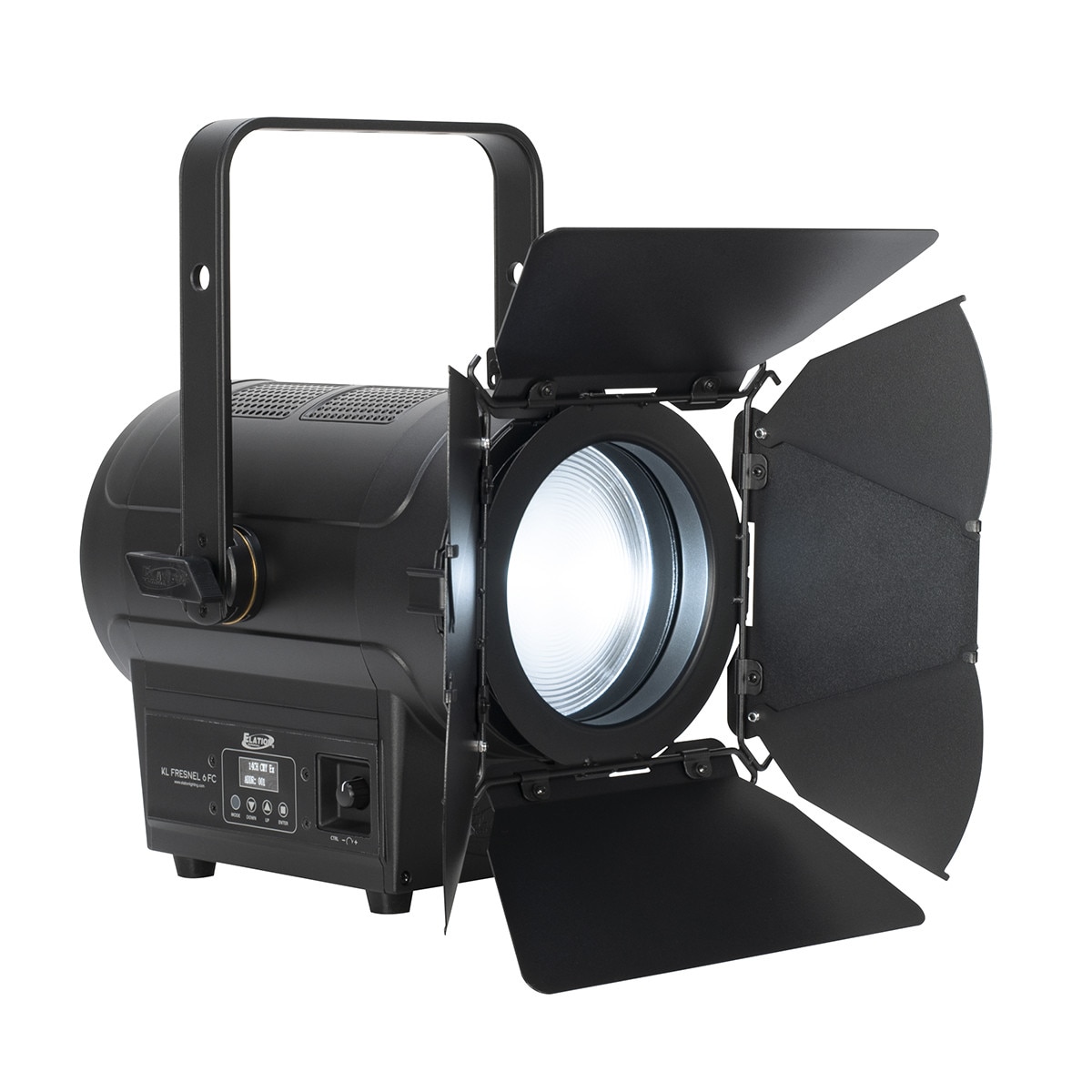

The KL Fresnel 6 FC™ is a full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage.

Optimized for the tunable white light requirements of Film and Television, it is an ideal key and fill light source for many situations requiring outstanding performance and color quality, while offering a wide array of rich saturated colors and subtle pastels.

The KL Fresnel 6 FC incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 8,000 field lumens with a manual Zoom range of 10° to 32°.

Outstanding color rendering quality, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be mounted on a stand or suspended using any standard clamp. It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

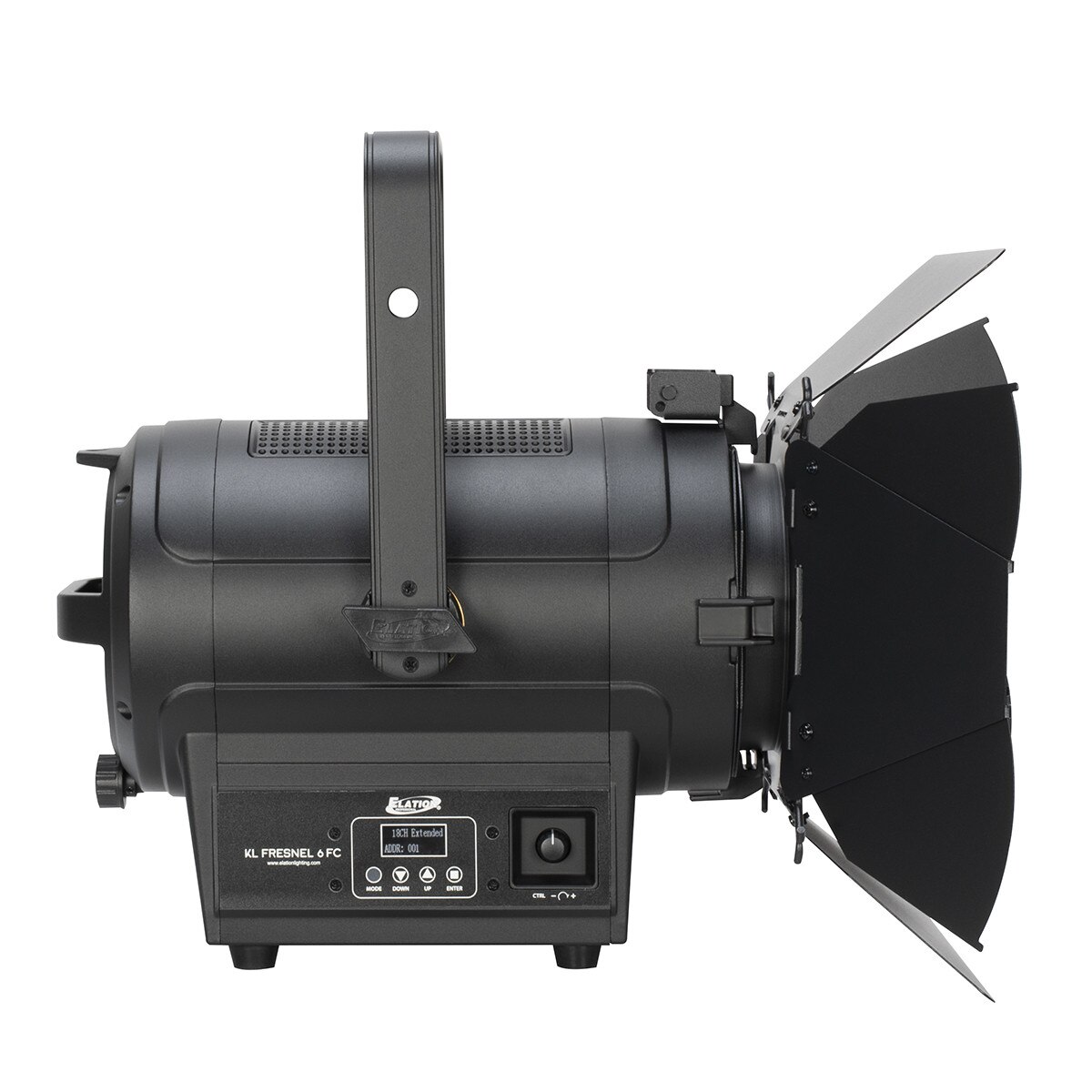

The KL Fresnel 6 FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access using the included encoders and display, providing instant control of Intensity, Color temperature, Green shift, and other important settings. The display and encoders are conveniently positioned at the bottom side of the fixture to ensure unobstructed access while mounted on a stand.


  • 220W RGBMA LED Engine
  • Dynamic White + Full Spectrum Color Control
  • 8,000 Total Fixture Lumen Output
  • 10° to 32° Wide Manual Zoom
  • Stand-Alone control with Encoder and LED Display
  • Smooth 16-bit Selectable Dimming Modes and Curves
  • LED Refresh Rate Adjustment
  • Flicker Free Operation for TV and FILM
  • RDM (Remote Device Management)
  • 8-leaf Barn Doors and Gel Frame included

Included Items:

  • Gel Frame and Rotating 8-leaf Barn Doors
  • IP65 Locking Power Cable


  • 350W Cool White LED Engine, 5,600K, 97CRI
  • 50,000 Hour Average LED Life


  • Manual Zoom
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves


  • RGBMA Color Array
  • CMY Emulation
  • Variable CCT 2,400K - 8,500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

Connections / Controls:

  • 6 DMX Channel Modes (1 to 18 channels)
  • Manual and DMX Controlled Dimmer, Color and Zoom
  • Direct Access Encoder
  • 4 Button Control Panel, LED Display
  • RDM (Remote Device Management)

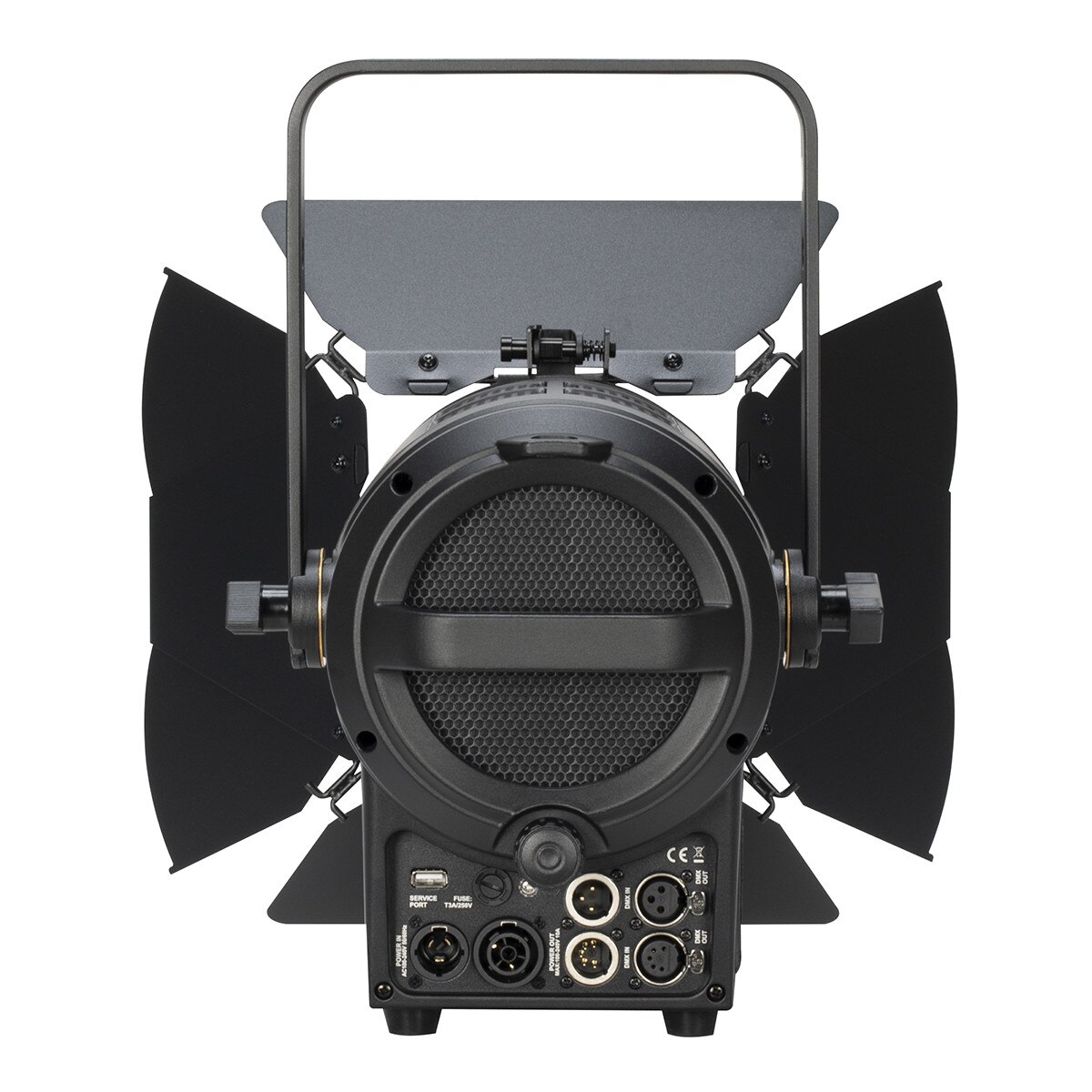

  • 3/5pin DMX and IP65 Locking Power In/Out Connection

Size / Weight:

  • Length: 13.5” (344mm)
  • Width: 10.7” (272mm)
  • Vertical Height: 15.6” (398mm)
  • Weight: 16.1 lbs. (7.3kg)

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • 219W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)
  • BTU/hr (+/- 10%) 687.66

Elation KL Fresnel 6 FC - DMX Traits.pdf
KL Fresnel 6 FC - Spec Sheet.pdf
KL Fresnel 6 FC - User Manual.pdf
