KL Fresnel 6 CW

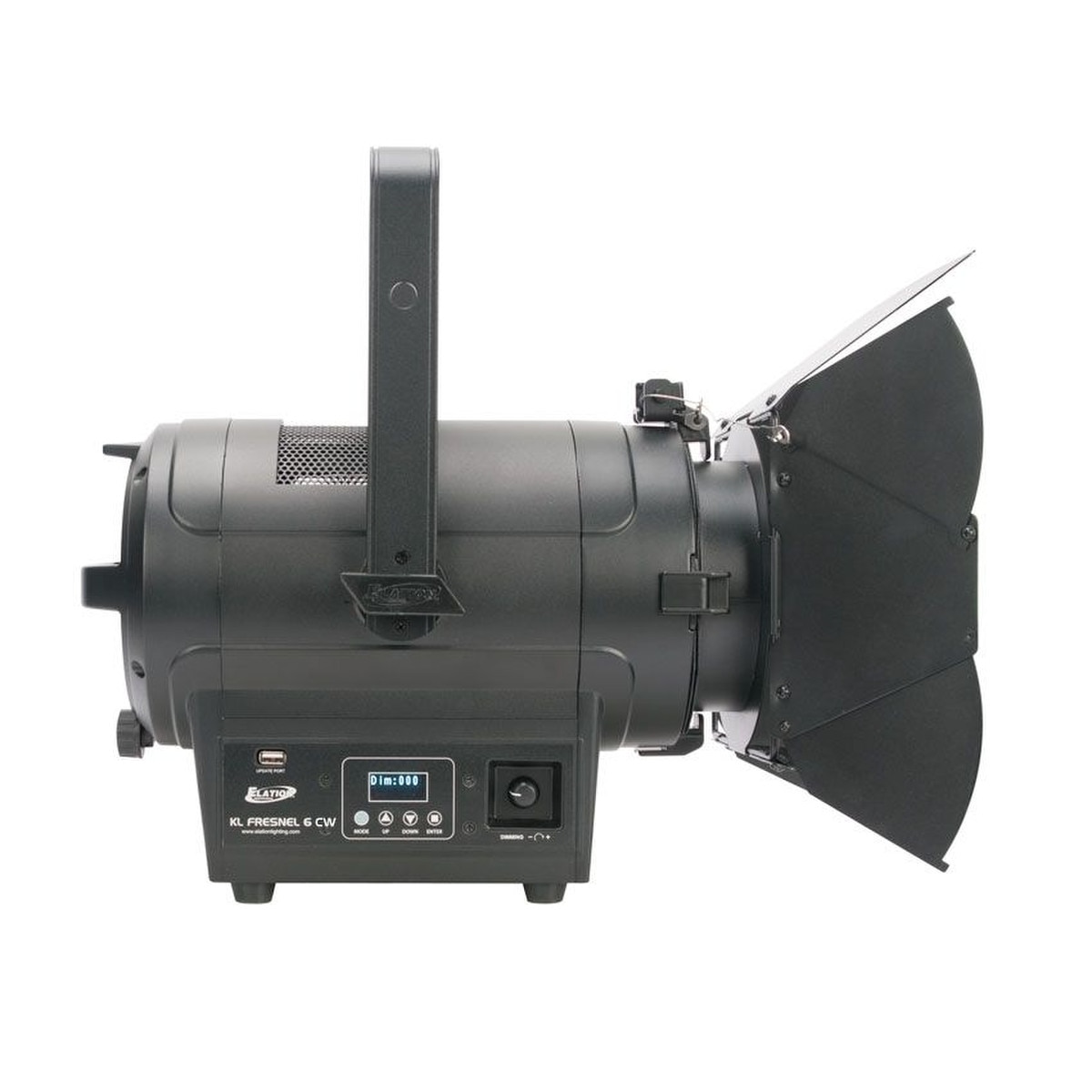

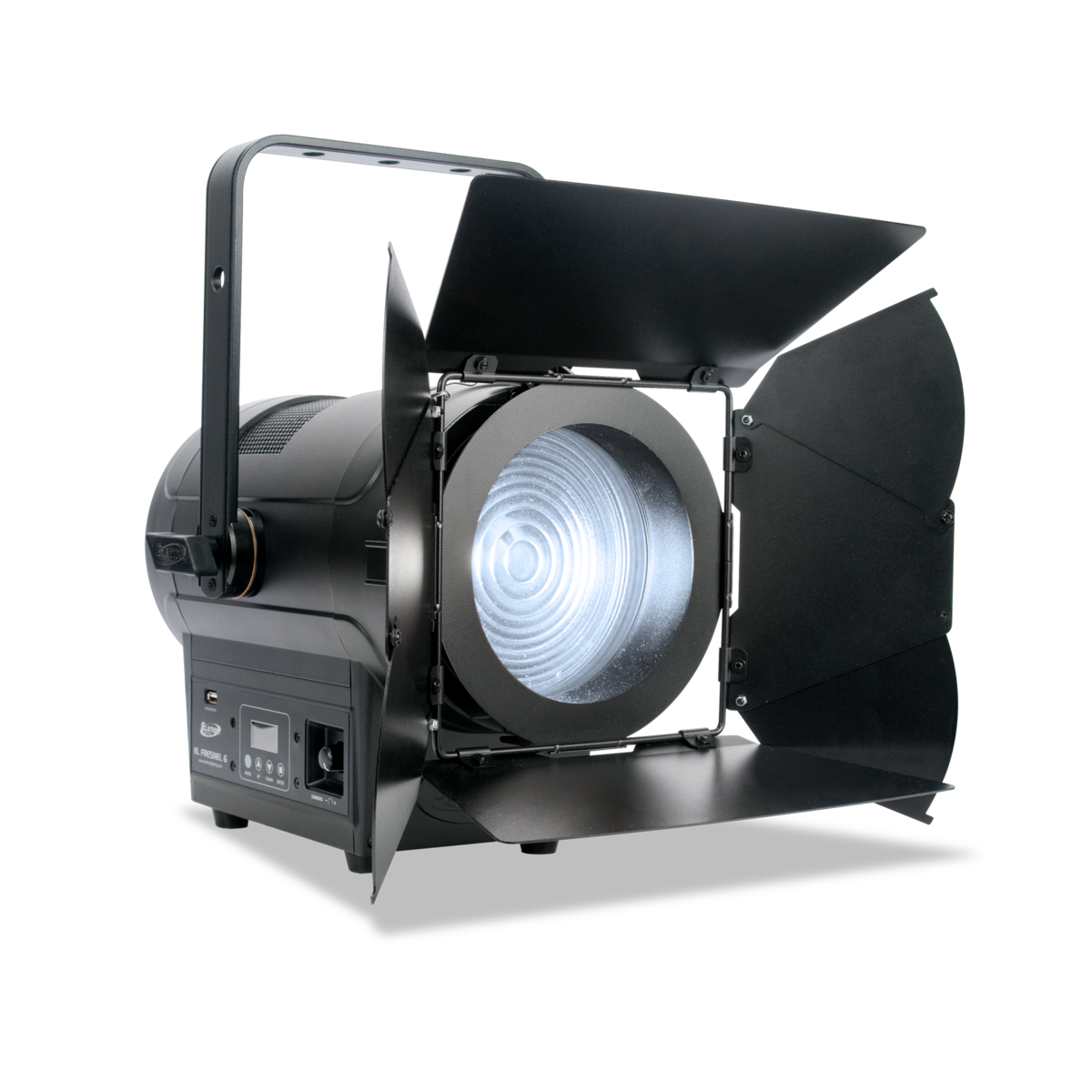

KL FRESNEL 6CW™ is a 150W 5,600K >97CRI Cool White LED fresnel, producing over 8,500 total lumen output. Features include manual and DMX control, 16° to 39° wide manual zoom, manual and DMX controlled dimmer and shutter, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included), and a 3 clamp position adjustable mounting yoke.

Features:

• 5,600K Cool White LED Fresnel Luminaire
• 150W Single Source LED
• Manual and DMX Controlled Dimming
• Quick Single Press Light Output for Focusing
• 16° - 39° Manual Zoom
• Including 8-Leaf Barn Doors and Gel Frame Holder
• Adjustable Refresh Frequency
• Silent Operation
• Variable Dimming Curves, Dim Modes and Dimming Delays
• Flicker Free Operation for Broadcast TV and Film
• RDM (Remote Device Management)
• 3 Clamp Position Adjustable Mounting Yoke

Included Items:

• Gel Frame and Rotating Barn Doors
• IP65 Locking Power Cable
• Barn Doors

Source:

• 150W Cool White LED Engine 5,600K, 97CRI
• 50,000 Hour Average LED Life

Effects:

• Manual Zoom
• Electronic Dimmer and Strobe
• Variable 16-bit Dimming Modes and Curves

Color:

• 5,600K Cool White LED

Connections / Controls:

• Manual and DMX Controlled Dimmer and Shutter
• Dimmer and Zoom Rotary Dials
• (5) DMX Channel Modes (1 / 2 / 3 / 4 / 5)
• 4 Button Control Panel LCD Menu Display
• RDM (Remote Device Management)

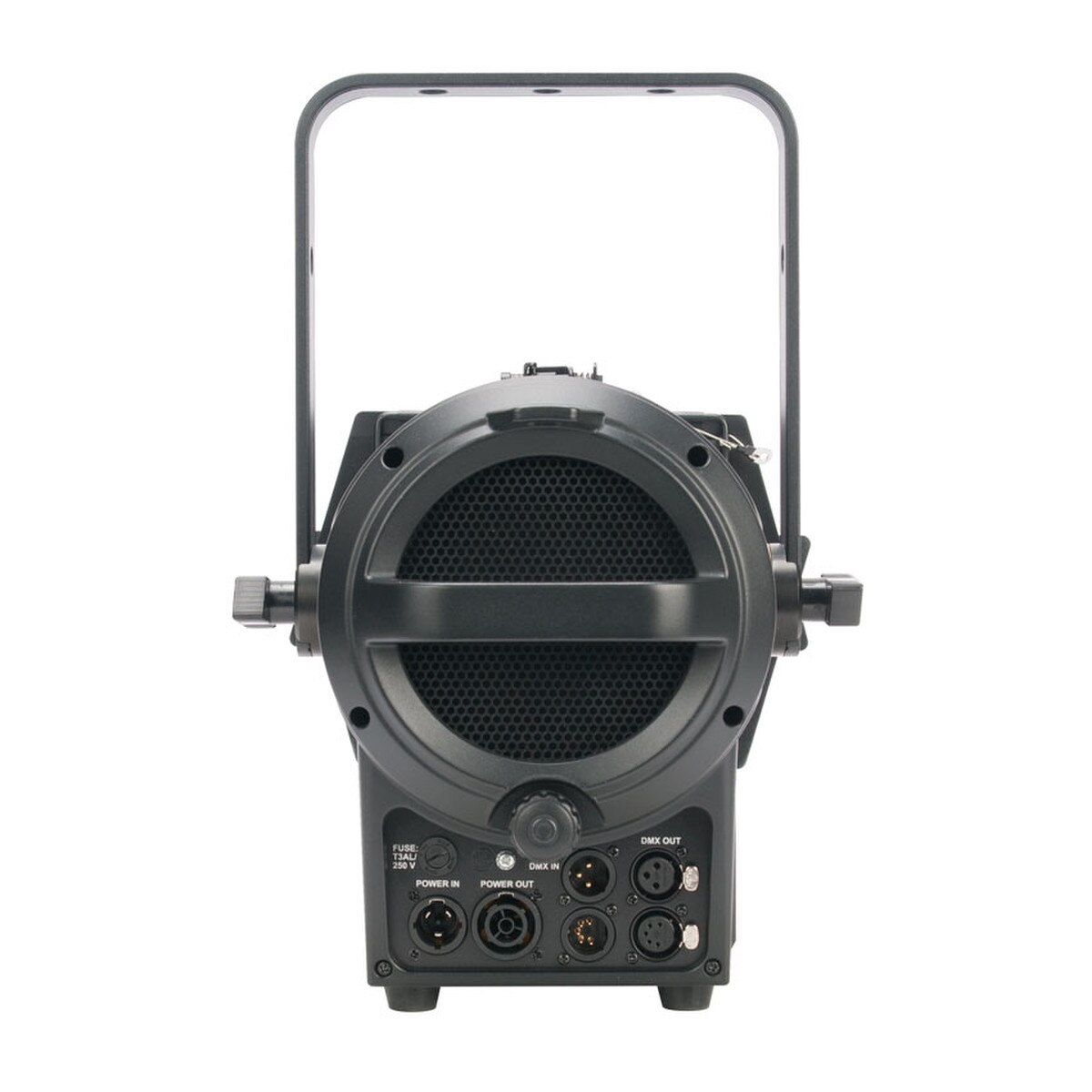

• 3/5pin DMX and IP65 Locking Power Cable In/Out
• With Wired Digital Communication Network

Size / Weight:

• Length: 13.5” (344mm)
• Width: 10.75” (273mm)
• Vertical Height: 15.47” (393mm)
• Weight: 18.5 lbs. (8.4kg)

Electrical / Thermal:

• AC 100-240V - 50/60Hz
• 180W Max Power Consumption
• 5°F to 113°F (-15°C to 45°C)
• Power Linking: 6Pcs @ 110V / 14Pcs @ 240V
