KL Fresnel 8 CW

(0)No Reviews yet
SKU: Elation KLF036

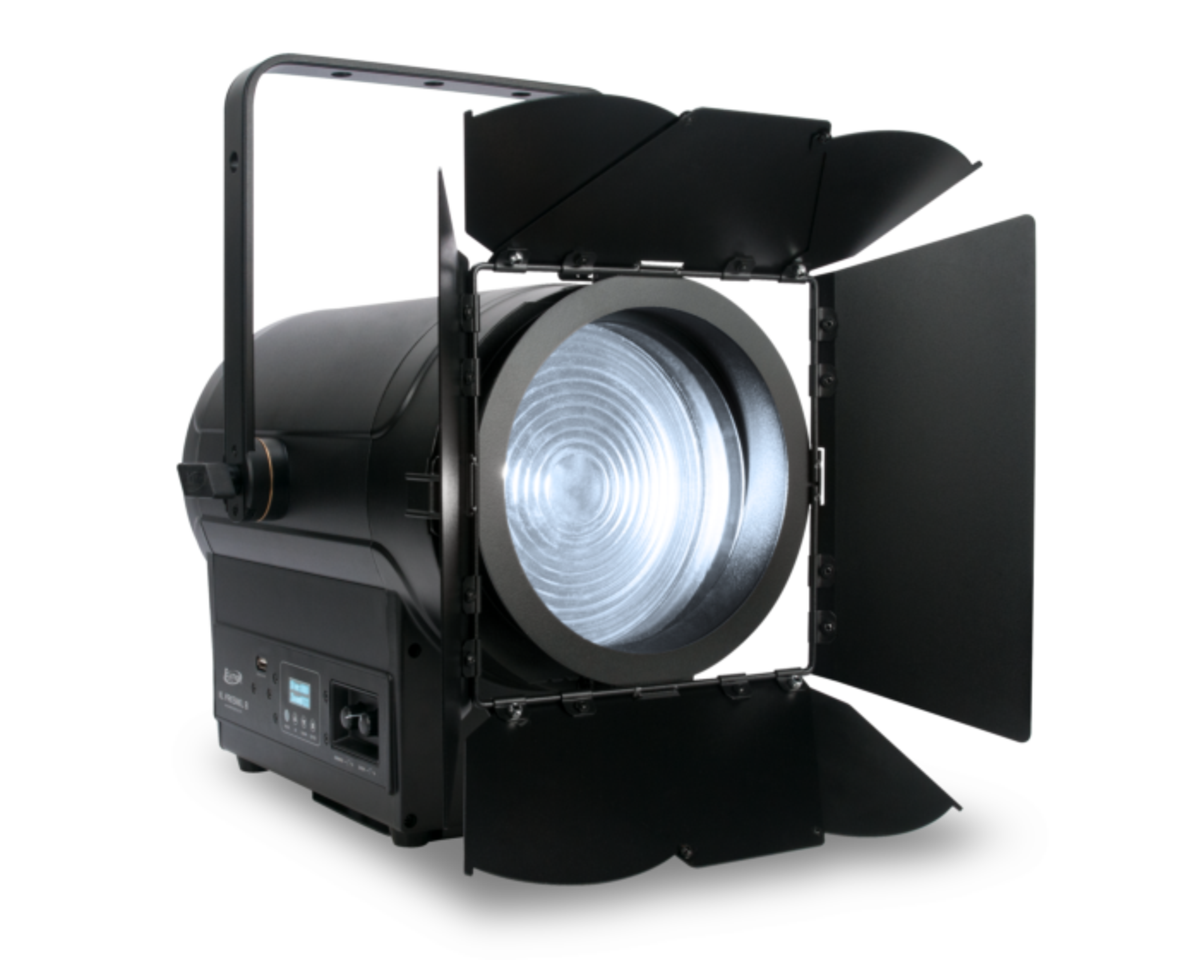

KL FRESNEL 8 CW™ is a 350W 5,600K >97CRI Cool White LED Fresnel, producing over 14,000 total lumen output. Features include manual and DMX control, 11° to 56° wide motorized zoom, manual and DMX controlled dimmer, shutter, and zoom, dimmer and zoom rotary dials, smooth 16-bit selectable dimming modes and curves, LED refresh rate frequency adjustment for flicker free operation for TV and FILM, removable barn doors (included), RDM (remote device management) protocol support, 3/5pin DMX and IP65 Locking Power Cable in/out connections, 4 button control panel, LCD menu display, multiple unit power linking, a universal auto switching power supply (100-240v), gel frame and rotating bar doors (included).


  • 5,600K Cool White LED Fresnel Luminaire
  • 350W Single Source LED
  • Manual and DMX Controlled Dimming
  • Quick Single Press Light Output for Focusing
  • 11° - 56° Motorized Zoom

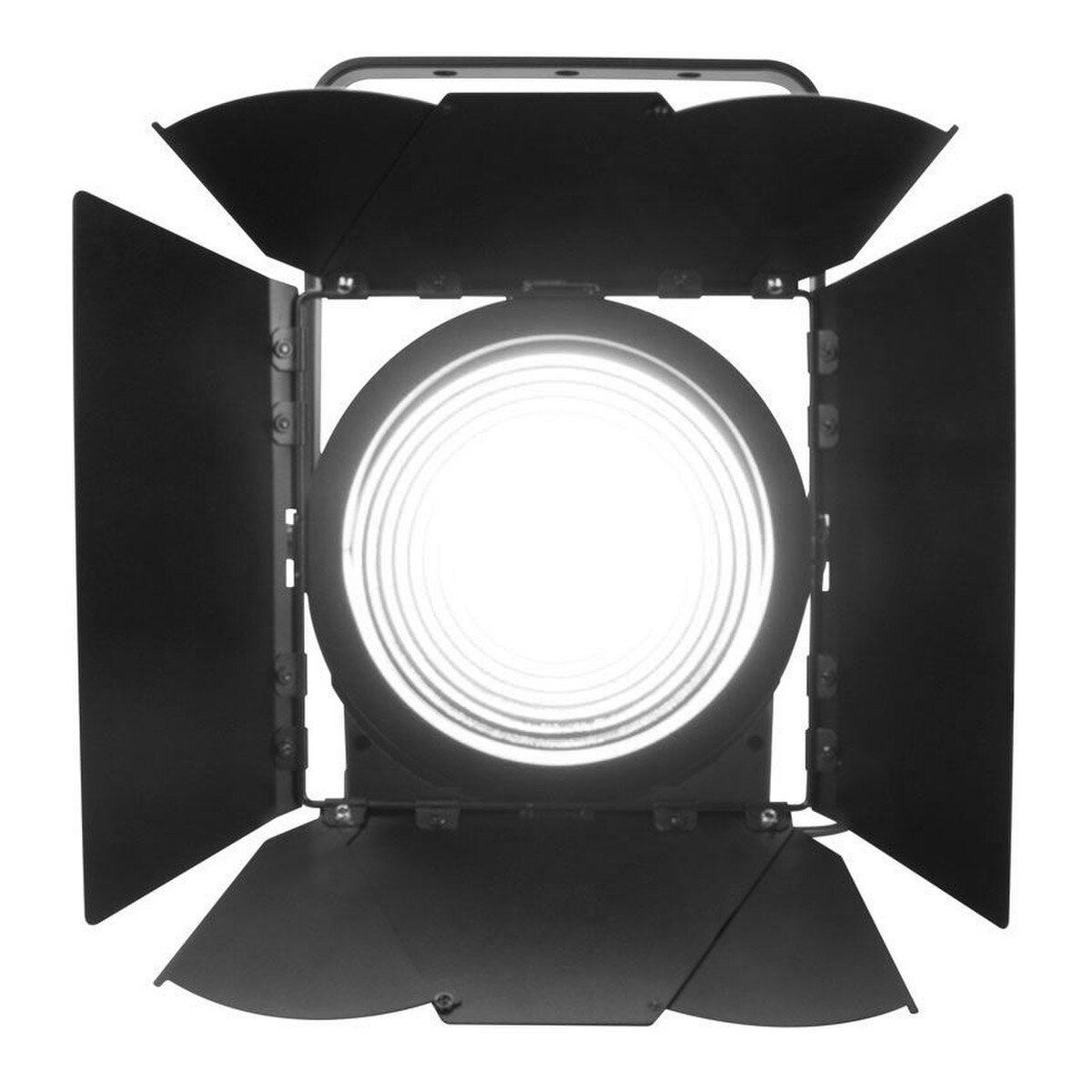

  • Including 8-Leaf Barn Doors and Gel Frame Holder
  • Adjustable Refresh Frequency
  • Silent Operation
  • Variable Dimming Curves, Dim Modes and Dimming Delays
  • Flicker Free Operation for Broadcast TV and Film
  • RDM (Remote Device Management)
  • Gel Frame and Rotating Barn Doors (included)
  • 3 Clamp Position Adjustable Mounting Yoke

Included Items:

  • Gel Frame and Rotating Barn Doors
  • IP65 Locking Power Cable


  • 350W Cool White LED Engine, 5,600K, 97CRI
  • 50,000 Hour Average LED Life


  • Motorized Zoom
  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves


  • 5,600K Cool White LED

Connections / Controls:

  • Manual and DMX Controlled Dimmer, Shutter and Zoom
  • Dimmer and Zoom Rotary Dials
  • (5) DMX Channel Modes (2 / 3 / 3 / 6 / 7)

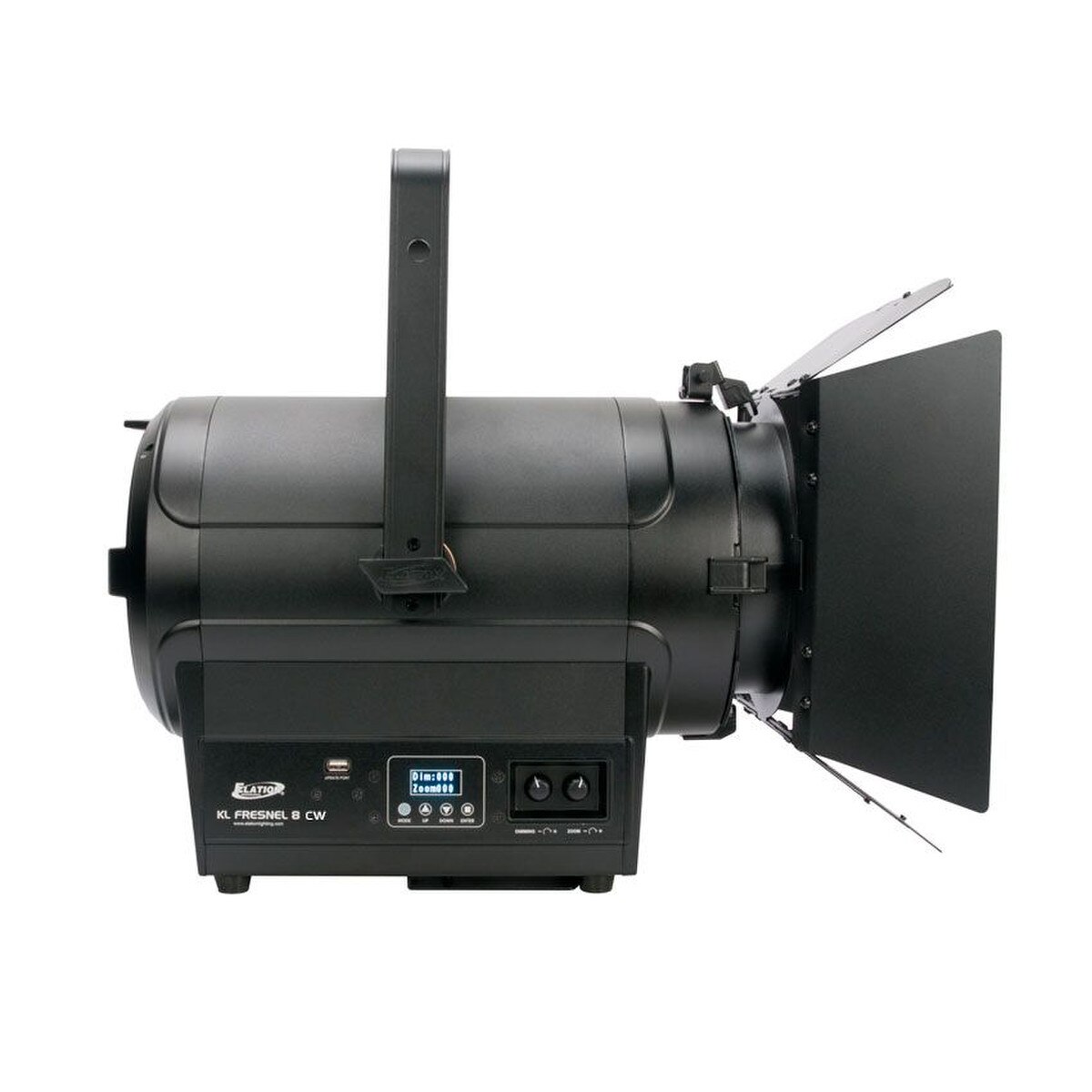

  • 4 Button Control Panel LCD Menu Display
  • RDM (Remote Device Management)

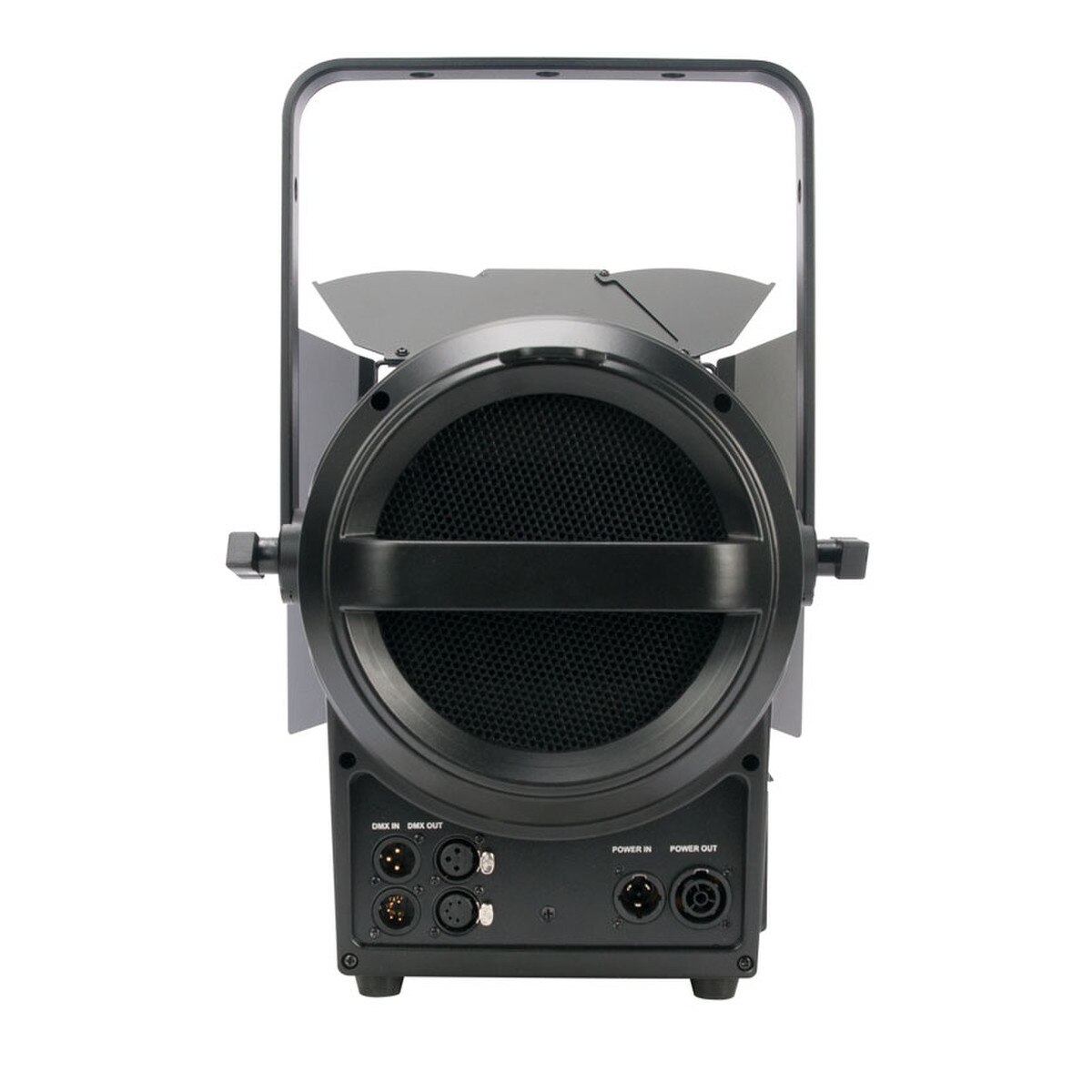

  • 3/5pin DMX and IP65 Locking Power In/Out Connection
  • With Wired Digital Communication Network

Size / Weight:

  • Length: 17.5” (445mm)
  • Width: 12.89” (327.5mm)
  • Vertical Height: 17.95” (456mm)
  • Weight: 28.0 lbs. (12.7kg)

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • 430W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)
  • Power Linking: 3Pcs @ 110V / 6Pcs @ 240V

KL FRESNEL 8 CW-DMX Traits.pdf
KL Fresnel 8 CW - Spec Sheet.pdf
Elation KL Fresnel 8 CW - User Manual.pdf
