KL Par FC

(0)No Reviews yet
$1,159.00
SKU: Elation KLP500

Details

The KL PAR FC™ is a compact full-color-spectrum LED fixture that provides high output, precise color temperature control, full-spectrum color rendering, and even wash coverage. Offering powerful color intensity and a wide array of saturated and pastel colors from its efficient RGBMA engine, it is also optimized for the tunable white light requirements of Film and Television.


The KL PAR FC is an ideal key, fill, and area wash light source for theater, House of Worship, and any production requiring outstanding performance and color quality.
It incorporates a highly efficient 5-in-1 (RGBMA) LED engine that produces up to 11.000 field lumens, equivalent to existing 750W Tungsten PAR fixtures, and is delivered with multiple lens choices that are easy to replace in the field.


Outstanding color rendering quality with a high CRI of 92 and TLCI of 95, precise CCT presets, and remotely adjustable LED refresh frequency makes this unit the perfect choice for today's fast-paced production environments. Rugged and portable, the fixture can be suspended using any standard clamp or floor mounted using the integrated stand.



It is fully self-contained without the need for an external power supply and offers locking power pass-through for easy linking of multiple units.

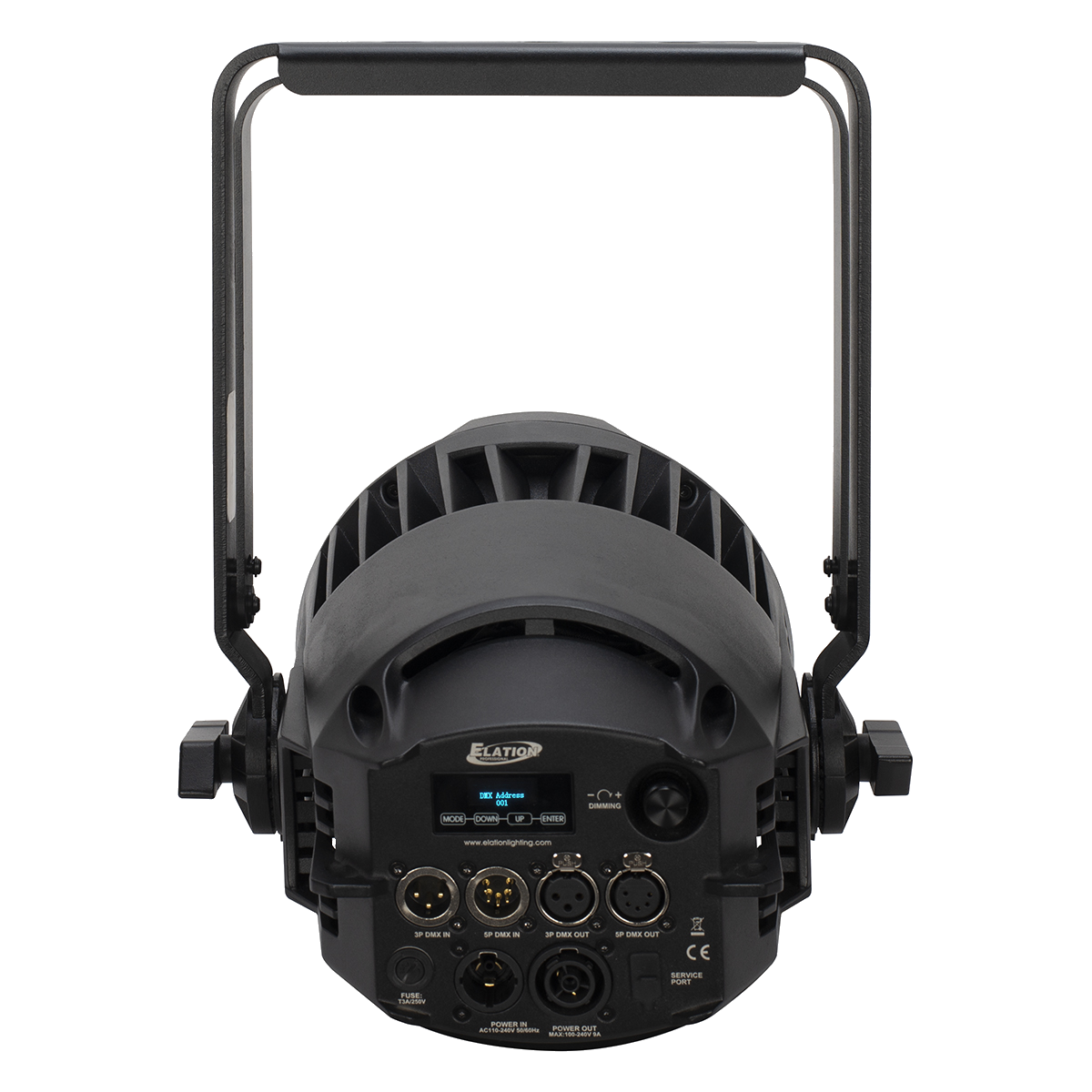

The KL PAR FC can be operated through industry-standard DMX protocols and has full RDM support. In addition, it offers manual access and standalone operation using the included encoder and display, providing instant control of Intensity, Color Temperature, Green shift, and other important settings. The display and encoder are conveniently positioned at the backside of the fixture to ensure unobstructed access when mounted.

Features:

  • 280W RGBMA LED Engine
  • Dynamic White + Full Spectrum Color Control
  • 11,000 Total Fixture Lumen Output
  • Field replaceable lenses
  • Stand-Alone control with one Encoder and OLED Display
  • Smooth 16-bit Selectable Dimming Modes and Curves
  • Remote LED Refresh Rate and Fan Speed Adjustment
  • Flicker Free Operation for TV and FILM
  • RDM (Remote Device Management)
  • 7.5" Gel Frame and four lenses (11°, 22°, 30°, 52°) included

Included Items:

  • 7.5in Gel Frame
  • 4 Lenses (11°, 22°, 30°, 52°)
  • IP65 Locking Power Cable

Source:

  • 280W 6500K RGBMA LED Engine
  • 50,000 Hour Average LED Life

Effects:

  • Electronic Dimmer and Strobe
  • Variable 16-bit Dimming Modes and Curves

Color:

  • RGBMA Color Array
  • CMY Emulation
  • Variable CCT 2,400K - 8,500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

Connections / Controls:

  • 6 DMX Channel Modes (1 to 17 channels)
  • Manual and DMX Controlled Dimmer and Color
  • Single Rotary Dial
  • 4 Button Control Panel, LED Display
  • RDM (Remote Device Management)
  • 3/5pin DMX and IP65 Locking Power Cable In/Out

Size / Weight:

  • Length: 10.85" (276mm)
  • Width: 13.94” (354mm)
  • Vertical Height: 15.49” (393mm)
  • Weight: 16.27 lbs. (7.38kg)

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • 284W Max Power Consumption
  • 5°F to 113°F (-15°C to 45°C)

Elation KL Par FC - Spec Sheet.pdf
Elation KL Par FC - User Manual.pdf
