KL Profile FC

(0)No Reviews yet
$4,062.60
SKU: Elation KLP412

Details

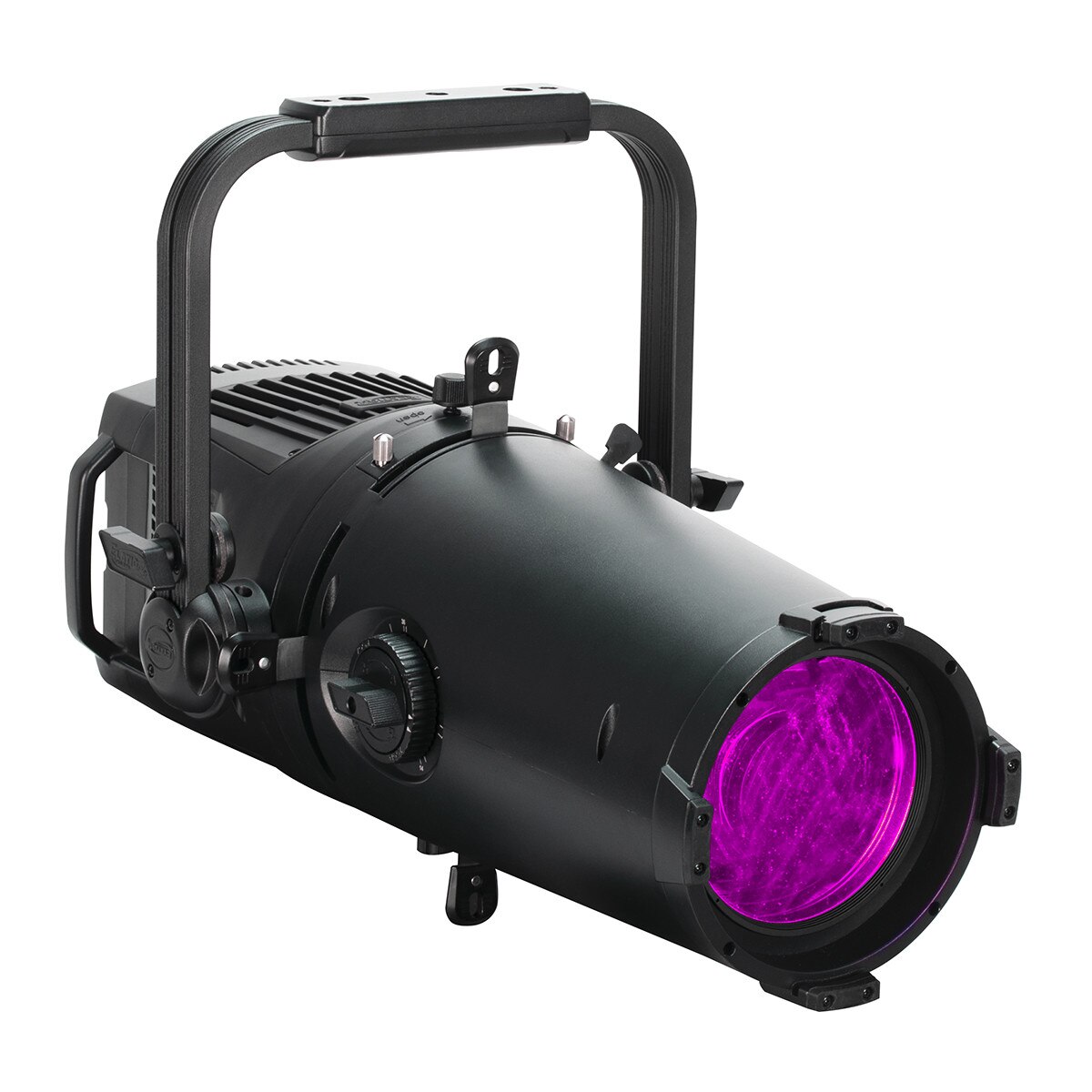

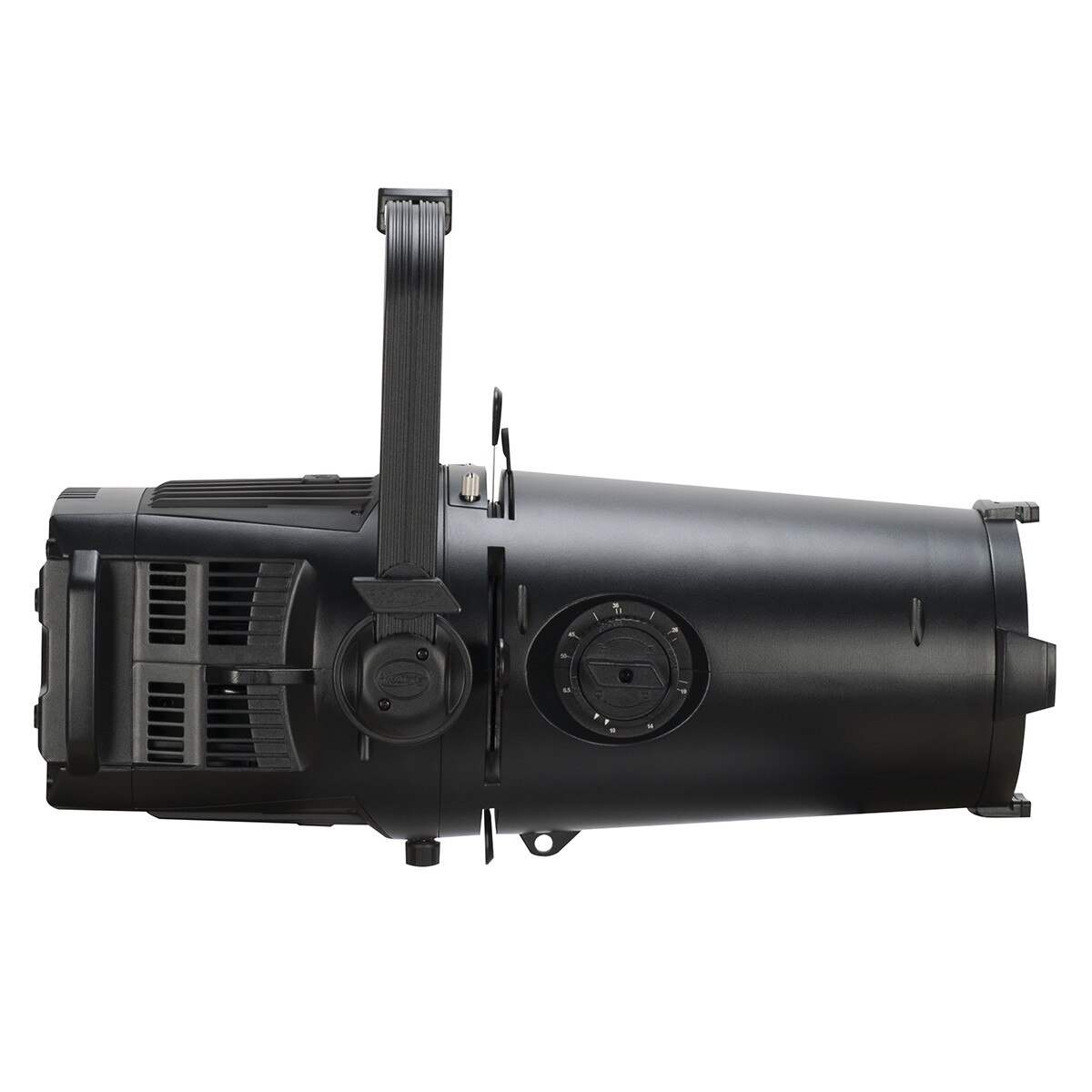

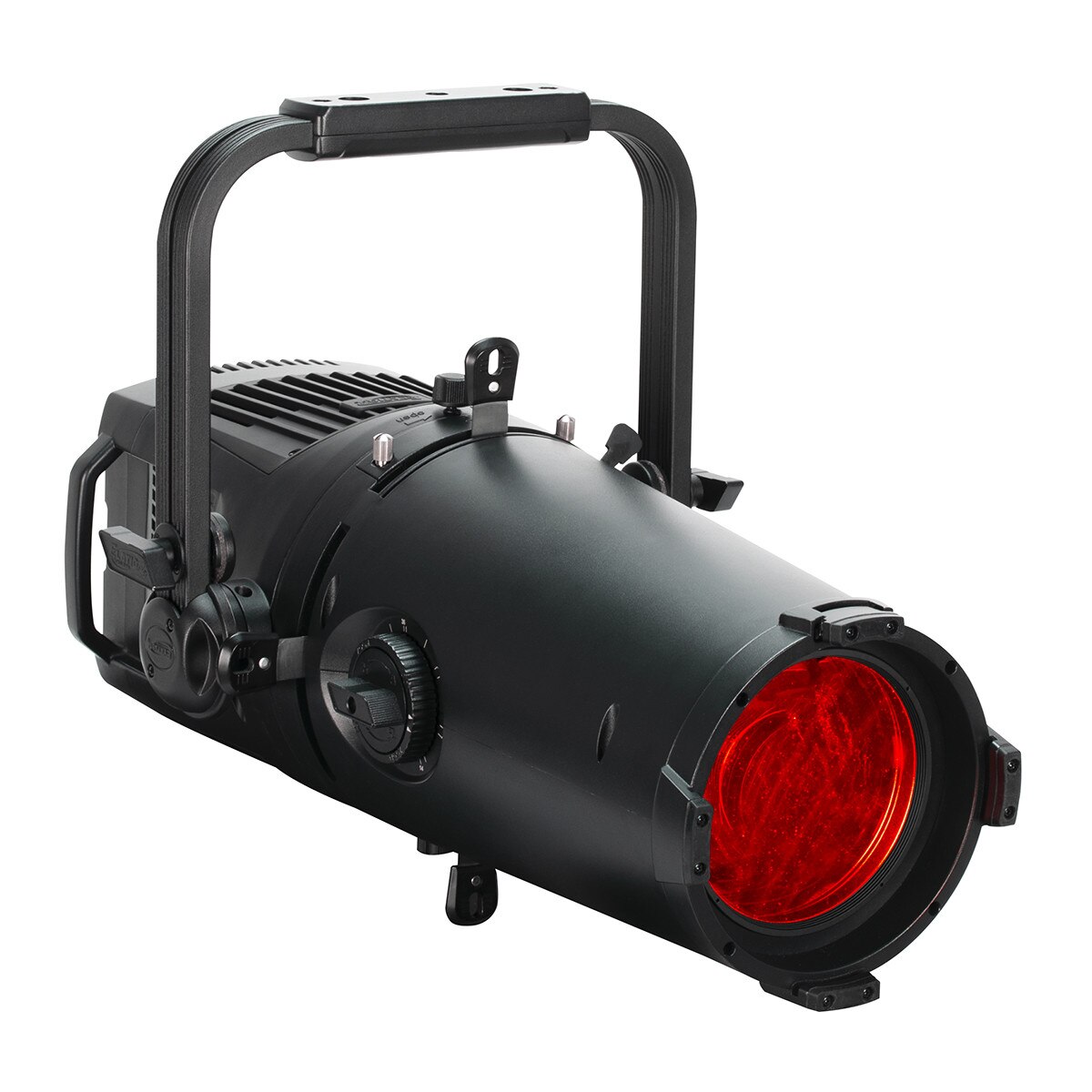

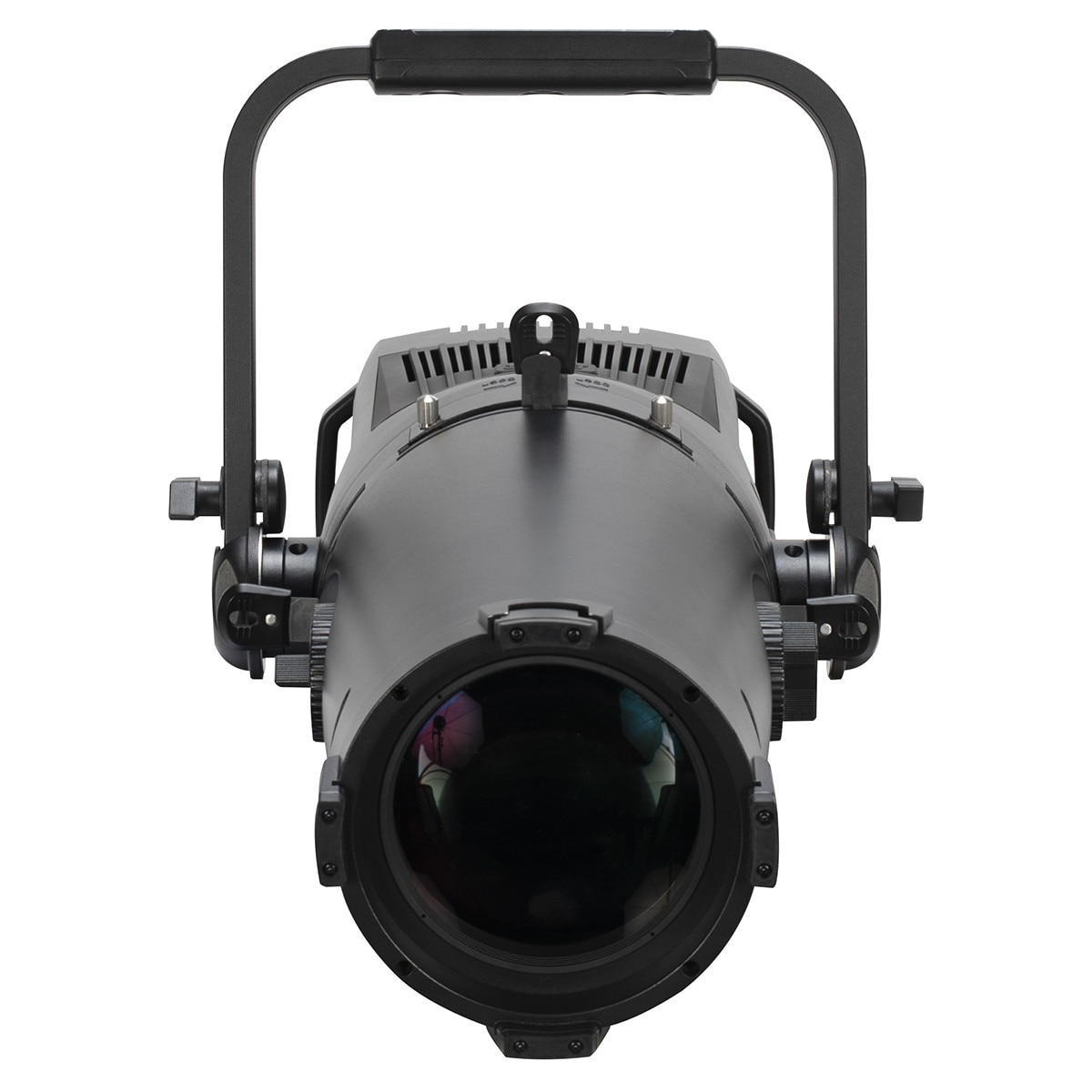

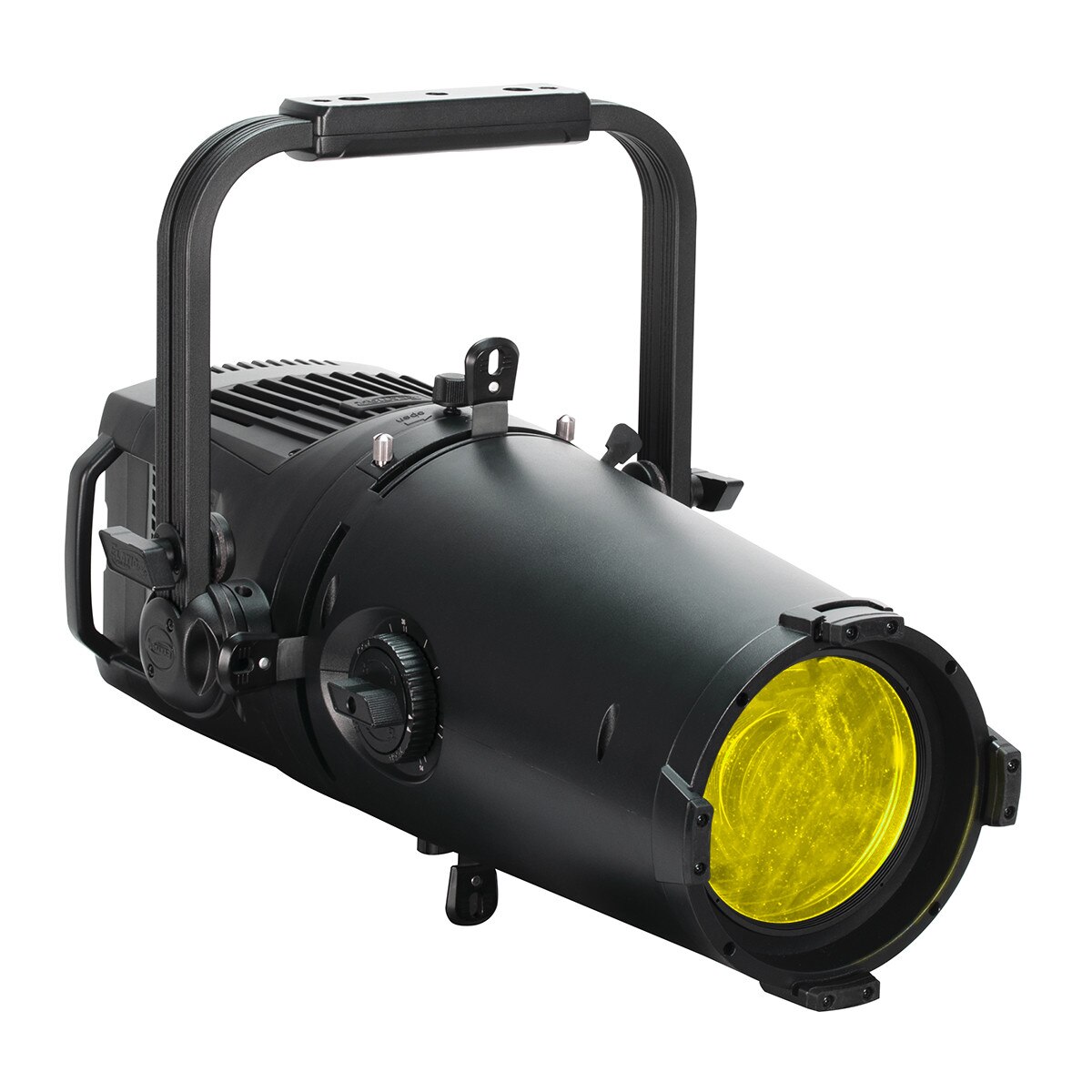

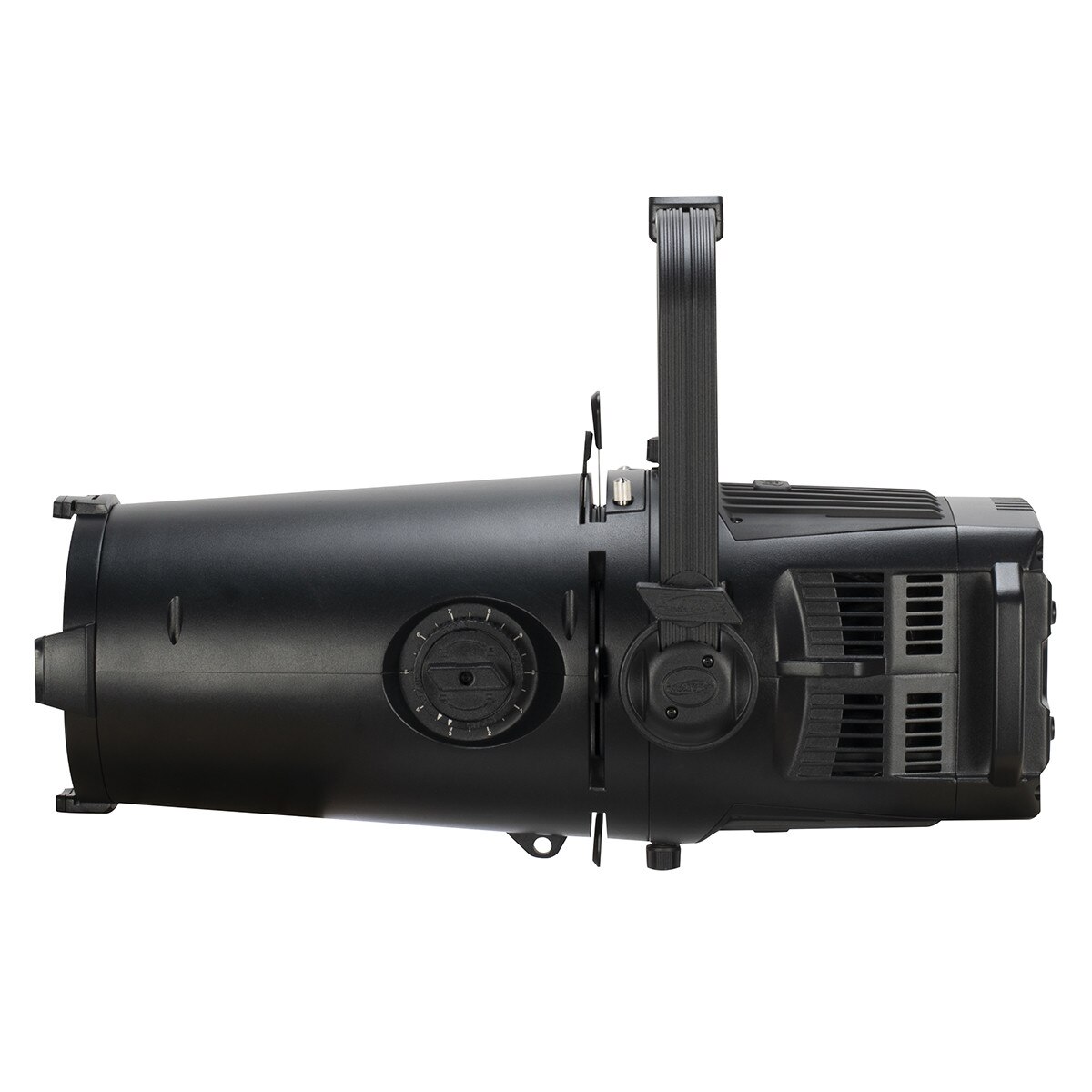

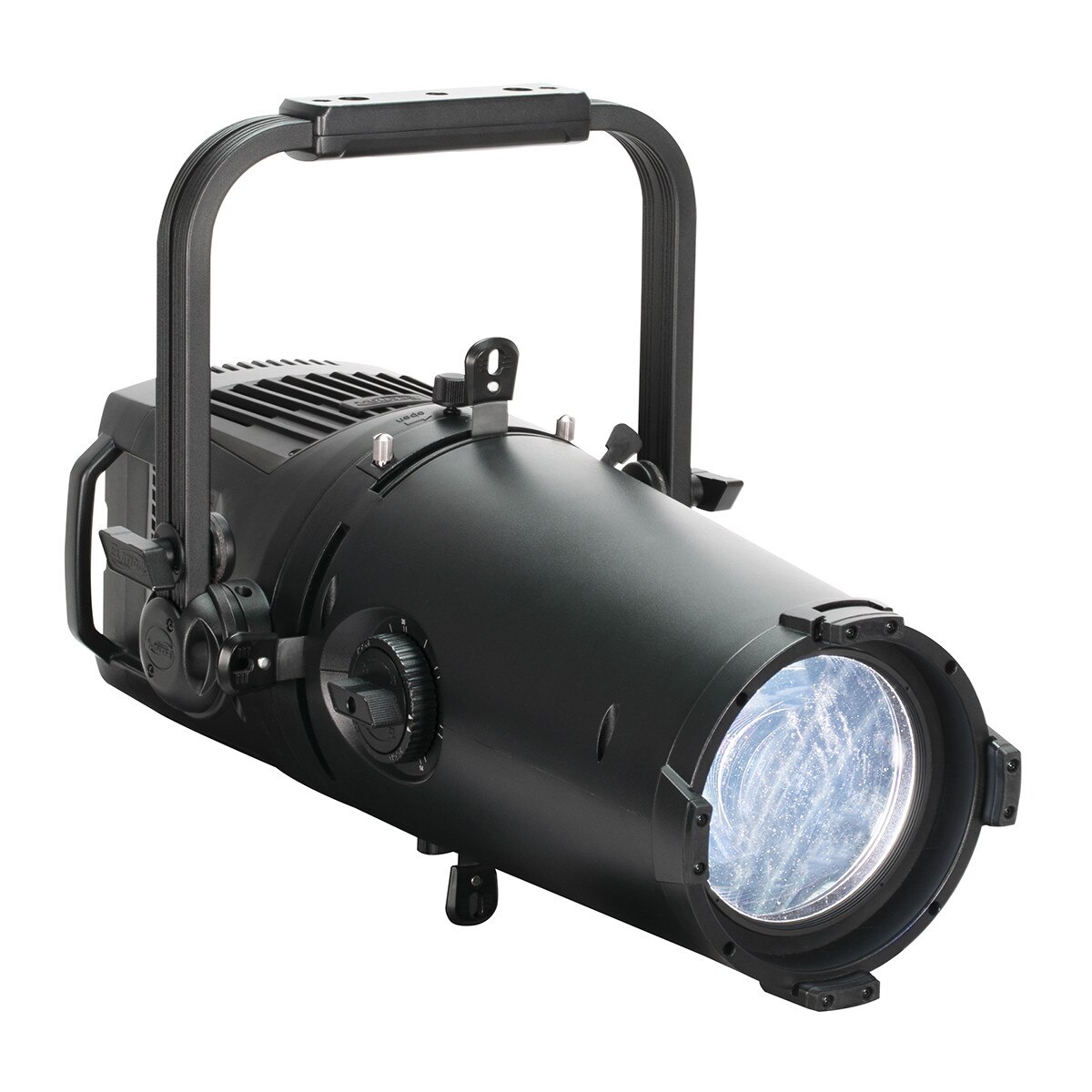

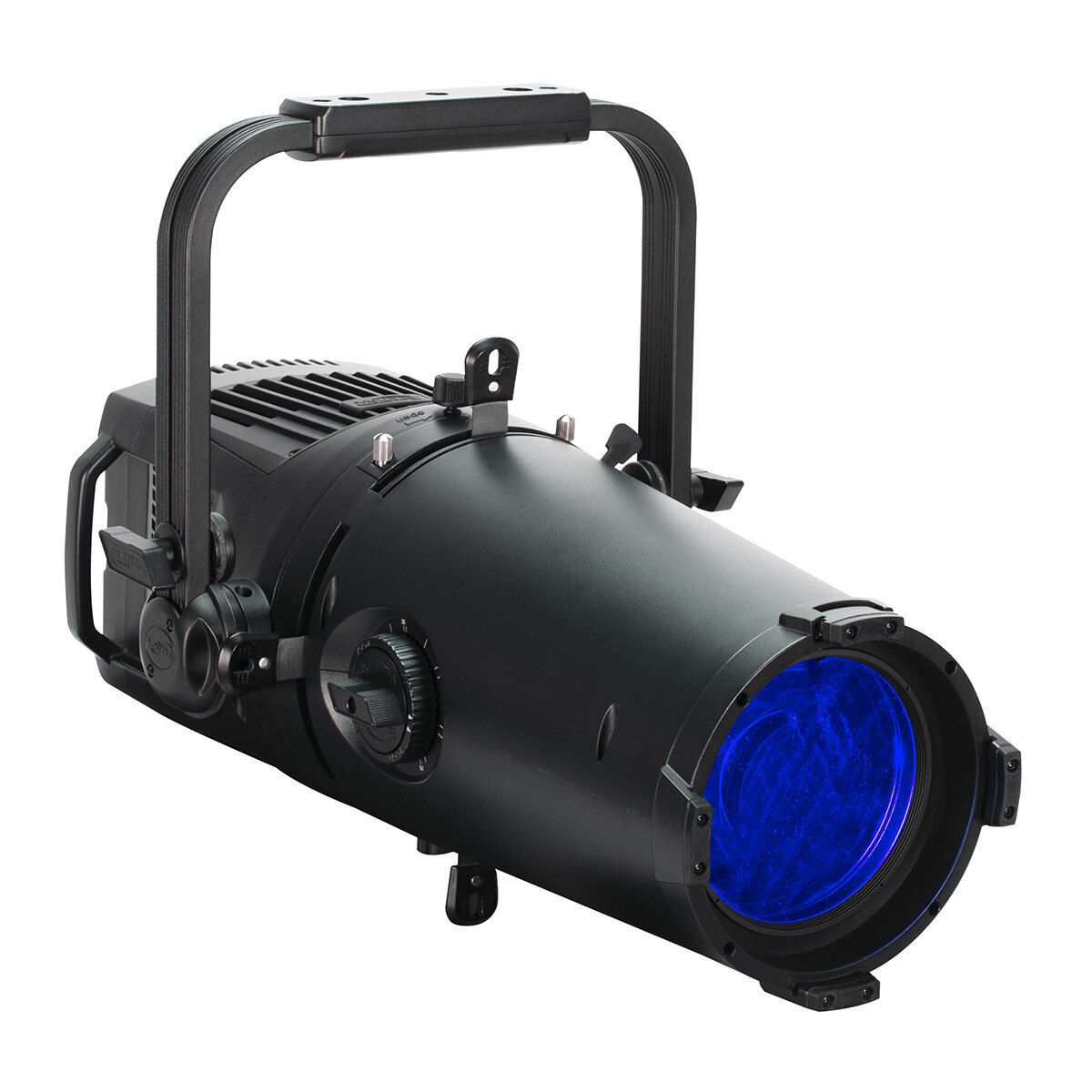

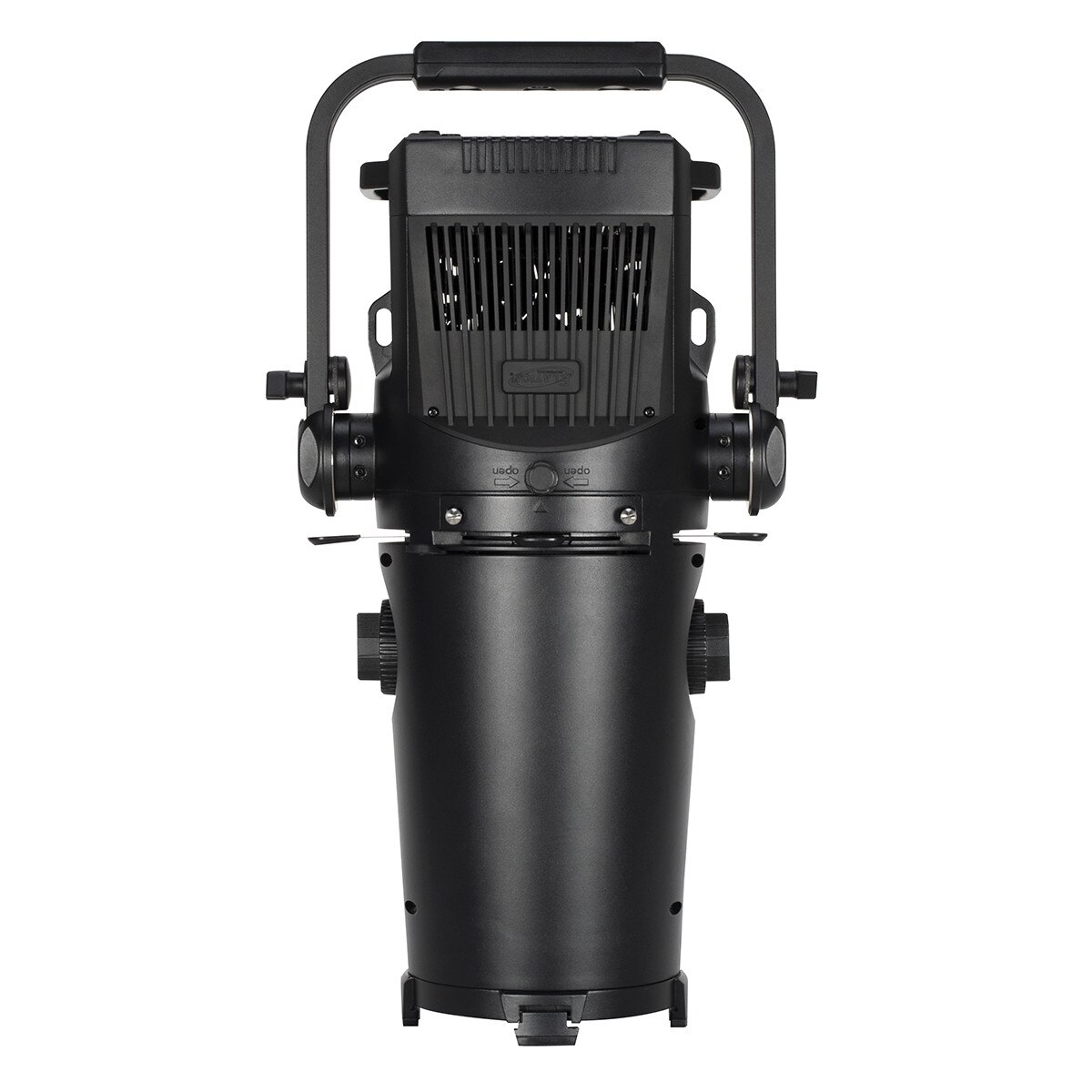

The KL PROFILE FC™ is a manual LED framing fixture designed for a wide array of precision lighting applications. With an integrated manual zoom range of 7 to 50 degrees the fixture requires no additional lens tubes, reducing cost, complexity and providing excellent flexibility for any theater, performance venue or show. The integrated manual Iris allows further beam control.


The 92 CRI engine utilizes a 5-color homogenized LED array consisting of Red, Green, Blue, Mint, and Amber sources with a power of 305W. The carefully tuned LEDs ensure accurate color reproduction while delivering a powerful output of over 10,000 lumens. Virtual color temperature, Magenta / Green adjustment provide the designer with immediate access to the impressive LED color array. Exceptionally quiet, the fixture offers enhanced fan controls down to Elation’s Mute Mode which disables the internal cooling fan.


For ease of use, the fixture contains a 16bit rotating/indexing gobo slot and is shipped with the KL Profile Designer Gobo Set, containing 10 high resolution glass gobos. The gobo slot is easily accessible from the top of the fixture.


The optional Fresnel  Lens Conversion Kit allows to utilize the fixture as a framing wash fixture while providing uniform appearance and fixture spacing. The KL PROFILE FC is designed for any application where an ellipsoidal or wash fixture with outstanding and impactful color range and quality and a flexible zoom range is required. The fixtures enhanced optical design and lens coatings ensure precise and razor-sharp projections, removing all unwanted color shifting and aberrations in all zoom, focus or framing positions.

Features:

  • Compact Zooming Ellipsoidal
  • Extended Color RGBMA LED Engine, 92 CRI
  • Exceeding 10.000 lumens
  • Integrated Rotating Gobo Slot
  • Full Blackout Manual Framing System
  • Wide Zoom Range from 7° to 50°
  • 7.5” Front Accessory Holder
  • Includes 7.5" Gel Frame
  • Designer Gobo set with 10 high resolution glass gobos
  • Optional Fresnel Wash Lens Conversion Kit

Source:

  • 305W 6,500K RGBMA LED Engine
  • 30,000 Hour Average LED Life

Effects:

  • Manual Locking Zoom, Focus
  • 4 Manual Rotating Full Blackout Framing Blades
  • Manual Barrel Rotation
  • Integrated Manual Iris
  • Variable 16-bit Dimming Curve

Color:

  • RGBMA Color Array
  • CMY and RGB Emulation
  • Virtual Color Correction 2400K - 8500K
  • Green/Magenta Shift
  • Virtual Gel Swatch Book

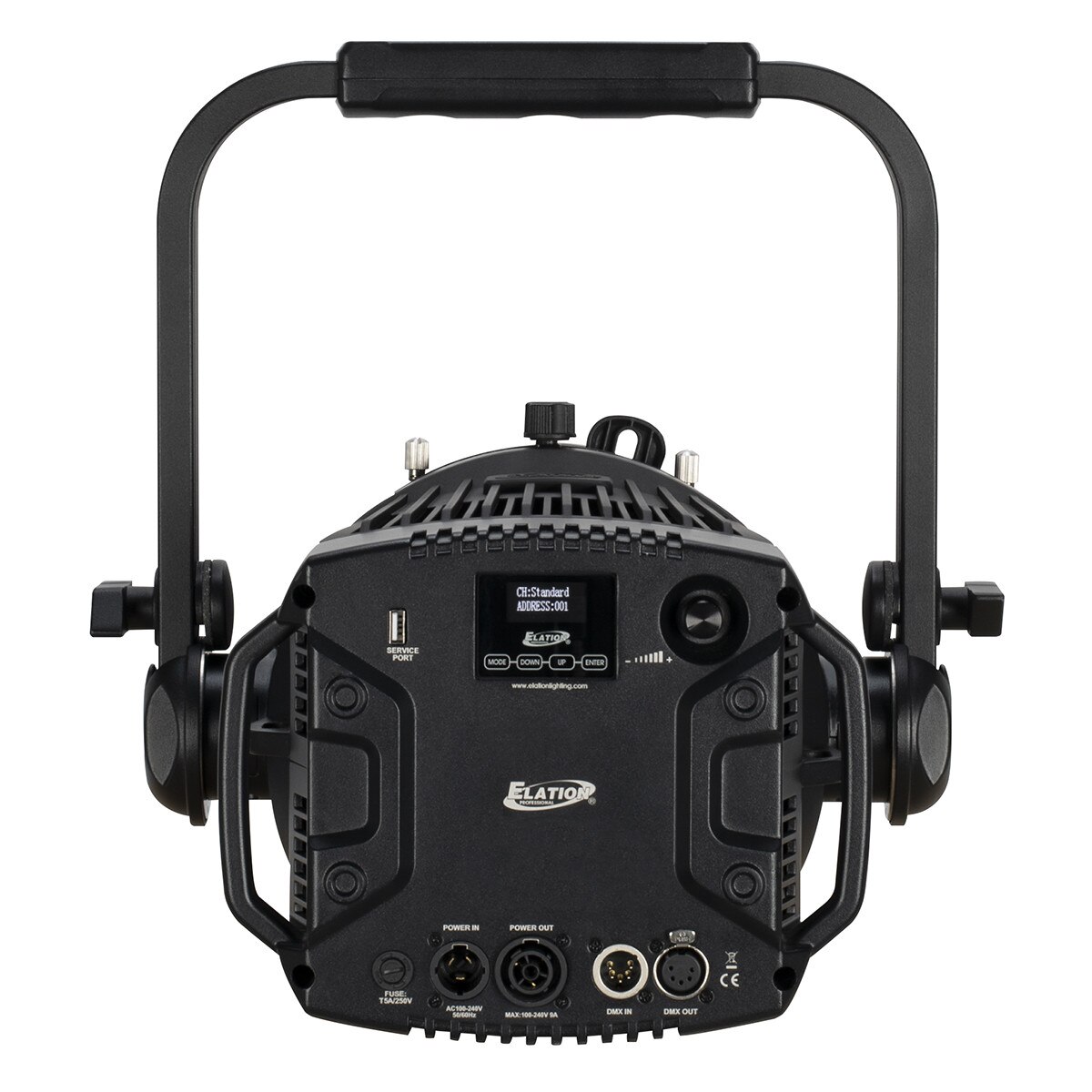

Connections / Controls:

  • 8 DMX Channel Modes (1/5/12/21) CMY(10/17)  RGB(10/17)
  • DMX Adjustable LED Frequency
  • DMX, RDM Protocol Support
  • 4 Button Touch Control Panel
  • Encoder Control for Standalone Operation
  • Full Color 180° Reversible LCD Menu Display
  • 5pin DMX In/Out
  • IP65 Locking Power In/Out

Size / Weight:

  • Length: 25.11" (638mm)
  • Width: 15.35" (390mm)
  • Height (Fixture Body): 10.98” (279mm)
  • Height (Yoke 90°): 18.35” (466mm)
  • Weight: 35.2lbs (15.9kg)
  • 7.5” Front Accessory Slot

Electrical / Thermal:

  • AC 100-240V - 50/60Hz
  • 358W Max Power Consumption
  • 14°F to 113°F (-10°C to 45°C)

KL Profile FC Preliminary Spec Sheet.pdf
