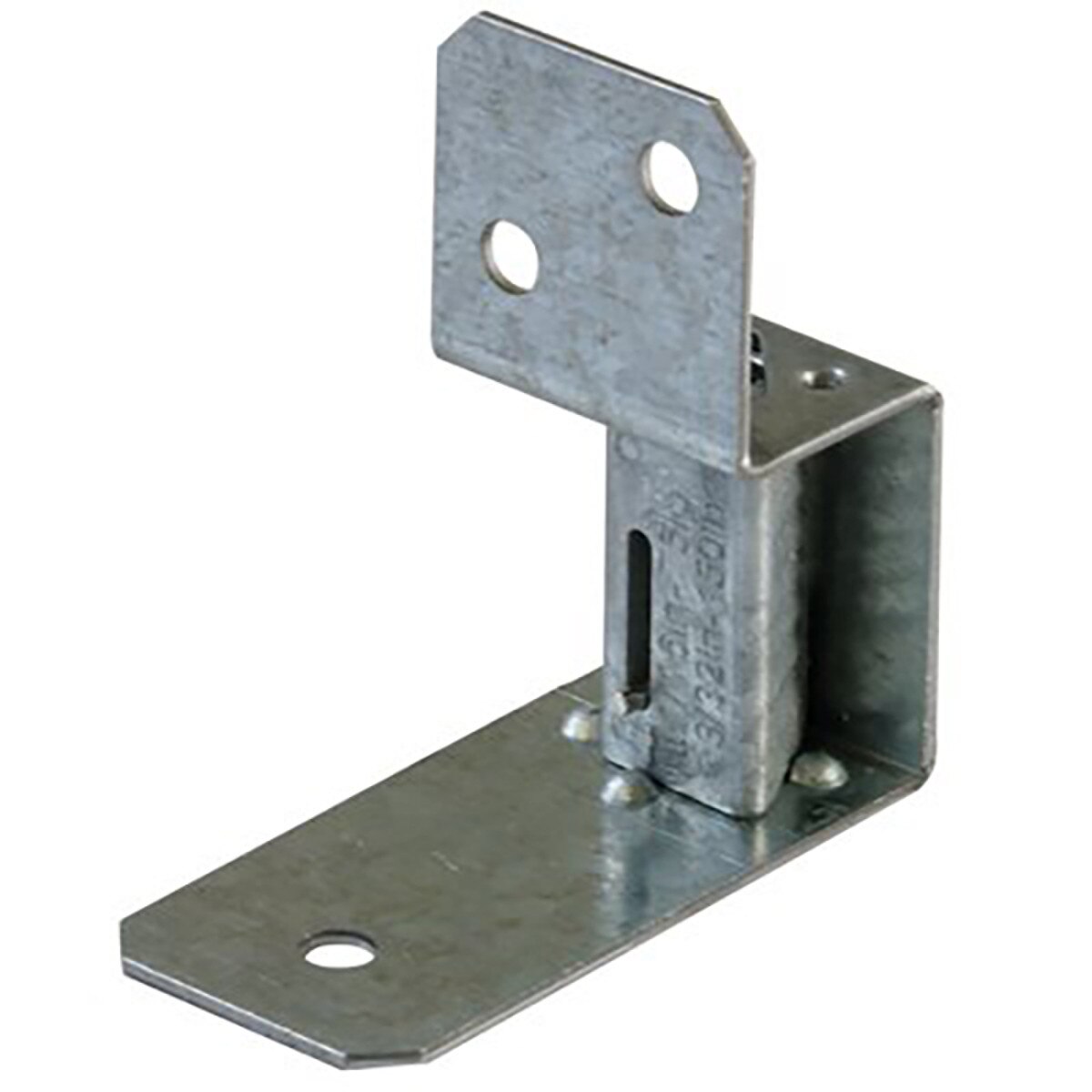

KV100 Support Bracket with KL100
Details
Product Information:
The KV Bracket suspension system utilizes Kwik-Loc cable locks and wire rope to secure ductwork and equipment. This method has been shown to reduce installation time and improve safety at the jobsite when compared to traditional hanging methods such as threaded rod, perforated strap, and ban iron. The KV bracket enhances the suspension system by the addition of an integral bracket, which fastens the Kwik-Loc to the duct with sheet metal screws. Once the KV bracket is attached to the duct, the wire rope "drop" is passed into the entry hole at the top of the bracket, through the Kwik-Loc, and out the exit hole at the bottom. The locking teeth inside the Kwik-Loc engage the wire rope and secure the ductwork in place.
Working Load Limit 150 lbs.
KV100 Support Bracket with KL100 (KV100)
