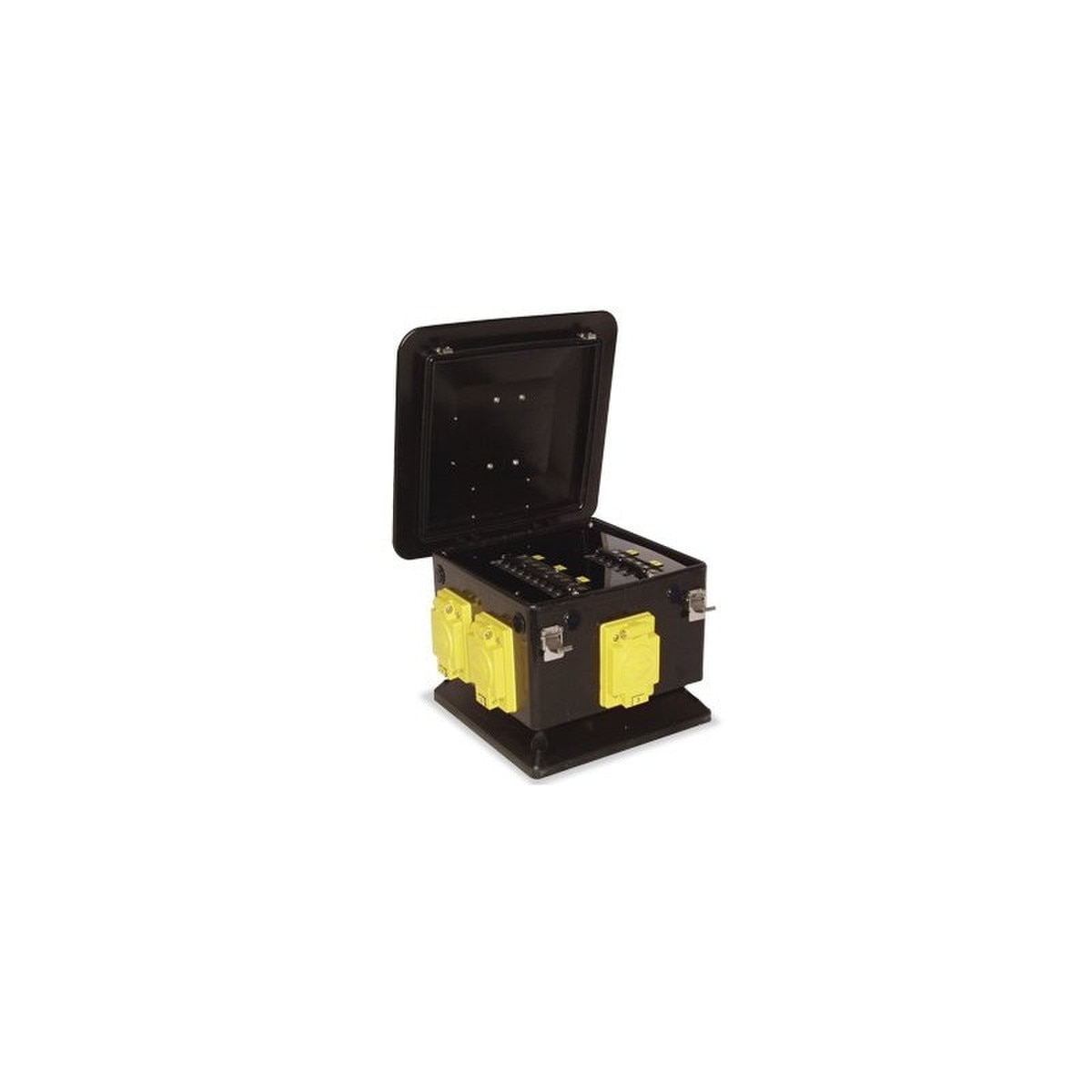

LEX 100 Amp 3 Phase Pagoda to L21-20 Locking Receptacles
Details
Rubber Enclosure, 100A, Main Breaker, Panel Mount Cam Inlet, (4) 20A L21- 20 Receptacles, (1) 20A 5-20 GFCI, Type 3R.
Features:
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers mounted under hinged window for easy access and enhanced protection
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
Specifications:
- Rating: 100A, 3Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
- Environmental Rating: NEMA 3R Weather Resistant
- Input: (1) set of (5) 16 Series Cam-type colour-coded panel mount inlets
- Output: (4) NEMA L21-20 20Amp, 3Phase, 4 Pole, 5 Wire, 120/208Y VAC Locking Receptacles; (1) NEMA 5-20 20Amp, 2 Pole, 3 Wire, 120 VAC, GFCI Duplex Receptacle
- Feed Thru: None
- Overcurrent Protection: (1) 20A, Single Pole branch-rated circuit breaker; (4) 20A, 3 Pole branch rated circuit breakers
- Enclosure Type: Pagoda
- Dimensions: 14.25″L x 14.25″W x 14.15″H
- Weight: 32lbs
