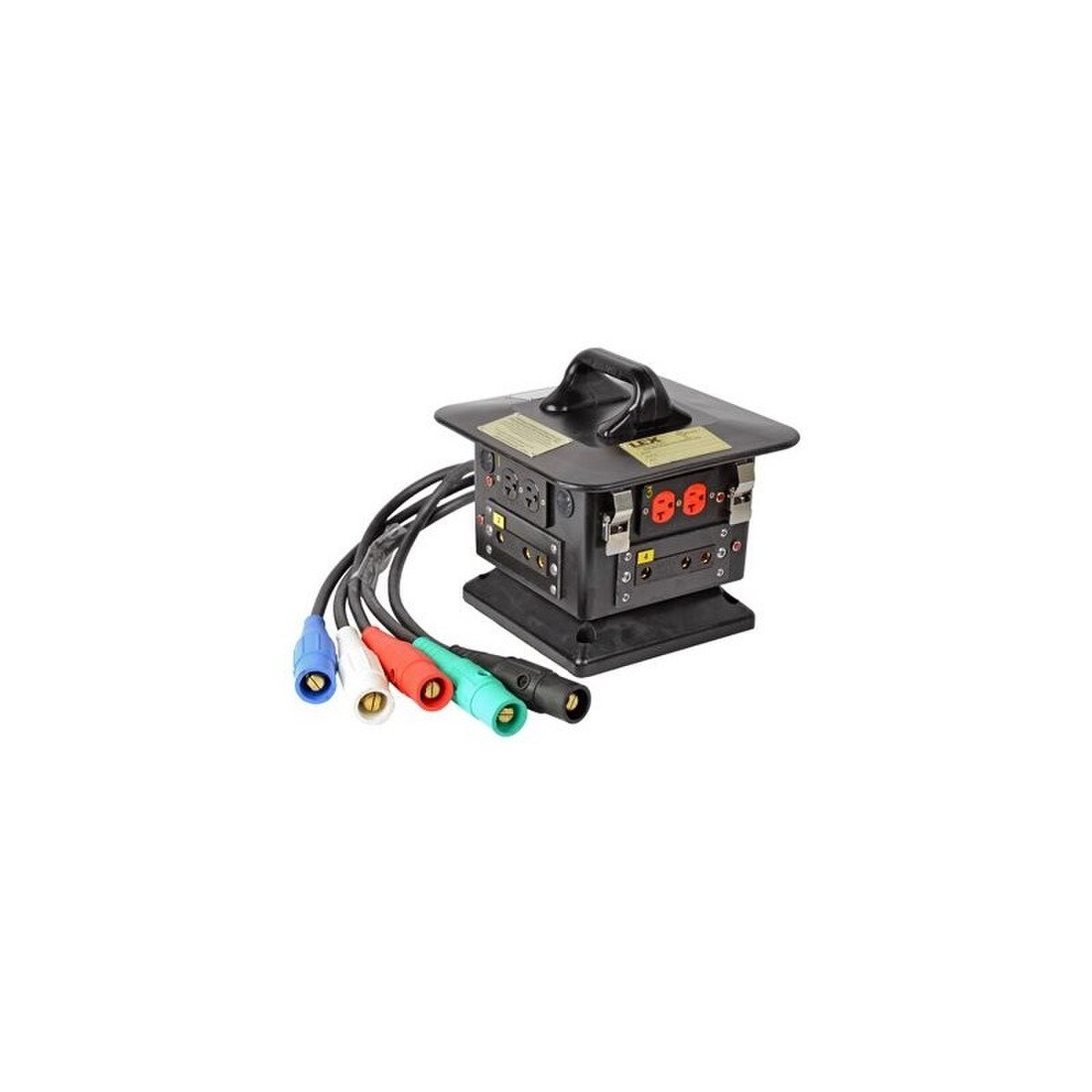

Lex 100 Amp 3 Phase Motion Picture Box with Tail Input

(0)No Reviews yet
$2,200.13
SKU: Lex DBS100DT-A4DB2

Add this item to get free shipping! (Motor Freight Excluded)

Details

This box provides power distribution for film or video productions, and powers 10K or 12K lighting fixtures. It also provides convenience power from NEMA 5-20 duplex receptacles.

Features:

  • Provides 100 Amp stage pin receptacles for powering lights and duplex receptacles for convenience power
  • Heavy-duty molded rubber enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Breakers mounted under hinged lid for enhanced safety
  • Stackable and compact for easy storage and convenient portability
  • Elevated base keeps receptacles above ground level
  • Reverse neutral and ground options prevent mismating for enhanced safety

Specifications:

  • Rating: 100 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire, 120/208Y VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) set of (5) 16 Series Cam-type color-coded plugs on 18 inch #4 AWG type SC cable tails
  • Output: (3) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacles. (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
  • Feed Thru: None
  • Overcurrent Protection: (3) 100 Amp, Single Pole branch-rated circuit breakers. (3) 20 Amp, Single Pole branch-rated circuit breakers
  • Enclosure Type: Pagoda Jr.
  • Overall Dimensions: 11.38" L x 11.38” W x 11.32” H
  • Approximate Weight: 24 lb

Specifications_Sheet_97189_File_1.pdf
