Lex 100 Amp 3 Phase Pagoda to 15 Duplex Receptacles

Features and Benefits:

• This PowerHOUSE™ portable power distribution box is extremely versatile and can be fed from a generator or panel
• Rated for outdoor use, this box can accept up to (30) NEMA 5-20, 20 Amp Edison cords for powering lights and audio equipment for events including small concerts
• Applications also include powering light tools and computers
• Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion

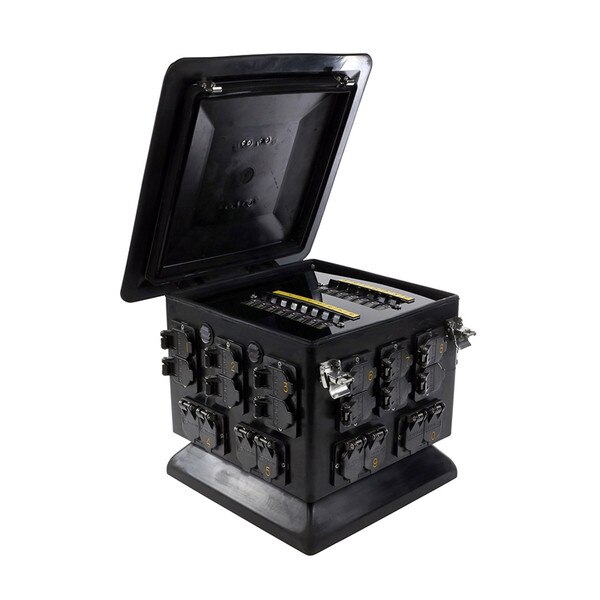

• Breakers are mounted under hinged lid for enhanced safety
• Stackable and compact for for easy storage and convenient portability
• Elevated base keeps receptacles above ground level

Markets Served:

• Live Events
• Concert Touring
• Convention Centers
• Motion Picture and Television Production
• Industrial
• Shipyards

Technical Information:

• Rating: 100 Amp, Three-phase (H,H,H,N,G), 4-pole, 5-wire, 120/208Y VAC, 60 Hz
• Environmental Rating: NEMA 3R (Weather Resistant)

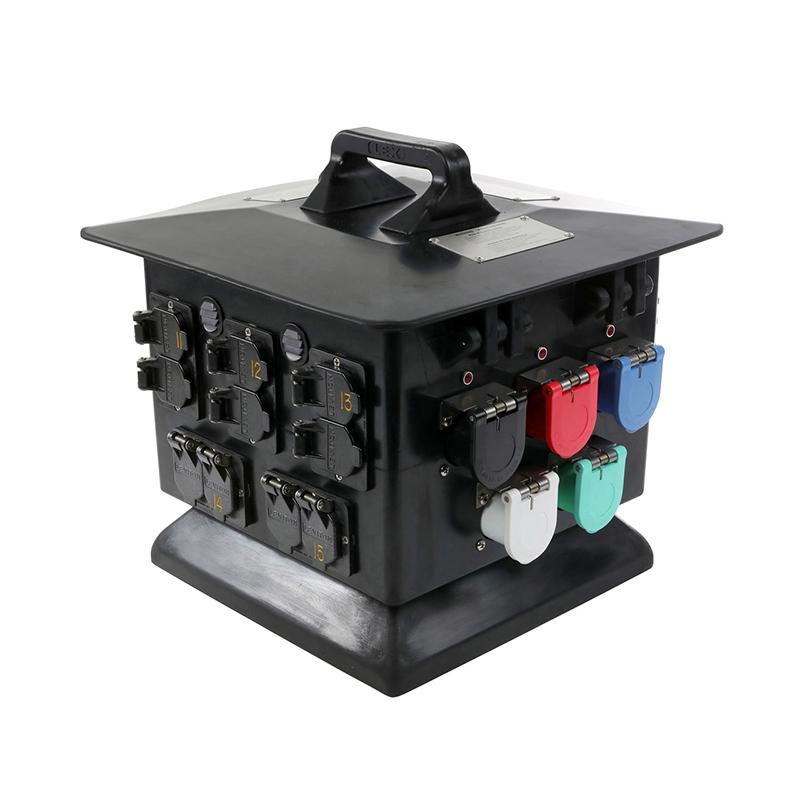

• Input: (1) set of (5) 16 Series, 400 Amp, single pole, single wire, 600 VAC, BRBWG color-coded, cover doors, cam-type inlets, panel mount
• Feed Thru: None
• Main Breaker: None
• Output: (15) NEMA 5-20 (Edison), 20 Amp, 2-pole, 3-wire, 125 VAC, straight blade duplex receptacles, cover doors, panel mount
• Overcurrent Protection: 20 Amp, 125 VAC, single-pole, hydraulic magnetic, branch-rated circuit breakers
• Enclosure Type: Pagoda™
• Dimensions: 14.25"L x 14.25"W x 14.15"H
• Weight: 32.0 lbs
• Agency Approval: cULus Listed
