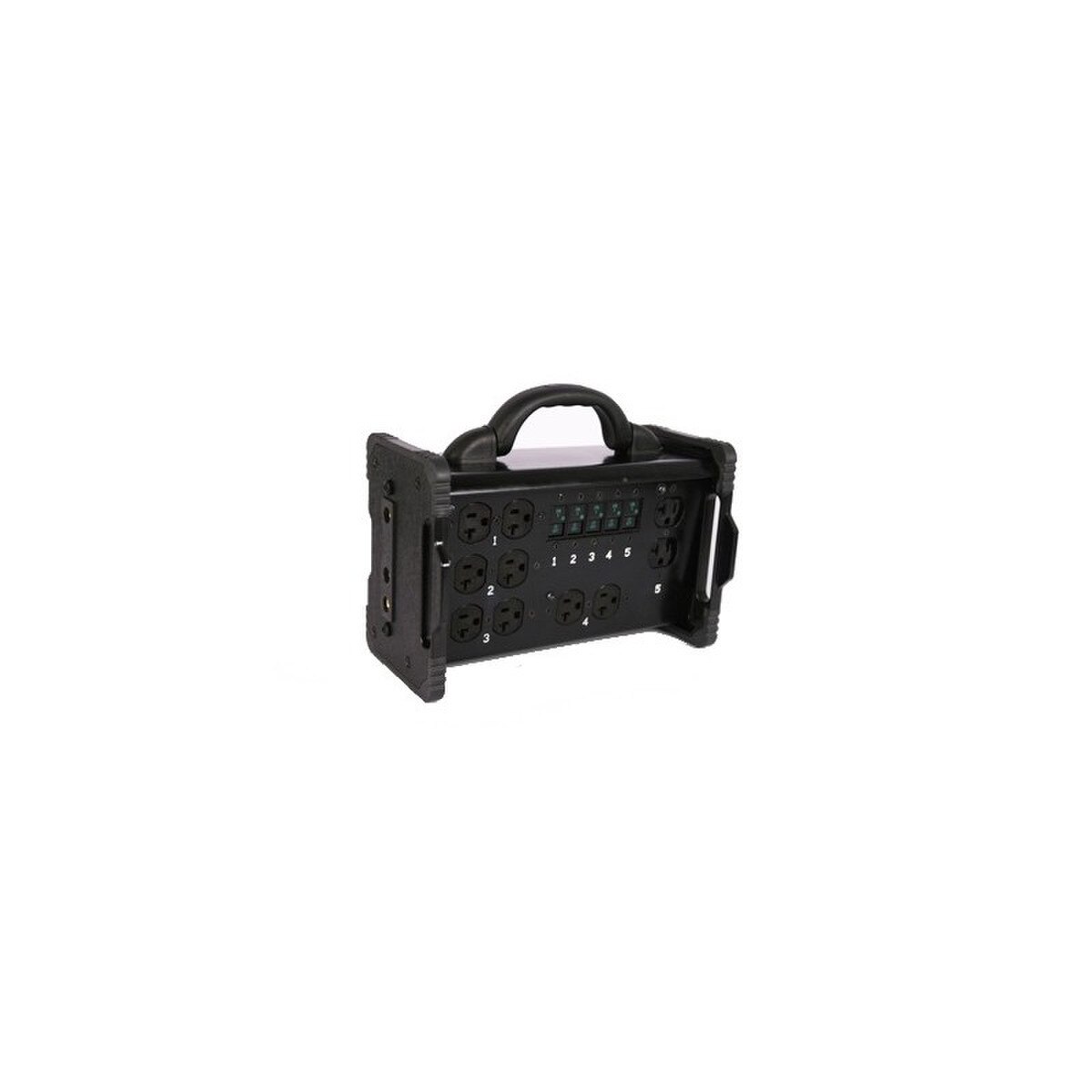

Lex 100 Amp Bento Box Lunchbox Feed Thru

Fed from larger power sources, this compact distribution unit provides 5-20 duplex receptacles for smaller lights and related equipment. The feed thru feature allows multiple boxes on the same feed.

Features:

• Stackable and compact for easy storage
• Easily fit six in a standard six-gallon milk crate for portability
• Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
• Circuit breakers are mounted flush for easy access and circuit identification
• Collapsible handle and end plate grips for easy handling in tight spaces
• Hydraulic magnetic circuit breakers help prevent nuisance tripping at high temperatures

Specifications:

• Rating: 100 Amp, Single Phase, 2 Pole, 3 Wire (H,N,G), 120 VAC, 60 Hz
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin inlet
• Output: (5) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
• Feed Thru: (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC stage pin receptacle
• Overcurrent Protection: (5) 20 Amp hydraulic magnetic branch-rated circuit breakers
• Overall Dimensions: 11.5"L x 5.9"W x 7.6"H
• Weight: 7.5 lbs.
