Lex 100 Amp Bento Hollywood Box

(0)No Reviews yet
$1,107.82
SKU: Lex BNF3-1A2B-10.5

Add this item to get free shipping! (Motor Freight Excluded)

Details

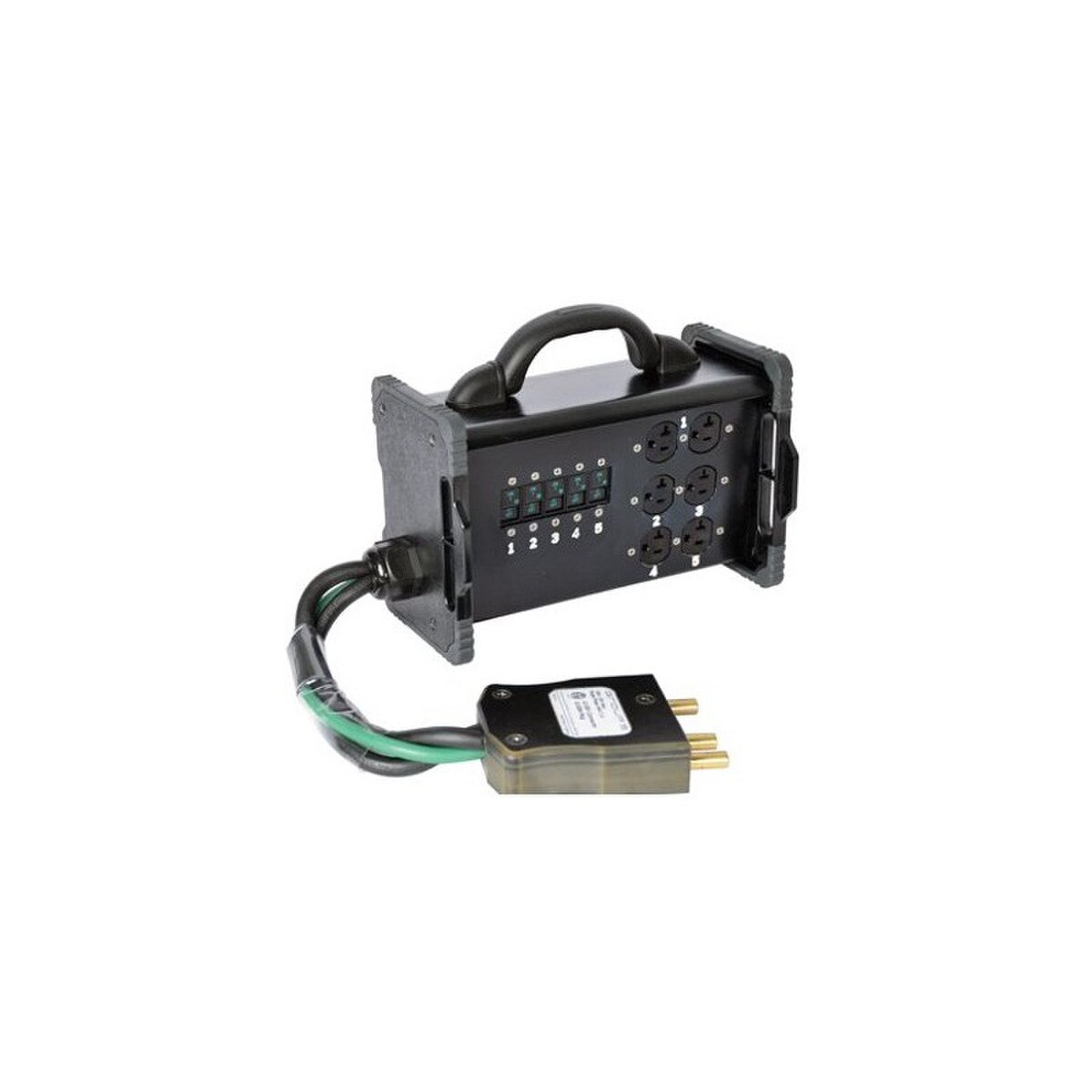

This compact unit provides convenient NEMA 5-20, 20 Amp duplex receptacles to power lights on motion picture and television sets.

Features:

  • Hydraulic magnetic circuit breakers help prevent nuisance tripping at higher temperatures
  • Stackable and compact for easy storage
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • Circuit breakers are mounted flush for easy access and numbered for easy circuit identification
  • Collapsible handle and end plate grips for easy handling in tight spaces

Specifications:

  • Rating: 100 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 100 Amp stage pin plug on 12 inch type SC cable tail, Single Phase, 2 Pole, 3 Wire, 120 VAC
  • Output: (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC duplex receptacles split wired for (5) 20 Amp circuits
  • Feed Thru: None
  • Overcurrent Protection: (5) 20 Amp hydraulic magnetic branch-rated circuit breakers
  • Dimensions: 10.5" L x 5.9" W x 7.6" H
  • Approximate Weight: 7.8 lbs.

Specifications_Sheet_97182_File_1.pdf
