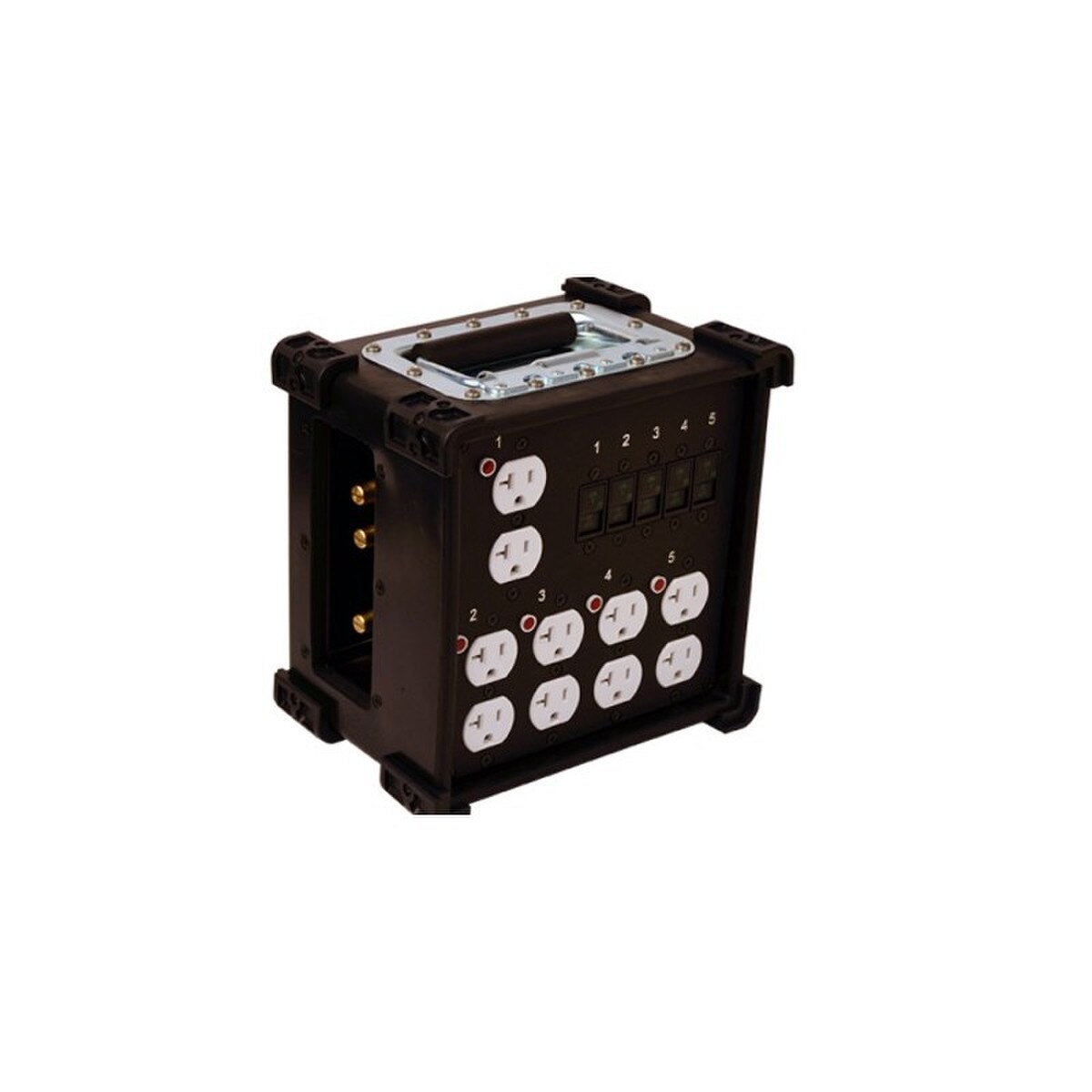

Lex 100 Amp CineBox Feed Thru

Lex 100 Amp CineBox Feed Thru

Fed from larger power sources, this compact distribution unit provides 5-20 duplex receptacles for smaller lights and related equipment. The feed thru feature allows multiple boxes on the same feed.

Features:

• Heavy-duty rubber enclosure is non-conductive and resistant to shock, impact and corrosion
• Durable lexan bumpers allow units to stack for easy storage and protects enclosure
• Collapsible handles provide easy handling in tight spaces and allow carrying multiple units
• Hydraulic magnetic circuit breakers help prevent nuisance tripping at high temperatures
• Flush mounting circuit breakers protect handles from impact while providing easy access
• Extra heavy-duty industrial grade receptacles are designed and manufactured to withstand harsh conditions
• Bright, color coded receptacles easily identify the box rating and increase visibility in low-light situations
• Optional threaded insert on the back provides easy mounting with C-clamp

Specifications:

• Rating 100 Amp, Single Phase, 2 Pole, 3 Wire (H,N,G), 120 VAC, 60 Hz
• Environmental Rating NEMA 1 Indoor
• Input (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin inlet
• Output (5) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
• Feed Thru (1) 100 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC, stage pin receptacle
• Overcurrent Protection (5) 20 Amp hydraulic magnetic 100% branch-rated circuit breakers
• Dimensions 9.0”W x 9.0”L x 6.38”D
• Weight 11.0 lbs
