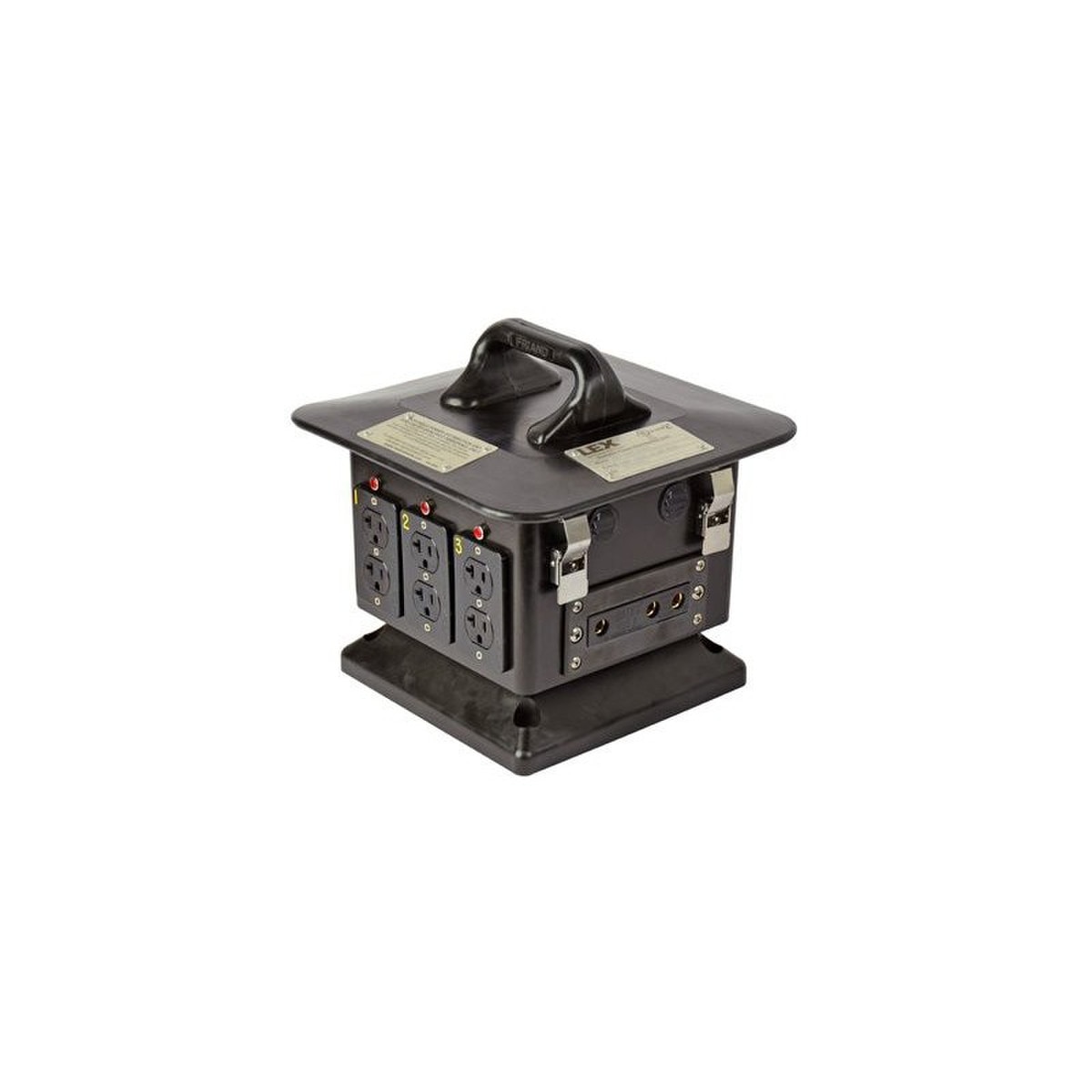

Lex 100 Amp Rubber Lunchbox Feed Thru
Details
This box is fed from a larger distribution box and provides power from a stage pin inlet to NEMA 5-20 duplex receptacles for smaller lights and related equipment. The feed thru feature allows multiple boxes to be placed along the same feed.
Features:
Specifications_Sheet_97184_File_1.pdf
Features:
- Heavy-duty molded rubber enclosure is fully insulated and resistant to shock, impact and corrosion
- Circuit breakers mounted under hinged lid for enhanced protection
- Stackable and compact for easy storage and convenient portability
- Elevated base keeps receptacles above ground level
- Rating: 100 Amp, Single Phase (H,N,G), 2 Pole, 3 Wire, 120 VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin inlet
- Output: (5) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC, duplex receptacles
- Feed Thru: (1) 100 Amp, 2 Pole, 3 Wire, 120 VAC, stage pin receptacle
- Overcurrent Protection: (5) 20 Amp, Single-Pole branch-rated circuit breakers
- Overall Dimensions: 11.38” L x 11.38” W x 11.32” H
- Weight: 16 lbs.
