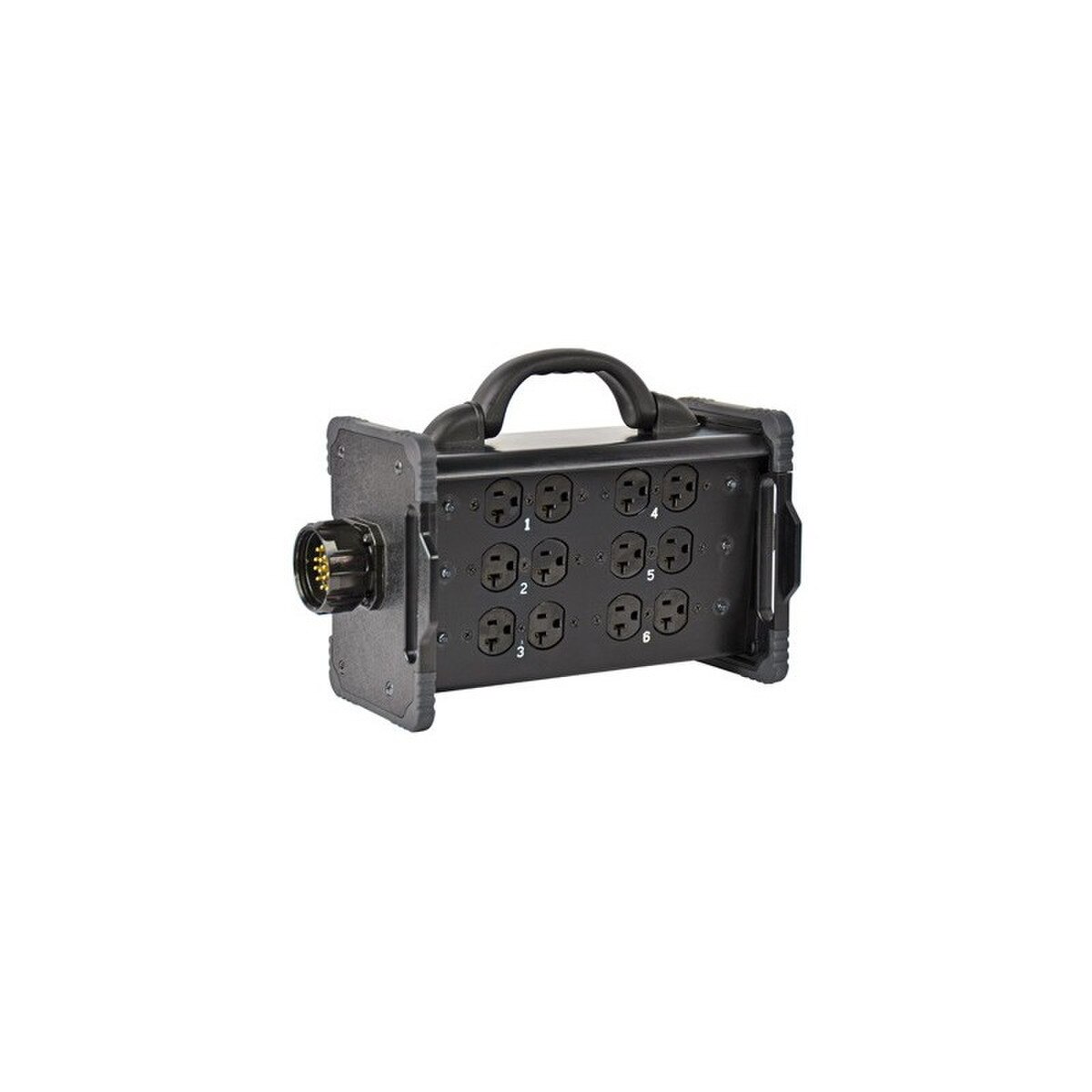

Lex 20 Amp Break Out Box to Edison Receptacles Feed Thru
Breaks an industry standard 6-circuit lighting cable into NEMA 5-20, 20 Amp duplex receptacles. The feed thru option allows multiple boxes to be placed along the same feed. Optional mounting bracket and threaded insert enables c-clamp attachment.
Features:
Specifications_Sheet_97173_File_1.pdf
Breaks an industry standard 6-circuit lighting cable into NEMA 5-20, 20 Amp duplex receptacles. The feed thru option allows multiple boxes to be placed along the same feed. Optional mounting bracket and threaded insert enables c-clamp attachment.
Features:
- Provides 12 connection points for lights using 20 Amp duplex receptacles
- Optional bracket and threaded insert enables easy mounting vertically or horizontally with C-clamp* (see ordering information for more details)
- Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
- Feed thru option allows multiple boxes to be placed along the same feed
- End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
- Stackable and compact for easy storage
- Rating: 20 Amp, 6-circuit, 120 VAC
- Environmental Rating: NEMA 1 Indoor
- Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount inlet
- Output: (6) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles
- Feed Thru: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount receptacle
- Overcurrent Protection: None
- Dimensions: 11.5" L x 5.9" W x 7.6" H
- Approximate Weight: 6.2 lbs.
