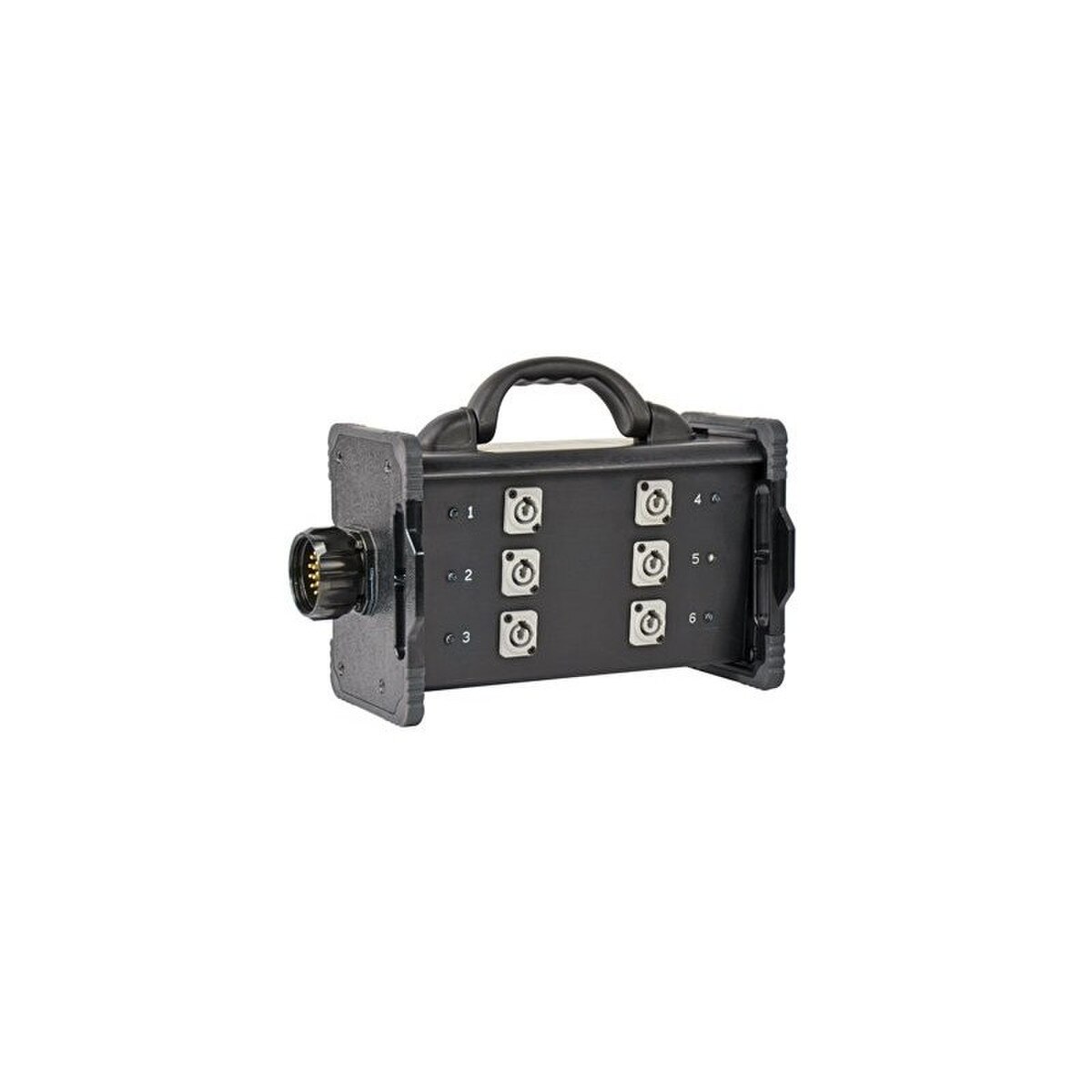

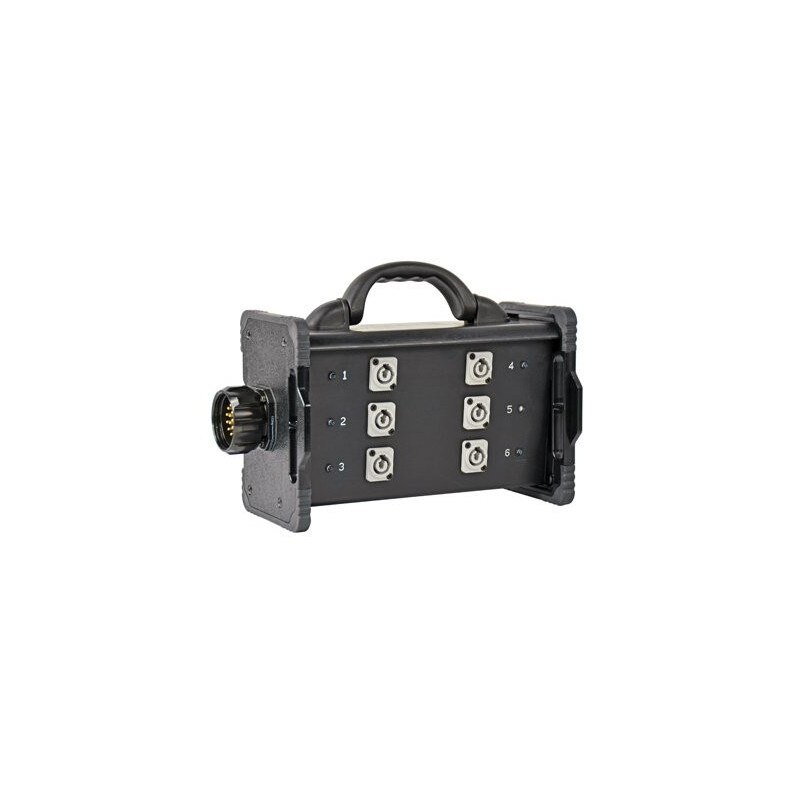

Lex 20 Amp Break Out Box to powerCON Connectors Feed Thru

Lex 20 Amp Break Out Box to powerCON Connectors Feed Thru

Breaks an industry standard 6-circuit lighting cable into 20 Amp powerCON connections for powering LED lights. The feed thru option allows multiple boxes to be placed along the same feed.

Features:

• Provides power for LED lights using powerCON outlets
• Optional bracket and threaded insert available that enables easy mounting vertically or horizontally with C-clamp (see ordering information for details)
• Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
• Feed-thru option allows multiple boxes to be placed along the same feed
• End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
• Stackable and compact for easy storage

Specifications:

• Rating: 20 Amp, 6-circuit, 120 VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount male
• Output: (6) 20 Amp PowerCON receptacles
• Feed Thru: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 panel mount female
• Overcurrent Protection: None
• Dimensions: 11.5" L x 5.9" W x 7.6" H
• Approximate Weight: 6.7 lbs

Specifications_Sheet_97167_File_1.pdf
