Lex 20 Amp Break Out Box w/ Tail Input to Edison & Stage Pin Receptacles

(0)No Reviews yet
$1,248.68
SKU: Lex BNZJ3-Z1-CLP

Add this item to get free shipping! (Motor Freight Excluded)

Details

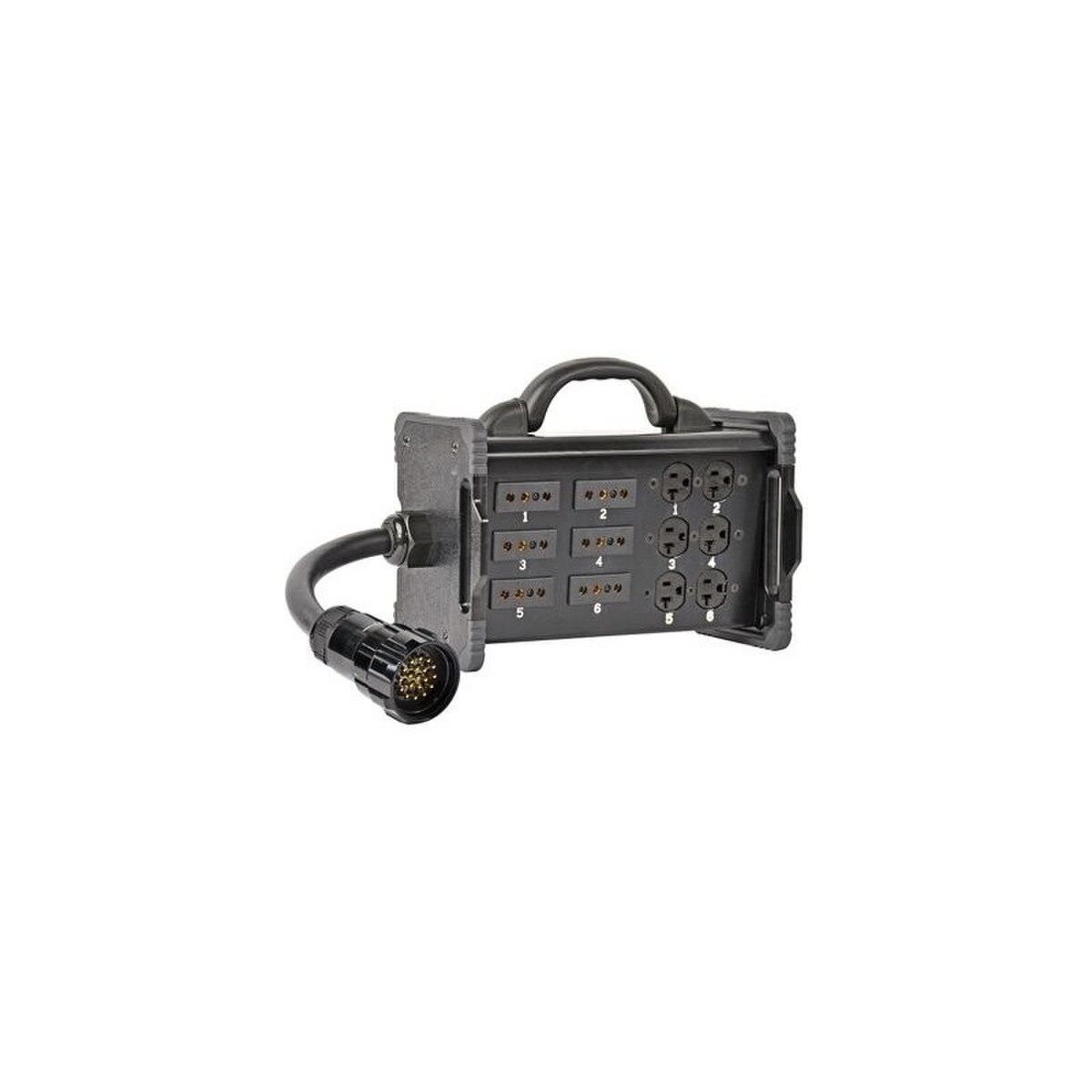

Lex 20 Amp Break Out Box with Tail Input to Edison and Stage Pin Receptacles

Breaks an industry standard 6-circuit lighting cable into a combination of NEMA 5-20 and stage pin receptacles, which is ideal for applications using lights where a combination of both plug types are required.

Features:

  • A combination of NEMA 5-20 and stage pin receptacles allows convenient connections where devices with both plugs are used
  • Optional model available that enables easy mounting vertically or horizontally with C-clamp (see ordering information for more details)
  • Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated and resistant to shock, impact and corrosion
  • End plate grips for easy handling in tight spaces, and collapsible handle available on standard model
  • Stackable and compact for easy storage


Specifications:

  • Rating: 20 Amp, 6-circuit, 120 VAC
  • Environmental Rating: NEMA 1 Indoor
  • Input: (1) 20 Amps per circuit, 6-circuit, 120 VAC, LSC19 inline male on 12 inch 12/14 TPR tail
  • Output: (3) NEMA 5-20, 20 Amp, 2 Pole, 3 Wire, 120 VAC duplex receptacles wired in parallel to (6) 20 Amp, 2 Pole, 3 Wire, 120 VAC stage pin receptacles
  • Feed Thru: None
  • Overcurrent Protection: None
  • Dimensions: 11.5" L x 5.9" W x 7.6" H
  • Approximate Weight: 6.7 lbs

Specifications_Sheet_97175_File_1.pdf
