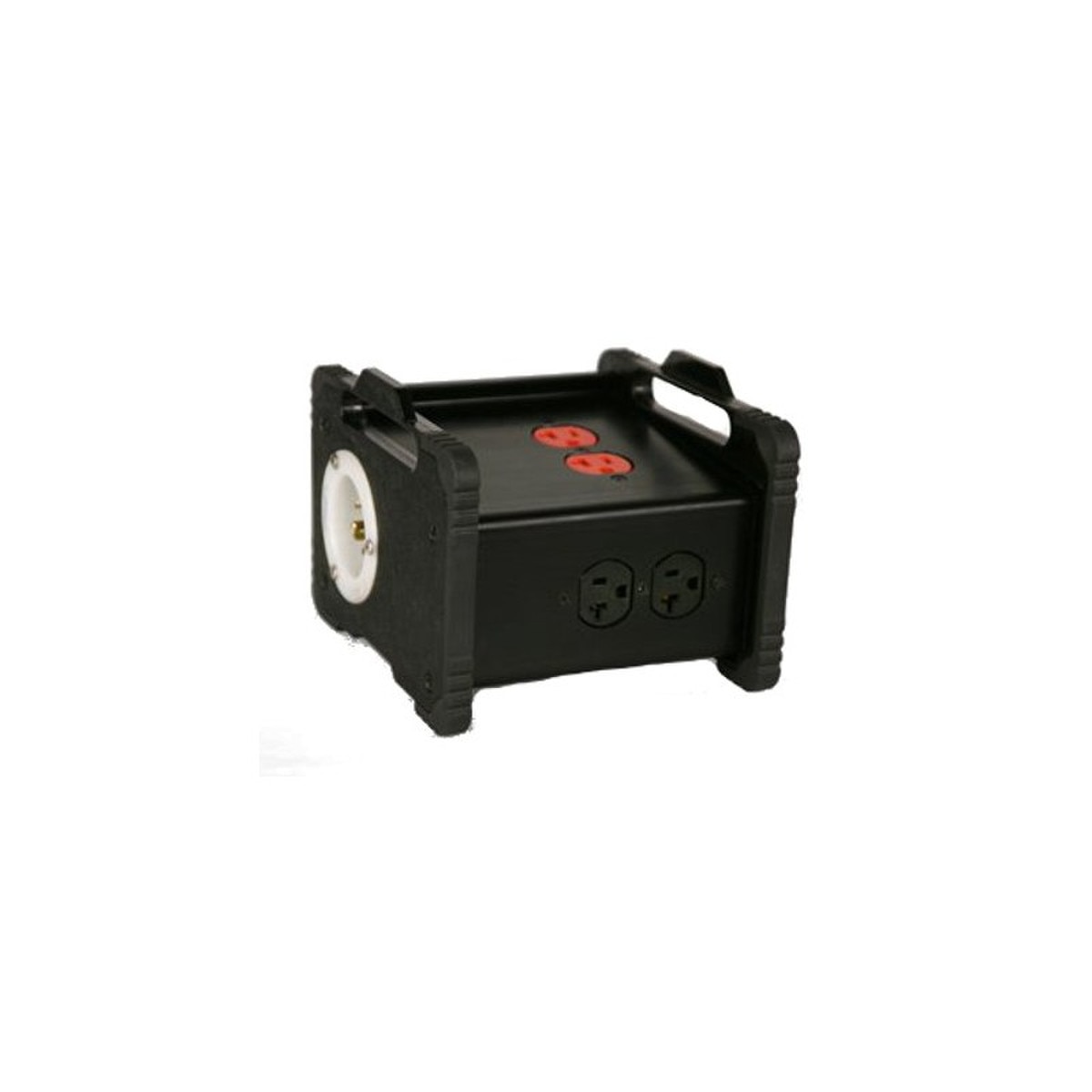

Lex 20 Amp Doghouse to Duplex Receptacles Feed Thru

Lex 20 Amp Doghouse to Duplex Receptacles Feed Thru

The new doghouse is ideal for tradeshow and exhibitions where a large number of convenience receptacles are needed over a wide area. The feed thru feature allows multiple boxes to be placed along one feed so that receptacles can be easily placed wherever needed. Doghouses are also popular in live event and audio applications where multiple amplifiers, speakers and other audio components require power while positioned on a stage or other venues.

Features:

• Stackable and compact for easy storage
• Heavy-duty extruded engineered thermoplastic enclosure is electrically insulated, resistant to shock, impact and corrosion
• End plate grips for easy handling in tight spaces
• Duplex receptacles are color coded for phase identification

Specifications:

• Rating: 20 Amp, 3 Phase (H,H,H,N,G), 4 Pole, 5 Wire,120/208Y VAC
• Environmental Rating: NEMA 1 Indoor
• Input: (1) NEMA L21-20, 20 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC inlet
• Output: (3) NEMA 5-20, 20 Amp, Single Phase, 2 Pole, 3 Wire, 120 VAC color-coded duplex receptacles
• Feed Thru: (1) NEMA L21-20, 20 Amp, 3 Phase, 4 Pole, 5 Wire, 120/208Y VAC locking receptacle
• Overcurrent Protection: None
• Dimensions: 6"L x 7.6"W x 5.6"H
• Weight: 4 lbs
